Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#8605) — 370 parça

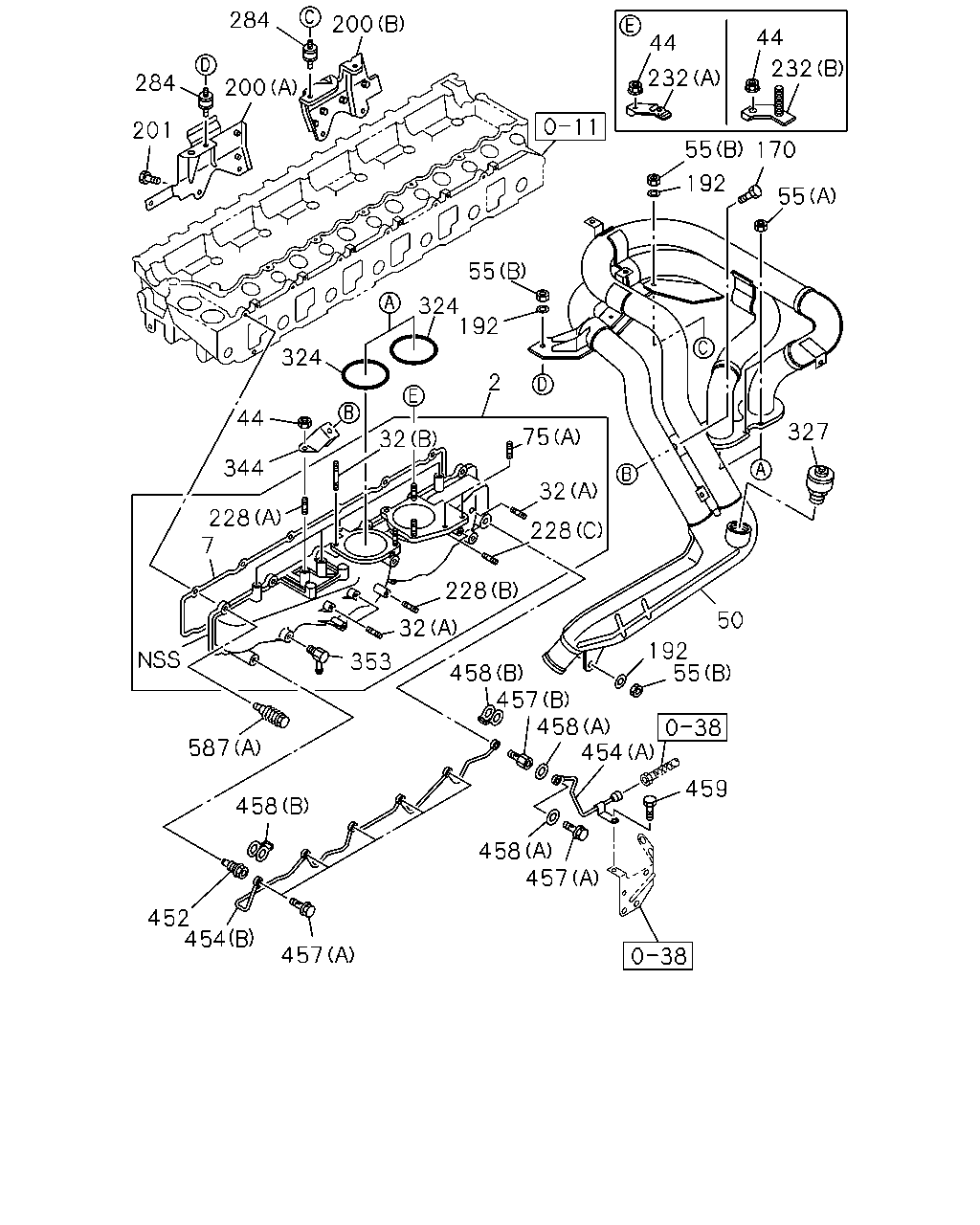

284 200 44 44 232 232 284 200 201 55 170 192 55 55 324 192 324 2 44 327 75 32 344 32 228 7 228 228 50 32 192 55 353 458 457 458 454 587 459 458 458 457 452 454 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94391-106-1	01	1	0005-0108	●
2	COVER; INL	8-97602-255-0	01	1	0109-0210	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210		●
2	COVER; INL	1-14110-552-1	01	1	0005-0101			●
2	COVER; INL	1-14110-603-0	01	1	0102-0210			●
2	COVER; INL	8-97600-658-1	01	1	0303-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0303-				●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108	●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210		●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210		●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
50	PIPE; INL	8-97601-301-0	01	1	0005-0210	●
50	PIPE; INL	8-97601-469-0	01	1	0303-				●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	0005-0210		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	04	1	0211-0602			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	04	1	0603-			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	02	1	0603-				●
75	STUD; BRKT,AIR PIPE (A) M10X25 L=40	9-04411-025-0	02	1	0005-0210	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	9-04110-616-0	01	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	0-41010-616-0	01	1	0605-				●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	9-04110-625-0	01	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	0-41010-625-0	01	1	0605-				●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	9-04110-816-0	04	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	0-41010-816-0	04	1	0605-				●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	0-44011-025-0	02	1	0605-				●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0005-0210	●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0005-0210	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	02	1	0303-0605				●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	02	1	0606-				●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210	●
200	BRACKET; AIR DUCT (D)	8-97601-726-0	01	1	0303-				●
200	BRACKET; AIR DUCT (C)	8-97601-818-0	01	1	0303-				●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0303-0512				●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-				●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0005-0210			●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	0005-0210			●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0005-0210			●
232	BRACKET; INJ PIPE (A)	8-94395-027-0	01	1	0005-0108	●
232	BRACKET; INJ PIPE (B)	8-94391-452-0	01	1	0109-0210	●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0005-0210	●
284	RUBBER; INL PIPE MTG	8-94393-869-0	01	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0303-				●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	0005-0210	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0005-0210	●
344	BRACKET; INL PIPE	8-97602-160-0	01	1	0303-				●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210	●
353	PIPE; AIR,BOOST	1-19192-980-0	01	1	0005-0210			●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210	●	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210	●	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210	●	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210	●	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210	●	●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210	●	●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210	●	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28680-635-0	02	1	0211-0512			●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210	●
587	MOUNTING; INTAKE DUCT (B)	8-94395-766-0	01	1	0303-				●
587	MOUNTING; INTAKE DUCT (C) OD=23	8-97105-689-6	01	1	0303-				●

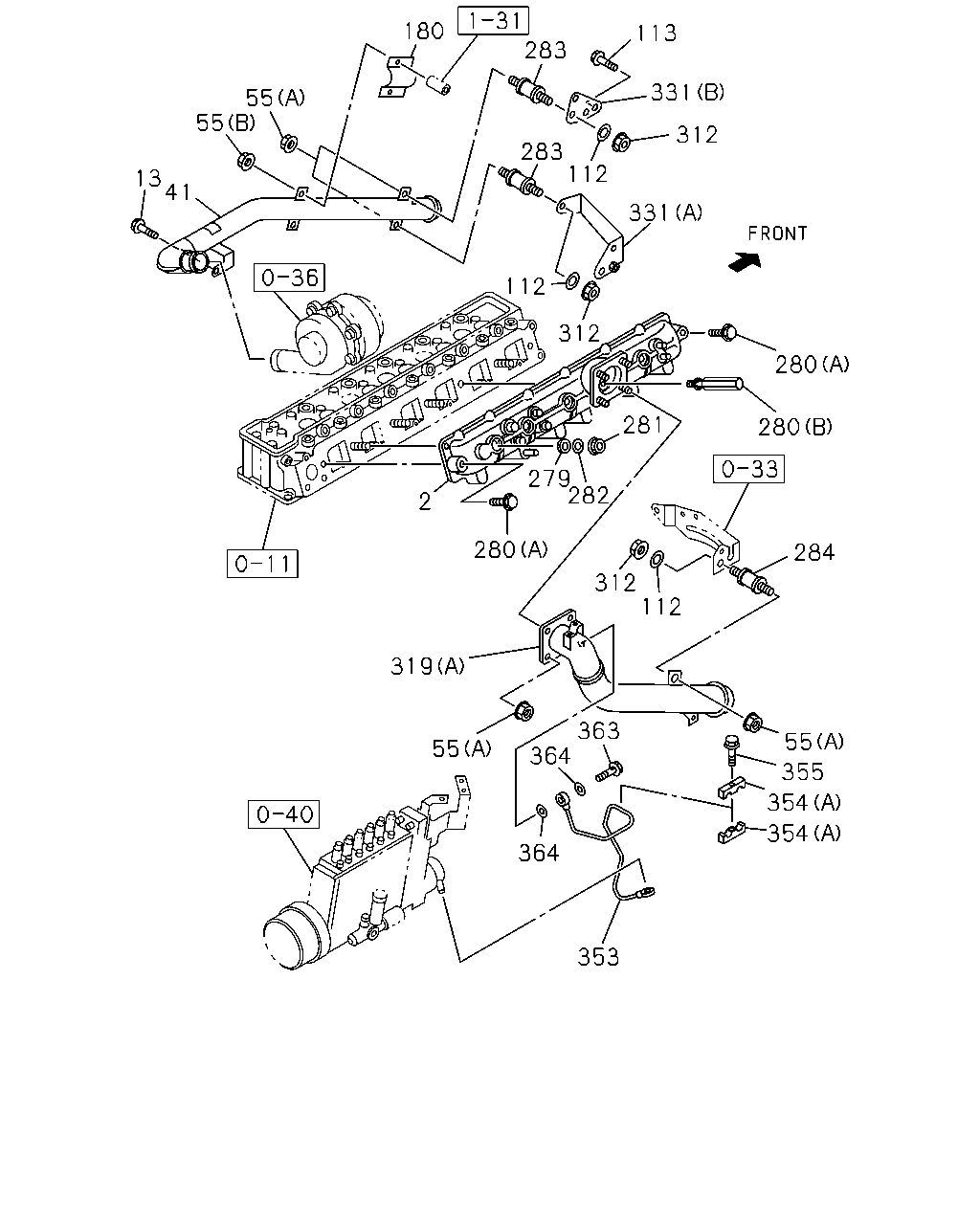

180 113 283 331 55 55 312 283 112 13 41 331 112 312 280 281 280 279 282 2 280 284 312 112 319 363 364 55 55 355 354 354 364 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94391-106-1	01	1	0005-0108	●
2	COVER; INL	8-97602-255-0	01	1	0109-0210	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210		●
2	COVER; INL	1-14110-552-1	01	1	0005-0101			●
2	COVER; INL	1-14110-603-0	01	1	0102-0210			●
2	COVER; INL	8-97600-658-1	01	1	0303-				●
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	0005-0210			●
13	BOLT; INL MANIF M8X35 FLANGE	0-28080-835-0	04	1	0211-0512			●
13	BOLT; INL MANIF M8X35 FLANGE	0-28050-835-0	04	1	0601-			●
41	DUCT; INT COVER	1-14134-146-2	01	1	0005-0210			●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	0005-0210		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	04	1	0211-0602			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	04	1	0603-			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	02	1	0603-				●
112	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210			●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
180	PROTECTOR; HEAT	1-14181-286-0	01	1	0005-0210			●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0005-0210			●
280	BOLT; INL COVER (C) M8X28 FLANGE	0-28080-828-0	12	1	0005-0210		●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0210			●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0005-0210			●
281	NUT; INL COVER	1-11175-011-1	04	1	0005-0210			●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0005-0210			●
283	RUBBER	8-94394-268-1	02	1	0005-0210			●
283	RUBBER	1-14119-435-0	01	1	0211-			●
283	RUBBER	8-94394-268-1	01	1	0303-0910				●
283	RUBBER	8-98148-109-0	01	1	0911-				●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0005-0210	●
284	RUBBER; INL PIPE MTG	8-94393-869-0	01	1	0005-0210			●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0303-0602				●
312	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-				●
319	DUCT; INL,TURBOCHARGER (A)	1-14134-393-0	01	1	0005-0111			●
319	DUCT; INL,TURBOCHARGER EXC. A/T<X9D> (A)	1-14134-393-0	01	1	0112-0210			●
319	DUCT; INL,TURBOCHARGER (B)	1-14134-399-2	01	1	0211-			●
319	DUCT; INL,TURBOCHARGER A/T<X9D> (A)	1-14134-394-0	01	1	0112-0210			●
331	STAY; INL DUCT (A)	1-13719-088-0	01	1	0005-0210			●
331	STAY; INL DUCT (B)	1-14119-389-0	01	1	0005-0210			●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210	●
353	PIPE; AIR,BOOST	1-19192-980-0	01	1	0005-0210			●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-132-1	02	1	0303-1210			●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-240-0	02	1	1211-			●
354	CLIP; AIR PIPE (A)	1-09701-132-0	02	1	0005-0210			●
354	CLIP; AIR PIPE (B)	1-09701-240-0	04	1	0211-			●
354	CLIP; AIR PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0303-				●
354	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	02	1	0303-				●
355	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
363	BOLT; EYE	1-09675-184-0	01	1	0005-0210			●
363	BOLT; EYE M8X24	1-09675-206-0	01	1	0211-0306			●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0307-			●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-0210			●

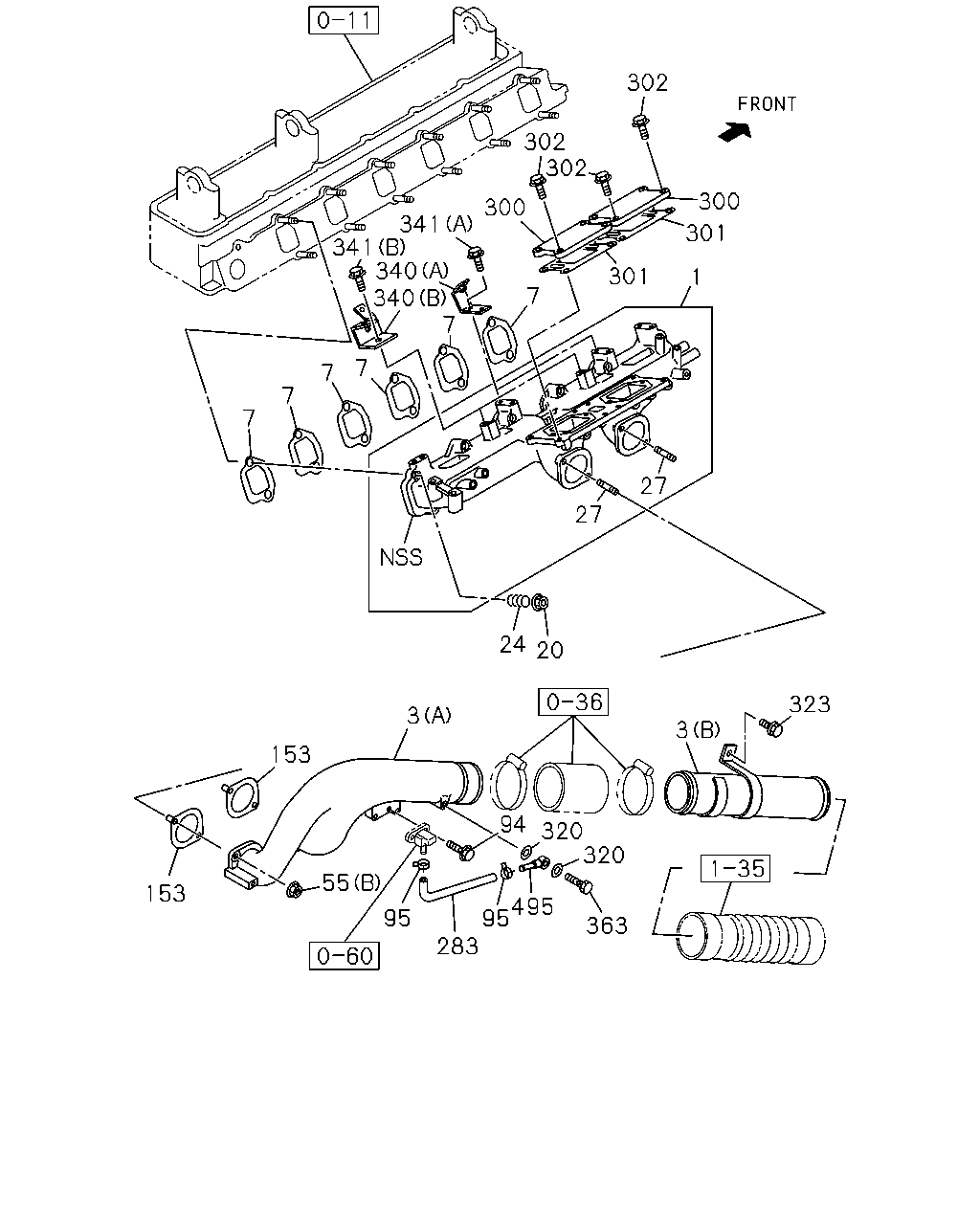

302 302 302 300 300 341 341 340 340 7 301 301 1 7 7 7 7 7 27 27 24 20 323 3 3 153 320 320 94 55 153 495 95 283 95 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	1-14110-599-1	01	1	0211-			●
3	DUCT; INT (A)	1-14134-400-2	01	1	0211-			●
3	DUCT; INT (B)	1-14134-471-0	01	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0303-				●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	12	1	0211-0602			●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	12	1	0603-			●
24	SPRING; INL MANIF	8-94393-858-0	12	1	0211-			●
27	STUD; INL MANIF M10X25 L=40	9-04411-025-0	04	1	0211-0604			●
27	STUD; INL MANIF M10X25 L=40	0-44011-025-0	04	1	0605-			●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	0005-0210		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	04	1	0211-0602			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	04	1	0603-			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	02	1	0603-				●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0211-0512			●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0211-			●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-097-0	02	1	0211-			●
283	RUBBER	8-94394-268-1	02	1	0005-0210			●
283	RUBBER	1-14119-435-0	01	1	0211-			●
283	RUBBER	8-94394-268-1	01	1	0303-0910				●
283	RUBBER	8-98148-109-0	01	1	0911-				●
300	COVER; INL MANIF	1-11749-208-0	02	1	0211-			●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0211-			●
302	BOLT; INL MANIF COVER M10X30 FLANGE	0-28181-030-0	08	1	0211-0512			●
302	BOLT; INL MANIF COVER M10X30 FLANGE	0-28151-030-0	08	1	0601-			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0211-			●
323	BOLT; DUCT M8X35 FLANGE	0-28680-835-0	02	1	0211-0512			●
323	BOLT; DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0303-0512				●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-				●
340	BRACKET; HARNESS INL MANIF (B)	1-13729-052-0	02	1	0211-			●
340	BRACKET; HARNESS INL MANIF (A)	1-14119-463-0	03	1	0211-			●
341	BOLT; BRKT,INL COVER (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0512			●
341	BOLT; BRKT,INL COVER (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
341	BOLT; BRKT,INL COVER (B) M10X16 FLANGE	0-28181-016-0	02	1	0211-0512			●
341	BOLT; BRKT,INL COVER (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
363	BOLT; EYE	1-09675-184-0	01	1	0005-0210			●
363	BOLT; EYE M8X24	1-09675-206-0	01	1	0211-0306			●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0307-			●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0211-			●

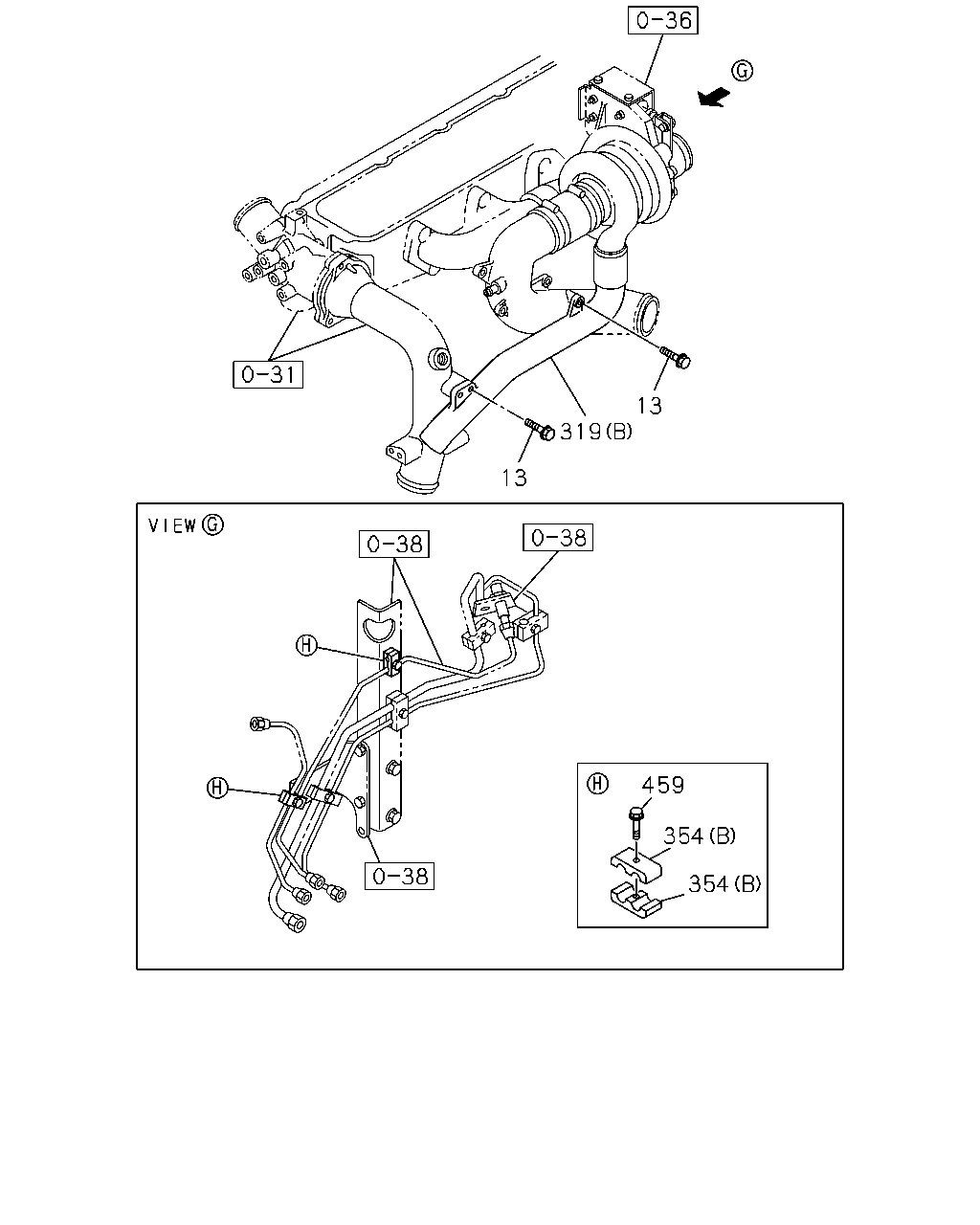

13 319 13 459 354 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	0005-0210			●
13	BOLT; INL MANIF M8X35 FLANGE	0-28080-835-0	04	1	0211-0512			●
13	BOLT; INL MANIF M8X35 FLANGE	0-28050-835-0	04	1	0601-			●
319	DUCT; INL,TURBOCHARGER (A)	1-14134-393-0	01	1	0005-0111			●
319	DUCT; INL,TURBOCHARGER EXC. A/T<X9D> (A)	1-14134-393-0	01	1	0112-0210			●
319	DUCT; INL,TURBOCHARGER (B)	1-14134-399-2	01	1	0211-			●
319	DUCT; INL,TURBOCHARGER A/T<X9D> (A)	1-14134-394-0	01	1	0112-0210			●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-132-1	02	1	0303-1210			●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-240-0	02	1	1211-			●
354	CLIP; AIR PIPE (A)	1-09701-132-0	02	1	0005-0210			●
354	CLIP; AIR PIPE (B)	1-09701-240-0	04	1	0211-			●
354	CLIP; AIR PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0303-				●
354	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	02	1	0303-				●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28680-635-0	02	1	0211-0512			●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28650-635-0	02	1	0601-			●

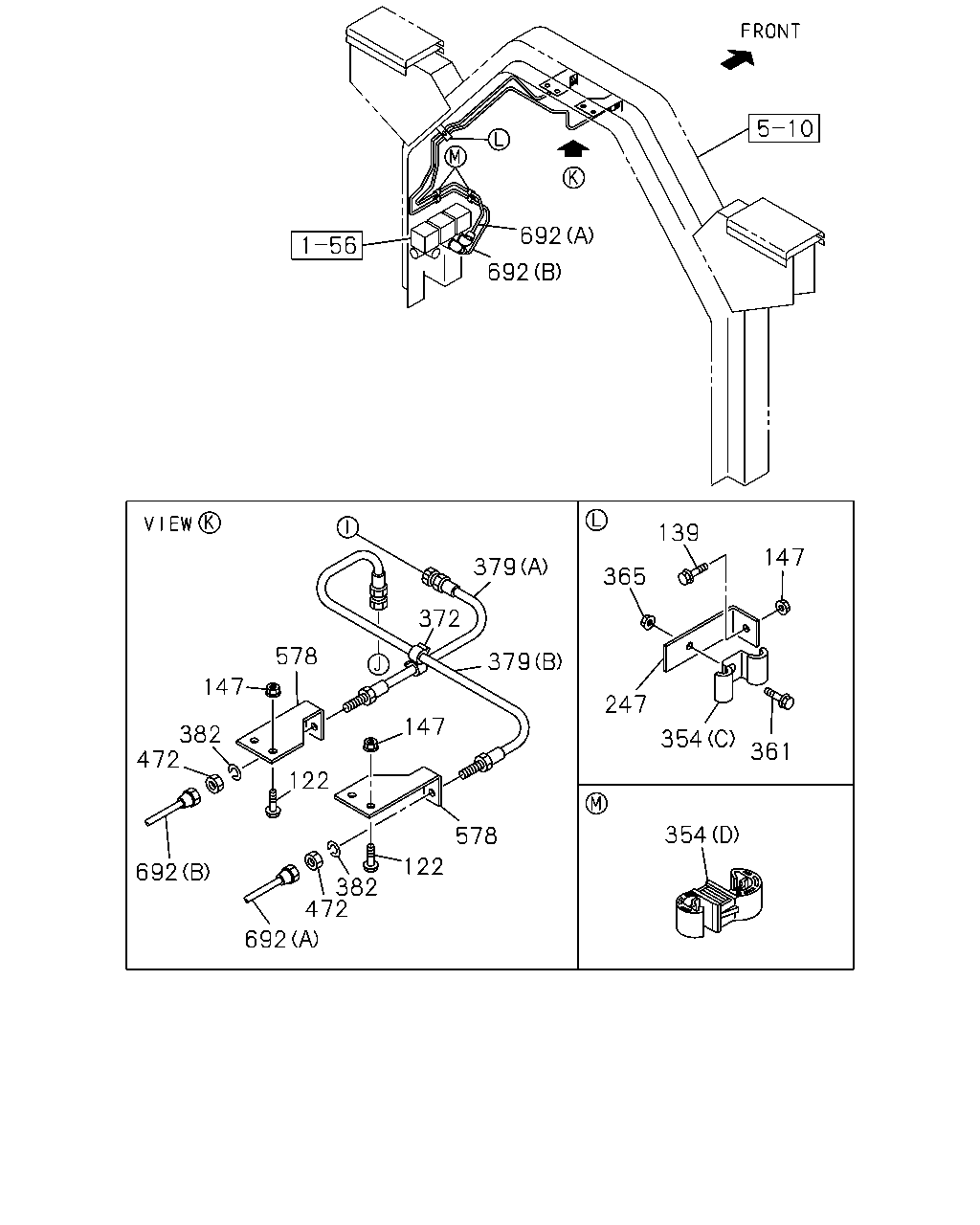

692 692 139 147 379 365 372 578 379 147 247 147 382 472 354 361 122 354 578 122 692 382 472 692

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
122	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0303-0512		●
122	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
139	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	01	1	0303-0512		●
139	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
147	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0303-0602		●
147	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-		●
247	BRACKET; CLIP L=60	1-47475-455-0	01	1	0303-		●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-132-1	02	1	0303-1210	●
354	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-240-0	02	1	1211-	●
354	CLIP; AIR PIPE (A)	1-09701-132-0	02	1	0005-0210	●
354	CLIP; AIR PIPE (B)	1-09701-240-0	04	1	0211-	●
354	CLIP; AIR PIPE (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0303-		●
354	CLIP; AIR PIPE (D) ID=6.35 & 6.35	1-09709-273-1	02	1	0303-		●
361	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0303-0512		●
361	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
365	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0303-0602		●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
372	CLIP; HOSE ID=10 & 10	1-09709-277-1	01	1	0303-		●
379	HOSE; FLEX (A) L=260	1-09363-609-0	01	1	0303-		●
379	HOSE; FLEX (B) L=380	1-09363-884-0	01	1	0303-		●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0303-0603		●
382	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-		●
472	NUT M12	9-09840-280-0	02	1	0303-		●
578	BRACKET; FLEX HOSE	1-47479-244-0	01	1	0303-0303		●
578	BRACKET; FLEX HOSE	1-47479-244-0	01	1	0304-		●
578	BRACKET; FLEX HOSE	1-47479-243-0	01	1	0303-0303		●
578	BRACKET; FLEX HOSE	1-47479-243-0	01	1	0304-		●
692	PIPE; AIR,MAG VLV (A)	1-49123-086-0	01	1	0303-		●
692	PIPE; AIR,MAG VLV (B)	1-49123-087-0	01	1	0303-0303		●
692	PIPE; AIR,MAG VLV (B)	1-49124-048-0	01	1	0304-		●

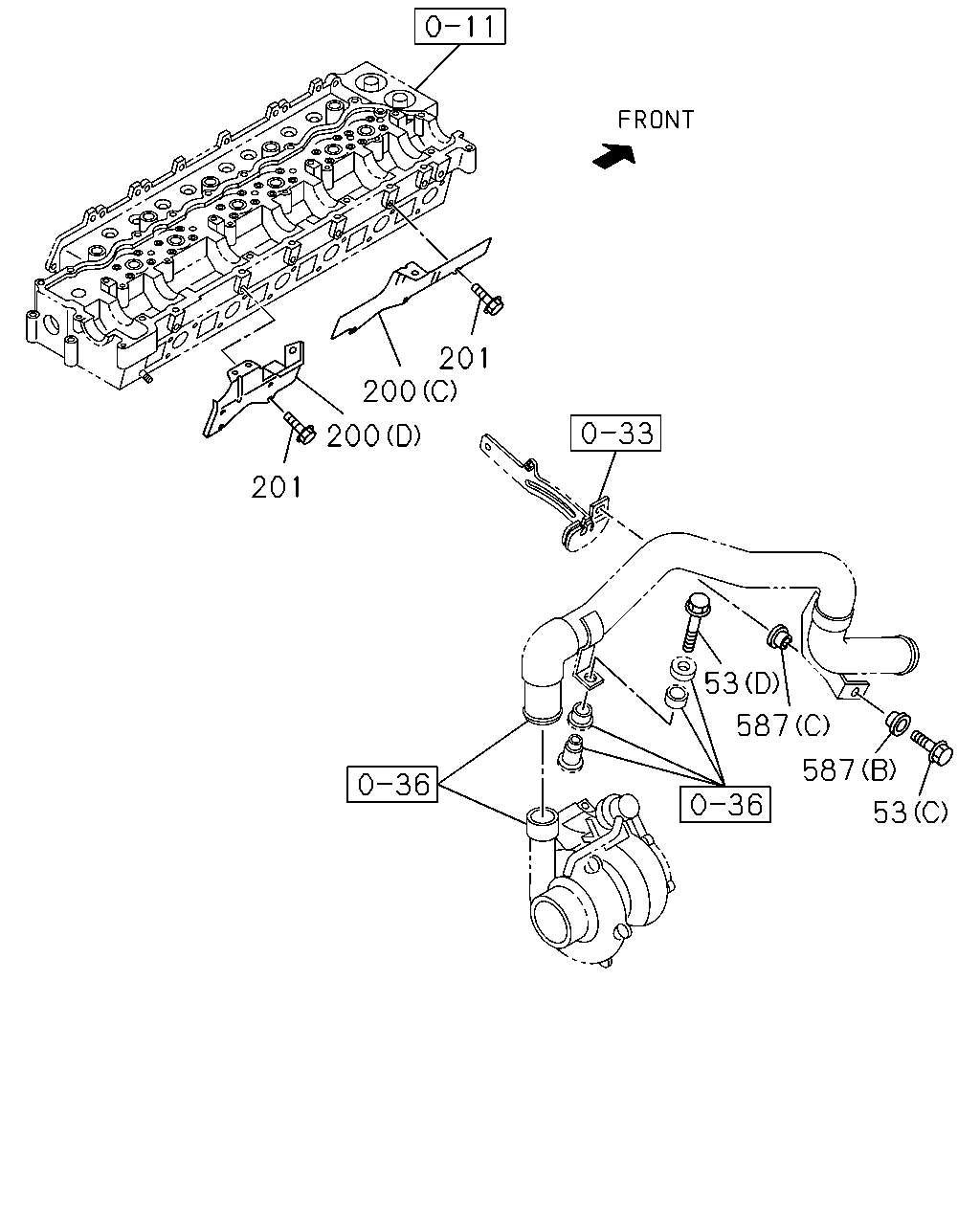

201 200 200 201 53 587 587 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
53	BOLT; INL PIPE (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210		●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28680-820-0	03	1	0303-0512			●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-			●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0303-0512			●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-			●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0303-0512			●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210	●
200	BRACKET; AIR DUCT (D)	8-97601-726-0	01	1	0303-			●
200	BRACKET; AIR DUCT (C)	8-97601-818-0	01	1	0303-			●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0303-0512			●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-			●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210	●
587	MOUNTING; INTAKE DUCT (B)	8-94395-766-0	01	1	0303-			●
587	MOUNTING; INTAKE DUCT (C) OD=23	8-97105-689-6	01	1	0303-			●

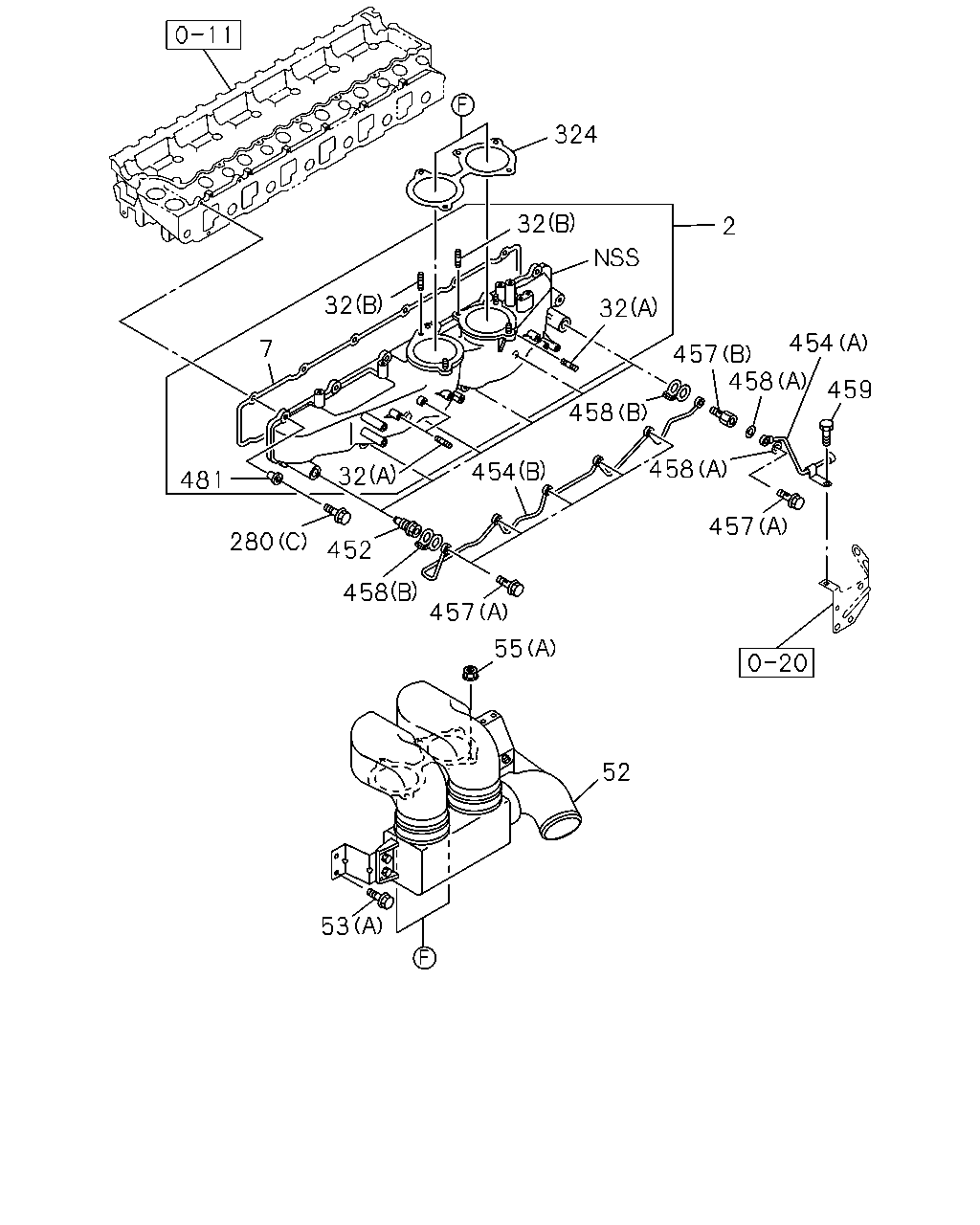

324 32 2 32 32 454 7 457 458 459 458 458 454 32 481 457 280 452 458 457 55 52 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94391-106-1	01	1	0005-0108	●
2	COVER; INL	8-97602-255-0	01	1	0109-0210	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210		●
2	COVER; INL	1-14110-552-1	01	1	0005-0101			●
2	COVER; INL	1-14110-603-0	01	1	0102-0210			●
2	COVER; INL	8-97600-658-1	01	1	0303-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0303-				●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108	●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210		●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210		●
52	PIPE; INL	8-94395-597-1	01	1	0005-0210		●
53	BOLT; INL PIPE (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210		●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28680-820-0	03	1	0303-0512				●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-				●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0303-0512				●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-				●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0303-0512				●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-				●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	0005-0210		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	04	1	0211-0602			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	04	1	0603-			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	02	1	0603-				●
280	BOLT; INL COVER (C) M8X28 FLANGE	0-28080-828-0	12	1	0005-0210		●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0210			●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0005-0210			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0303-				●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210	●	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210	●	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210	●	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210	●	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210	●	●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210	●	●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210	●	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28680-635-0	02	1	0211-0512			●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28650-635-0	02	1	0601-			●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	0005-0210		●

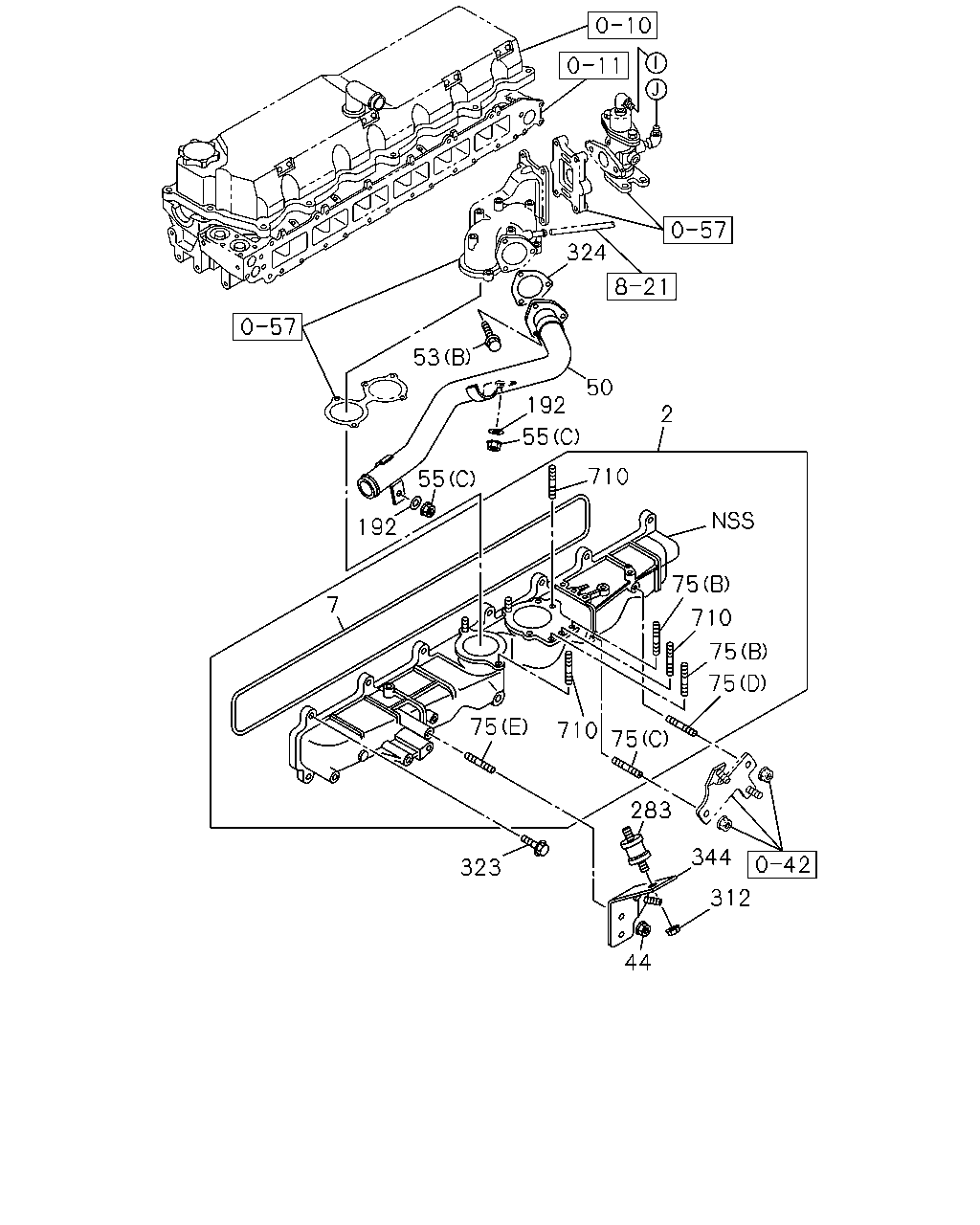

324 53 50 192 2 55 710 55 192 75 7 710 75 75 75 710 75 283 344 323 312 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94391-106-1	01	1	0005-0108	●
2	COVER; INL	8-97602-255-0	01	1	0109-0210	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210		●
2	COVER; INL	1-14110-552-1	01	1	0005-0101			●
2	COVER; INL	1-14110-603-0	01	1	0102-0210			●
2	COVER; INL	8-97600-658-1	01	1	0303-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0303-				●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
50	PIPE; INL	8-97601-301-0	01	1	0005-0210	●
50	PIPE; INL	8-97601-469-0	01	1	0303-				●
53	BOLT; INL PIPE (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210		●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28680-820-0	03	1	0303-0512				●
53	BOLT; INL PIPE (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-				●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0303-0512				●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-				●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0303-0512				●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-				●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	05	1	0005-0210		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	04	1	0211-0602			●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	04	1	0603-			●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	02	1	0603-				●
75	STUD; BRKT,AIR PIPE (A) M10X25 L=40	9-04411-025-0	02	1	0005-0210	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	9-04110-616-0	01	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	0-41010-616-0	01	1	0605-				●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	9-04110-625-0	01	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	0-41010-625-0	01	1	0605-				●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	9-04110-816-0	04	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	0-41010-816-0	04	1	0605-				●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0303-0604				●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	0-44011-025-0	02	1	0605-				●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	02	1	0303-0605				●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	02	1	0606-				●
283	RUBBER	8-94394-268-1	02	1	0005-0210			●
283	RUBBER	1-14119-435-0	01	1	0211-			●
283	RUBBER	8-94394-268-1	01	1	0303-0910				●
283	RUBBER	8-98148-109-0	01	1	0911-				●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0303-0602				●
312	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-				●
323	BOLT; DUCT M8X35 FLANGE	0-28680-835-0	02	1	0211-0512			●
323	BOLT; DUCT M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0303-0512				●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-				●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0303-				●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0005-0210	●
344	BRACKET; INL PIPE	8-97602-160-0	01	1	0303-				●
710	STUD; DUCT M8X25 L=37	9-04110-825-0	03	1	0303-0604				●
710	STUD; DUCT M8X25 L=37	0-41010-825-0	03	1	0605-				●

2 228 161 228 18 221 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94391-106-1	01	1	0005-0108	●
2	COVER; INL	8-97602-255-0	01	1	0109-0210	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210		●
2	COVER; INL	1-14110-552-1	01	1	0005-0101			●
2	COVER; INL	1-14110-603-0	01	1	0102-0210			●
2	COVER; INL	8-97600-658-1	01	1	0303-				●
18	SCREW; PLATE,INL CVR	1-09054-019-0	08	1	0005-0210			●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0005-0210			●
221	PLATE; INL COVER	1-14119-261-0	04	1	0005-0210			●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0005-0210			●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	0005-0210			●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
