0-22 — ENGINE MOUNTING (#8604) — 157 parça

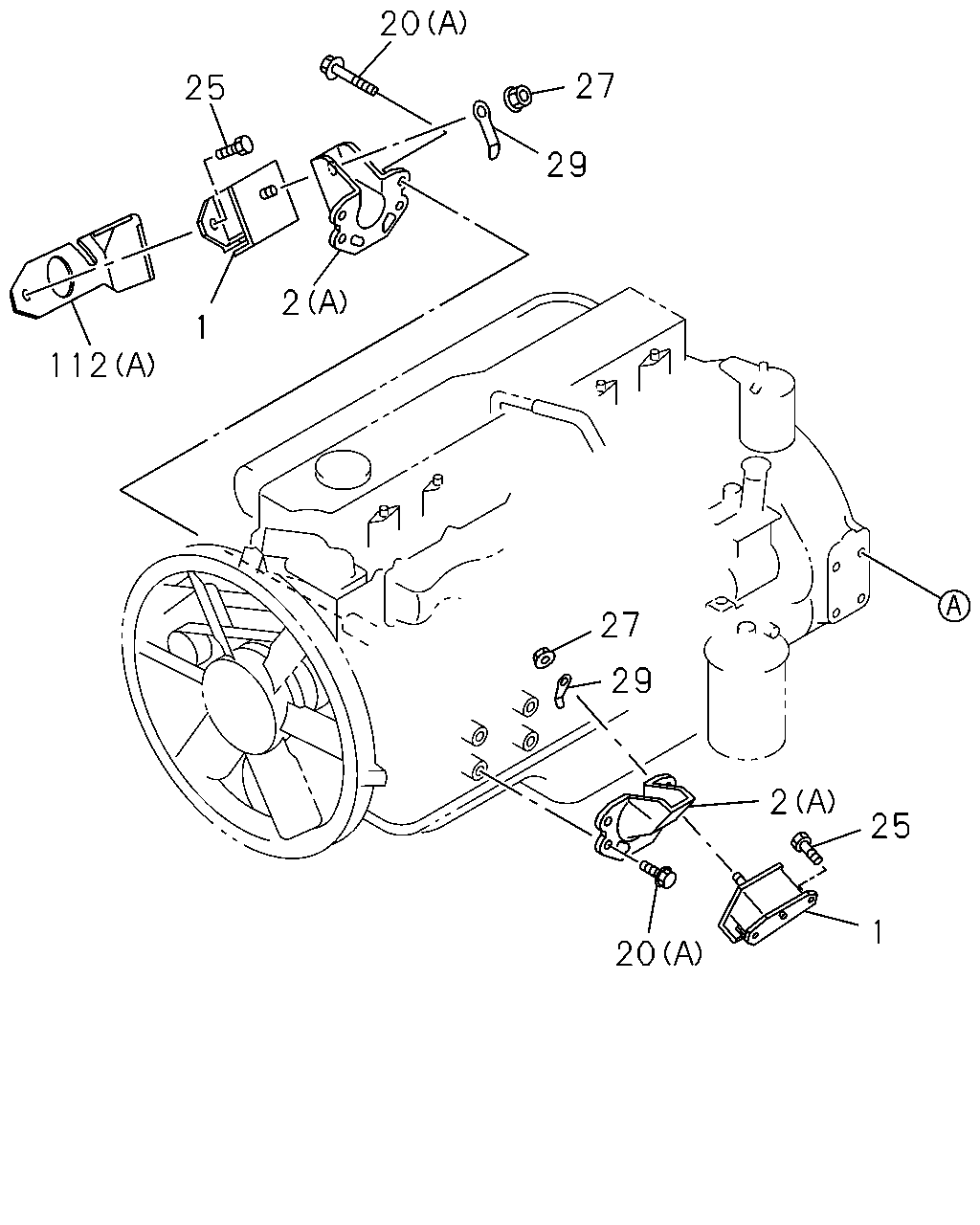

20 27 25 29 2 1 112 27 29 2 25 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0005-0210	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	0005-0111			●
1	RUBBER; ENG FOOT,FRT EXC. A/T<X9D>	1-53215-132-2	02	1	0112-			●
1	RUBBER; ENG FOOT,FRT A/T<X9D>	1-53215-131-2	02	1	0112-			●
1	RUBBER; ENG FOOT,FRT	1-53215-173-0	02	1	0303-				●
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0005-0210	●	●
2	FOOT; ENG (C)	1-11771-172-0	02	1	0005-			●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0303-				●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0303-				●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0303-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0005-			●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	0005-			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0303-				●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0210	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	0303-0512				●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-				●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0005-0512			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0303-0602				●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-				●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0005-0210	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0005-			●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0303-				●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (C)	1-53219-754-0	01	1	0005-			●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0303-				●

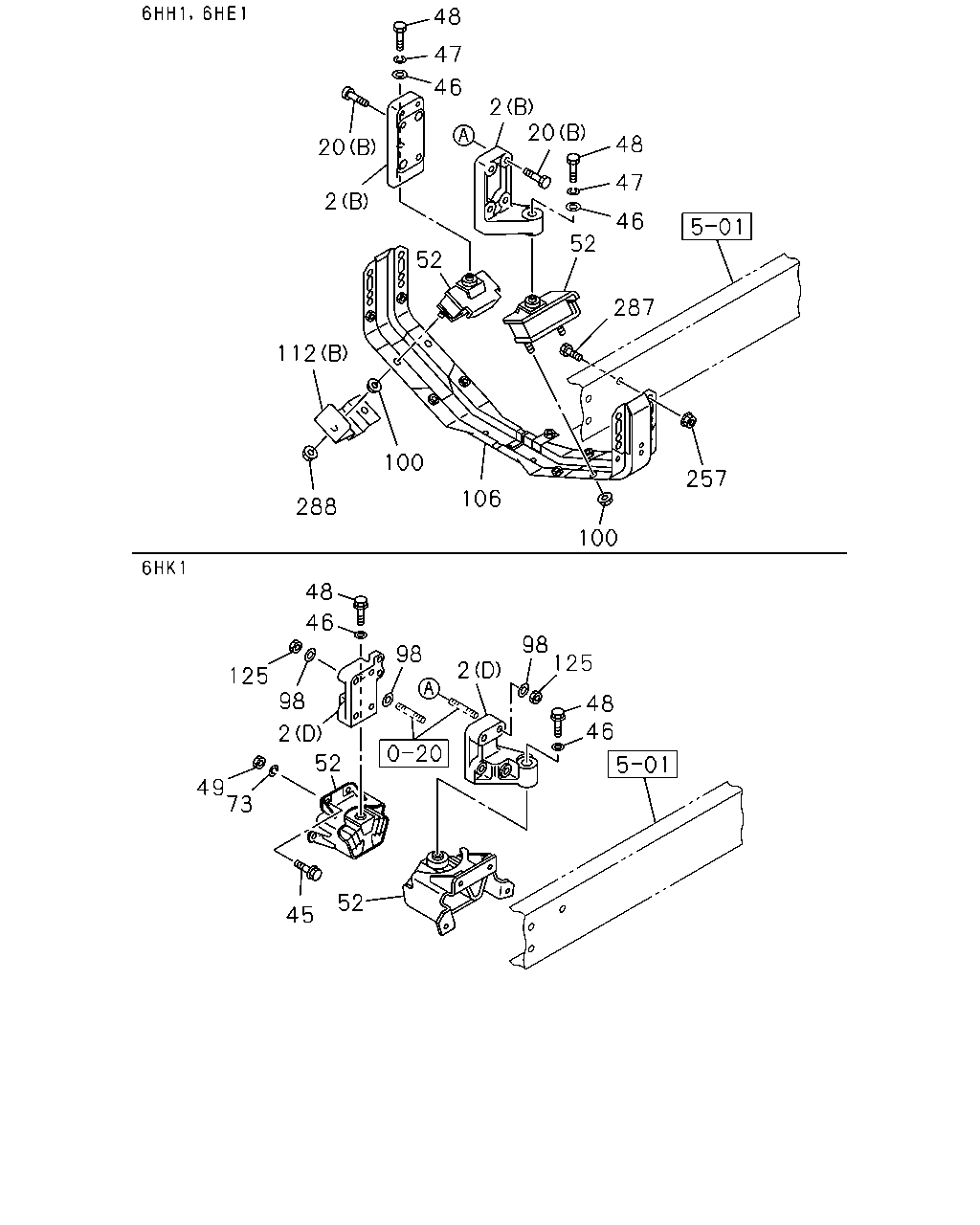

48 47 46 2 20 48 20 47 2 46 52 52 287 112 100 257 106 288 100 48 46 98 125 98 2 125 98 48 46 2 52 49 73 52 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0005-0210	●	●
2	FOOT; ENG (C)	1-11771-172-0	02	1	0005-			●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0303-				●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0303-				●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0303-				●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0005-			●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	0005-			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0303-				●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0005-0210			●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0211-0512			●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0601-			●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0210	●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0210			●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0211-0605			●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-			●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	0005-0009	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	0005-0009			●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	0005-0210	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0005-0210			●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0211-			●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0005-0210			●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0211-0512			●	●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0601-			●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0005-0210	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0005-0210	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0005-0210			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0211-			●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	0005-0202			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0203-0210			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0211-0603			●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0604-			●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0005-0210			●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0211-1201			●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	8-98010-627-1	16	1	1202-			●	●
100	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●
106	MEMBER; MTG,RR	1-53221-192-0	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (C)	1-53219-754-0	01	1	0005-			●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0303-				●
125	NUT; ENG FOOT M12 FLANGE	8-94394-704-0	08	1	0303-				●
257	NUT; MEMBER M12 FLANGE	0-91150-212-0	08	1	0005-0210	●	●
287	BOLT; MEMBER M12X40 FLANGE	0-28681-240-0	08	1	0005-0210	●	●
288	NUT; HEAT PROTECTOR M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●

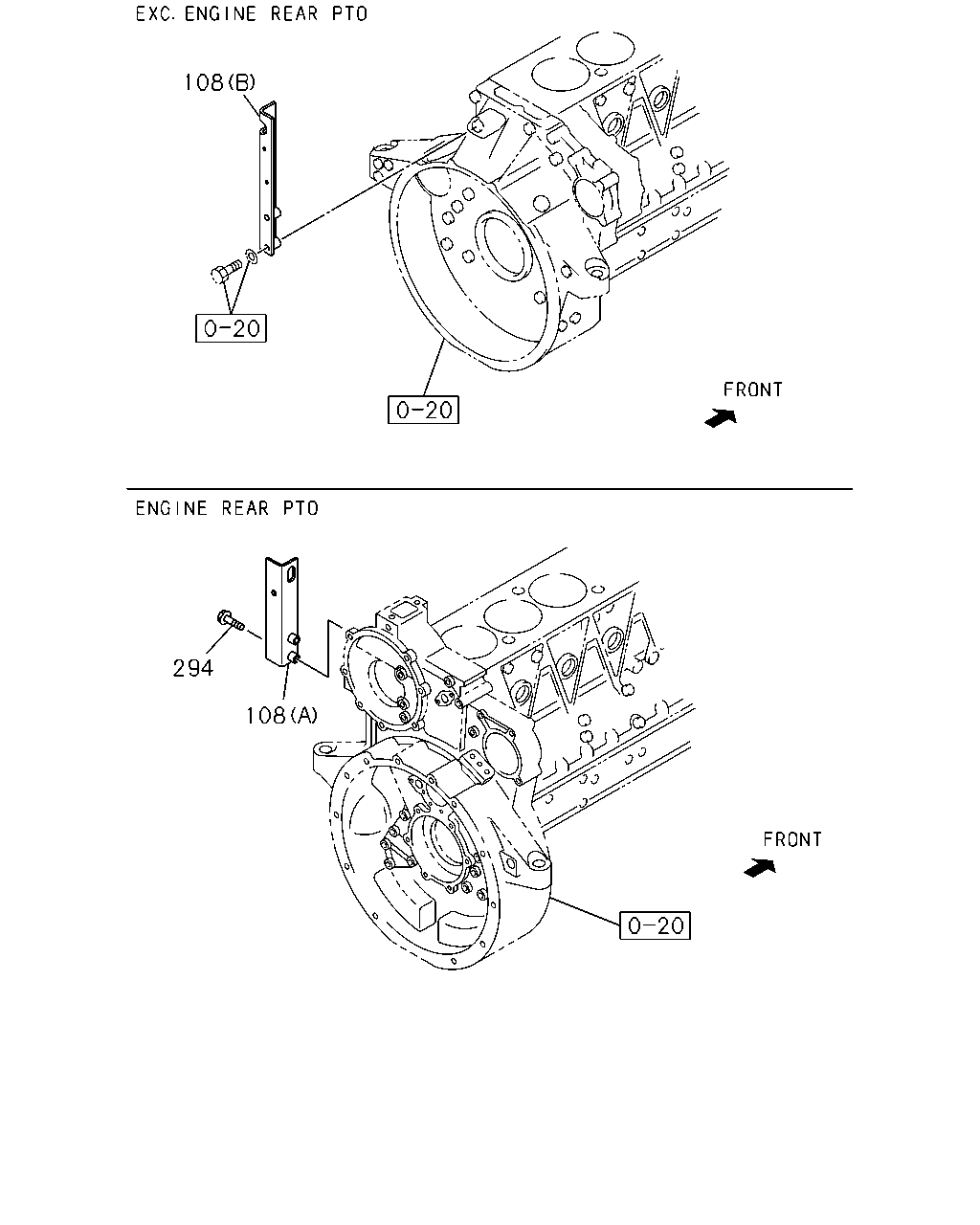

108 294 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
108	HANGER; ENG FLYWHEEL HSG ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-11777-273-0	01	1	0303-	●
108	HANGER; ENG FLYWHEEL HSG ENGINE REAR PTO(SV1) (A)	1-11777-224-0	01	1	0005-0210	●
108	HANGER; ENG FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) (B)	1-11777-254-0	01	1	0211-	●
108	HANGER; ENG FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) (B)	1-11777-208-0	01	1	0005-0209	●
108	HANGER; ENG FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) (B)	1-11777-268-0	01	1	0210-0210	●
294	BOLT; HANGER ENGINE REAR PTO(SV1) EXC. A/T<X9D> M12X40 FLANGE	0-28181-240-0	02	1	0303-0804	●
294	BOLT; HANGER ENGINE REAR PTO(SV1) EXC. A/T<X9D> M12X40 FLANGE	0-28151-240-0	02	1	0805-	●
294	BOLT; HANGER ENGINE REAR PTO(SV1) M12X40 FLANGE	0-28181-240-0	02	1	0005-0210	●

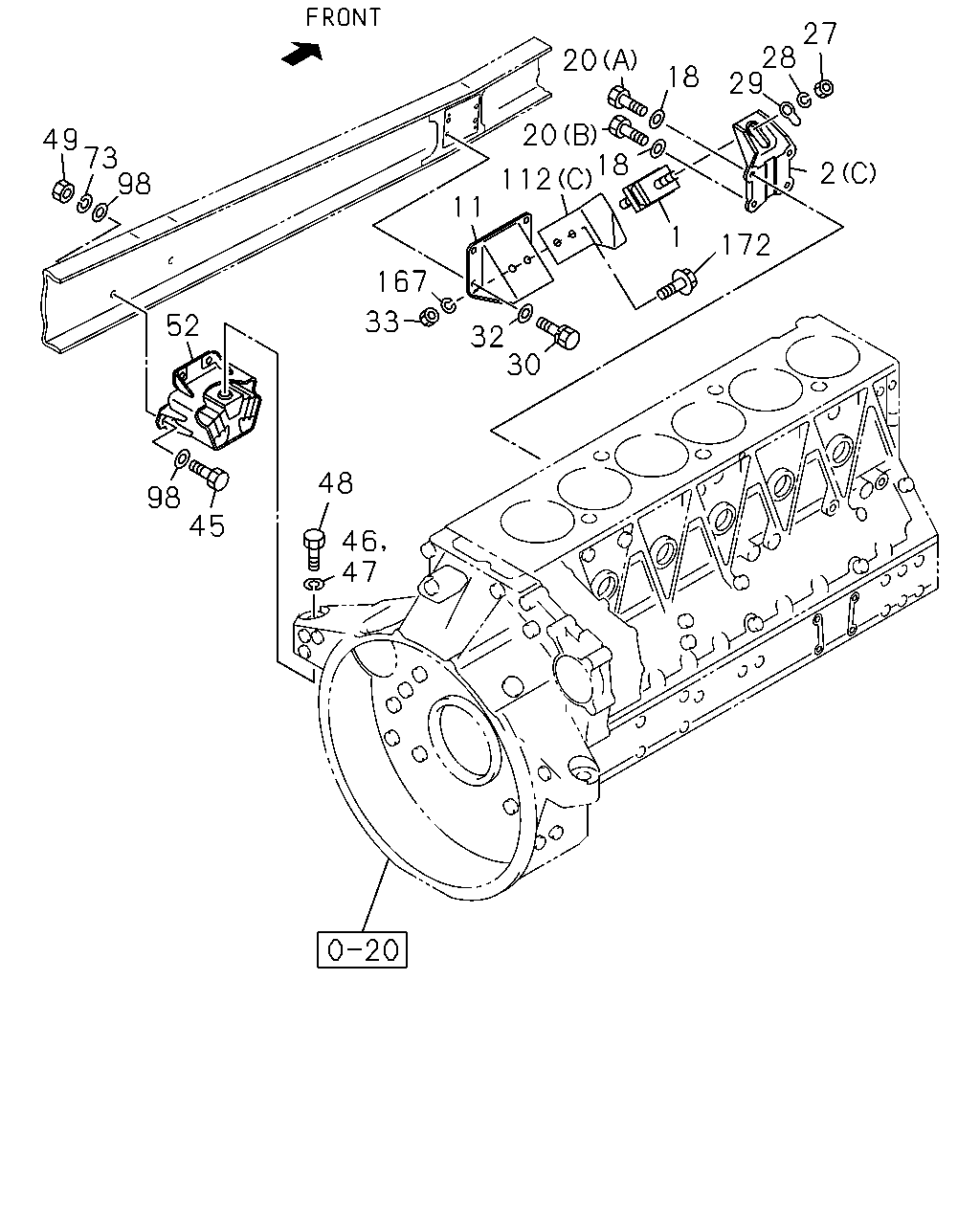

27 28 29 20 18 20 18 112 49 73 98 2 11 1 172 167 33 52 32 30 48 98 45 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0005-0210	●	●
1	RUBBER; ENG FOOT,FRT	1-53215-132-2	02	1	0005-0111			●
1	RUBBER; ENG FOOT,FRT EXC. A/T<X9D>	1-53215-132-2	02	1	0112-			●
1	RUBBER; ENG FOOT,FRT A/T<X9D>	1-53215-131-2	02	1	0112-			●
1	RUBBER; ENG FOOT,FRT	1-53215-173-0	02	1	0303-				●
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-543-1	01	1	0005-0210	●	●
2	FOOT; ENG (B)	8-94394-544-2	01	1	0005-0210	●	●
2	FOOT; ENG (C)	1-11771-172-0	02	1	0005-			●
2	FOOT; ENG (D)	8-94390-113-0	01	1	0303-				●
2	FOOT; ENG (D)	8-94392-813-0	01	1	0303-				●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0303-				●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-226-0	02	1	0005-			●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	0005-			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0005-0210	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0005-			●
20	BOLT; ENG FOOT (B) M12X24	1-09020-101-0	04	1	0005-			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0303-				●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0005-0512			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0303-0602				●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-				●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0005-0603			●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0604-			●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0005-0210	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0005-			●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0303-				●
30	BOLT; BRKT TO FRAME M12X40	9-92061-240-0	08	1	0005-0512			●
30	BOLT; BRKT TO FRAME M12X40	0-20951-240-0	08	1	0601-			●
32	WASHER; PL,BRKT TO FRAME ID=12.5	1-09503-171-0	08	1	0005-			●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-414-0	04	1	0005-0512			●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0601-			●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0005-0210			●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	9-92061-450-0	08	1	0211-0512			●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X50	0-20951-450-0	08	1	0601-			●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=17	9-09164-516-0	02	1	0010-0210	●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0010-0210			●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	9-09164-522-0	02	1	0211-0605			●	●
46	WASHER; PL,CUSHION TO ENG,RR ID=23	0-91614-522-0	02	1	0606-			●	●
47	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	02	1	0005-0009	●	●
47	WASHER; LK,CUSHION RUBBER ID=22.5	9-09150-622-0	02	1	0005-0009			●
48	BOLT; CUSHION RUBBER TO ENG M16X60	9-91066-660-0	02	1	0005-0210	●	●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0005-0210			●
48	BOLT; CUSHION RUBBER TO ENG M22X75	1-09020-087-2	02	1	0211-			●	●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0005-0210			●
49	NUT; CUSHION RUBBER TO FRAME M14	9-99110-514-0	08	1	0211-0512			●	●
49	NUT; CUSHION RUBBER TO FRAME M14	0-91110-514-0	08	1	0601-			●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-314-1	01	1	0005-0210	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-313-1	01	1	0005-0210	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0005-0210			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-302-0	02	1	0211-			●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-614-0	08	1	0005-0202			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0203-0210			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	08	1	0211-0603			●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	08	1	0604-			●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0005-0210			●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	9-09651-069-0	16	1	0211-1201			●	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR ID=15	8-98010-627-1	16	1	1202-			●	●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (B)	1-53219-638-0	01	1	0005-0210	●	●
112	PROTECTOR; HEAT (C)	1-53219-754-0	01	1	0005-			●
112	PROTECTOR; HEAT (A)	1-53219-629-4	01	1	0303-				●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-614-0	04	1	0005-0202			●
167	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-514-0	04	1	0203-0603			●
167	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-514-0	04	1	0604-			●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0005-0512			●
172	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
