Sayfa 0-14 - Isuzu EPC

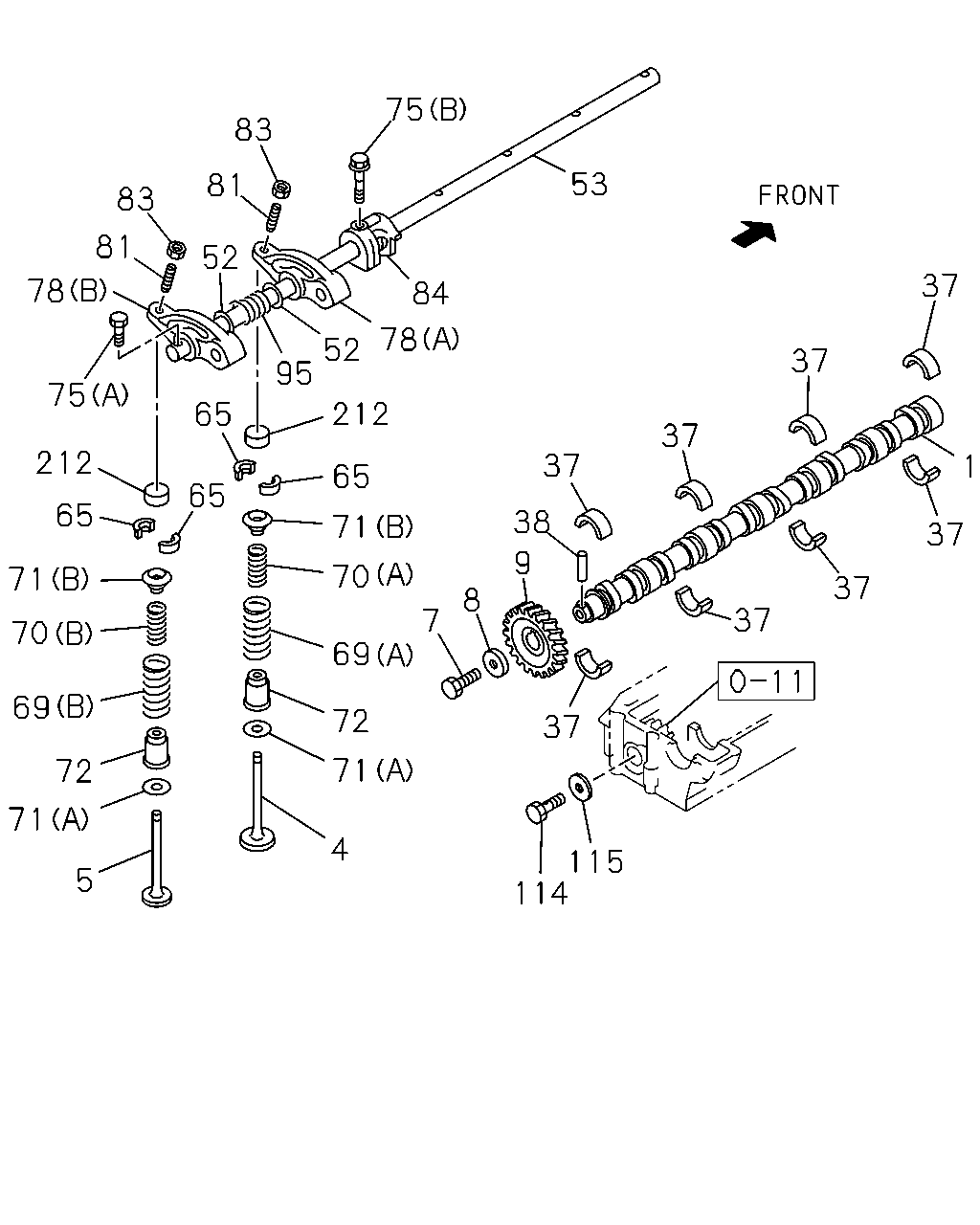

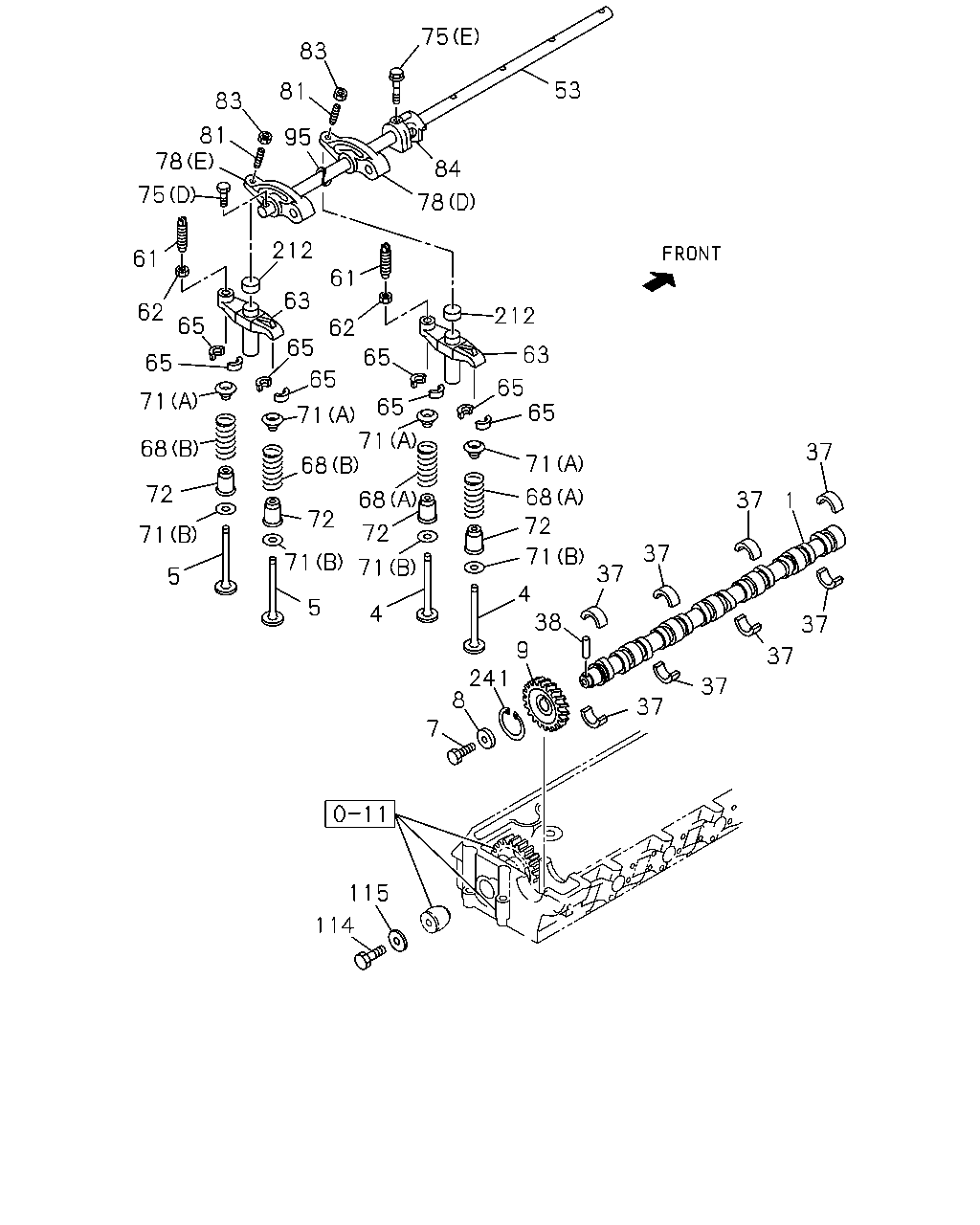

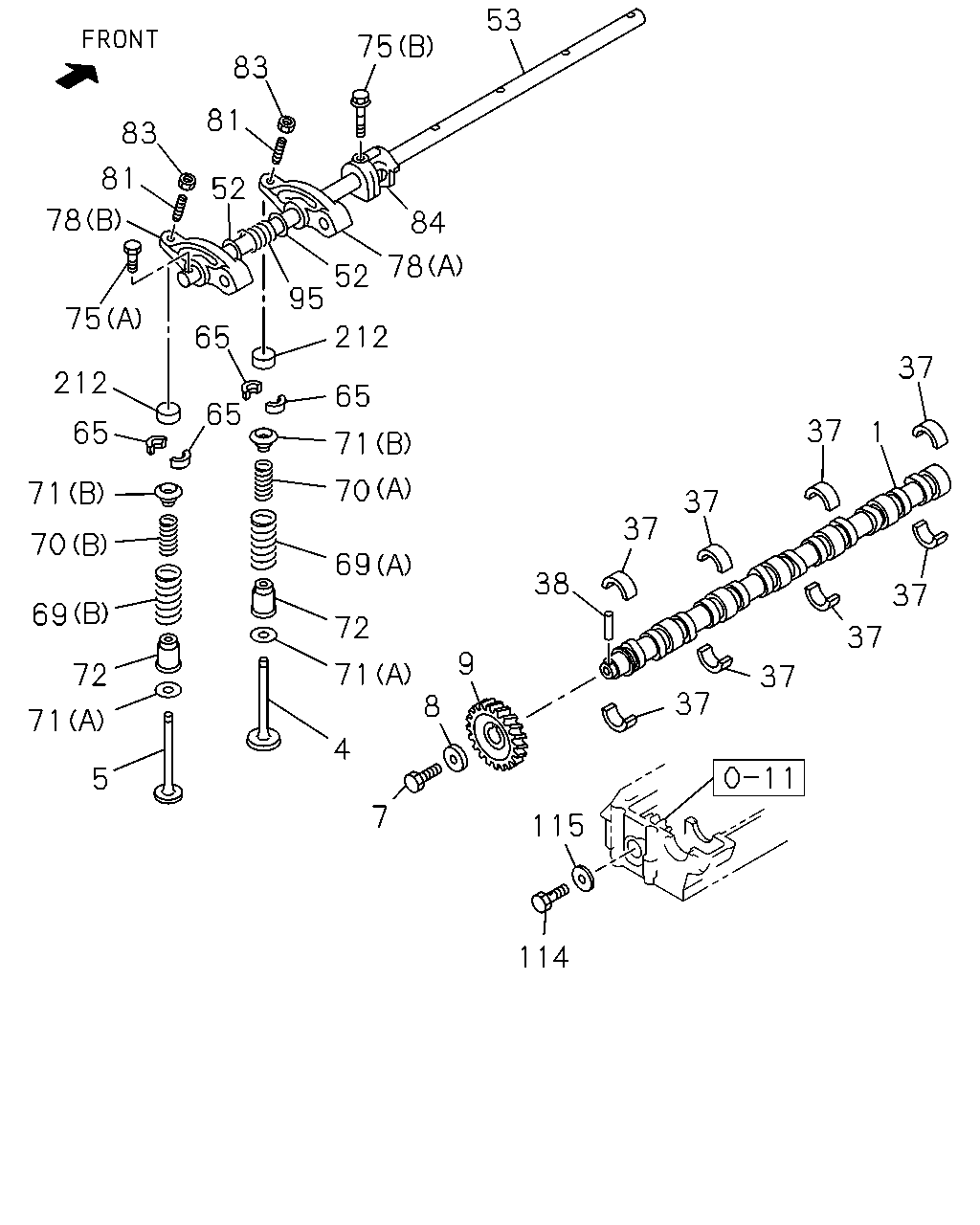

0-14 — CAMSHAFT AND VALVE (#8601) — 459 parça

75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 71 37 71 71 37 5 4 38 9 5 4 37 37 241 8 37 37 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-98233-213-1	01	1	1409-	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-0210		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-0210			●
1	CAMSHAFT	1-12511-249-1	01	1	0005-0210				●
1	CAMSHAFT	1-12511-274-1	01	1	0211-				●
1	CAMSHAFT	8-94390-469-1	01	1	0303-1311	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-	●
4	VALVE; INL	8-94395-113-1	06	1	0005-0210		●
4	VALVE; INL	8-94394-160-1	06	1	0005-0210			●
4	VALVE; INL	1-12551-126-1	06	1	0005-0204				●
4	VALVE; INL	1-12551-161-4	06	1	0205-				●
4	VALVE; INL	8-94395-882-2	12	1	0303-	●
5	VALVE; EXH	8-94395-462-0	06	1	0005-0210		●	●
5	VALVE; EXH	1-12552-108-1	06	1	0005-0210				●
5	VALVE; EXH	1-12552-099-2	06	1	0211-				●
5	VALVE; EXH	8-94395-883-2	12	1	0303-0402	●
5	VALVE; EXH	8-97209-876-3	12	1	0403-	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0210		●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0005-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0303-	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0210		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0302				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0303-	●			●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0210		●	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0005-				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0303-	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0706	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206		●	●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0210		●	●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0303-0306	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0005-0210		●	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0303-	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0005-				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0303-0610	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0303-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0303-	●
63	BRIDGE	8-94392-002-3	12	1	0303-	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-0210		●	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0005-				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0303-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0303-	●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0303-	●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-0210		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-0210		●	●
71	SEAT; SPR (B)	1-12563-033-1	12	1	0005-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	0005-				●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0303-	●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0303-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-0210		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0005-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0303-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0210		●	●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	0005-				●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512	●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
75	BOLT; BRKT (E) M10X62 FLANGE	8-94393-131-0	05	1	0303-	●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	0005-0210		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	0005-0210		●	●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	0005-				●
78	ARM; ROCKER (D) INLET	8-97306-421-3	06	1	0303-	●
78	ARM; ROCKER (E) EXHAUST	8-97306-424-3	06	1	0303-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0210		●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0005-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0303-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0210		●	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0005-				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0303-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	0005-0210		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0303-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-0210		●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0005-				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0303-	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0210		●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0303-	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0210		●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0210		●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0303-	●
241	RING; FRICTION	8-94390-562-0	01	1	0303-0311	●
241	RING; FRICTION	8-97603-297-0	01	1	0312-	●

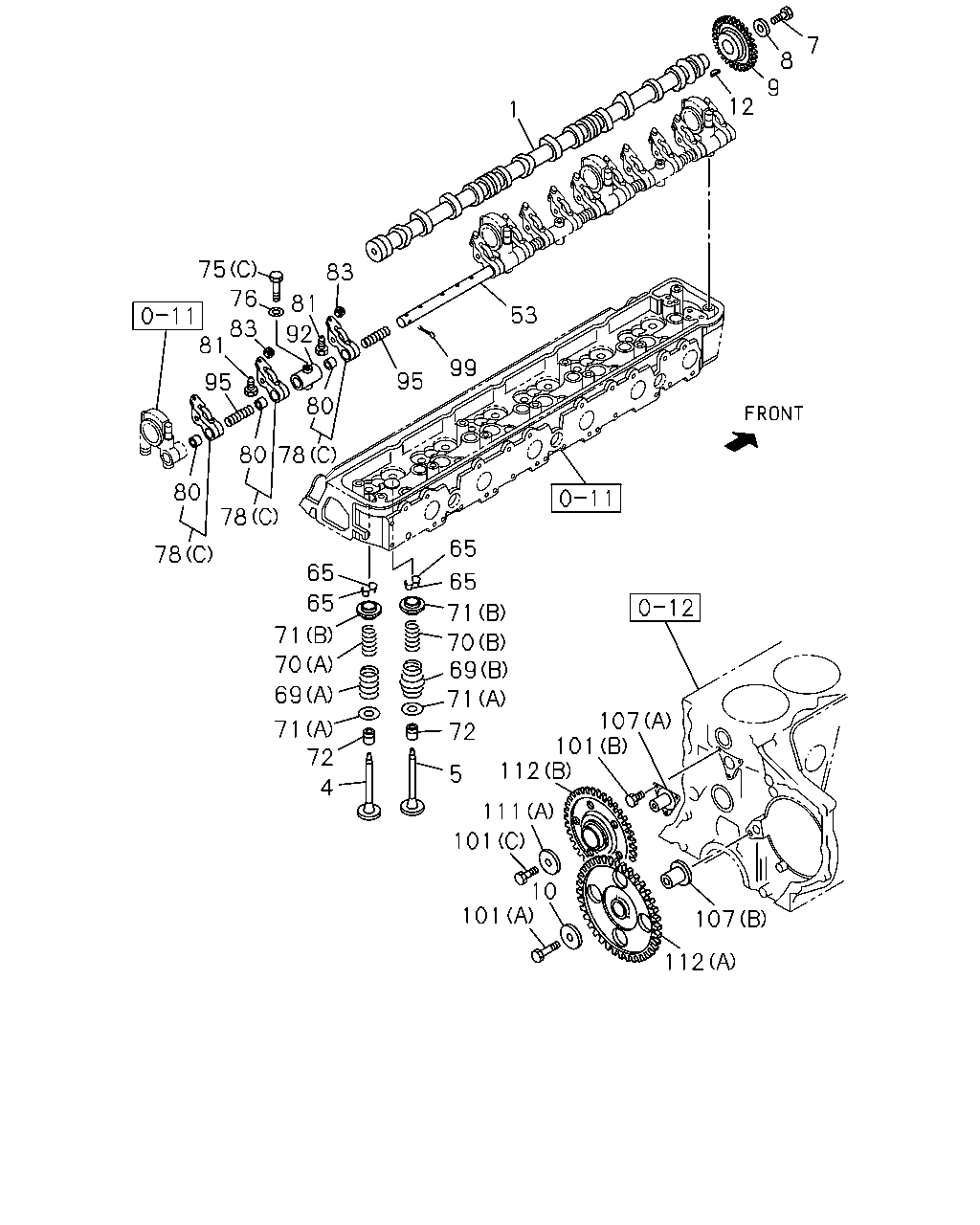

7 8 9 12 1 75 83 76 81 92 53 83 81 99 80 95 95 80 78 80 78 65 78 65 65 65 71 71 70 69 70 69 71 107 101 112 71 72 72 5 4 111 101 10 101 107 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-98233-213-1	01	1	1409-	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-0210		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-0210			●
1	CAMSHAFT	1-12511-249-1	01	1	0005-0210				●
1	CAMSHAFT	1-12511-274-1	01	1	0211-				●
1	CAMSHAFT	8-94390-469-1	01	1	0303-1311	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-	●
4	VALVE; INL	8-94395-113-1	06	1	0005-0210		●
4	VALVE; INL	8-94394-160-1	06	1	0005-0210			●
4	VALVE; INL	1-12551-126-1	06	1	0005-0204				●
4	VALVE; INL	1-12551-161-4	06	1	0205-				●
4	VALVE; INL	8-94395-882-2	12	1	0303-	●
5	VALVE; EXH	8-94395-462-0	06	1	0005-0210		●	●
5	VALVE; EXH	1-12552-108-1	06	1	0005-0210				●
5	VALVE; EXH	1-12552-099-2	06	1	0211-				●
5	VALVE; EXH	8-94395-883-2	12	1	0303-0402	●
5	VALVE; EXH	8-97209-876-3	12	1	0403-	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0210		●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0005-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0303-	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0210		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0302				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0303-	●			●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0210		●	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0005-				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0303-	●
10	PLATE; THRUST	1-12535-021-1	01	1	0005-				●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	0005-				●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0005-				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0303-0610	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-0210		●	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0005-				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0303-	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	0005-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	0005-0111		●	●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0005-				●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	0005-0111		●	●
70	SPRING; VLV,INNER (A) MARK PINK	8-97120-911-0	06	1	0112-0210		●	●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	0005-0210		●	●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	0005-				●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-0210		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-0210		●	●
71	SEAT; SPR (B)	1-12563-033-1	12	1	0005-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	0005-				●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0303-	●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0303-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-0210		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0005-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0303-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0210		●	●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	0005-				●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512	●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
75	BOLT; BRKT (E) M10X62 FLANGE	8-94393-131-0	05	1	0303-	●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	0005-				●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	0005-0210		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	0005-0210		●	●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	0005-				●
78	ARM; ROCKER (D) INLET	8-97306-421-3	06	1	0303-	●
78	ARM; ROCKER (E) EXHAUST	8-97306-424-3	06	1	0303-	●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	0005-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0210		●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0005-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0303-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0210		●	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0005-				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0303-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	0005-				●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-0210		●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0005-				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0303-	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	0005-0606				●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	0-81122-025-0	02	1	0607-				●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0005-0210		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0210		●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0210		●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0210			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	0005-				●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	0005-				●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0005-				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0303-0512	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0303-	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0303-0512	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-	●

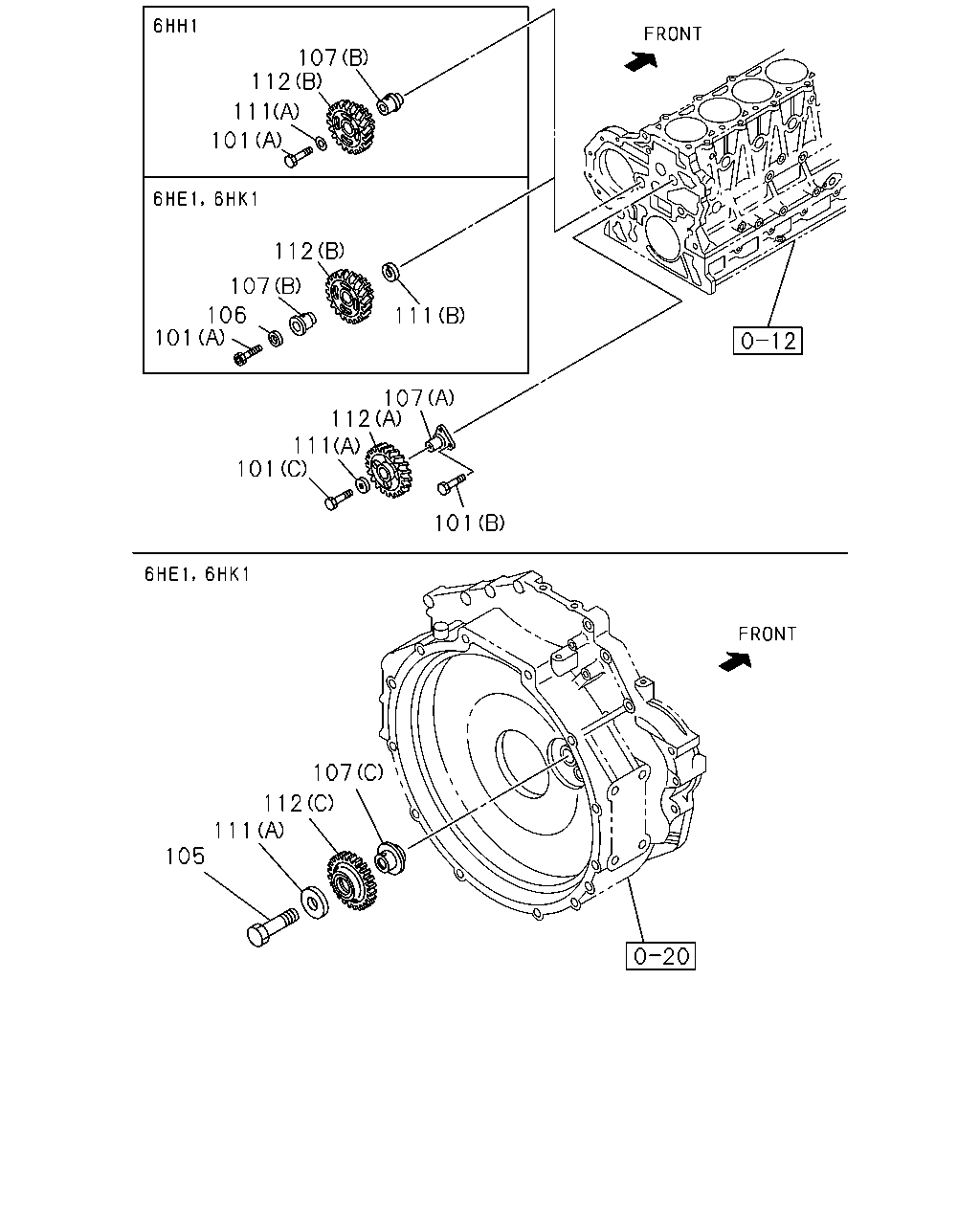

107	SHAFT; IDLE GEAR ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B)	1-12530-015-0	01	1	0303-				●
107	SHAFT; IDLE GEAR (B)	8-94395-073-2	01	1	0005-0205		●
107	SHAFT; IDLE GEAR (B)	8-97602-588-0	01	1	0206-0210		●
107	SHAFT; IDLE GEAR (C)	8-94395-096-0	01	1	0005-0210		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204		●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0210		●	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0210			●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	0005-0011				●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●
107	SHAFT; IDLE GEAR ENGINE REAR PTO(SV1) (B)	1-12530-015-0	01	1	0005-0210				●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO(SV1) (B)	1-12531-064-0	01	1	0005-0011				●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO(SV1) (B)	1-12531-099-0	01	1	0012-				●
107	SHAFT; IDLE GEAR (C)	8-94395-096-0	01	1	0303-0304	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0303-	●
107	SHAFT; IDLE GEAR (B)	8-97602-588-0	01	1	0303-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0210		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0210		●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306				●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0303-0306	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0303-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0210		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0210		●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	0005-0210		●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0210			●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	0005-0210			●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	0005-0011				●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-				●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	0005-0011				●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0303-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0303-	●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0303-	●

75 83 53 81 83 81 52 37 78 84 78 52 95 37 75 212 65 37 212 37 1 65 65 65 38 71 37 9 71 37 8 37 7 72 37 71 72 71 4 115 114 5 69 70 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-98233-213-1	01	1	1409-	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-0210		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-0210			●
1	CAMSHAFT	1-12511-249-1	01	1	0005-0210				●
1	CAMSHAFT	1-12511-274-1	01	1	0211-				●
1	CAMSHAFT	8-94390-469-1	01	1	0303-1311	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-	●
4	VALVE; INL	8-94395-113-1	06	1	0005-0210		●
4	VALVE; INL	8-94394-160-1	06	1	0005-0210			●
4	VALVE; INL	1-12551-126-1	06	1	0005-0204				●
4	VALVE; INL	1-12551-161-4	06	1	0205-				●
4	VALVE; INL	8-94395-882-2	12	1	0303-	●
5	VALVE; EXH	8-94395-462-0	06	1	0005-0210		●	●
5	VALVE; EXH	1-12552-108-1	06	1	0005-0210				●
5	VALVE; EXH	1-12552-099-2	06	1	0211-				●
5	VALVE; EXH	8-94395-883-2	12	1	0303-0402	●
5	VALVE; EXH	8-97209-876-3	12	1	0403-	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0210		●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0005-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0303-	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0210		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0302				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0303-	●			●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0210		●	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0005-				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0303-	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0706	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206		●	●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0210		●	●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0303-0306	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0005-0210		●	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0303-	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0005-				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0303-0610	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-0210		●	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0005-				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0303-	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	0005-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	0005-0111		●	●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0005-				●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	0005-0111		●	●
70	SPRING; VLV,INNER (A) MARK PINK	8-97120-911-0	06	1	0112-0210		●	●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	0005-0210		●	●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	0005-				●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-0210		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-0210		●	●
71	SEAT; SPR (B)	1-12563-033-1	12	1	0005-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	0005-				●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0303-	●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0303-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-0210		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0005-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0303-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0210		●	●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	0005-				●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512	●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
75	BOLT; BRKT (E) M10X62 FLANGE	8-94393-131-0	05	1	0303-	●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	0005-0210		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	0005-0210		●	●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	0005-				●
78	ARM; ROCKER (D) INLET	8-97306-421-3	06	1	0303-	●
78	ARM; ROCKER (E) EXHAUST	8-97306-424-3	06	1	0303-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0210		●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0005-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0303-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0210		●	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0005-				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0303-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	0005-0210		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0303-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-0210		●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0005-				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0303-	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0210		●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0303-	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0210		●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0210		●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0303-	●

53 75 83 81 83 81 52 78 84 78 52 95 75 212 65 37 212 65 65 37 1 65 71 71 37 37 38 37 72 37 9 71 8 72 37 37 71 4 5 7 115 114 69 69 70 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-98233-213-1	01	1	1409-	●
1	CAMSHAFT	8-94395-758-2	01	1	0005-0210		●
1	CAMSHAFT	8-94395-576-2	01	1	0005-0210			●
1	CAMSHAFT	1-12511-249-1	01	1	0005-0210				●
1	CAMSHAFT	1-12511-274-1	01	1	0211-				●
1	CAMSHAFT	8-94390-469-1	01	1	0303-1311	●
1	CAMSHAFT	8-98227-260-1	01	1	1312-	●
4	VALVE; INL	8-94395-113-1	06	1	0005-0210		●
4	VALVE; INL	8-94394-160-1	06	1	0005-0210			●
4	VALVE; INL	1-12551-126-1	06	1	0005-0204				●
4	VALVE; INL	1-12551-161-4	06	1	0205-				●
4	VALVE; INL	8-94395-882-2	12	1	0303-	●
5	VALVE; EXH	8-94395-462-0	06	1	0005-0210		●	●
5	VALVE; EXH	1-12552-108-1	06	1	0005-0210				●
5	VALVE; EXH	1-12552-099-2	06	1	0211-				●
5	VALVE; EXH	8-94395-883-2	12	1	0303-0402	●
5	VALVE; EXH	8-97209-876-3	12	1	0403-	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0210		●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0005-				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0303-	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0210		●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0302				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0303-	●			●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0005-0210		●	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0005-				●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0303-	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0706	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●
37	METAL; CM/SHF	8-94363-100-1	08	1	0005-0206		●	●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0210		●	●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0303-0306	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0005-0210		●	●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	0303-	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	8-94393-984-3	01	1	0005-0210		●	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0005-				●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0303-0610	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	0005-0210		●	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0005-				●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0303-	●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	0005-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	0005-0111		●	●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-0210		●	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0005-				●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	8-94395-266-0	06	1	0005-0111		●	●
70	SPRING; VLV,INNER (A) MARK PINK	8-97120-911-0	06	1	0112-0210		●	●
70	SPRING; VLV,INNER (B) MARK YELLOW	8-94397-500-0	06	1	0005-0210		●	●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	0005-				●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	0005-				●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	0005-0210		●	●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	0005-0210		●	●
71	SEAT; SPR (B)	1-12563-033-1	12	1	0005-0009				●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401				●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-				●
71	SEAT; SPR (A)	9-12563-231-1	12	1	0005-				●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0303-	●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0303-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	0005-0210		●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0005-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0303-0707	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	0005-0210		●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0210		●	●
75	BOLT; BRKT (C) M8X55	9-01065-855-0	03	1	0005-				●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28080-840-0	02	1	0303-0512	●
75	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
75	BOLT; BRKT (E) M10X62 FLANGE	8-94393-131-0	05	1	0303-	●
78	ARM; ROCKER (B) JBK	8-97014-258-1	06	1	0005-0210		●	●
78	ARM; ROCKER (A) JBK	8-97074-614-0	06	1	0005-0210		●	●
78	ARM; ROCKER (C)	1-12610-045-3	12	1	0005-				●
78	ARM; ROCKER (D) INLET	8-97306-421-3	06	1	0303-	●
78	ARM; ROCKER (E) EXHAUST	8-97306-424-3	06	1	0303-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0210		●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0005-				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0303-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0005-0210		●	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0005-				●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0303-0512	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	0005-0210		●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0303-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	0005-0210		●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0005-				●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0303-	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0210		●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0303-	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0210		●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0210		●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0303-	●

107 112 101 112 107 106 101 111 107 112 101 101 107 112 111 105 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0005-0210		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0210		●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0210		●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0210			●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	0005-				●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	0005-				●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0005-				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0303-0512	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0303-	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0303-0512	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0005-0210		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0303-	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0005-0210		●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0303-	●
107	SHAFT; IDLE GEAR ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B)	1-12530-015-0	01	1	0303-				●
107	SHAFT; IDLE GEAR (B)	8-94395-073-2	01	1	0005-0205		●
107	SHAFT; IDLE GEAR (B)	8-97602-588-0	01	1	0206-0210		●
107	SHAFT; IDLE GEAR (C)	8-94395-096-0	01	1	0005-0210		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204		●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0210		●	●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0210			●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	0005-0011				●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-				●
107	SHAFT; IDLE GEAR ENGINE REAR PTO(SV1) (B)	1-12530-015-0	01	1	0005-0210				●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO(SV1) (B)	1-12531-064-0	01	1	0005-0011				●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO(SV1) (B)	1-12531-099-0	01	1	0012-				●
107	SHAFT; IDLE GEAR (C)	8-94395-096-0	01	1	0303-0304	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0303-	●
107	SHAFT; IDLE GEAR (B)	8-97602-588-0	01	1	0303-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0210		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0210		●	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306				●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0303-0306	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0303-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0210		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0210		●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	0005-0210		●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0210			●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	0005-0210			●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	0005-0011				●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-				●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	0005-0011				●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0303-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0303-	●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
