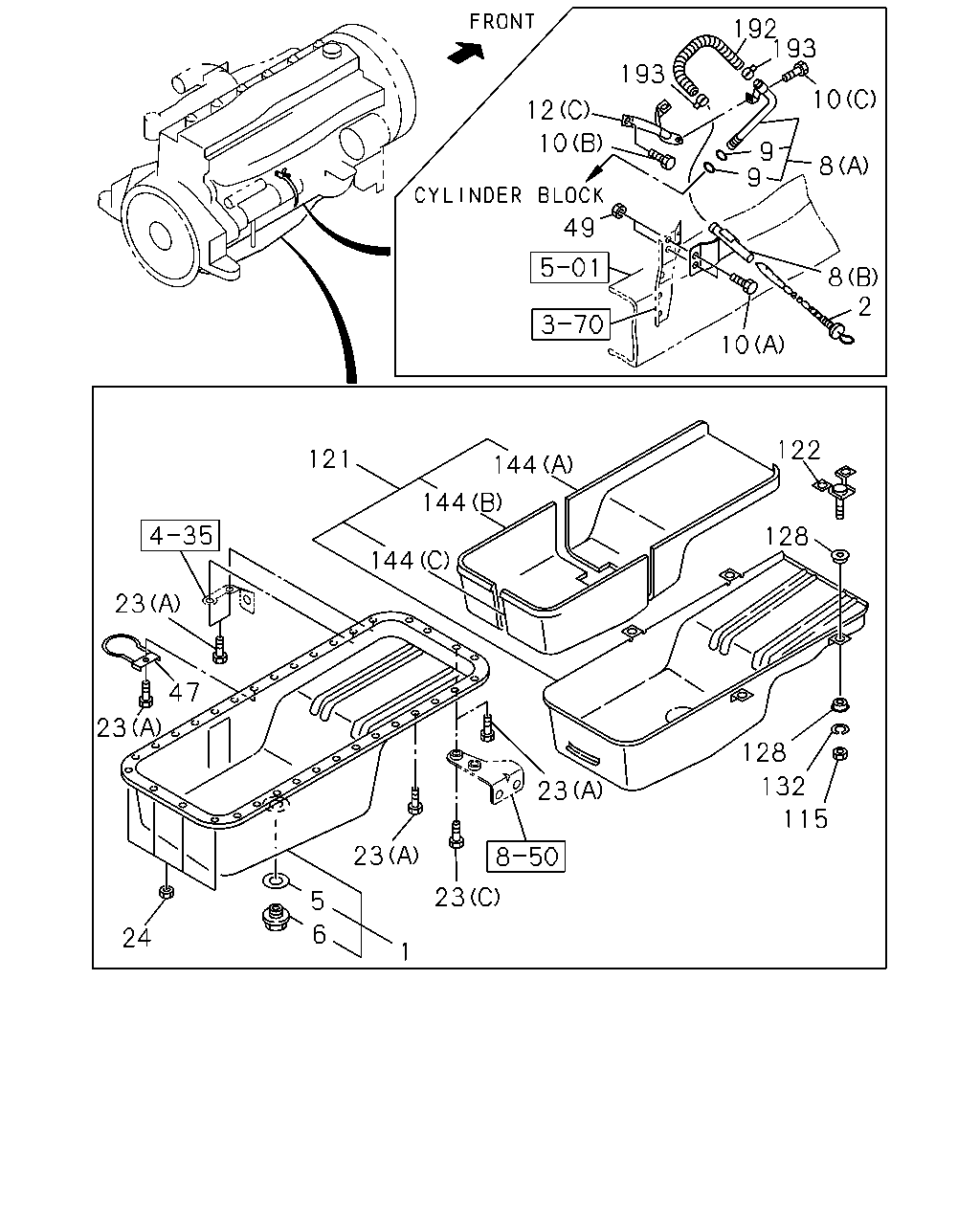

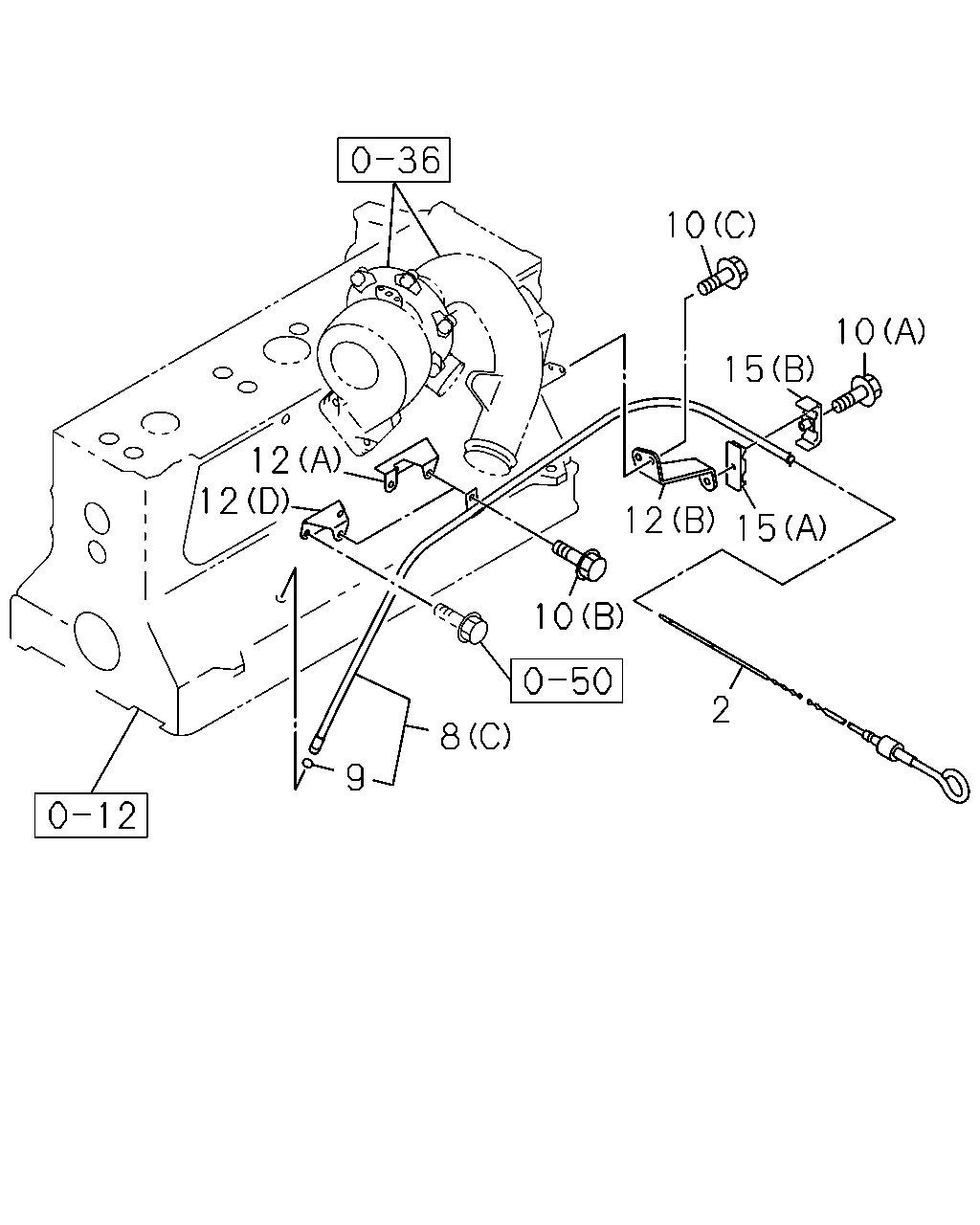

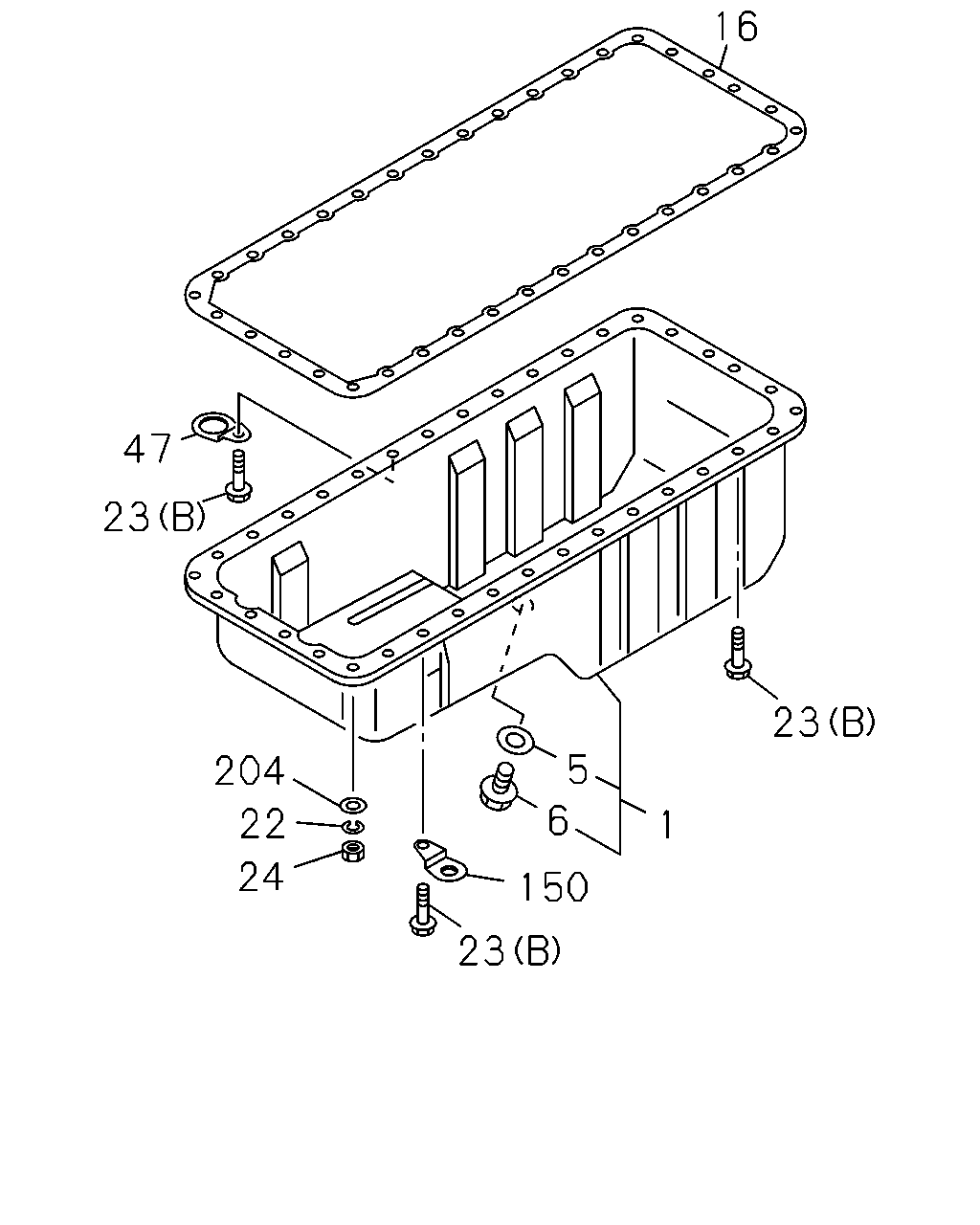

0-13 — OIL PAN AND LEVEL GAUGE (#8600) — 141 parça

10 10 15 12 12 12 15 10 2 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	0005-0210	●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	0005-			●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0303-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0005-0210	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-0210	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	0005-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0303-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0303-				●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0210	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0005-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0303-				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210		●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0512			●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0512			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512				●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0303-0512				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512				●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-843-0	01	1	0005-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94394-903-0	01	1	0005-0210		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	0005-0210			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (D)	1-11769-167-0	01	1	0211-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-193-0	01	1	0005-0210			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-843-0	01	1	0303-				●
15	CLIP; GUIDE TUBE (B)	1-09701-193-1	01	1	0005-			●
15	CLIP; GUIDE TUBE (A)	1-09701-194-1	01	1	0005-			●

192 193 193 10 12 10 9 9 8 49 8 2 10 122 121 144 144 128 144 23 47 23 128 132 23 115 23 23 5 6 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0210	●
1	PAN ASM; OIL	8-94395-608-1	01	1	0005-0210		●
1	PAN ASM; OIL	1-11360-708-3	01	1	0005-			●
1	PAN ASM; OIL	8-94394-711-2	01	1	0303-				●
2	GAUGE; OIL LEVEL	1-11760-396-0	01	1	0005-0210	●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	0005-			●
2	GAUGE; OIL LEVEL	1-11760-396-1	01	1	0303-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0210	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0005-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0303-				●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0005-0210	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0005-0111			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0303-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0005-0210	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0005-0210	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	1-11766-483-0	01	1	0005-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	1-11766-453-0	01	1	0303-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-94395-114-3	01	1	0303-				●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0005-0112	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0201-0210	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0005-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0303-				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
10	BOLT; GUIDE TUBE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210		●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0512			●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0512			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512				●
10	BOLT; GUIDE TUBE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	02	1	0303-0512				●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512				●
10	BOLT; GUIDE TUBE (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-843-0	01	1	0005-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94394-903-0	01	1	0005-0210		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	0005-0210			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (D)	1-11769-167-0	01	1	0211-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-193-0	01	1	0005-0210			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	8-94395-843-0	01	1	0303-				●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-0210	●	●
23	BOLT; OIL PAN (B) M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0005-0906			●
23	BOLT; OIL PAN (B) M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0303-				●
23	BOLT; OIL PAN (C) M8X28 FLANGE	0-28080-828-0	02	1	0303-				●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0005-0512			●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0303-0602				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-				●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0210	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0005-			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0303-				●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
49	NUT; GUIDE TUBE M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	02	1	0603-				●
115	NUT; OIL PAN COVER M8 FLANGE	0-91150-108-0	04	1	0005-0210		●
121	COVER; OIL PAN	8-94395-613-2	01	1	0005-0210		●
122	BRACKET; OIL PAN COVER	8-94396-827-0	04	1	0005-0210		●
128	RUBBER; MTG,OIL PAN	1-09337-024-0	08	1	0005-0210		●
132	WASHER; PL,OIL PAN COVER ID=8.4 OD=22	9-09160-708-0	04	1	0005-0210		●
144	INSULATOR; OIL PAN (C)	8-94395-874-0	01	1	0005-0210		●
144	INSULATOR; OIL PAN (A)	8-94395-875-0	01	1	0005-0210		●
144	INSULATOR; OIL PAN (B)	8-94395-876-0	01	1	0005-0210		●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0005-0210	●	●
192	HOSE; GUIDE TUBE L=300	1-09360-945-1	01	1	0303-0305				●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	0306-				●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0005-0210	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0303-				●

16 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL	8-94394-711-1	01	1	0005-0210	●
1	PAN ASM; OIL	8-94395-608-1	01	1	0005-0210		●
1	PAN ASM; OIL	1-11360-708-3	01	1	0005-			●
1	PAN ASM; OIL	8-94394-711-2	01	1	0303-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0005-0210	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0005-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0303-				●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0005-0210	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0005-0111			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-			●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0303-				●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	0005-0205			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-1103			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-			●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	0005-0603			●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	30	1	0005-0210	●	●
23	BOLT; OIL PAN (B) M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0005-0906			●
23	BOLT; OIL PAN (B) M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0303-				●
23	BOLT; OIL PAN (C) M8X28 FLANGE	0-28080-828-0	02	1	0303-				●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0005-0512			●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	0303-0602				●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0603-				●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0005-0210	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0005-			●
47	CLIP; HOSE,AIR BREATHER	1-11369-115-0	01	1	0303-				●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	0005-0210			●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	03	1	0211-			●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	0005-0605			●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-			●
