Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

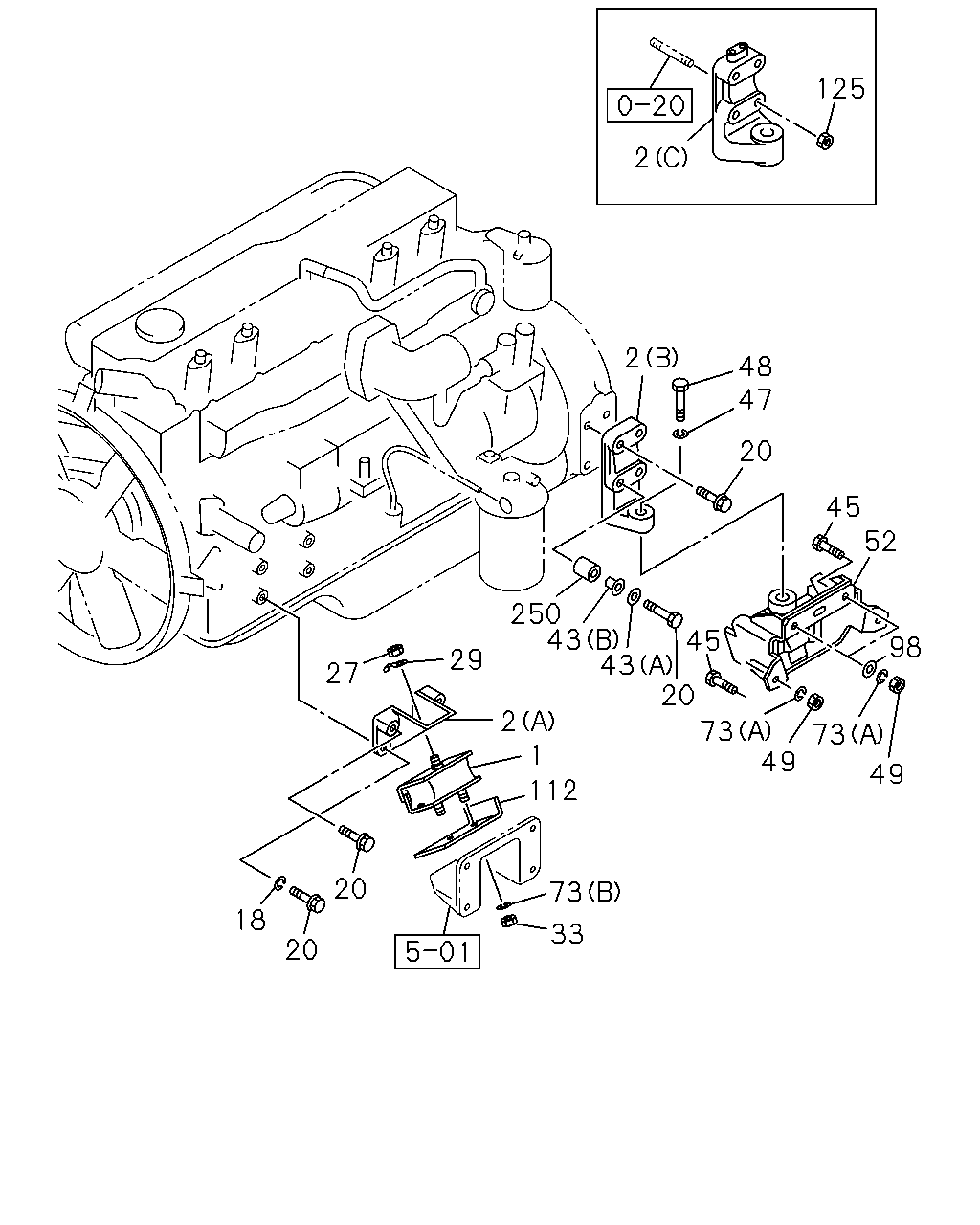

0-22 — ENGINE MOUNTING
(#860) — 31 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
125
2
2
48
47
20
45
52
250
43
43
98
45
29
20
27
2
1
73
49
73
49
112
20
73
18
33
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-176-0
02
1
9202-
●
●
2
FOOT; ENG
(A) FRONT
8-94393-147-0
01
1
9202-
●
●
2
FOOT; ENG
(A) FRONT
8-94393-146-0
01
1
9202-
●
●
2
FOOT; ENG
FIRE TRUCK<RA9> (B) REAR
8-94399-491-0
02
1
9202-
●
●
2
FOOT; ENG
EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1) (B) REAR
8-94396-953-3
02
1
9202-
●
●
2
FOOT; ENG
ENGINE REAR PTO(SV1) (C) REAR
8-94393-453-2
01
1
9202-
●
2
FOOT; ENG
ENGINE REAR PTO(SV1) (C) REAR
8-94393-454-2
01
1
9202-
●
18
WASHER; PL,ENG FOOT
OD=22 T=7
9-53319-024-0
04
1
9202-9410
●
●
20
BOLT; ENG FOOT
M10X30
8-97011-732-0
04
1
9202-9410
●
●
20
BOLT; ENG FOOT
M10X20 FLANGE
8-94395-721-0
08
1
9411-
●
●
20
BOLT; ENG FOOT
M10X70
8-97011-733-0
04
1
9202-9410
●
●
20
BOLT; ENG FOOT
FIRE TRUCK<RA9> M12X55
8-94399-884-1
08
1
9202-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12
9-99110-512-0
02
1
9202-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
9202-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
9202-
●
●
43
WASHER; ENG FOOT
(A) T=2.2
1-09556-015-0
04
1
9202-9310
●
●
43
WASHER; ENG FOOT
(B) T=5.5
1-14149-042-0
04
1
9202-9410
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M14X55
9-92061-455-0
08
1
9202-9202
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M14X45
9-92061-445-0
08
1
9203-
●
●
47
WASHER; LK,CUSHION RUBBER
ID=22.5
9-09150-622-0
02
1
9202-
●
●
48
BOLT; CUSHION RUBBER TO ENG
M22X75
1-09020-087-2
02
1
9202-
●
●
49
NUT; CUSHION RUBBER TO FRAME
M14
9-99110-514-0
08
1
9202-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-193-1
02
1
9202-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2
9-09150-514-0
04
1
9202-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2
9-09150-614-0
08
1
9202-
●
●
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
9-09651-069-0
16
1
9202-
●
●
112
PROTECTOR; HEAT
1-53219-395-1
01
1
9202-
●
●
125
NUT; ENG FOOT
EXC. FIRE TRUCK<RA9>
0-91150-212-0
08
1
9202-9206
●
●
125
NUT; ENG FOOT
EXC. FIRE TRUCK<RA9> M12 FLANGE
8-94394-704-0
08
1
9207-
●
●
250
SPACER; ENG FOOT
L=10
8-94394-360-0
04
1
9202-9202
●
●
250
SPACER; ENG FOOT
L=43
8-94396-406-0
04
1
9203-9410
●
●
