Sayfa 0-12 - Isuzu EPC

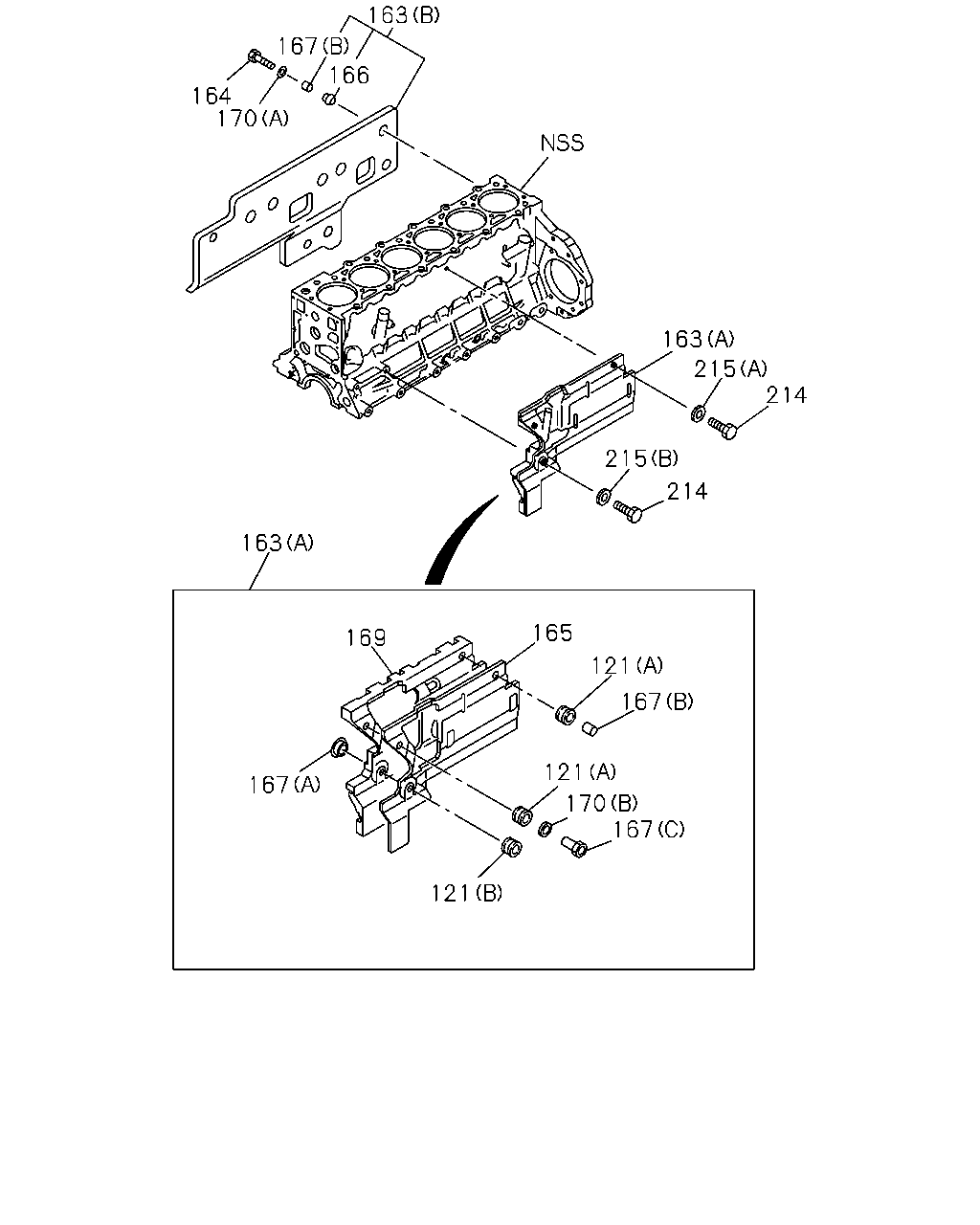

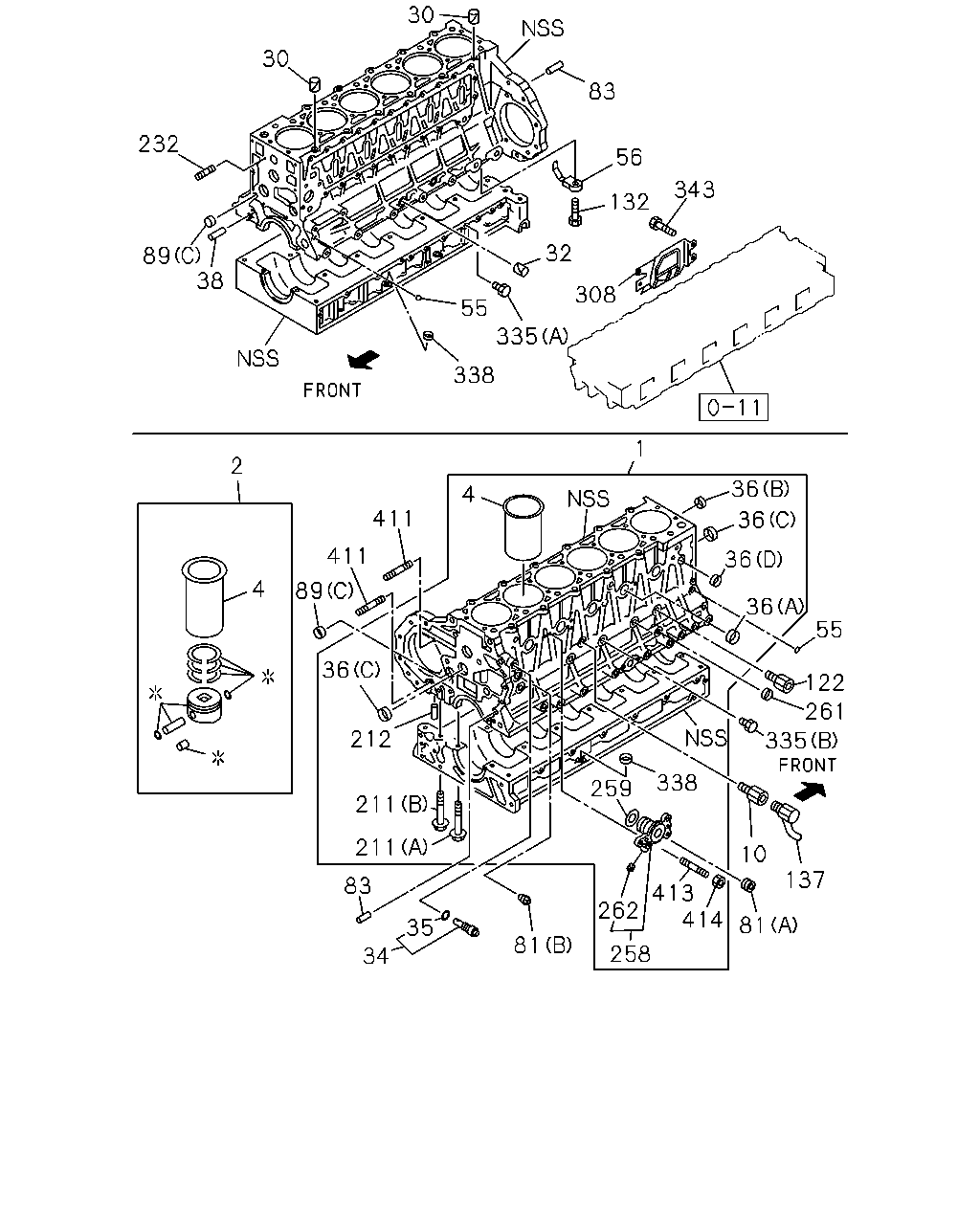

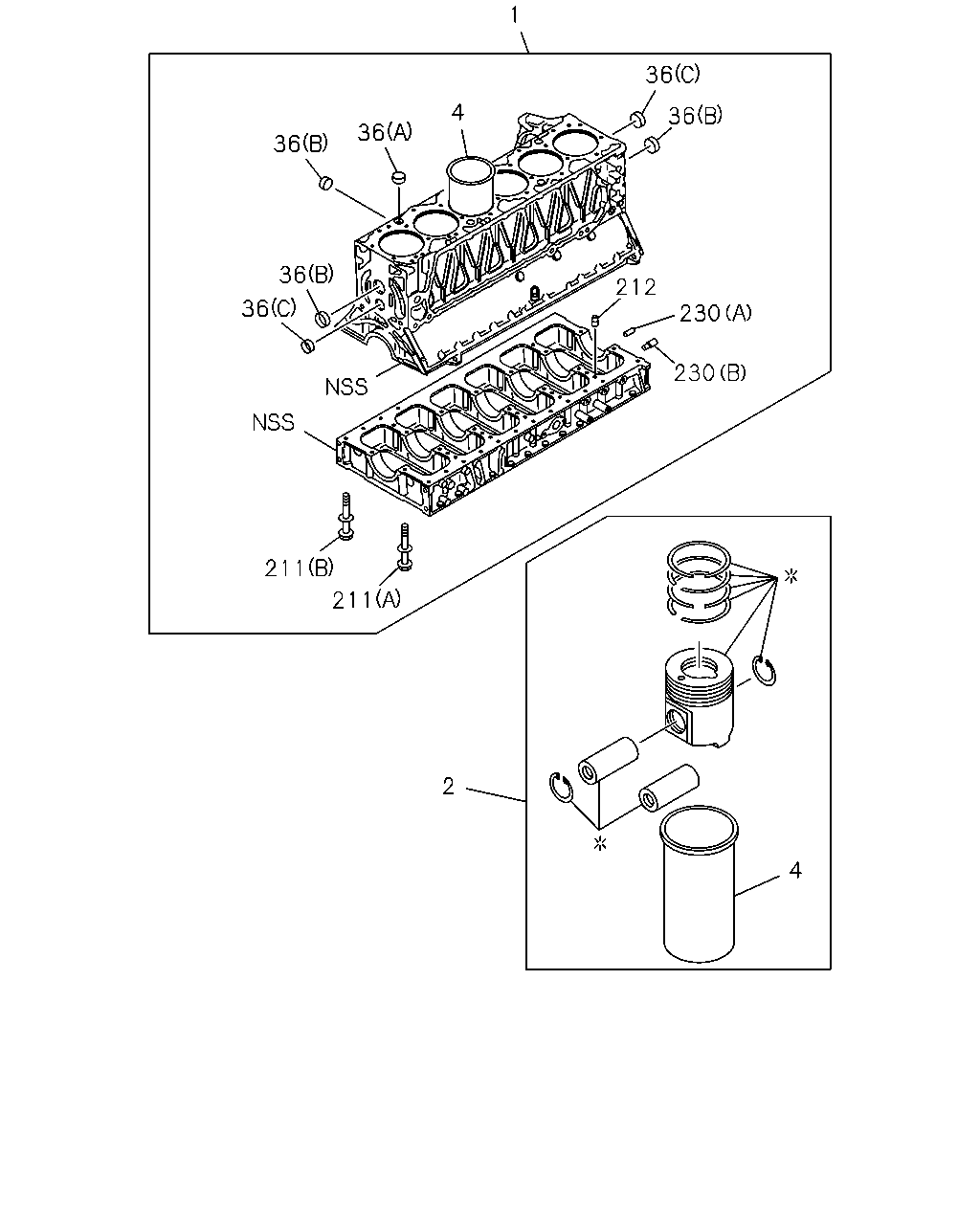

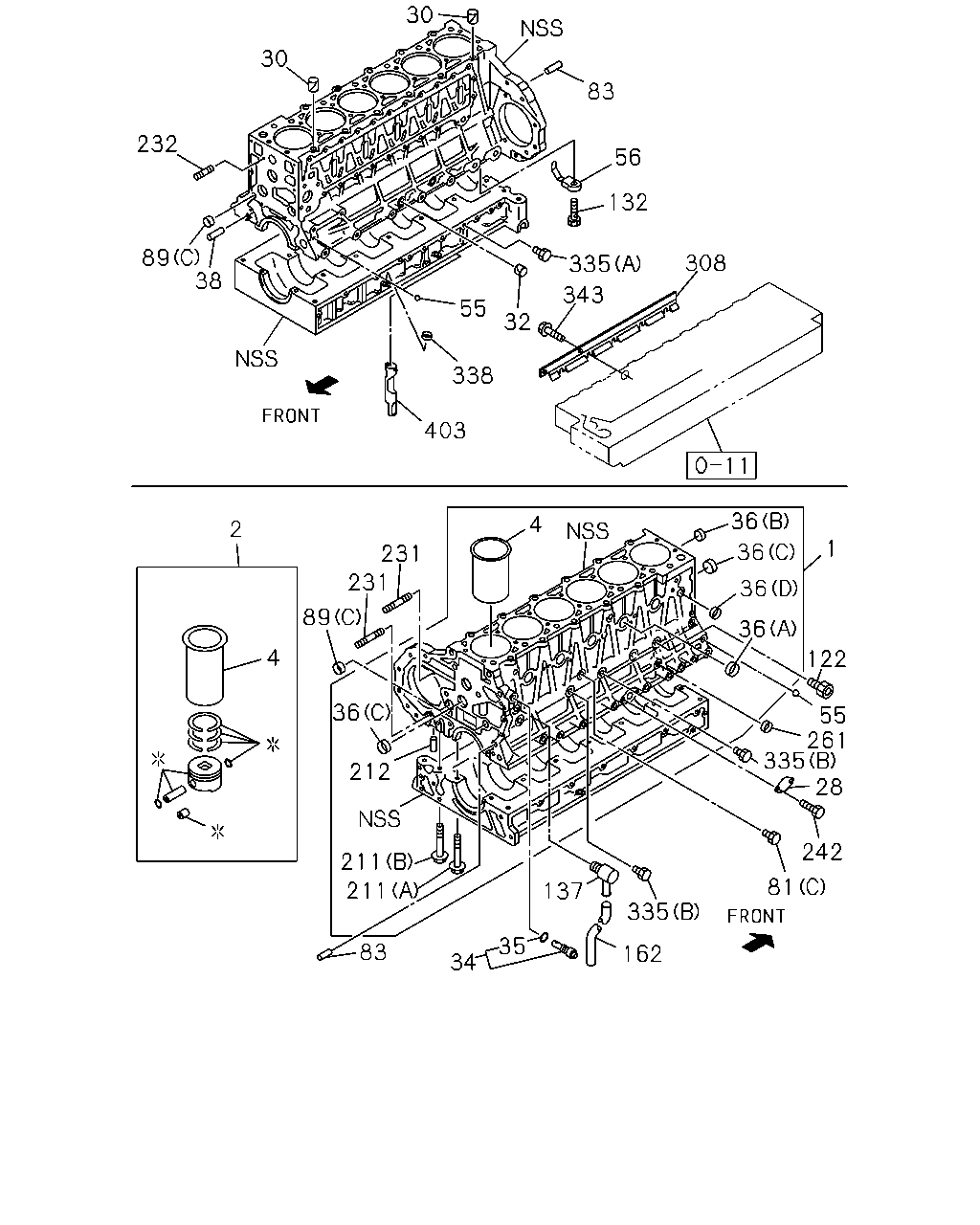

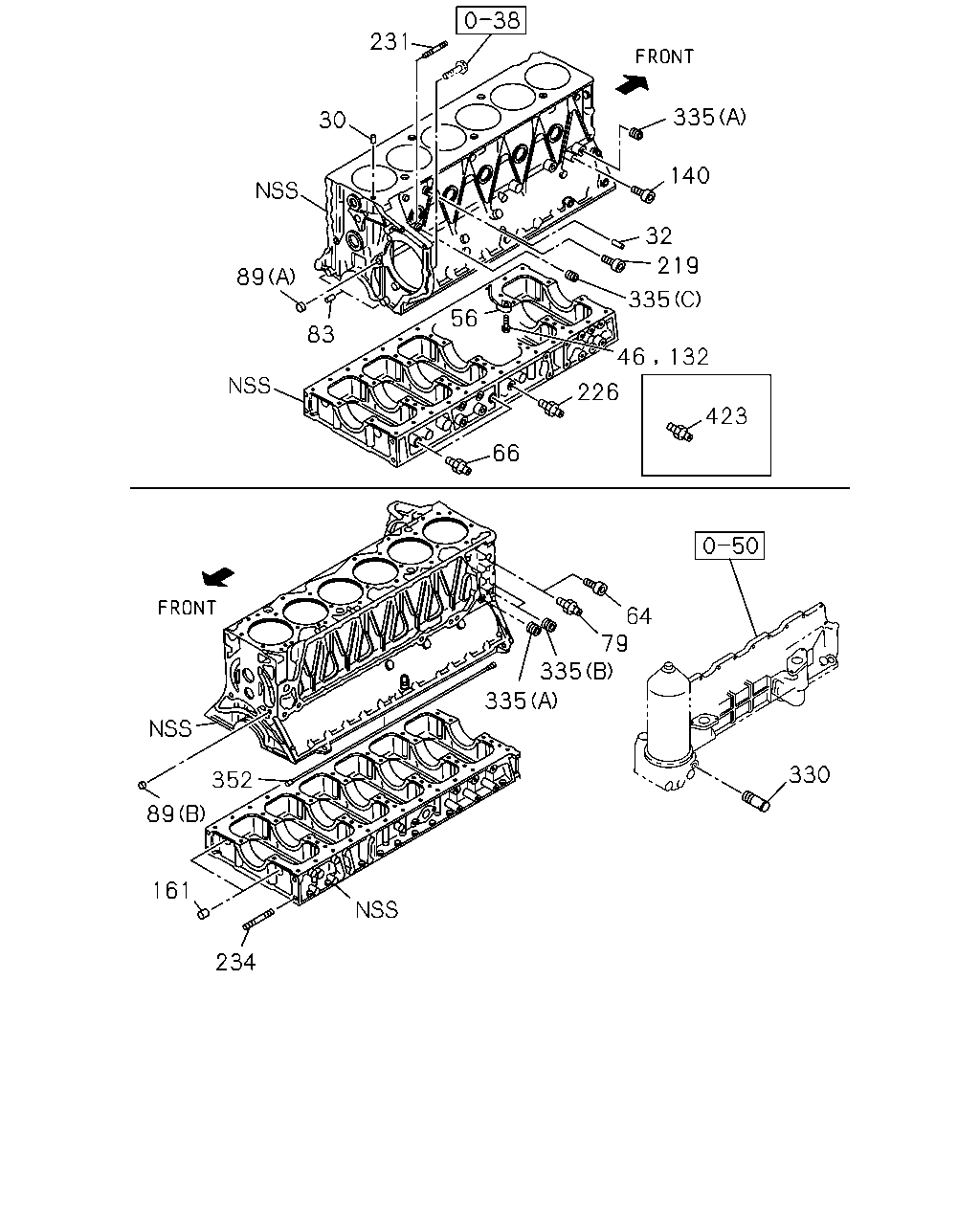

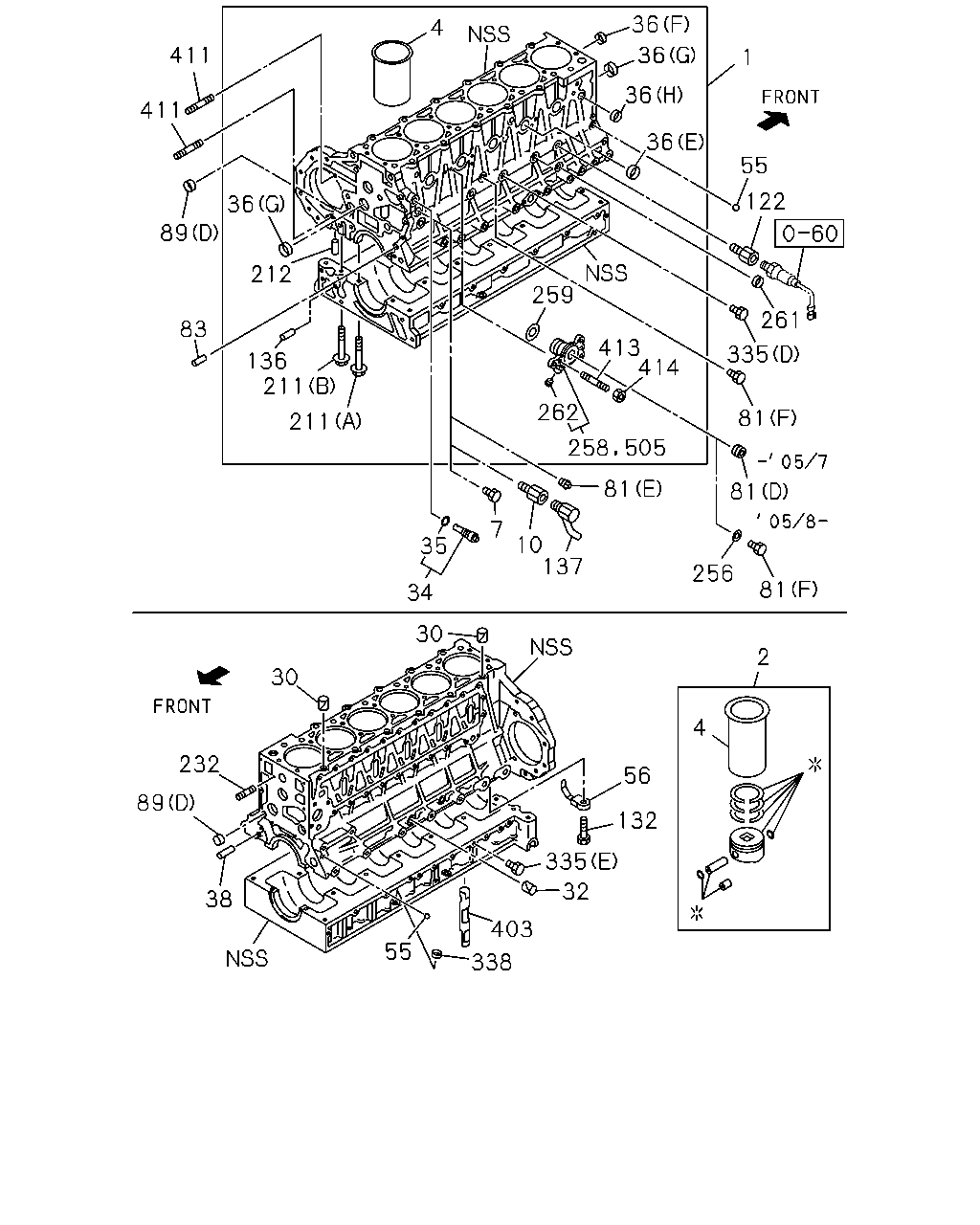

0-12 — CYLINDER BLOCK (#8599) — 626 parça

30 30 83 232 56 132 89 38 308 335 343 55 32 338 403 36 4 2 1 36 231 231 36 89 36 4 122 55 261 335 28 36 212 242 211 81 211 137 335 35 83 162 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210			●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-			●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504				●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012				●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209				●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-				●
28	COVER; OIL PORT	1-11219-163-0	01	1	0005-0210		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0303-				●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-			●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-			●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-			●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-				●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-				●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0303-				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210			●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007				●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-				●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0005-0210		●
81	PLUG; WATER JACKET (D) NPTF1-11 1/2	1-09605-065-1	01	1	0303-0507				●
81	PLUG; WATER JACKET (F) M14X14	9-09862-156-0	01	1	0508-				●
81	PLUG; WATER JACKET (E) PT3/8	8-94397-338-0	01	1	0303-				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11219-192-0	01	1	0303-0909			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11129-128-0	01	1	0910-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0211-0909			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11129-128-0	02	1	0910-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	01	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	02	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908				●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0303-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0303-1012				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0005-0210		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0005-0206		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-0210		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-			●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107			●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-				●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210		●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	04	1	0005-0005			●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0006-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0303-0604				●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-				●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0303-0307				●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0005-0210	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0005-0210		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	02	1	0211-0302			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-0111			●
335	PLUG; C/BL,SIDE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B) PT1/8	1-09605-050-0	02	1	0112-0210			●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	02	1	0303-0703				●
335	PLUG; C/BL,SIDE (D) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (E) M8X6	8-94399-421-0	01	1	0303-0501				●
335	PLUG; C/BL,SIDE (E) M8X10	8-98003-416-0	01	1	0502-				●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0303-				●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0005-0210	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0005-0210		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0005-0210		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0303-				●

36 4 411 36 1 36 411 36 55 122 36 89 259 212 261 83 413 414 335 136 211 262 81 211 81 81 7 10 137 35 256 81 34 30 2 30 4 232 56 89 132 335 32 38 403 55 338 258 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210			●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-			●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504				●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012				●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209				●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-				●
7	PLUG; WATER DRAIN M14X16.5	8-97329-617-0	01	1	1101-				●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0303-1012				●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0303-				●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-			●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-			●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-			●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-				●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-				●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0303-				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210			●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007				●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-				●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0005-0210		●
81	PLUG; WATER JACKET (D) NPTF1-11 1/2	1-09605-065-1	01	1	0303-0507				●
81	PLUG; WATER JACKET (F) M14X14	9-09862-156-0	01	1	0508-				●
81	PLUG; WATER JACKET (E) PT3/8	8-94397-338-0	01	1	0303-				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11219-192-0	01	1	0303-0909			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11129-128-0	01	1	0910-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0211-0909			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11129-128-0	02	1	0910-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	01	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	02	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908				●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0303-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-				●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0303-0812				●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0303-1012				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0005-0210		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-			●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107			●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-				●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0303-0604				●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-				●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-				●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0005-0210	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0303-0507				●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-1012				●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0005-0210	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0303-				●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0303-0307				●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0005-0210	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0303-				●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	02	1	0211-0302			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-0111			●
335	PLUG; C/BL,SIDE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B) PT1/8	1-09605-050-0	02	1	0112-0210			●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	02	1	0303-0703				●
335	PLUG; C/BL,SIDE (D) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (E) M8X6	8-94399-421-0	01	1	0303-0501				●
335	PLUG; C/BL,SIDE (E) M8X10	8-98003-416-0	01	1	0502-				●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0303-				●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0005-0210		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0303-				●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0303-0512				●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-				●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0303-0604				●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-				●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0303-0602				●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-				●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1101-				●

30 30 83 232 56 343 132 32 89 38 308 55 335 338 1 2 36 4 411 36 411 36 4 89 36 55 36 122 261 212 335 338 259 211 211 10 137 83 413 414 262 81 35 81 258 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210			●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-			●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504				●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012				●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209				●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-				●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0303-1012				●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0005-0210	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0005-0210	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0303-				●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0005-0210	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-			●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-			●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-			●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-				●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-				●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0005-0210	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0303-				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0005-0210	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0303-				●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210			●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007				●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-				●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0005-0210	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0005-0210	●
81	PLUG; WATER JACKET (C) M14	8-94399-225-0	01	1	0005-0210		●
81	PLUG; WATER JACKET (D) NPTF1-11 1/2	1-09605-065-1	01	1	0303-0507				●
81	PLUG; WATER JACKET (F) M14X14	9-09862-156-0	01	1	0508-				●
81	PLUG; WATER JACKET (E) PT3/8	8-94397-338-0	01	1	0303-				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11219-192-0	01	1	0303-0909			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11129-128-0	01	1	0910-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0211-0909			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11129-128-0	02	1	0910-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	01	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	02	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908				●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0005-0210	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0303-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0303-1012				●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0005-0210	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0005-0210		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-			●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107			●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-				●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0005-0210	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0303-0604				●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-				●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0005-0210	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0303-0507				●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-1012				●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0005-0210	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0303-				●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0005-0210	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0303-0307				●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0005-0210	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0303-				●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0005-0210	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0005-0210		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	02	1	0211-0302			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-0111			●
335	PLUG; C/BL,SIDE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B) PT1/8	1-09605-050-0	02	1	0112-0210			●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	02	1	0303-0703				●
335	PLUG; C/BL,SIDE (D) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (E) M8X6	8-94399-421-0	01	1	0303-0501				●
335	PLUG; C/BL,SIDE (E) M8X10	8-98003-416-0	01	1	0502-				●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0005-0210	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0303-				●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0005-0210	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0005-0210		●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0303-0512				●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-				●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0005-0210	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0303-0604				●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-				●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0303-0602				●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0603-				●

163 167 166 164 170 163 215 214 215 214 163 165 169 121 167 121 167 170 167 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
121	RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	02	1	0005-0210	●
121	RUBBER; MTG,COVER (B) OD=32	8-94396-221-0	01	1	0005-0210	●
163	COVER ASM; C/BL SKIRT (A)	8-94390-172-0	01	1	0005-0210	●
163	COVER ASM; C/BL SKIRT (B)	8-94395-894-0	01	1	0005-0210	●
164	BOLT; COVER BLOCK SKIRT M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●
165	COVER; C/BL SKIRT	8-94395-694-1	01	1	0005-0210	●
166	MOUNT; COVER BLOCK SKIRT OD=22	8-94140-428-1	04	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (B) OD=13 T=9.5	8-94140-427-1	05	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (C) M10	8-94393-791-2	01	1	0005-0210	●
167	TUBE; DIST,SIDE COVER (A) OD=32 W/FLANGE	8-94397-356-1	01	1	0005-0210	●
169	INSULATOR; SIDE COVER	8-94390-173-0	01	1	0005-0210	●
170	WASHER; COVER (A) ID=8.4 OD=22	9-09160-708-0	04	1	0005-0210	●
170	WASHER; COVER (B) ID=14 OD=22	9-47515-014-0	01	1	0005-0210	●
214	BOLT; NOISE COVER M10X25 FLANGE	0-28181-025-0	02	1	0005-0210	●
215	WASHER; PL,NOISE COVER (A) ID=10.5 OD=22	9-09164-610-0	01	1	0005-0210	●
215	WASHER; PL,NOISE COVER (B) ID=10.5 OD=32	9-09164-810-0	01	1	0005-0210	●

231 335 30 140 32 219 89 335 56 46 83 132 226 423 66 64 79 335 335 330 352 89 161 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0005-0210	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0005-			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0303-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0005-0210	●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0005-			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0303-				●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0005-0210			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0005-0210	●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	0005-0210		●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0005-0210			●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0303-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007				●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-				●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-526-0	01	1	0211-			●
66	CONNECTOR; PARTIAL FILTER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0005-0210			●
66	CONNECTOR; PARTIAL FILTER	1-09660-526-0	01	1	0211-			●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0005-0210			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0005-0210	●	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0005-			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0303-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11219-192-0	01	1	0303-0909			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B) OD=20	9-11129-128-0	01	1	0910-			●
89	CUP; SEALING,OIL GALLERY (C) OD=20	9-11219-192-0	03	1	0005-0210	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0211-0909			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11129-128-0	02	1	0910-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0005-0301			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-			●
89	CUP; SEALING,OIL GALLERY ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	01	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY EXC. ENGINE REAR PTO(SV1) (B) OD=20	9-11219-192-0	02	1	0005-0210			●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11219-192-0	03	1	0303-0908				●
89	CUP; SEALING,OIL GALLERY (D) OD=20	9-11129-128-0	03	1	0909-				●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0005-0210	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0005-0210		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0303-				●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0005-			●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0005-			●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0005-			●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	0005-0210			●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0211-			●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	0005-0210		●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	04	1	0005-0005			●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0006-			●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	0005-			●
330	JOINT; HTR PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0005-			●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0005-0210	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0005-0210	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	0005-0210		●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0005-			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0005-0210			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	02	1	0211-0302			●
335	PLUG; C/BL,SIDE (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (C) PT1/8	1-09605-050-0	01	1	0303-			●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	0005-0111			●
335	PLUG; C/BL,SIDE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B) PT1/8	1-09605-050-0	02	1	0112-0210			●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	02	1	0303-0703				●
335	PLUG; C/BL,SIDE (D) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (E) M8X6	8-94399-421-0	01	1	0303-0501				●
335	PLUG; C/BL,SIDE (E) M8X10	8-98003-416-0	01	1	0502-				●
352	GASKET; C/BL TO CRANKCASE	1-11219-166-0	02	1	0005-			●
423	CONNECTOR; OIL FEED ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-09660-101-0	01	1	0303-			●
423	CONNECTOR; OIL FEED ENGINE REAR PTO(SV1) M12 & PT1/8	9-09221-806-1	01	1	0005-0210			●

1 36 4 36 36 36 36 212 36 230 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-97601-299-0	01	1	0005-0210	●
1	BLOCK ASM; CYL	8-97600-415-0	01	1	0005-0210		●
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0005-0210			●
1	BLOCK ASM; CYL	1-11210-682-2	01	1	0211-			●
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0303-0504				●
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-1012				●
1	BLOCK ASM; CYL	8-98180-707-0	01	1	1101-1209				●
1	BLOCK ASM; CYL	8-98206-964-0	01	1	1210-				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0005-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-2	06	1	0109-0210	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-4	06	1	0005-0210		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-160-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-631-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0005-0210			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-161-0	06	1	0211-0309			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-632-3	06	1	0310-			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-4	06	1	0707-				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0303-0305				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-4	06	1	0707-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0005-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0005-0210		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0005-0210			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0303-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0303-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0005-0210	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0005-0210	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	0005-0210		●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0005-			●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0005-			●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0005-			●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0303-				●
36	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (F) OD=25	8-94399-005-0	01	1	0303-				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-94399-639-0	04	1	0303-0502				●
36	CUP; SEALING,WATER JACKET (G) OD=40	8-97096-824-0	04	1	0503-				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0005-0210	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0005-0210	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0005-			●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0005-1107			●
211	BOLT; CRANKCASE (B)	8-98141-538-0	24	1	1108-			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0303-0905				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0303-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0005-0210	●	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0005-			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0303-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-				●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0005-			●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0005-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
