8-90 — RADIO AND TV (#8593) — 26 parça

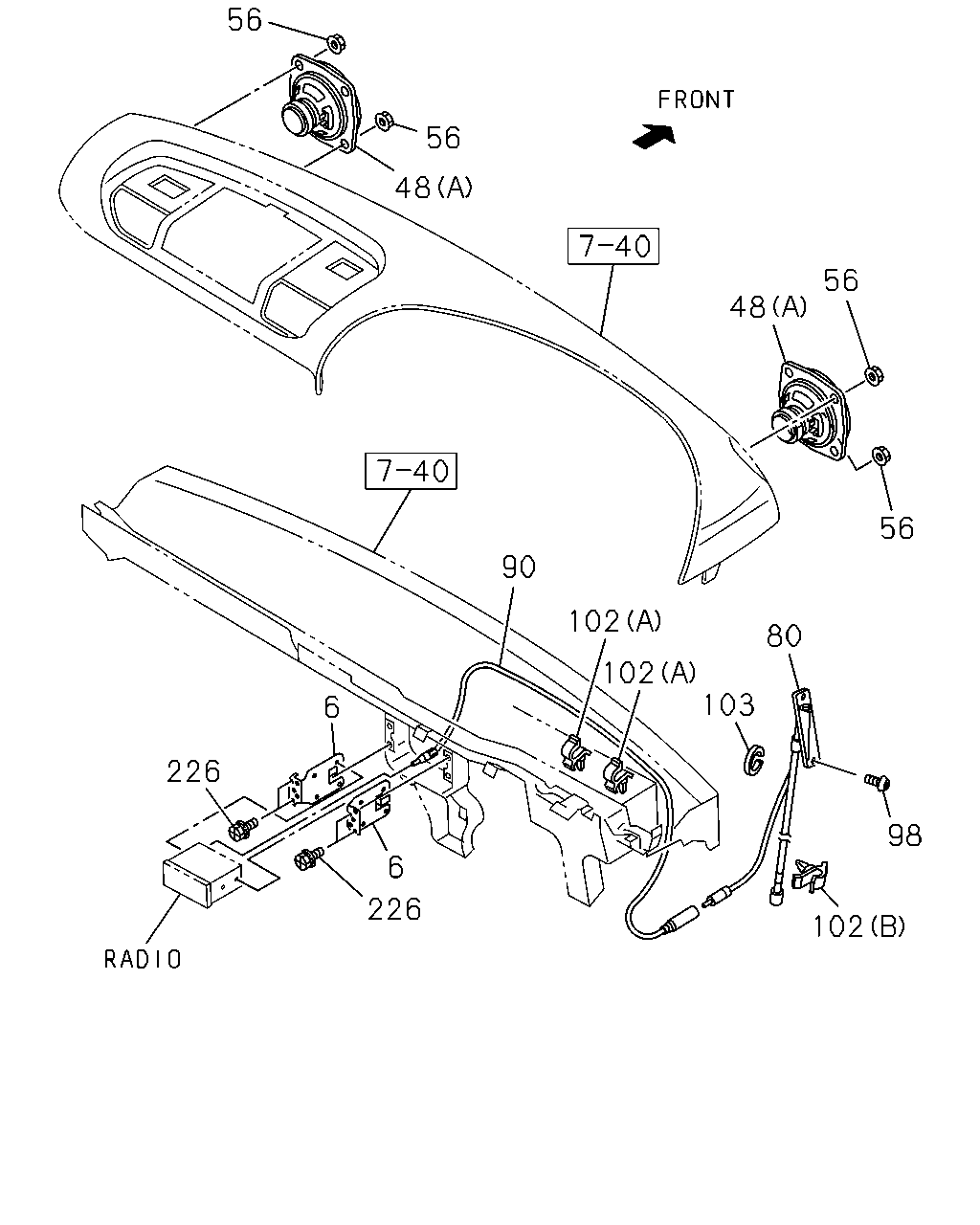

56 56 48 56 48 56 90 102 80 102 103 6 226 98 6 226 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0005-0612	●	●
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0701-	●	●
48	SPEAKER; AUDIO (B)	1-84114-057-0	02	1	0005-0310	●
48	SPEAKER; AUDIO (B)	1-84114-075-0	02	1	0311-	●
48	SPEAKER; AUDIO (A)	1-84114-050-0	02	1	0005-0308		●
48	SPEAKER; AUDIO (A)	1-84114-073-0	02	1	0309-0905		●
48	SPEAKER; AUDIO (A)	8-98140-326-0	02	1	0906-		●
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	0005-	●	●
80	ANTENNA	1-84115-055-2	01	1	0005-1203	●	●
80	ANTENNA	8-98210-874-1	01	1	1204-	●	●
90	CABLE; ANTENNA,FEEDER	1-84113-011-2	01	1	0005-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0005-	●	●
102	CLIP; CABLE (B) W/PACKING ID=4.8	1-73907-618-0	05	1	0005-	●	●
102	CLIP; CABLE (A) WO/PACKING ID=4.8	8-94128-483-0	02	1	0005-	●	●
103	GROMMET; ANTENNA HOLE,FRT	8-97027-381-0	01	1	0005-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-	●	●

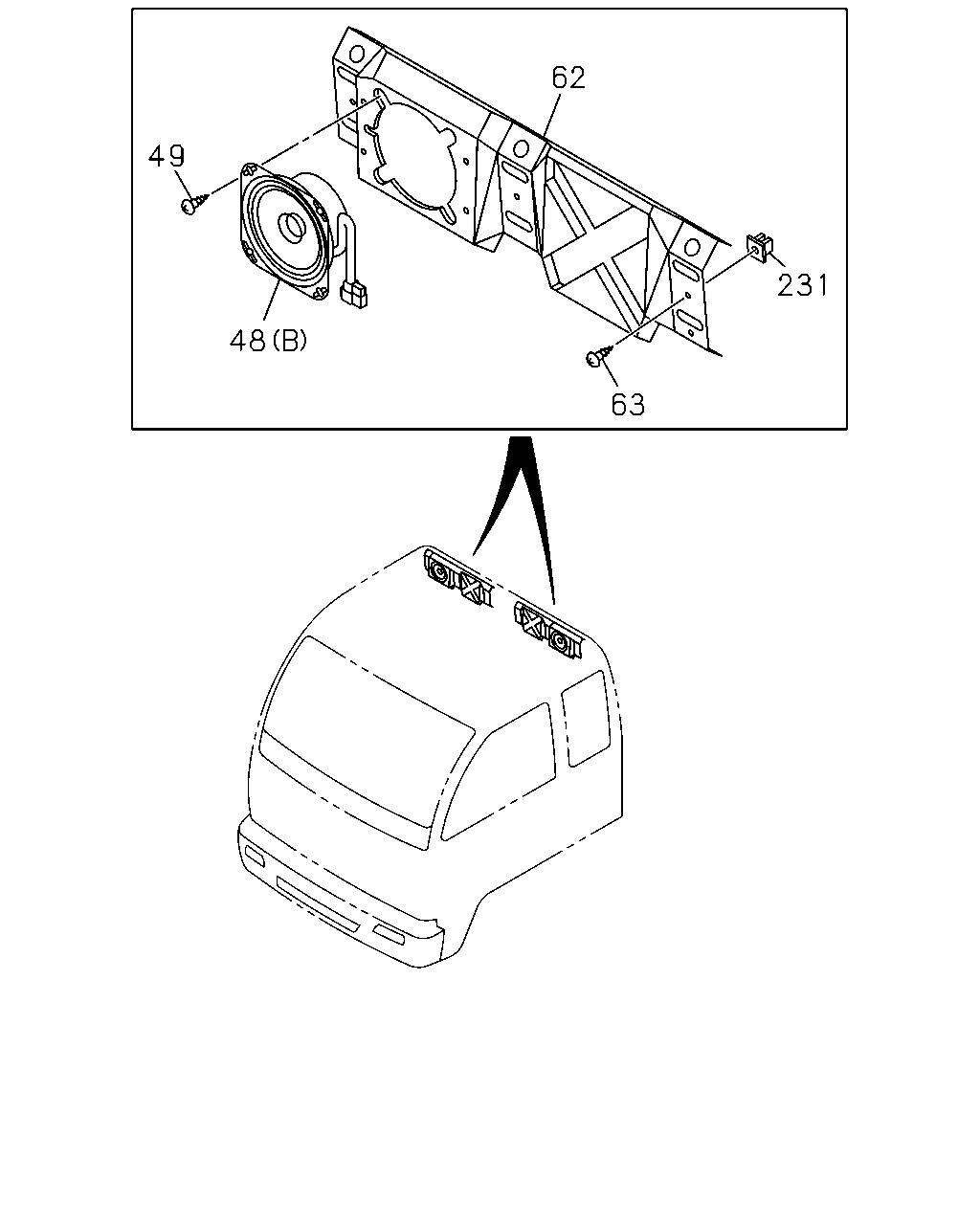

62 49 231 48 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	SPEAKER; AUDIO (B)	1-84114-057-0	02	1	0005-0310	●
48	SPEAKER; AUDIO (B)	1-84114-075-0	02	1	0311-	●
48	SPEAKER; AUDIO (A)	1-84114-050-0	02	1	0005-0308		●
48	SPEAKER; AUDIO (A)	1-84114-073-0	02	1	0309-0905		●
48	SPEAKER; AUDIO (A)	8-98140-326-0	02	1	0906-		●
49	SCREW; SPEAKER M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	0005-	●
62	BOX; RR SPEAKER	1-73996-197-6	01	1	0005-	●
62	BOX; RR SPEAKER	1-73996-196-6	01	1	0005-	●
63	SCREW; RR SPEAKER BOX M5X20	5-09981-059-0	12	1	0005-	●
231	GROMMET; SCREW,SPEAKER BOX D=8.6X7.7 L=7.5	8-94279-078-0	12	1	0005-	●
