◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#8590) — 38 parça

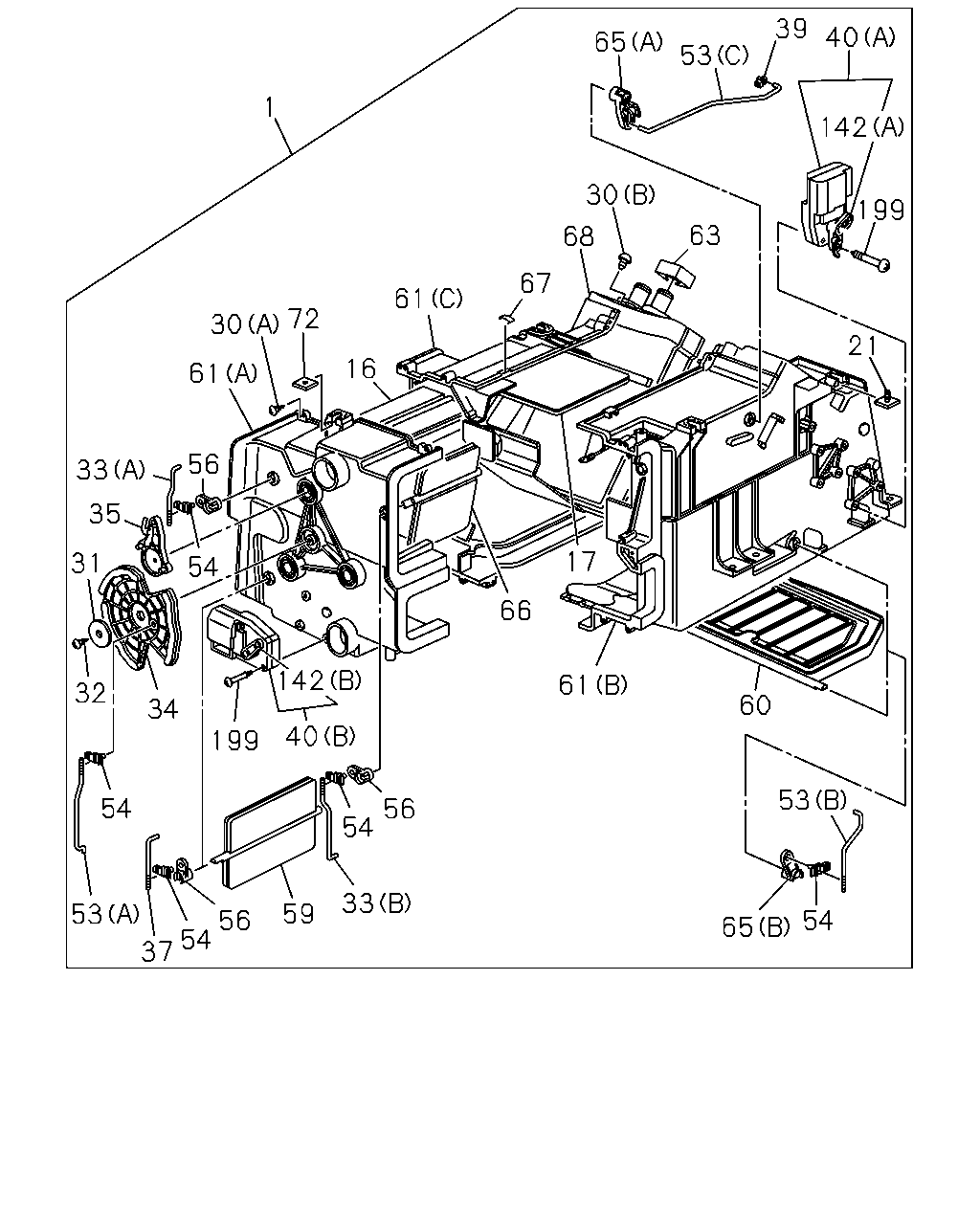

çizim 100383
39 40 65 53 1 142 30 199 63 68 67 61 72 30 21 16 61 56 33 35 17 31 54 66 142 61 32 60 34 40 199 53 54 56 54 33 59 53 54 56 54 37 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 1-83511-129-8 01 1 0005-0109 ● ●
1 HEATER UNIT 1-83511-175-1 01 1 0110- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0005- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0005- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0005- ● ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0211- ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0005- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0005- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0005- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0005- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0005- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0005- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0005- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0005- ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0005- ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 0005- ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0005- ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0005- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0005- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0005- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0005- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0005- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0005- ● ●
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0005-0109 ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110- ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0005- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0005- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0005- ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0005- ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0005- ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0005- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0005- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0005- ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0005- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0005- ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0005- ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0005- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0005- ● ●
