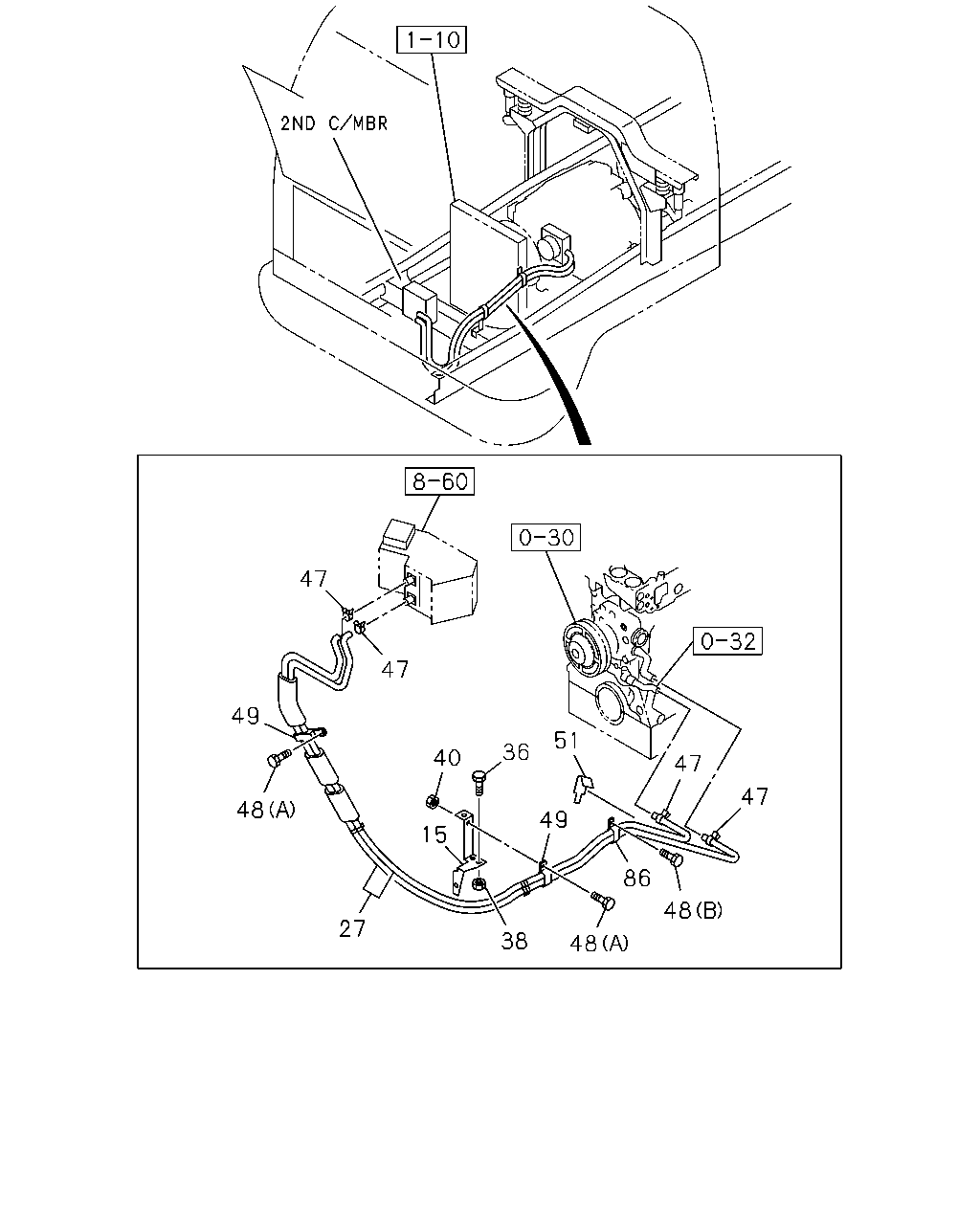

8-45 — HEATER PIPING
(#8587) — 31 parça
Tümü
A - FTR5MF
B - FTR5WF
47
47
49
51
36
47
40
47
48
49
15
86
48
27
38
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
BRACKET; WATER HOSE
1-83571-844-2
01
1
0005-0210
●
●
15
BRACKET; WATER HOSE
1-83573-070-1
01
1
0211-
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-757-0
01
1
0005-0008
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-761-0
01
1
0009-0210
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-790-0
01
1
0211-0305
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
6HK1 TCC ENG(81L)
1-83565-790-0
01
1
0306-
●
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-627-2
01
1
0005-0210
●
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0005-0512
●
●
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0005-0602
●
●
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0005-0602
●
●
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0005-0611
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
03
1
0005-0210
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
04
1
0211-0305
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
02
1
0306-0512
●
●
48
BOLT; CLIP FIX
6HK1 TCC ENG(81L) (A) M8X20 FLANGE
0-28680-820-0
02
1
0306-0512
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
48
BOLT; CLIP FIX
6HK1 TCC ENG(81L) (A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0005-
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0005-0210
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
0211-0305
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
02
1
0306-
●
●
49
CLIP; WATER HOSE,HTR
6HK1 TCC ENG(81L) ID=24X2 L=25
1-09700-710-0
02
1
0306-
●
●
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
01
1
0005-0210
●
●
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
01
1
0005-0210
●
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
02
1
0211-1205
●
●
51
CLIP; WATER HOSE,HTR
L=170
8-98166-021-0
02
1
1206-
●
●
86
CLIP; HTR HOSE
1-83571-049-1
01
1
0005-
●
●
