Sayfa 8-15 - Isuzu EPC

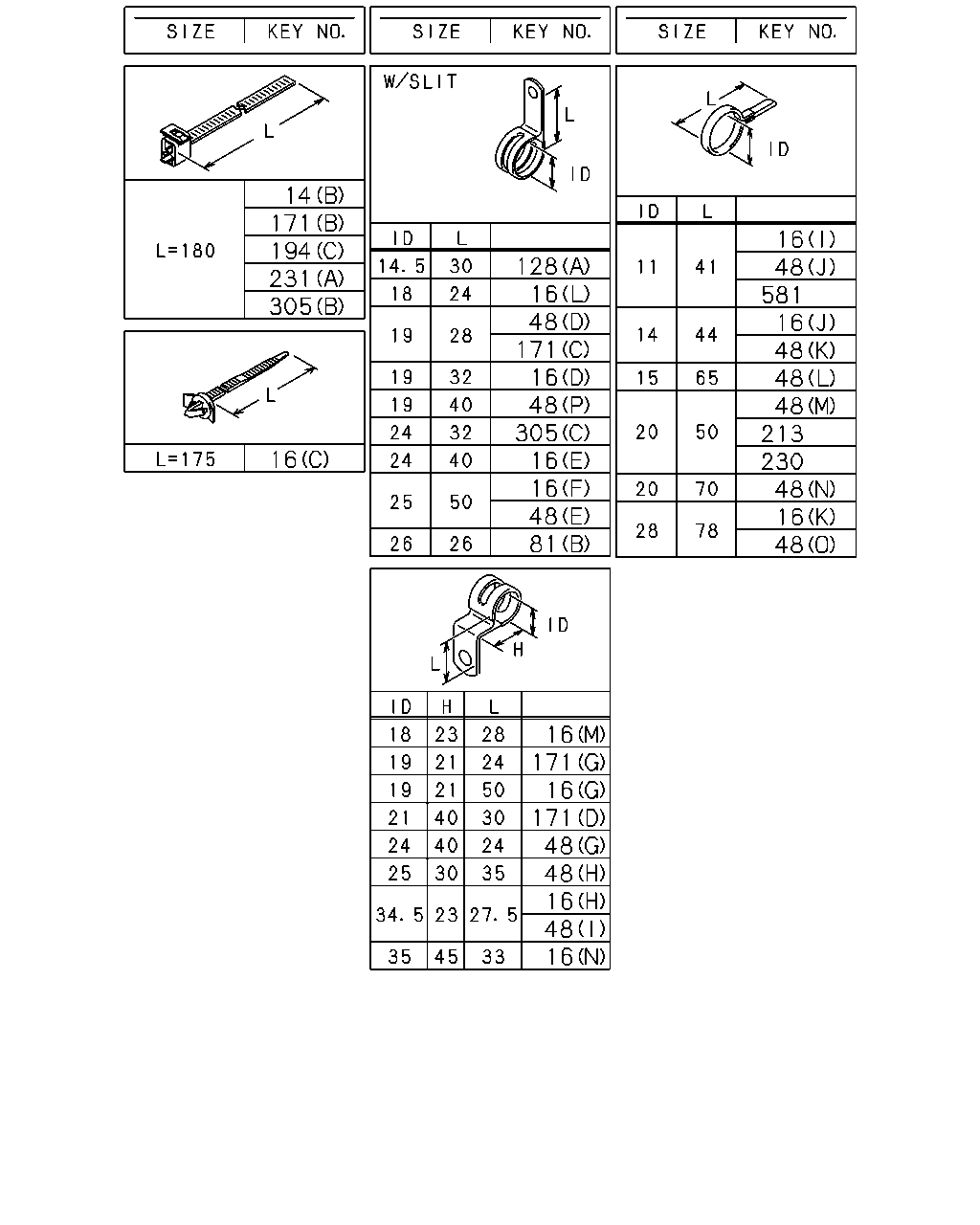

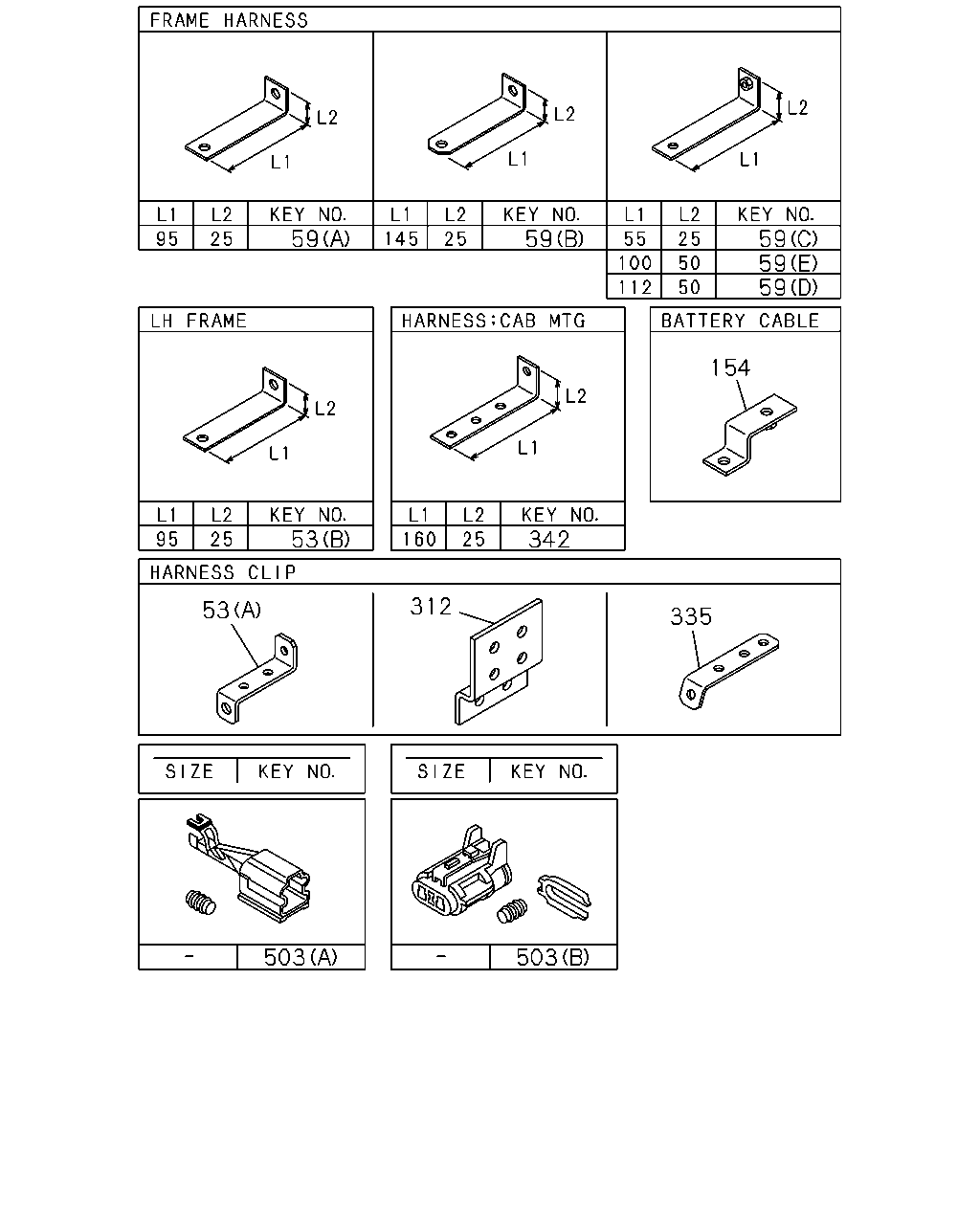

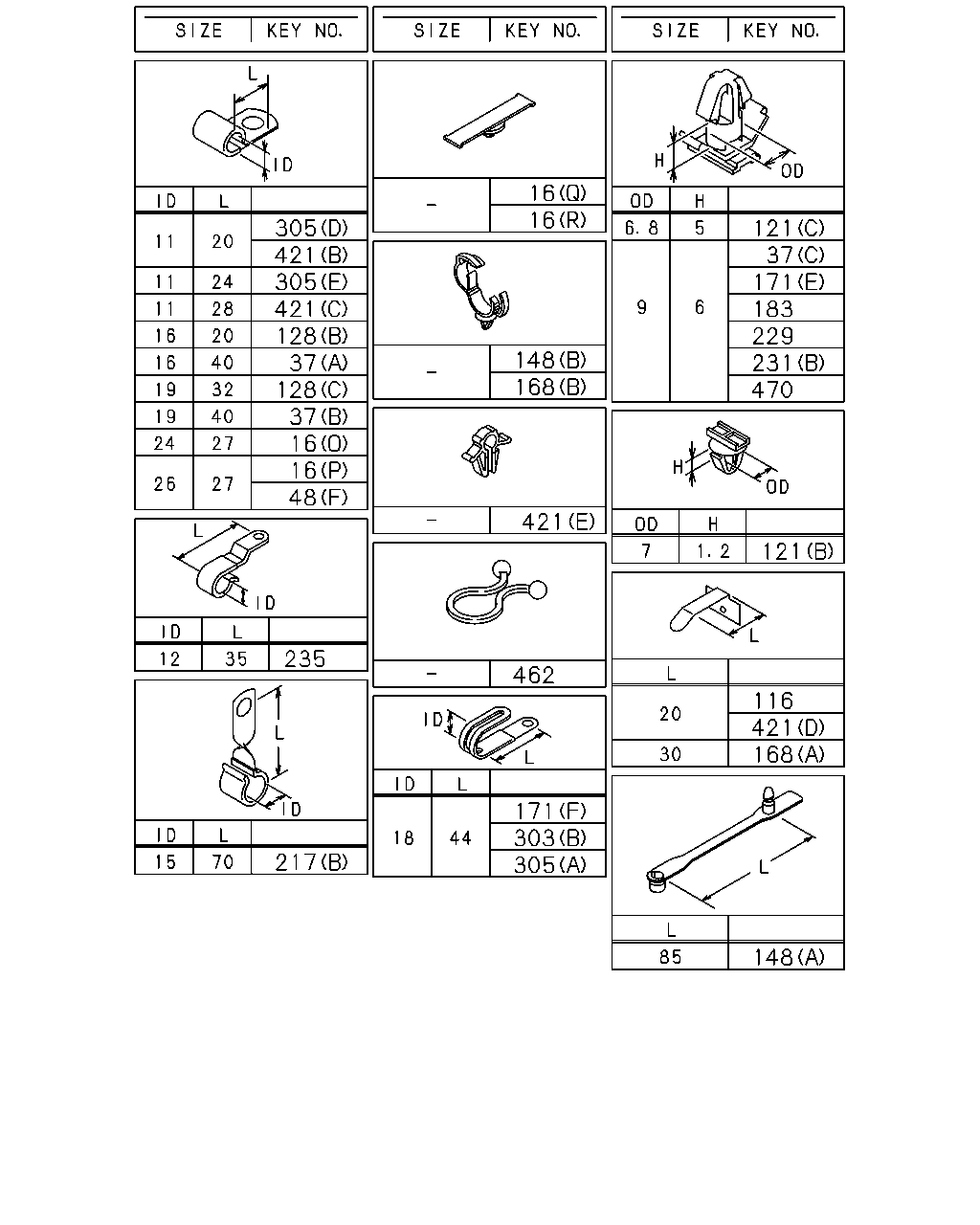

8-15 — FIXING PARTS; WIRING HARNESS (#8580) — 478 parça

185 224 178 178 178 178 194 194 48 303 171 16 217 48 16 14 395 228 225 206 121 81 48 33 14 510 513 530 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0005-	●	●
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	01	1	0005-0210		●
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	02	1	0211-1205	●	●
14	CLIP; BAND,HARNESS (C) L=140	8-98216-431-0	02	1	1206-	●	●
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0005-0210	●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	06	1	0211-	●
16	CLIP; HARNESS (E) ID=24 L=40	1-09701-139-0	01	1	0005-0210	●
16	CLIP; HARNESS (R) L=55	8-94432-655-0	03	1	0211-	●
16	CLIP; HARNESS (Q)	8-97229-356-0	03	1	0211-	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0005-0210	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-0305	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0306-	●	●
16	CLIP; HARNESS (K) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●
16	CLIP; HARNESS (O) ID=24 L=27	1-09700-809-0	01	1	0211-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0005-0210	●	●
16	CLIP; HARNESS (P) ID=26 L=27	1-09701-006-0	01	1	0211-	●	●
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0005-	●	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405		●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-		●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	02	1	0005-		●
16	CLIP; HARNESS (L) ID=18 L=40	1-09701-111-0	01	1	0211-		●
33	CLIP; HARNESS,VLV L=140	5-09707-031-1	01	1	0005-0210	●
48	CLIP; FRAME HARNESS (H) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (E) ID=25 L=50	1-09700-976-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	02	1	0211-	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0210	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0005-0210	●
48	CLIP; FRAME HARNESS (B) L=250	5-09707-030-1	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	05	1	0211-	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	13	1	0005-0210	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	15	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0211-0405	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-		●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	05	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0005-	●	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0211-0606	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (O) ID=28 L=78	1-09700-858-0	04	1	0005-	●	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	04	1	0211-	●	●
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
48	CLIP; FRAME HARNESS (F) ID=26 L=27	1-09701-006-0	02	1	0005-		●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	9-09525-876-0	01	1	0211-0606		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	0-95235-876-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0211-		●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0101-0210		●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0211-		●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0005-	●	●
81	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0211-	●	●
121	CLIP; FACIA HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●	●
121	CLIP; FACIA HARNESS (B) OD=7 H=1.2	8-94364-750-0	02	1	0005-0210	●	●
121	CLIP; FACIA HARNESS (C) OD=6.8 H=5	8-97082-051-0	02	1	0211-		●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0005-0005	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0005	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0210	●	●
171	CLIP; STARTER HARNESS (G) ID=19 L=24 H=21	1-09700-109-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-0005		●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210		●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210		●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210		●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-0211	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-0211		●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	0212-		●
178	GROMMET; HARNESS (A) ID=19 OD=23 T=24	1-09332-103-0	01	1	0005-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-1	01	1	0005-0210	●	●
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W) (B) ID=28 OD=35 T=17	9-09956-256-1	01	1	0005-0210	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-1	01	1	0211-0211	●	●
178	GROMMET; HARNESS (D) ID=24 OD=30 T=20	1-09332-096-0	02	1	0212-	●	●
185	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-0210	●
185	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-	●	●
194	CLIP; BAND (C) L=180	1-09707-162-1	03	1	0005-0210	●	●
194	CLIP; BAND (C) L=180	1-09707-162-1	04	1	0211-	●	●
194	CLIP; BAND (B) L=450	1-09707-142-1	01	1	0005-		●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0005-		●
194	CLIP; BAND (A) L=350	8-94152-256-1	01	1	0005-		●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0005-	●	●
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0005-0208	●	●
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0005-	●	●
224	SLEEVE; RUBBER,HARNESS ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-0210	●
225	CLIP; AIR TANK HARNESS L=140	5-09707-031-1	01	1	0005-	●
228	CLIP; COOLER HARNESS L=140	5-09707-031-1	01	1	0005-	●	●
303	CLIP; HARNESS POWER TILT RELAY (A) L=300	1-09707-001-1	01	1	0005-		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-94225-185-0	01	1	0005-0801		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
395	CLIP; WIPER HARNESS L=140	5-09707-031-1	01	1	0005-	●	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	0005-0210	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	01	1	0211-	●	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-1	08	1	0005-	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	01	1	0005-0906	●	●
513	TAPE; SOFT,HARNESS 100X30	1-74998-068-0	02	1	0005-		●
514	FINISHER; HARNESS L=50	8-94270-377-1	01	1	0907-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-0	01	1	0006-0210	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	0211-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-0	06	1	0102-0210	●	●

119 64 524 219 294 133 210 520 184 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0005-0210	●
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0211-	●	●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0211-	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0005-0110	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0005-	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	0005-0603	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	0005-	●	●
219	NUT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
219	NUT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0603-	●
219	NUT M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
219	NUT M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●
219	NUT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
219	NUT M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
219	NUT M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
219	NUT M8 FLANGE	0-91180-108-0	03	1	0603-		●
219	NUT M8 FLANGE	0-91180-108-0	03	1	0603-		●
294	NUT M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●
294	NUT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
294	NUT M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●
294	NUT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
294	NUT M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
294	NUT M8 FLANGE	0-91150-108-0	03	1	0211-0602		●
294	NUT M8 FLANGE	0-91180-108-0	03	1	0603-		●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	0005-	●	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

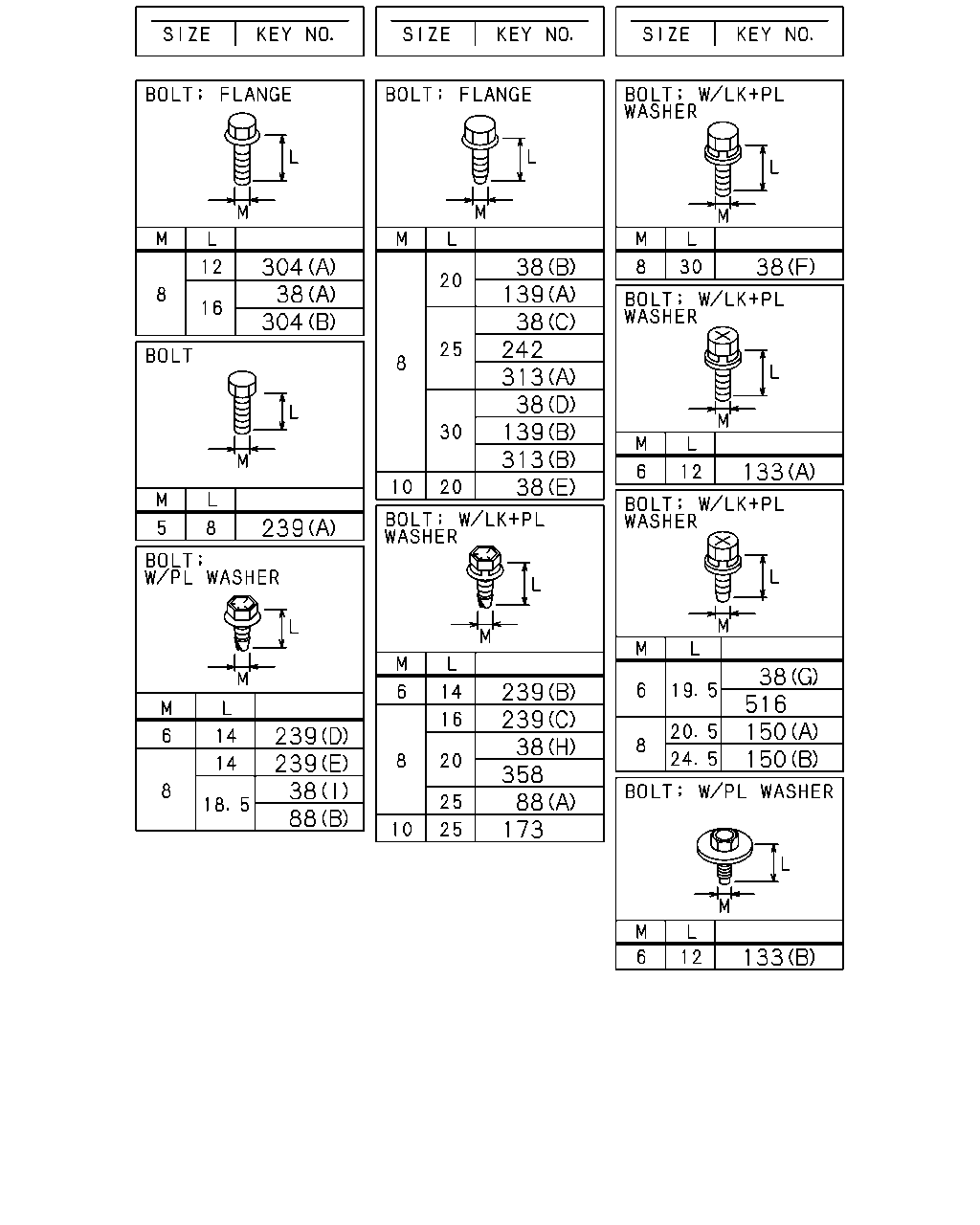

304 38 304 38 139 38 242 313 38 139 313 38 38 133 239 38 516 150 150 239 239 38 358 88 173 239 239 38 88 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS (H) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0005-1201	●
38	BOLT; CLIP,HARNESS (I) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	05	1	0211-0512	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0305	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	02	1	0306-0512	●	●
38	BOLT; CLIP,HARNESS 6HK1 TCC ENG(81L) (B) M8X20 FLANGE	0-28680-820-0	02	1	0306-0512	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS 6HK1 TCC ENG(81L) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	03	1	0005-0210	●	●
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28781-020-0	01	1	0005-0512	●	●
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS (F) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0005-0512	●	●
38	BOLT; CLIP,HARNESS (F) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	04	1	0005-0210		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	03	1	0211-0512		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
38	BOLT; CLIP,HARNESS (G) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0005-		●
38	BOLT; CLIP,HARNESS (H) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0210		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0005-0210	●	●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0211-1007	●	●
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0005-0110	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●
139	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
150	BOLT; CLIP (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0211-0608	●	●
150	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0609-0904	●	●
150	BOLT; CLIP (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0005-	●	●
239	BOLT; GRAND (A) M5X8	0-20800-508-0	01	1	0005-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0005-1007	●	●
239	BOLT; GRAND (D) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●
239	BOLT; GRAND (C) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-1201	●	●
239	BOLT; GRAND (E) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●
242	BOLT; BRKT,HARNESS M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●
242	BOLT; BRKT,HARNESS M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28080-812-0	04	1	0211-0512	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
313	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0512		●
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
358	BOLT; EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0210		●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●	●

59 59 59 59 59 154 53 342 312 53 335 503 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS (A)	1-47476-812-1	01	1	0005-0210	●
53	BRACKET; HARNESS (B) L=95	1-82699-085-0	04	1	0005-	●	●
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	0005-	●
59	BRACKET; FRAME HARNESS (B) L=145	1-47475-655-0	01	1	0005-		●
59	BRACKET; FRAME HARNESS (C)	1-82698-423-0	01	1	0211-		●
59	BRACKET; FRAME HARNESS (D)	1-82699-745-1	01	1	0211-0303		●
59	BRACKET; FRAME HARNESS (E)	1-82698-489-0	01	1	0304-		●
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	0005-0210		●
312	BRACKET; CLIP HARNESS	1-82699-557-0	01	1	0005-		●
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0005-	●	●
342	BRACKET; HARNESS CAB MTG	1-82698-231-0	01	1	0211-		●
503	CONNECTOR (A)	1-82690-668-0	01	1	0310-	●	●
503	CONNECTOR STARTER SWITCH DELETION<E5D> (B)	1-82690-666-0	01	1	0212-	●	●
503	CONNECTOR (A)	1-82690-668-0	01	1	0005-0210	●	●

14 171 194 231 305 16 48 581 16 48 48 48 213 230 48 16 48 128 16 48 171 16 48 305 16 16 48 81 16 16 171 16 171 48 48 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0005-	●	●
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	01	1	0005-0210		●
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	02	1	0211-1205	●	●
14	CLIP; BAND,HARNESS (C) L=140	8-98216-431-0	02	1	1206-	●	●
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0005-0210	●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	06	1	0211-	●
16	CLIP; HARNESS (E) ID=24 L=40	1-09701-139-0	01	1	0005-0210	●
16	CLIP; HARNESS (R) L=55	8-94432-655-0	03	1	0211-	●
16	CLIP; HARNESS (Q)	8-97229-356-0	03	1	0211-	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0005-0210	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-0305	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0306-	●	●
16	CLIP; HARNESS (K) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●
16	CLIP; HARNESS (O) ID=24 L=27	1-09700-809-0	01	1	0211-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0005-0210	●	●
16	CLIP; HARNESS (P) ID=26 L=27	1-09701-006-0	01	1	0211-	●	●
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0005-	●	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405		●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-		●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	02	1	0005-		●
16	CLIP; HARNESS (L) ID=18 L=40	1-09701-111-0	01	1	0211-		●
48	CLIP; FRAME HARNESS (H) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (E) ID=25 L=50	1-09700-976-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	02	1	0211-	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0210	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0005-0210	●
48	CLIP; FRAME HARNESS (B) L=250	5-09707-030-1	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	05	1	0211-	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	13	1	0005-0210	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	15	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0211-0405	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-		●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	05	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0005-	●	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0211-0606	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (O) ID=28 L=78	1-09700-858-0	04	1	0005-	●	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	04	1	0211-	●	●
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
48	CLIP; FRAME HARNESS (F) ID=26 L=27	1-09701-006-0	02	1	0005-		●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	9-09525-876-0	01	1	0211-0606		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	0-95235-876-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0211-		●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0101-0210		●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0211-		●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0005-	●	●
81	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0211-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0005-0606	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	0005-0011	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0005-0005	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0005	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0210	●	●
171	CLIP; STARTER HARNESS (G) ID=19 L=24 H=21	1-09700-109-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-0005		●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210		●
194	CLIP; BAND (C) L=180	1-09707-162-1	03	1	0005-0210	●	●
194	CLIP; BAND (C) L=180	1-09707-162-1	04	1	0211-	●	●
194	CLIP; BAND (B) L=450	1-09707-142-1	01	1	0005-		●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0005-		●
194	CLIP; BAND (A) L=350	8-94152-256-1	01	1	0005-		●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	0005-	●	●
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	0005-	●	●
231	CLIP; BAND,OIL PRESS (B) OD=9 H=6	1-09709-178-0	01	1	0005-0210	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0211-	●	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0005-0210		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	03	1	0211-	●	●
305	CLIP; ENG HARNESS (A) ID=18 L=44	8-94225-185-0	03	1	0211-0801	●	●
305	CLIP; ENG HARNESS (A) ID=18 L=44	8-97367-985-1	03	1	0802-	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0211-0606	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	9-09525-045-0	01	1	0211-0606	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	0-95235-045-0	01	1	0607-	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	02	1	0005-0210		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	03	1	0005-	●	●

16 16 305 421 305 421 128 37 128 37 16 16 48 121 37 171 183 229 231 470 148 168 421 121 235 462 116 421 168 171 303 305 217 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (F) ID=25 L=50	1-09701-019-0	01	1	0005-0210	●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	06	1	0211-	●
16	CLIP; HARNESS (E) ID=24 L=40	1-09701-139-0	01	1	0005-0210	●
16	CLIP; HARNESS (R) L=55	8-94432-655-0	03	1	0211-	●
16	CLIP; HARNESS (Q)	8-97229-356-0	03	1	0211-	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0005-0210	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0211-0305	●	●
16	CLIP; HARNESS (M) ID=18 H=23 L=28	1-09700-860-0	01	1	0306-	●	●
16	CLIP; HARNESS (K) ID=28 L=78	1-09700-858-0	01	1	0005-0210	●	●
16	CLIP; HARNESS (O) ID=24 L=27	1-09700-809-0	01	1	0211-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0005-0210	●	●
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09701-047-0	01	1	0211-	●	●
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0005-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0005-0210	●	●
16	CLIP; HARNESS (P) ID=26 L=27	1-09701-006-0	01	1	0211-	●	●
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0005-0606	●	●
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0005-	●	●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0211-0405		●
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●	●
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-	●
16	CLIP; HARNESS WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0406-		●
16	CLIP; HARNESS (C) L=175	8-97110-167-0	02	1	0005-		●
16	CLIP; HARNESS (L) ID=18 L=40	1-09701-111-0	01	1	0211-		●
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	1-09709-178-0	02	1	0005-		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=40	9-09525-575-0	02	1	0005-0606		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=40	0-95235-575-0	02	1	0607-		●
37	CLIP; HARNESS,POWER TILT (B) ID=19 L=40	9-09525-875-0	01	1	0005-0606		●
37	CLIP; HARNESS,POWER TILT (B) ID=19 L=40	0-95235-875-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (H) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (E) ID=25 L=50	1-09700-976-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	02	1	0211-	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS (G) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0210	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0005-0210	●
48	CLIP; FRAME HARNESS (B) L=250	5-09707-030-1	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	05	1	0211-	●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	13	1	0005-0210	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (M) ID=20 L=50	9-09917-430-0	15	1	0211-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210	●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	21	1	0005-0210		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0211-0405	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (M) ID=20 L=50	9-09917-430-0	23	1	0406-		●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	05	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0211-	●	●
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0005-	●	●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0211-0606	●	●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (O) ID=28 L=78	1-09700-858-0	04	1	0005-	●	●
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	04	1	0211-	●	●
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0005-	●	●
48	CLIP; FRAME HARNESS (F) ID=26 L=27	1-09701-006-0	02	1	0005-		●
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	9-09525-876-0	01	1	0211-0606		●
48	CLIP; FRAME HARNESS (P) ID=19 L=40	0-95235-876-0	01	1	0607-		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	01	1	0005-0210		●
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0211-		●
48	CLIP; FRAME HARNESS (A) L=140	5-09707-031-1	01	1	0101-0210		●
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0211-		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	02	1	0005-0009	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	0010-0405	●
116	CLIP; ROOF HARNESS EXC. MAP LAMP<C85> L=20	1-09987-246-2	03	1	0406-	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	0005-0009		●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0010-0405		●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20	1-09987-246-2	05	1	0406-	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0406-		●
121	CLIP; FACIA HARNESS (A) L=140	5-09707-031-1	01	1	0005-	●	●
121	CLIP; FACIA HARNESS (B) OD=7 H=1.2	8-94364-750-0	02	1	0005-0210	●	●
121	CLIP; FACIA HARNESS (C) OD=6.8 H=5	8-97082-051-0	02	1	0211-		●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0005-0606	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=19 L=32	9-09525-862-0	01	1	0005-0011	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	0005-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13	8-97069-515-0	01	1	0005-	●	●
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	05	1	0005-	●	●
168	CLIP; DASH HARNESS (A) L=30	1-09987-265-0	01	1	0102-	●	●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●
171	CLIP; STARTER HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0005-0005	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0005	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0005-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0210	●	●
171	CLIP; STARTER HARNESS (G) ID=19 L=24 H=21	1-09700-109-1	01	1	0211-	●	●
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS (E) OD=9 H=6	1-09709-178-0	02	1	0005-0005		●
171	CLIP; STARTER HARNESS (F) ID=18 L=44	8-94225-185-0	01	1	0005-0210		●
183	CLIP; CONNECTOR OD=9 H=6	1-09709-178-0	01	1	0211-		●
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0005-0208	●	●
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0005-	●	●
229	CLIP; STARTER SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0005-	●	●
231	CLIP; BAND,OIL PRESS (B) OD=9 H=6	1-09709-178-0	01	1	0005-0210	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0211-	●	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0005-0210		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=12 L=35	5-09700-206-0	01	1	0005-	●	●
303	CLIP; HARNESS POWER TILT RELAY (A) L=300	1-09707-001-1	01	1	0005-		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-94225-185-0	01	1	0005-0801		●
303	CLIP; HARNESS POWER TILT RELAY (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0005-0210	●
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	03	1	0211-	●	●
305	CLIP; ENG HARNESS (A) ID=18 L=44	8-94225-185-0	03	1	0211-0801	●	●
305	CLIP; ENG HARNESS (A) ID=18 L=44	8-97367-985-1	03	1	0802-	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0211-0606	●	●
305	CLIP; ENG HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	9-09525-045-0	01	1	0211-0606	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=24	0-95235-045-0	01	1	0607-	●	●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	02	1	0005-0210		●
305	CLIP; ENG HARNESS (B) L=180	1-09707-162-1	01	1	0211-	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	07	1	0005-0101	●	●
421	CLIP; FLOOR HARNESS (D) L=20	1-09987-246-2	01	1	0102-	●	●
421	CLIP; FLOOR HARNESS (E) ID=9	5-09707-027-0	02	1	0005-		●
421	CLIP; FLOOR HARNESS (A) L=100	5-09707-036-1	01	1	0005-		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	03	1	0005-0301		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	9-09525-032-0	02	1	0302-0606		●
421	CLIP; FLOOR HARNESS (B) ID=11 L=20	0-95235-032-0	02	1	0607-		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	04	1	0005-0301		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	9-09525-052-0	05	1	0302-0606		●
421	CLIP; FLOOR HARNESS (C) ID=11 L=28	0-95235-052-0	05	1	0607-		●
462	CLIP; HARNESS,HTR ID=20	1-09709-068-0	02	1	0005-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
