◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#8579) — 272 parça

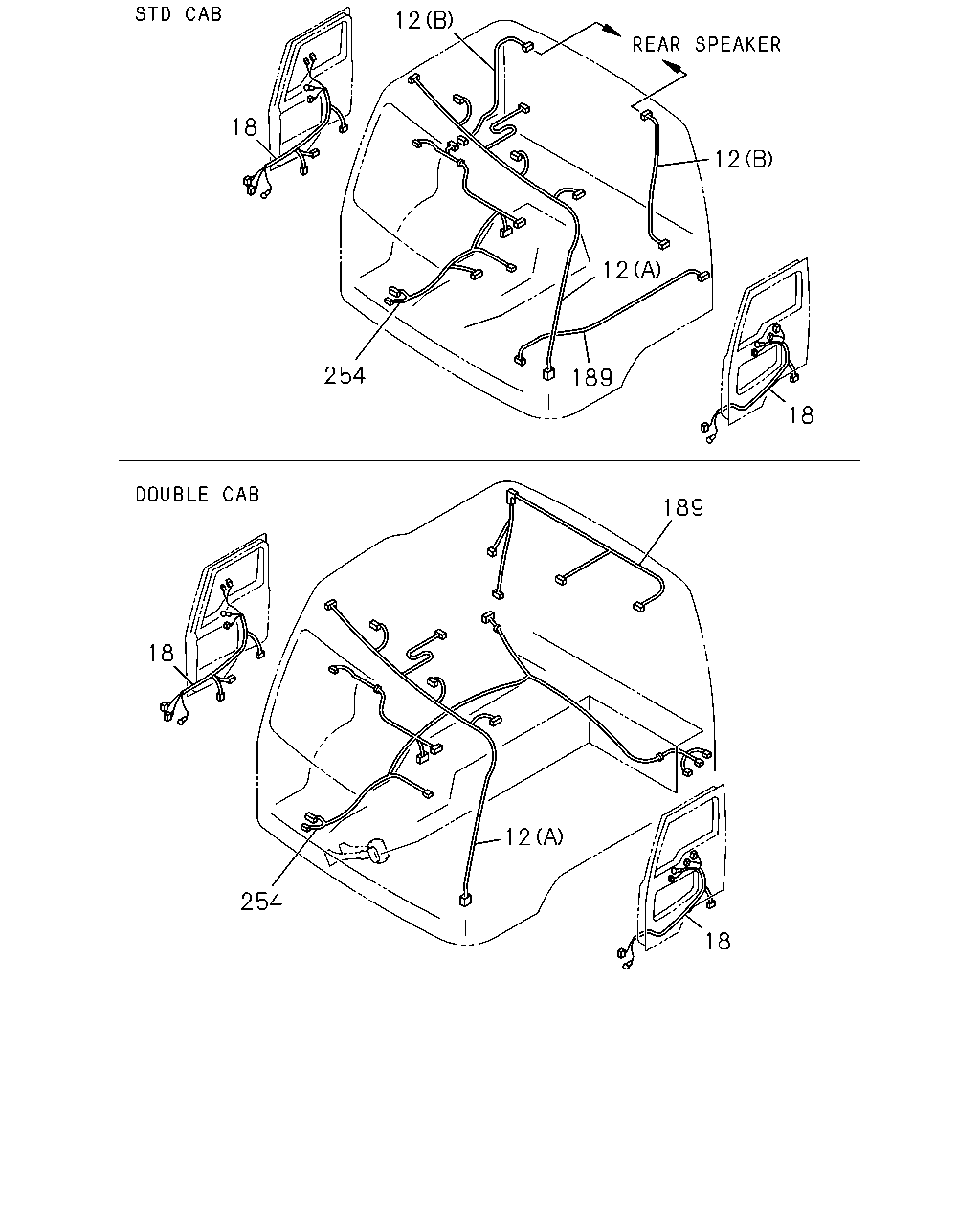

çizim 41184
12 18 12 12 254 189 18 189 18 12 254 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
(B) 		1-82626-753-0 02 1 0005- ●
12 HARNESS; ROOF
(A) 		1-82629-297-1 01 1 0005-0210 ● ●
12 HARNESS; ROOF
(A) 		1-82660-765-1 01 1 0211- ● ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0211- ●
18 HARNESS; DOOR 1-82629-302-1 01 1 0211- ●
18 HARNESS; DOOR 1-82628-581-0 02 1 0005-0202 ●
18 HARNESS; DOOR 1-82661-358-0 02 1 0203- ●
189 HARNESS; EXT
MAP LAMP<C85> 		1-82662-384-1 01 1 0406- ●
189 HARNESS; EXT 1-82625-673-2 02 1 0005- ●
189 HARNESS; EXT 1-82625-774-0 01 1 0005-0405 ●
189 HARNESS; EXT
EXC. MAP LAMP<C85> 		1-82625-774-0 01 1 0406- ●
254 HARNESS; CAB FLOOR 1-82628-129-5 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR 1-82661-385-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82662-049-1 01 1 0311- ●
254 HARNESS; CAB FLOOR 1-82628-136-3 01 1 0005-0210 ●
254 HARNESS; CAB FLOOR 1-82660-769-1 01 1 0211-0310 ●
254 HARNESS; CAB FLOOR 1-82662-050-1 01 1 0311- ●

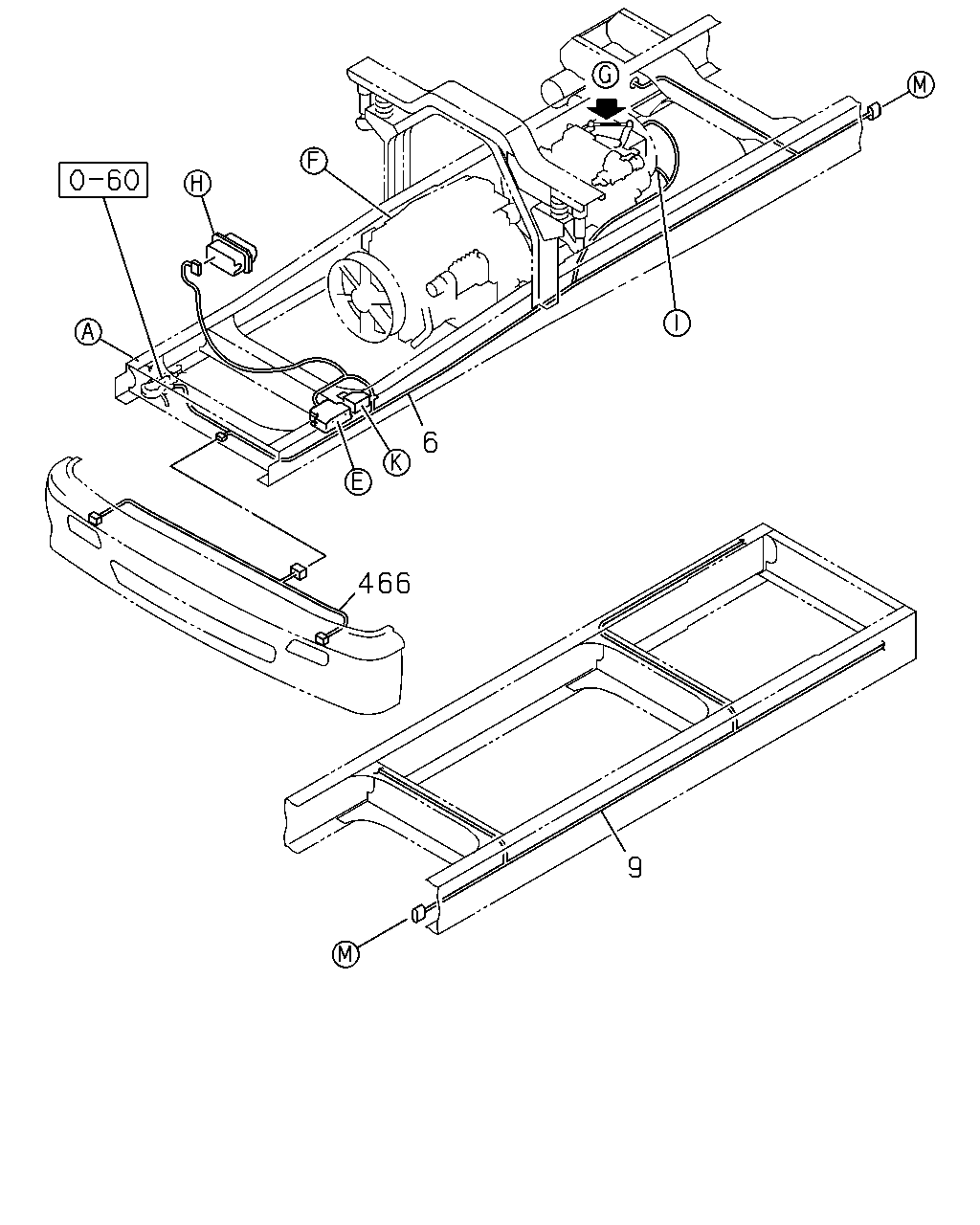

çizim 41387
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-283-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-284-0 01 1 0601- ●
6 HARNESS; FRAME 1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-027-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-027-1 01 1 0601- ●
6 HARNESS; FRAME 1-82672-973-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-028-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-028-1 01 1 0601- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6200MM(62W) 		1-82677-912-0 01 1 0406- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82672-979-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82676-032-1 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		1-82672-980-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82676-033-1 01 1 0211- ●
9 HARNESS; FRAME,RR 1-82673-168-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82676-036-1 01 1 0211- ●
466 HARNESS; BUMPER
FOG LAMP<T96> 		8-97603-621-3 01 1 0601- ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0512 ● ●
466 HARNESS; BUMPER
EXC. FOG LAMP<T96> 		1-82638-758-1 01 1 0601- ● ●

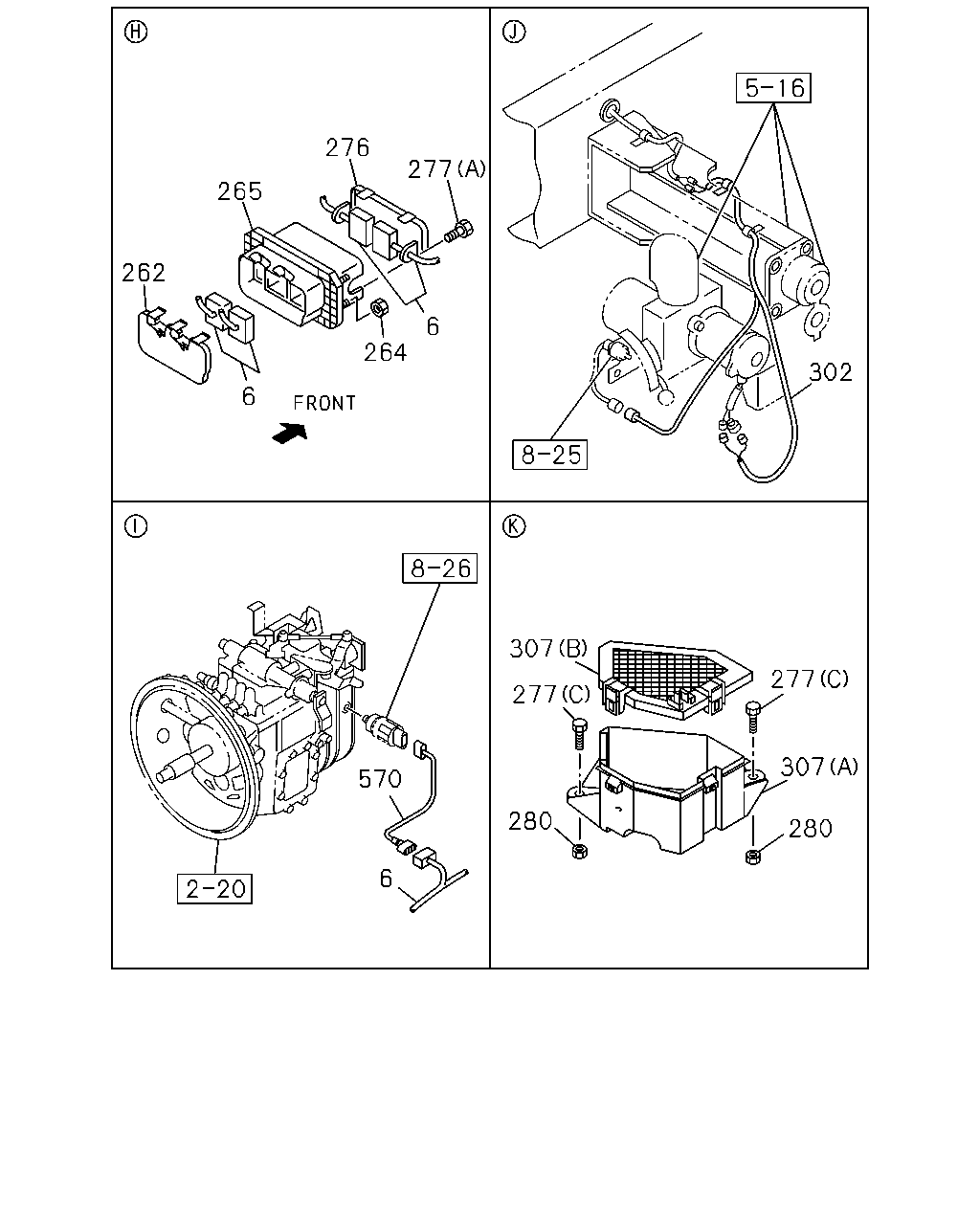

çizim 41666
276 277 265 262 6 264 302 6 307 277 277 307 570 280 280 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-283-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-284-0 01 1 0601- ●
6 HARNESS; FRAME 1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-027-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-027-1 01 1 0601- ●
6 HARNESS; FRAME 1-82672-973-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-028-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-028-1 01 1 0601- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0005- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0005- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0005- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0005- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
280 NUT; BOX ASM FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
302 HARNESS; POWER CAB TILT 1-82639-388-4 01 1 0005- ●
307 BOX; ENG HARNESS
(A) 		1-82698-119-0 01 1 0211- ● ●
307 BOX; ENG HARNESS
(B) 		1-82698-138-0 01 1 0211- ● ●
570 HARNESS; SPEED SENSOR 1-82670-012-0 01 1 0005-0301 ● ●
570 HARNESS; SPEED SENSOR 1-82677-187-0 01 1 0302- ● ●

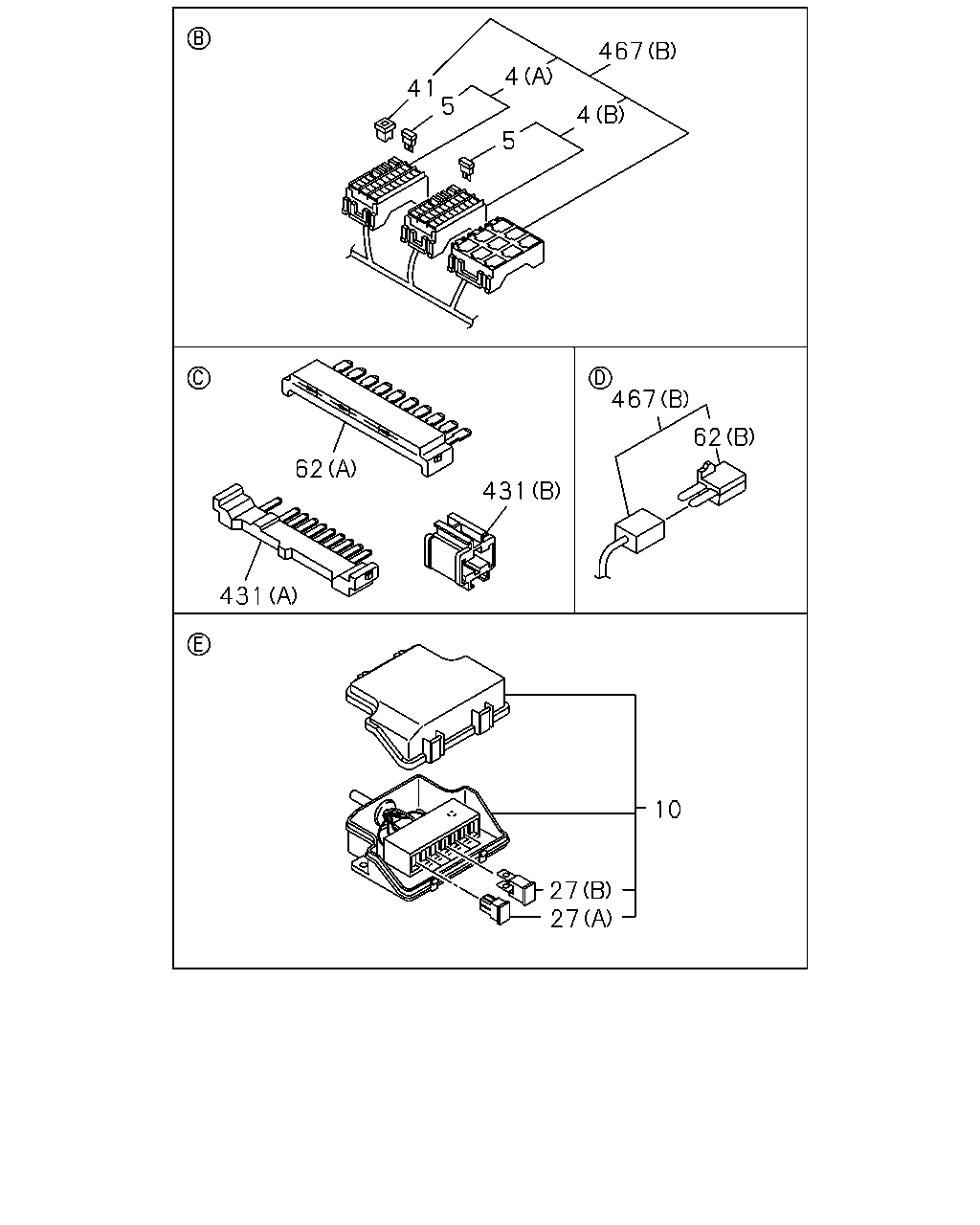

çizim 41703
467 4 41 5 4 5 467 62 62 431 431 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
FOG LAMP<T96> (A) 7.5AX15 		1-82510-391-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (A) 7.5AX15 		1-82510-391-0 01 1 0602- ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 0602- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 0211-0305 ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (A) 7.5AX13 		1-82510-421-0 01 1 0306-0512 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX13 		1-82510-421-0 01 1 0306-0512 ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (A) 7.5AX13 		1-82510-421-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
EXC. FOG LAMP<T96> (A) 7.5AX13 		1-82510-421-0 01 1 0601-0601 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX18 		1-82510-422-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX14 		1-82510-486-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0005-0210 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0211-0305 ● ●
4 BOX ASM; FUSE,HARNESS
6HK1 TCC ENG(81L) (B) 15AX15 		1-82510-521-0 01 1 0306- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX15 		1-82510-521-0 01 1 0306- ●
5 FUSE; FACIA HARNESS
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> 7.5A BROWN 		8-94159-007-0 13 1 0601-0601 ●
5 FUSE; FACIA HARNESS
EXC. FOG LAMP<T96> 7.5A BROWN 		8-94159-007-0 13 1 0601-0601 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 16 1 0005-0210 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 0211-0305 ● ●
5 FUSE; FACIA HARNESS
6HK1 TCC ENG(81L) 15A BLUE 		5-82516-003-0 15 1 0306- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 0306- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 18 1 0005-0210 ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 13 1 0211-0305 ● ●
5 FUSE; FACIA HARNESS
6HK1 TCC ENG(81L) 7.5A BROWN 		8-94159-007-0 13 1 0306-0512 ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 13 1 0306-0512 ●
5 FUSE; FACIA HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> 7.5A BROWN 		8-94159-007-0 15 1 0601-0601 ●
5 FUSE; FACIA HARNESS
FOG LAMP<T96> 7.5A BROWN 		8-94159-007-0 15 1 0601-0601 ●
5 FUSE; FACIA HARNESS
6HK1 TCC ENG(81L) 7.5A BROWN 		8-94159-007-0 15 1 0602- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 15 1 0602- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 15 1 0005-0210 ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 14 1 0005-0210 ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0005- ● ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0005- ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0005- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0005-0305 ● ●
41 PULLER; FUSE
6HK1 TCC ENG(81L) L=25.3 B=11.5 		8-94121-482-0 01 1 0306- ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0306- ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
EXC. FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 02 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0601-0601 ●
62 DIODE; HARNESS
EXC. FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0601-0601 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0005-0210 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0211-0305 ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0306-0512 ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0306-0512 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
FOG LAMP<T96> (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 0602- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0005-0305 ● ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) (A) BLACK 10P 		1-82699-703-0 02 1 0306-0512 ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0306-0512 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
FOG LAMP<T96> (A) BLACK 10P 		1-82699-703-0 04 1 0601-0601 ●
62 DIODE; HARNESS
6HK1 TCC ENG(81L) (A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 04 1 0602- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0005-0210 ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 01 1 0601-0601 ●
431 CONNECTOR; JOINT
EXC. FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 01 1 0601-0601 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0005-0210 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0211-0305 ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0306- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0005-0210 ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0005-0210 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0211-0305 ● ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (A) 10P BROWN 		1-82699-601-0 01 1 0306-0512 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0306-0512 ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 03 1 0601-0601 ●
431 CONNECTOR; JOINT
FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 03 1 0601-0601 ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (A) 10P BROWN 		1-82699-601-0 03 1 0602- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0602- ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0211-0305 ● ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (B) 3P & 3P 		1-82698-170-0 02 1 0306- ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0306- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●

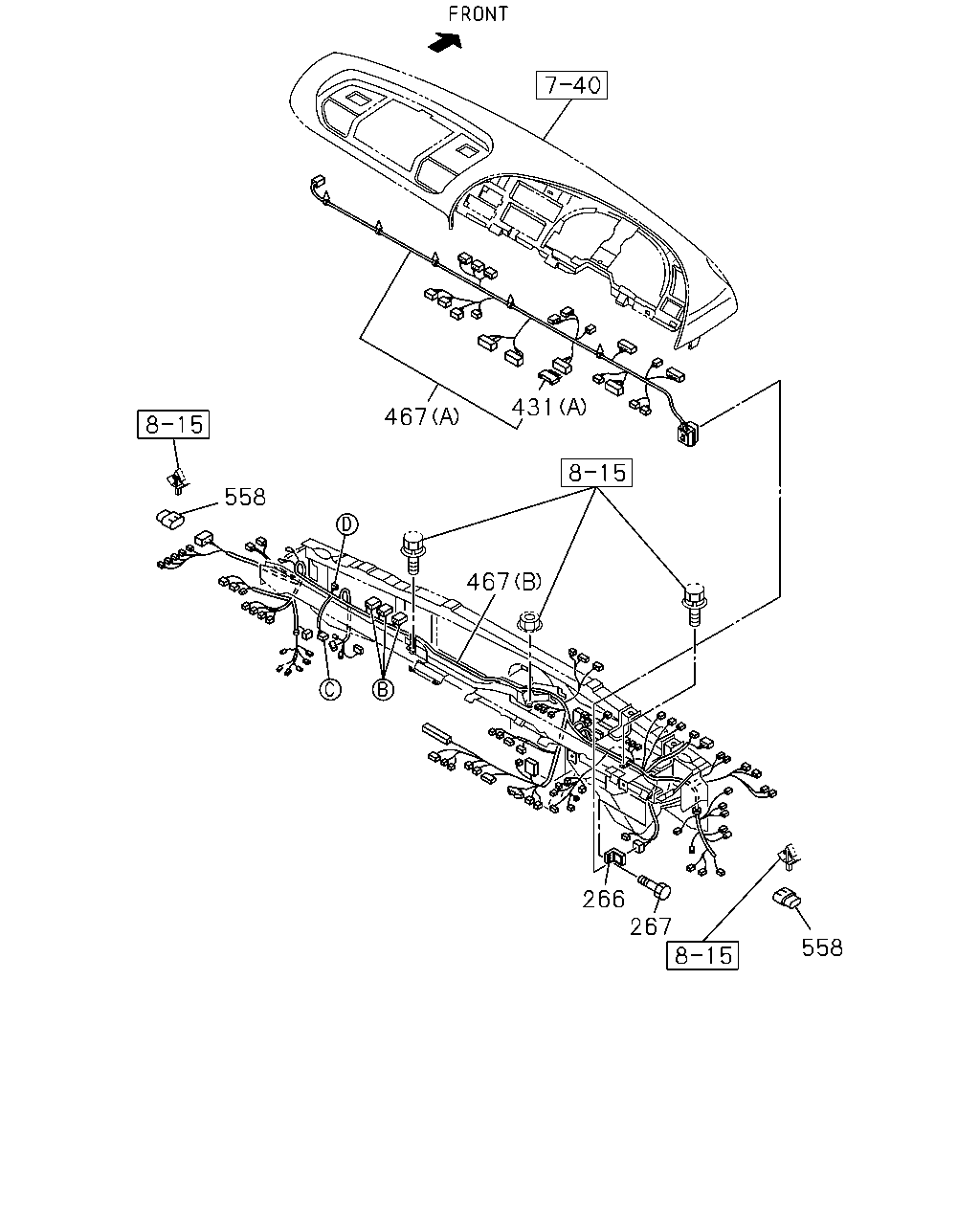

çizim 41708
431 467 558 467 266 267 558
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0005- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0005- ● ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 01 1 0601-0601 ●
431 CONNECTOR; JOINT
EXC. FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 01 1 0601-0601 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0005-0210 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0211-0305 ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0306- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0005-0210 ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0005-0210 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0211-0305 ● ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (A) 10P BROWN 		1-82699-601-0 01 1 0306-0512 ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0306-0512 ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 03 1 0601-0601 ●
431 CONNECTOR; JOINT
FOG LAMP<T96> (A) 10P BROWN 		1-82699-601-0 03 1 0601-0601 ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (A) 10P BROWN 		1-82699-601-0 03 1 0602- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0602- ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0211-0305 ● ●
431 CONNECTOR; JOINT
6HK1 TCC ENG(81L) (B) 3P & 3P 		1-82698-170-0 02 1 0306- ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 02 1 0306- ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0005-0210 ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0211- ●

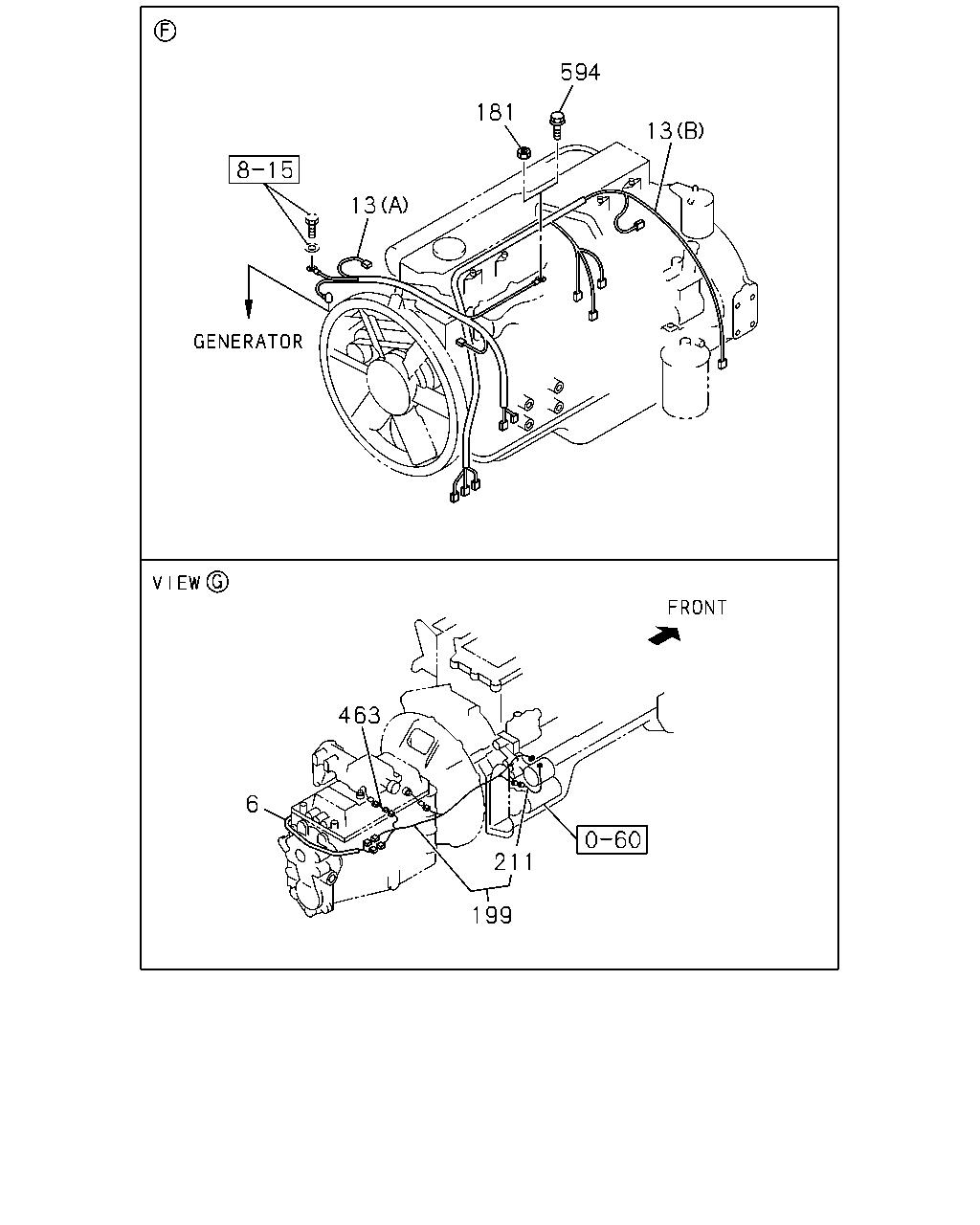

çizim 41742
594 181 13 13 463 6 211 199
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-283-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-284-0 01 1 0601- ●
6 HARNESS; FRAME 1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-027-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-027-1 01 1 0601- ●
6 HARNESS; FRAME 1-82672-973-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-028-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-028-1 01 1 0601- ●
13 HARNESS; ENG
(A) 		1-82640-982-0 01 1 0005-0009 ●
13 HARNESS; ENG
(A) 		1-82641-164-0 01 1 0010-0210 ●
13 HARNESS; ENG
(B) 		1-82640-950-7 01 1 0211- ● ●
13 HARNESS; ENG
(A) 		1-82640-715-1 01 1 0005-0009 ●
13 HARNESS; ENG
(A) 		1-82641-165-0 01 1 0010-0210 ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0211-0305 ● ●
13 HARNESS; ENG
(A) 		1-82641-277-1 01 1 0306- ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0005-0305 ● ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 0306- ● ●
199 HARNESS; STARTER 1-82640-668-3 01 1 0005-0210 ● ●
199 HARNESS; STARTER 1-82641-302-2 01 1 0211- ● ●
211 WIRE; FUSIBLE LINK,STARTER
WHITE 		1-82659-124-1 01 1 0005- ● ●
463 HARNESS; SW,BACK UP 1-82639-608-1 01 1 0005-0210 ●
463 HARNESS; SW,BACK UP 1-82639-608-1 01 1 0211- ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0211-0604 ● ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ●

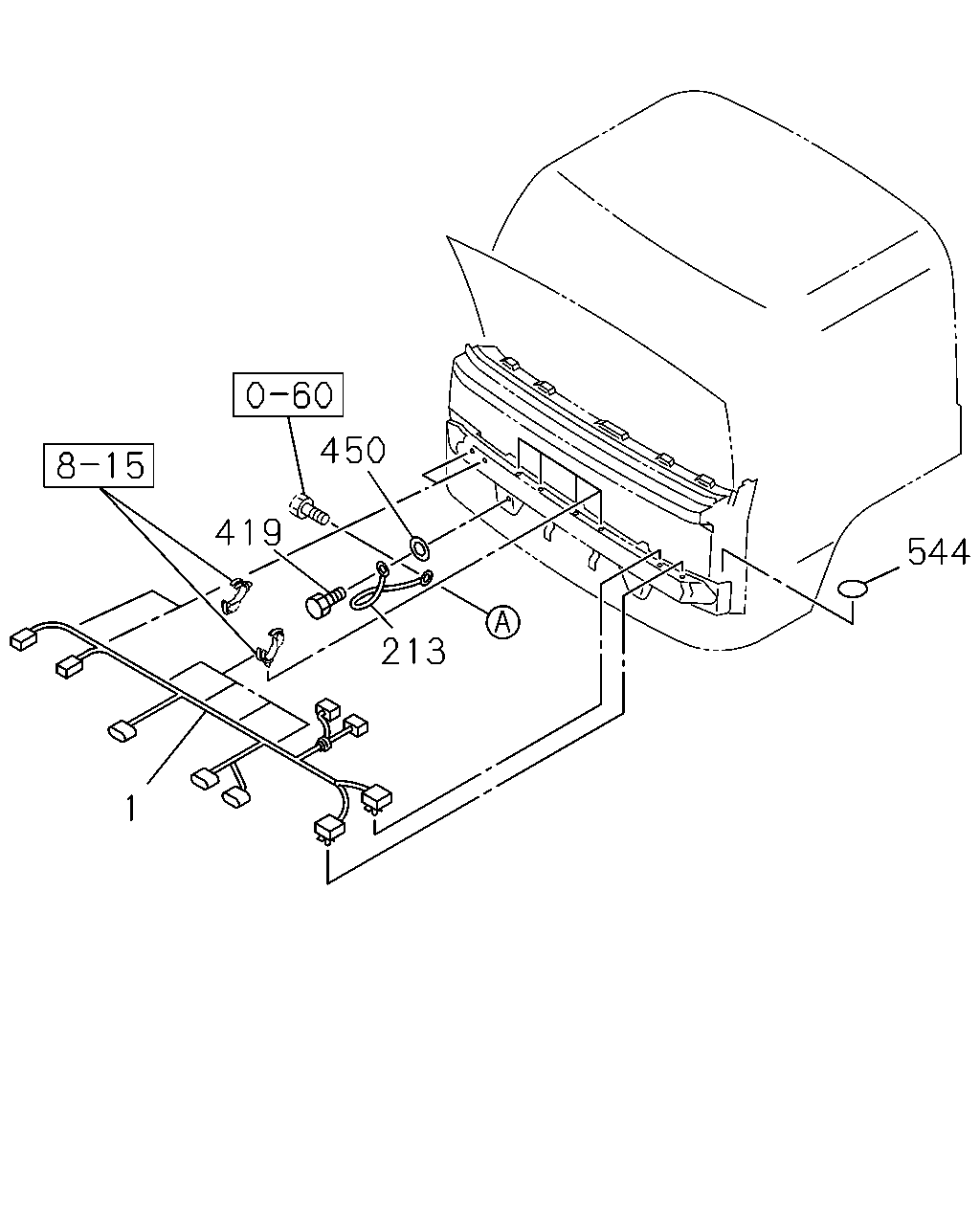

çizim 100280
450 419 544 213 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 1-82626-365-0 01 1 0005-0210 ● ●
1 HARNESS; CAB 1-82629-662-1 01 1 0211- ● ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0005- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-1201 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0205-0605 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 0005- ● ●

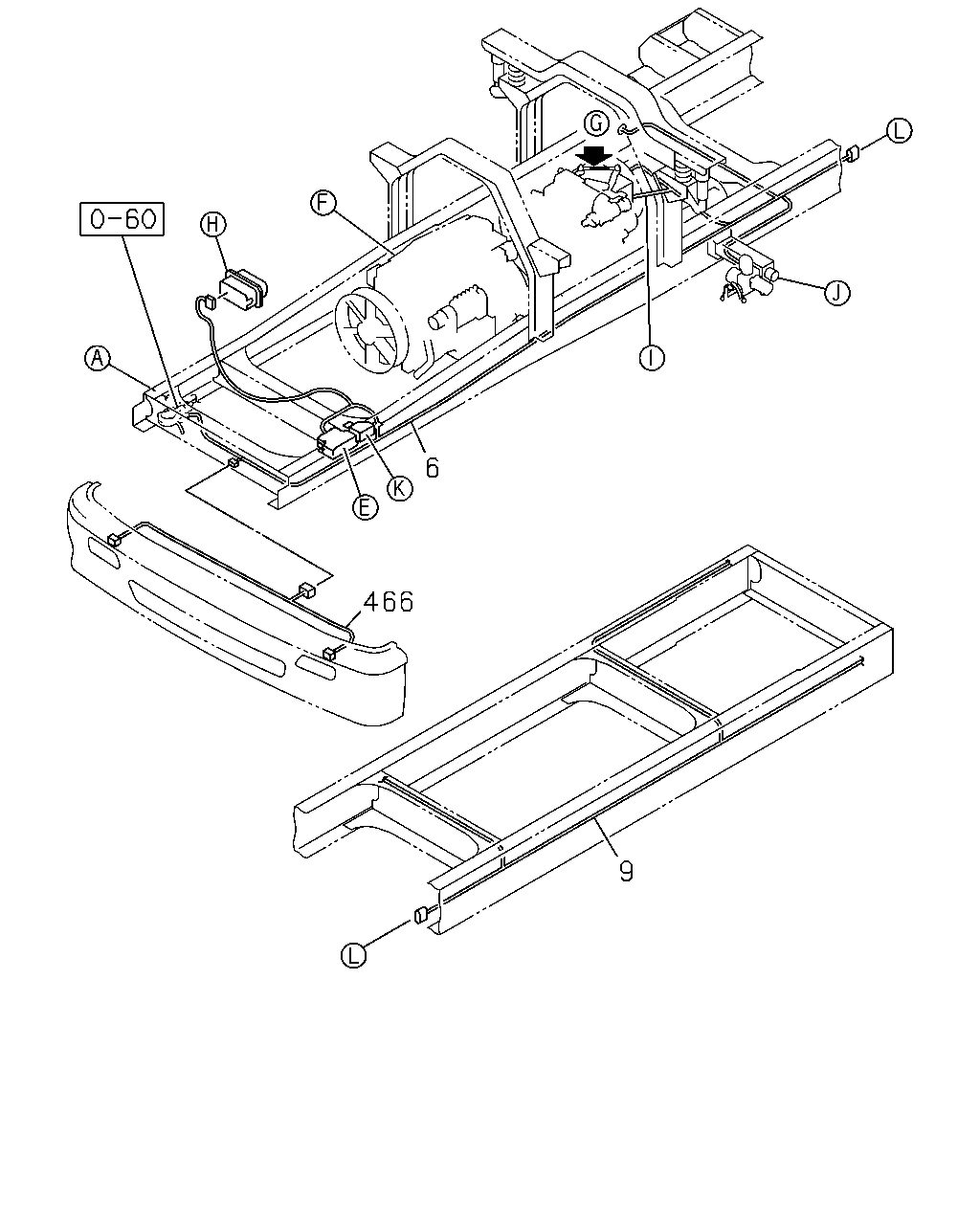

çizim 100329
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-283-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-284-0 01 1 0601- ●
6 HARNESS; FRAME 1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-027-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-027-1 01 1 0601- ●
6 HARNESS; FRAME 1-82672-973-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-028-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-028-1 01 1 0601- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6200MM(62W) 		1-82677-912-0 01 1 0406- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82672-979-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82676-032-1 01 1 0211- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		1-82672-980-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82676-033-1 01 1 0211- ●
9 HARNESS; FRAME,RR 1-82673-168-1 01 1 0005-0210 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82676-036-1 01 1 0211- ●
466 HARNESS; BUMPER
FOG LAMP<T96> 		8-97603-621-3 01 1 0601- ● ●
466 HARNESS; BUMPER 1-82638-758-1 01 1 0005-0512 ● ●
466 HARNESS; BUMPER
EXC. FOG LAMP<T96> 		1-82638-758-1 01 1 0601- ● ●

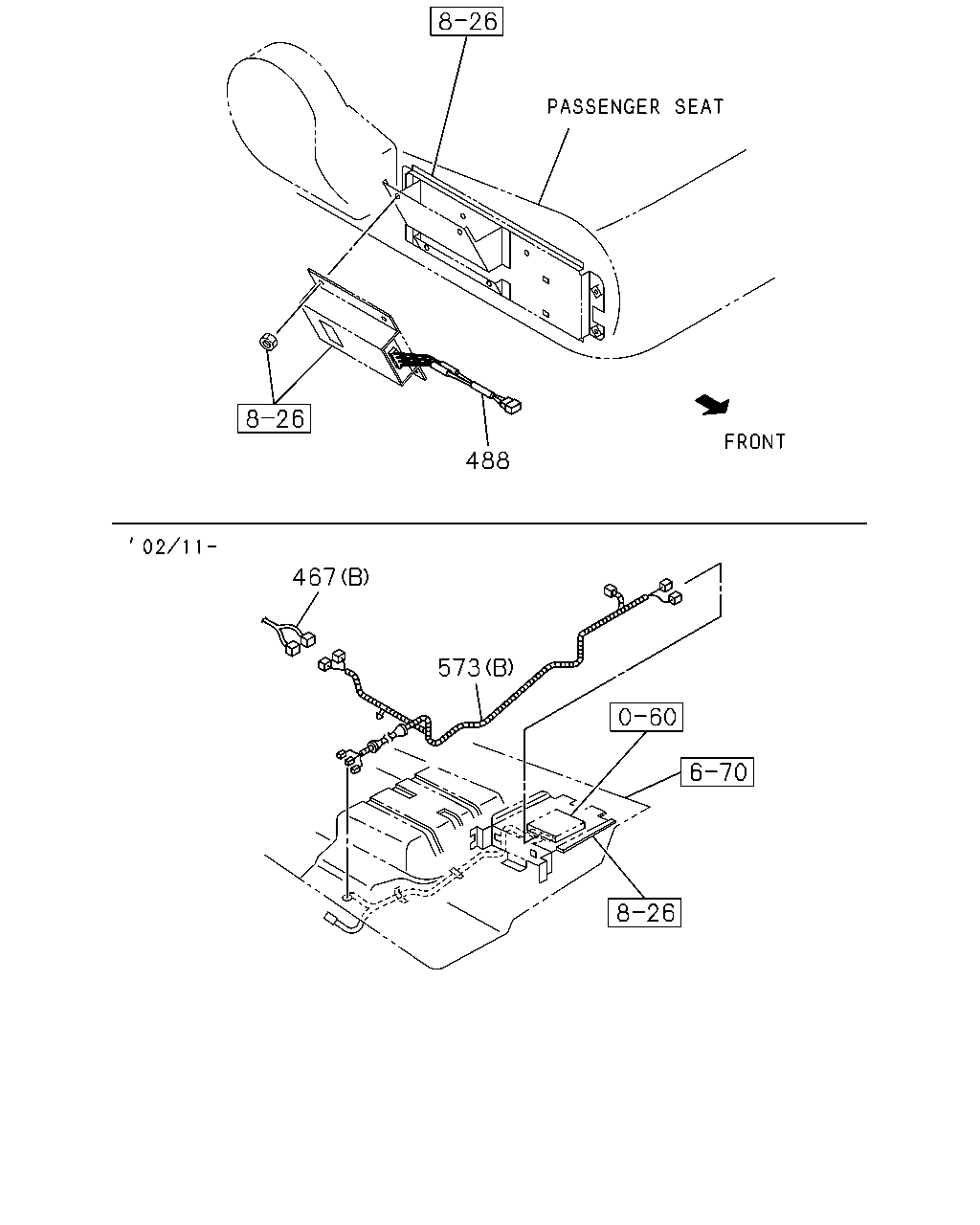

çizim 100333
488 467 573
BalonParca AdiParca NoAdetTipApplied Date A B
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
488 HARNESS; EXT,CONVERTER
W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-0603 ● ●
488 HARNESS; EXT,CONVERTER 1-82662-883-0 01 1 0604- ● ●
573 HARNESS; CONTROL UNIT
(A) 		1-82628-155-2 01 1 0005-0210 ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-1 01 1 0211-0305 ● ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-2 01 1 0306- ● ●

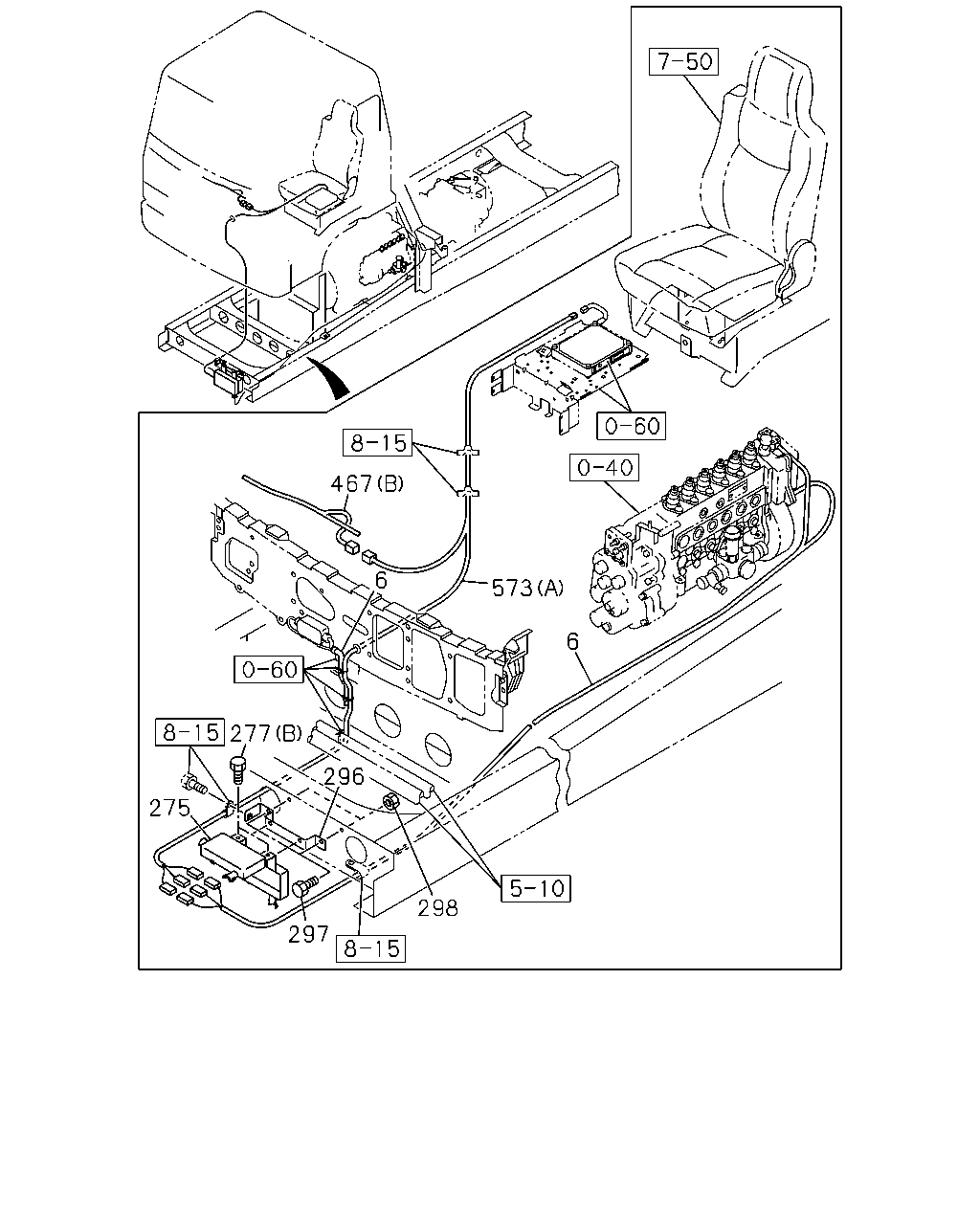

çizim 100385
467 6 573 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-283-0 01 1 0601- ●
6 HARNESS; FRAME
FOG LAMP<T96> 		1-82678-284-0 01 1 0601- ●
6 HARNESS; FRAME 1-82672-974-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-027-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-027-1 01 1 0601- ●
6 HARNESS; FRAME 1-82672-973-2 01 1 0005-0210 ●
6 HARNESS; FRAME 1-82676-028-1 01 1 0211-0512 ●
6 HARNESS; FRAME
EXC. FOG LAMP<T96> 		1-82676-028-1 01 1 0601- ●
275 BOX ASM; FRAME HARNESS 1-82699-378-0 01 1 0005-0210 ●
277 BOLT; BOX ASM FIX
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
277 BOLT; BOX ASM FIX
(C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0211- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0005-0512 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601- ● ●
296 BRACKET; HARNESS BOX 1-82699-923-0 01 1 0005-0210 ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) FOG LAMP<T96> (B) 		1-82662-867-1 01 1 0601- ●
467 HARNESS; FACIA
FOG LAMP<T96> (B) 		1-82662-869-1 01 1 0601- ●
467 HARNESS; FACIA
(B) 		1-82629-258-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-378-1 01 1 0211-0305 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) (B) 		1-82661-378-1 01 1 0306-0512 ●
467 HARNESS; FACIA
6HK1 TCC ENG(81L) EXC. FOG LAMP<T96> (B) 		1-82661-378-3 01 1 0601- ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0005-0305 ● ●
467 HARNESS; FACIA
(A) 		1-82629-294-2 01 1 0306- ● ●
467 HARNESS; FACIA
(B) 		1-82629-269-3 01 1 0005-0210 ●
467 HARNESS; FACIA
(B) 		1-82661-379-1 01 1 0211-0512 ●
467 HARNESS; FACIA
EXC. FOG LAMP<T96> (B) 		1-82661-379-3 01 1 0601- ●
573 HARNESS; CONTROL UNIT
(A) 		1-82628-155-2 01 1 0005-0210 ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-1 01 1 0211-0305 ● ●
573 HARNESS; CONTROL UNIT
(B) 		1-82661-390-2 01 1 0306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
