7-60 — SEAT BELT (#8574) — 17 parça

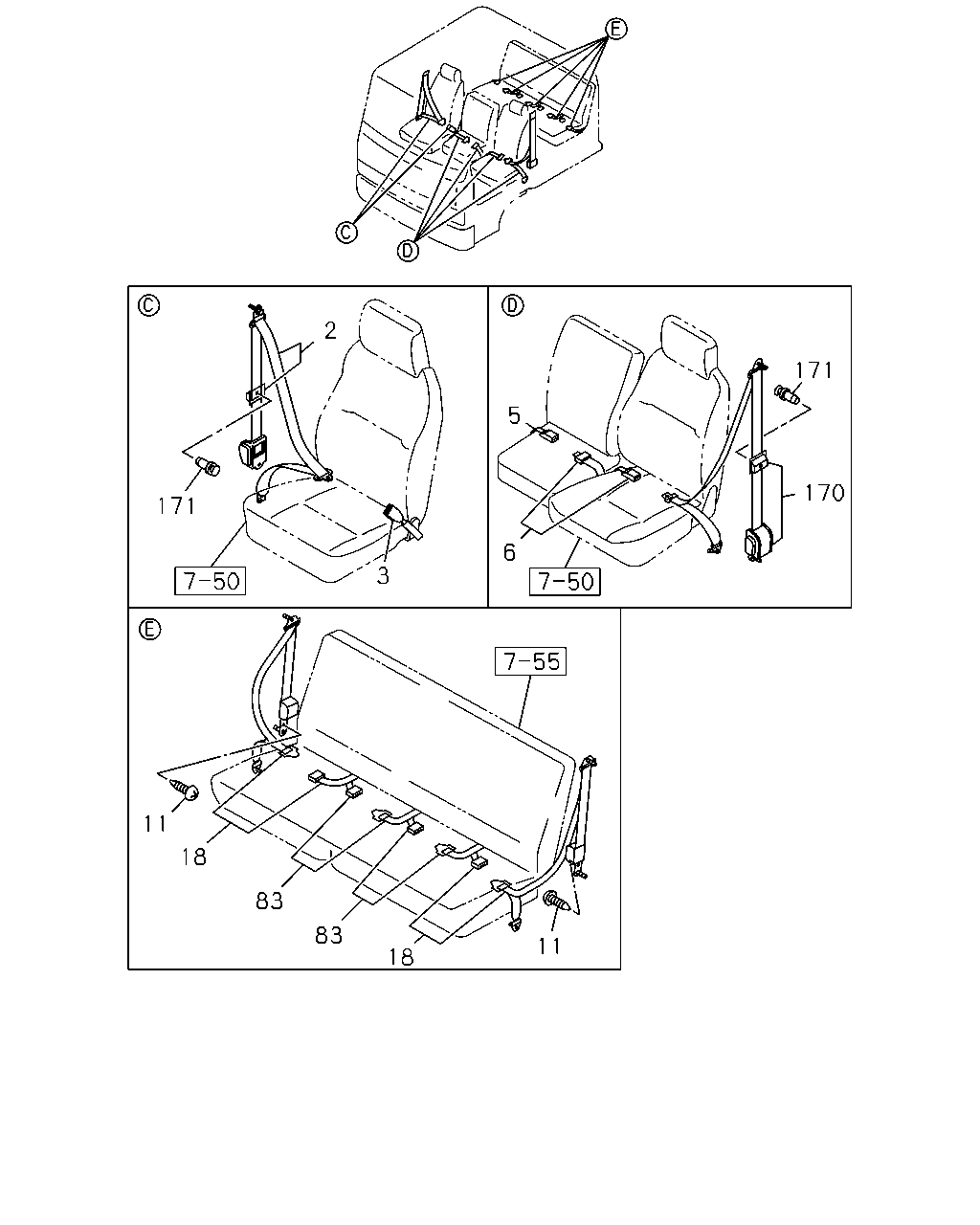

çizim 40986
2 171 5 170 171 6 3 11 18 83 83 11 18
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0005- ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0005- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0005- ● ●
11 SCREW; SEAT BELT
M6X20 W/LK&PL WASHER 		1-09981-304-0 02 1 0005- ●
18 BELT; SEAT,RR 1-75618-951-2 01 1 0005- ●
18 BELT; SEAT,RR 1-75618-950-2 01 1 0005- ●
83 BELT; RR SEAT,INNER 1-75618-949-0 01 1 0005- ●
83 BELT; RR SEAT,INNER 1-75618-948-0 01 1 0005- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0005- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005- ● ●

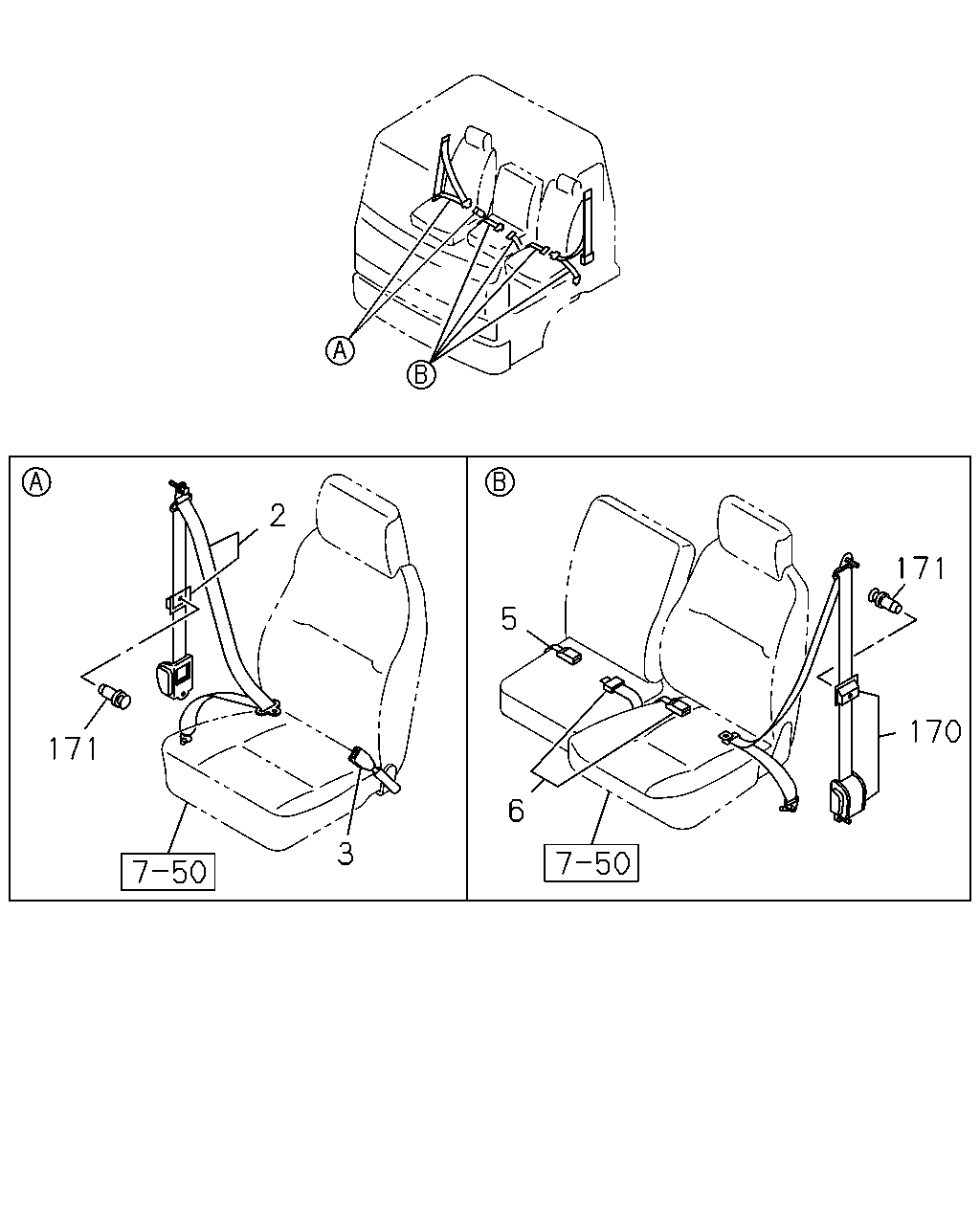

çizim 100328
2 171 5 170 171 6 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75618-923-2 01 1 0005- ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0005- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0005- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-926-3 01 1 0005- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-2 01 1 0005- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0005- ● ●
