◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#8572) — 113 parça

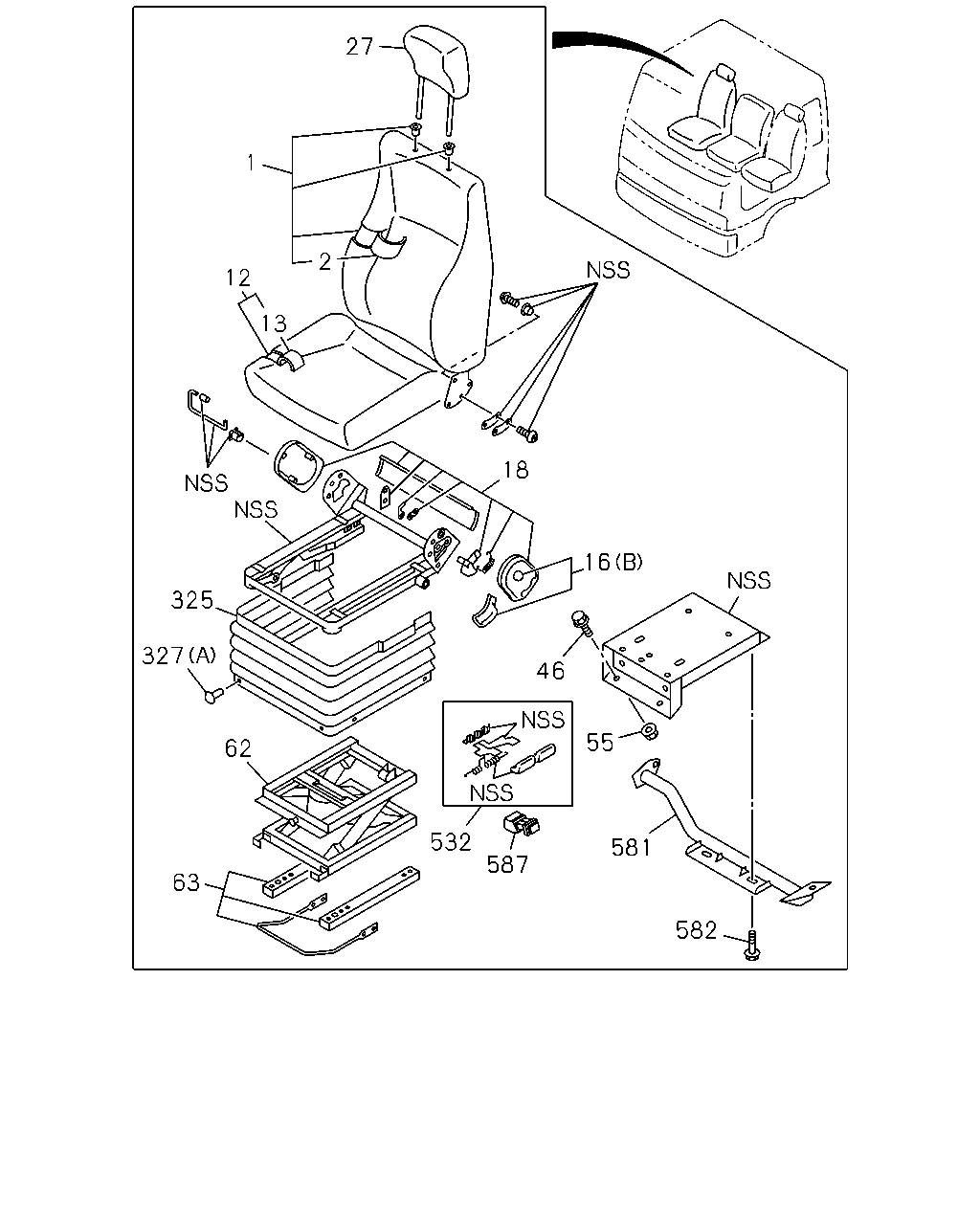

çizim 40684
27 1 2 12 13 18 16 325 327 46 55 62 532 581 587 63 582
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER 		1-75026-267-0 01 1 0005- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-464-0 01 1 0005- ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75026-268-0 01 1 0005- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75116-465-0 01 1 0005- ● ●
16 ADJUSTER ASM; RECLINING
(A) CENTER 		1-75418-062-1 01 1 0005- ● ●
16 ADJUSTER ASM; RECLINING
(B) DRIVER 		1-75418-064-0 01 1 0005- ● ●
18 COVER; RECLINING
DRIVER SEAT 		1-75418-063-0 01 1 0005- ● ●
27 REST; HD,FRT SEAT
DRIVER 		1-75658-052-0 01 1 0005- ● ●
46 BOLT; STAND TO FLOOR
DRIVER SEAT M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER 		1-75538-198-0 01 1 0005- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER 		1-75518-315-0 01 1 0005- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT 		1-75538-196-0 01 1 0005- ● ●
327 CLIP; COVER
(A) DRIVER SEAT 		1-75538-197-0 01 1 0005- ● ●
327 CLIP; COVER
(B) PASSENGER SEAT 		1-09987-273-0 02 1 0211- ●
532 LEVER ASM; TILT
DRIVER SEAT 		1-75518-314-0 01 1 0005- ● ●
581 PIPE; SEAT
DRIVER 		1-73907-573-3 01 1 0005- ● ●
582 BOLT; PIPE,SEAT
DRIVER 		1-09980-619-1 02 1 0005- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT 		1-75418-065-0 01 1 0005- ● ●

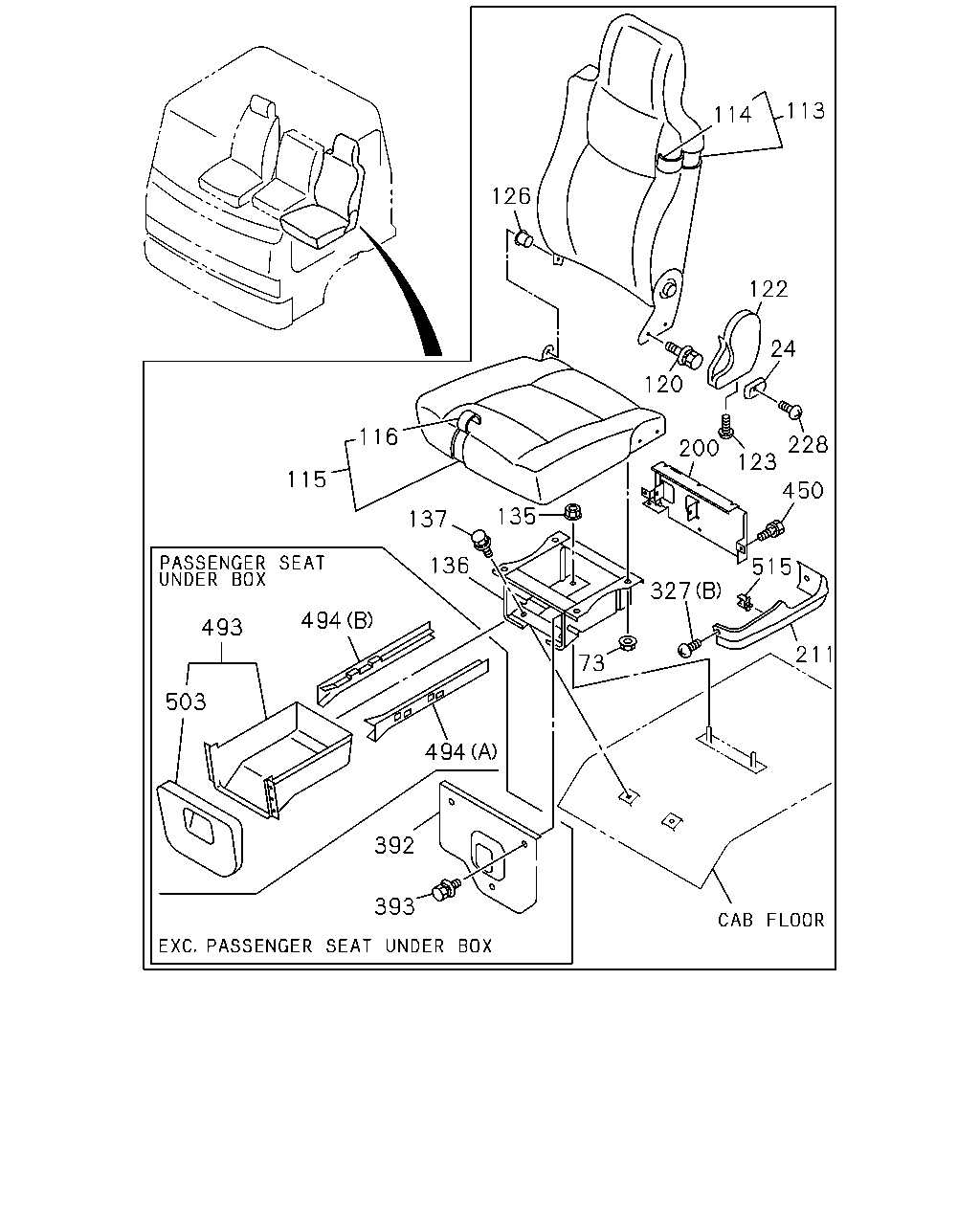

çizim 40873
113 114 126 122 24 120 116 228 200 123 115 450 135 137 515 136 327 494 493 211 73 503 494 392 393
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ●
73 NUT; ADJ,HEIGHT CONT
PASSENGER SEAT M8 FLANGE 		1-75538-207-0 04 1 0005- ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75026-796-0 01 1 0005-0105 ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75208-191-4 01 1 0106- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-709-2 01 1 0005- ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-782-0 01 1 0005-0210 ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-782-2 01 1 0211- ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-784-2 01 1 0211- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-589-0 01 1 0005-0210 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-589-2 01 1 0211- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-691-2 01 1 0211- ●
120 BOLT; RECLINING ADJ
PASSENGER SEAT M8X20 		8-97255-906-0 02 1 0005- ● ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT DARK GRAY 		8-97859-018-0 01 1 0005- ● ●
123 SCREW; COVER,RECLINING
PASSENGER SEAT M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ●
126 BUSHING; HINGE,RECLINING
PASSENGER SEAT 		8-97854-087-0 01 1 0005- ● ●
135 NUT; SEAT STAND
PASSENGER SEAT M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
136 STAND; PASSENGER SEAT 1-75558-585-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0106-1305 ●
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306- ●
136 STAND; PASSENGER SEAT 1-75558-584-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT 1-75558-603-0 01 1 0106-0210 ●
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0211-1305 ●
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306- ●
137 BOLT; STAND
PASSENGER SEAT M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
200 BRACKET; SEAT
PASSENGER 		1-75558-583-2 01 1 0211- ●
211 COVER; FRT SEAT
PASSENGER 		1-72538-274-0 01 1 0211- ●
228 SCREW; KNOB
PASSENGER SEAT M4X6 		8-97042-273-0 01 1 0005- ● ●
327 CLIP; COVER
(A) DRIVER SEAT 		1-75538-197-0 01 1 0005- ● ●
327 CLIP; COVER
(B) PASSENGER SEAT 		1-09987-273-0 02 1 0211- ●
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 0005-0111 ●
392 COVER; STAND,PASSENGER SEAT 1-75558-556-1 01 1 0112-0210 ●
393 BOLT; COVER,SEAT STAND
PASSENGER SEAT M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0210 ●
450 BOLT; BRKT
PASSENGER SEAT M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0211-0703 ●
450 BOLT; BRKT
M6X16 		0-52000-616-0 03 1 0704- ●
493 BOX; SEAT STAND
PASSENGER 		1-72537-130-1 01 1 0005-0210 ●
494 RAIL; GUIDE
(A) PASSENGER SEAT 		1-72537-149-0 01 1 0005-0210 ●
494 RAIL; GUIDE
(B) PASSENGER SEAT 		1-72537-150-0 01 1 0005-0210 ●
503 COVER; BOX
PASSENGER SEAT 		1-72537-136-0 01 1 0005-0210 ●
515 CLIP; PIPE
PASSENGER SEAT BLACK 		8-94227-248-1 01 1 0211- ●

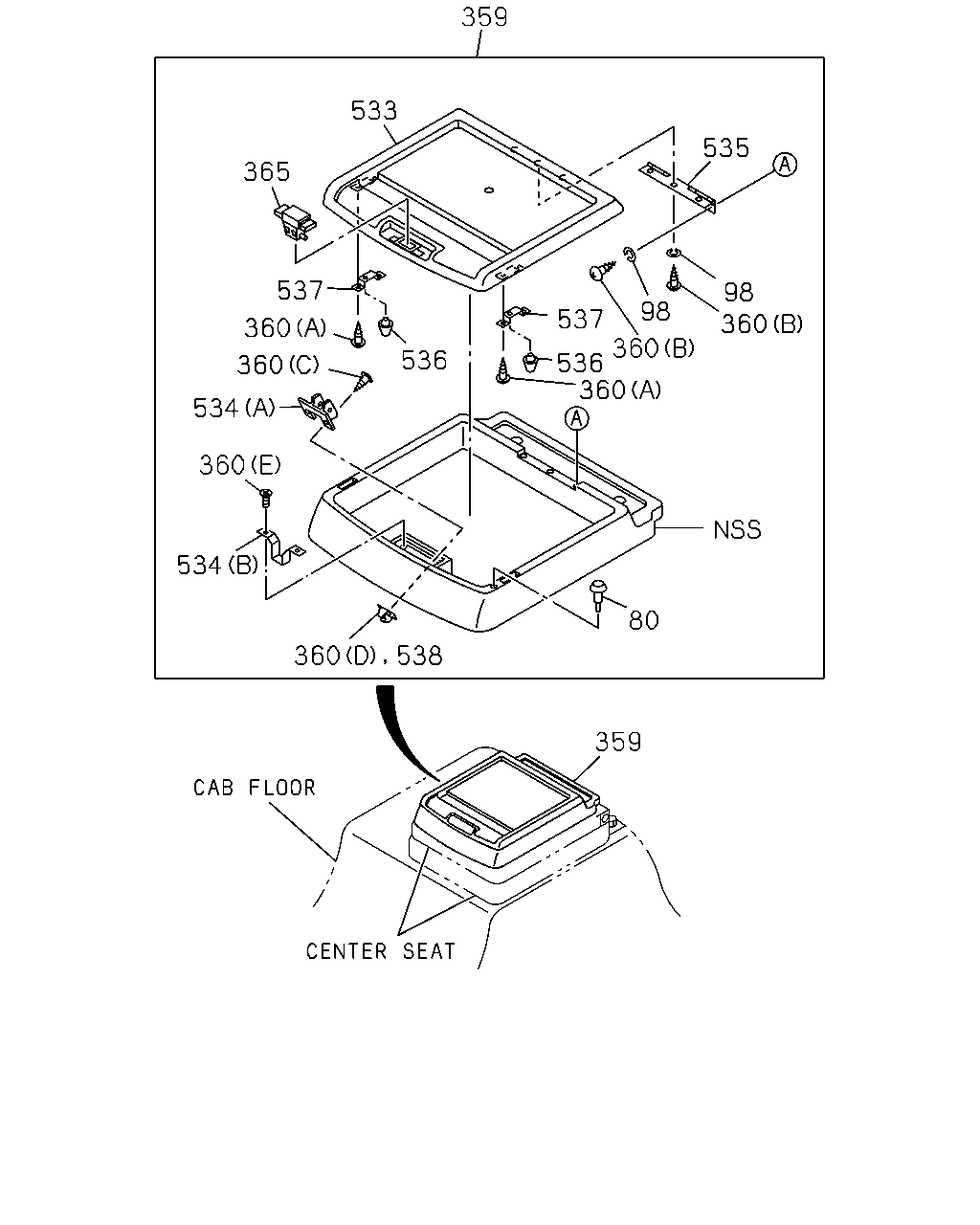

çizim 41620
359 533 535 365 537 98 360 98 537 360 536 360 360 536 360 534 360 534 80 359 360 538
BalonParca AdiParca NoAdetTipApplied Date A B
80 RUBBER; STOPPER 1-72538-187-0 02 1 1007- ● ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005- ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ● ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0005- ● ●
533 LID; PARCEL BOX 1-72538-277-1 01 1 0005-1006 ● ●
533 LID; PARCEL BOX 8-98145-118-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0005-1006 ● ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1007- ● ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0005- ● ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 0005-1006 ● ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 0005-1006 ● ●
538 GROMMET; SCREW 1-09983-165-0 02 1 0311-1006 ● ●
çizim 41736
506 360 175 176 188 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
(A) CENTER 		1-75418-062-1 01 1 0005- ● ●
16 ADJUSTER ASM; RECLINING
(B) DRIVER 		1-75418-064-0 01 1 0005- ● ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-857-4 01 1 0005- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-711-2 01 1 0005- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-694-2 01 1 0005- ● ●
182 CUSHION ASM; CENTER SEAT 1-75026-843-4 01 1 0005- ● ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0005- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0005- ● ●
359 BOX; PARCEL 1-72538-275-4 01 1 0005-1006 ● ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0612 ● ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0612 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-1006 ● ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0310 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0005-0312 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
506 CAP; PARCEL BOX 1-09983-180-3 04 1 0005-1006 ● ●
506 CAP; PARCEL BOX 1-09983-180-3 02 1 1007- ● ●

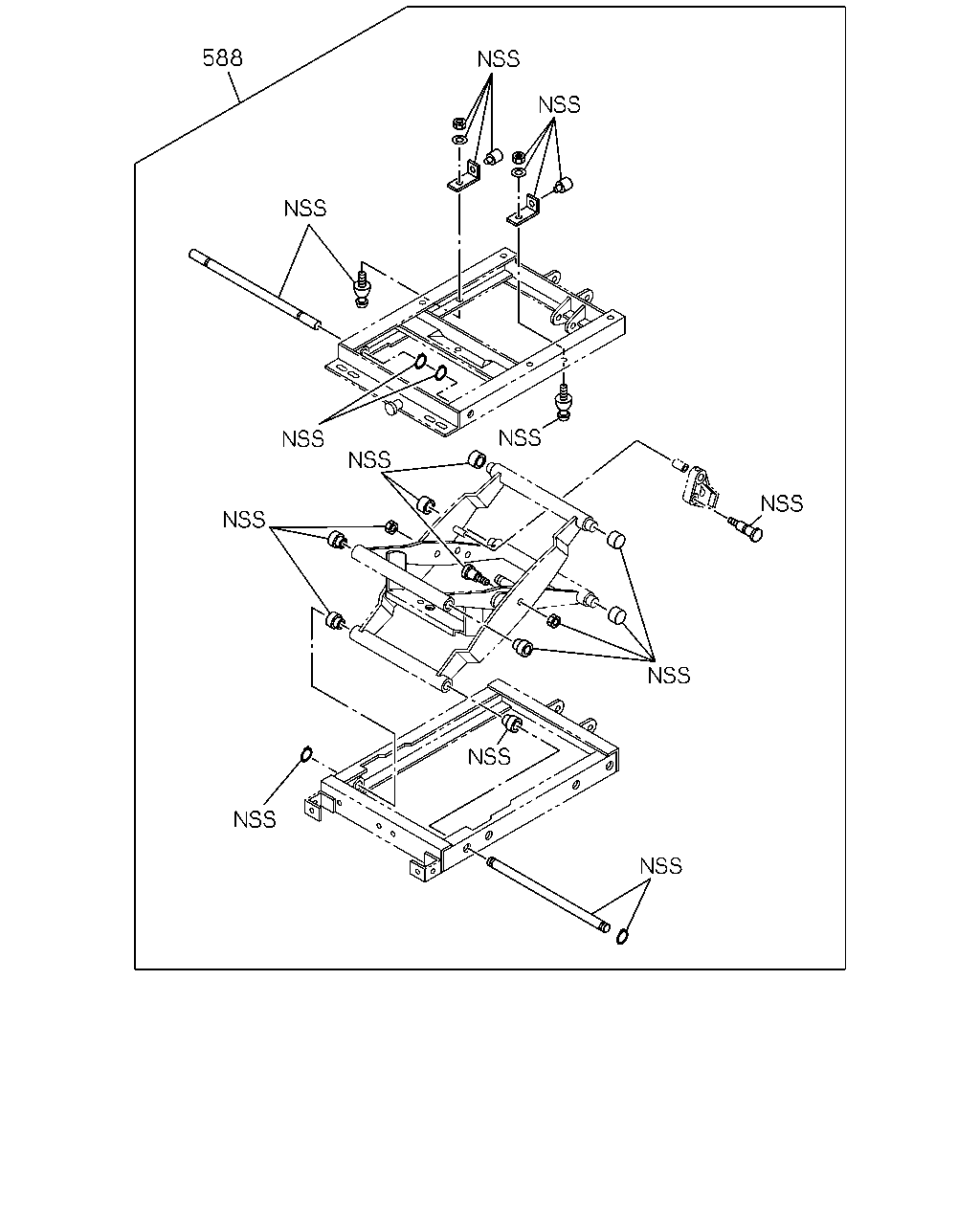

çizim 100279
588
BalonParca AdiParca NoAdetTipApplied Date A B
588 REPAIR KIT; SUSPENSION 1-75538-202-0 01 1 0005- ● ●

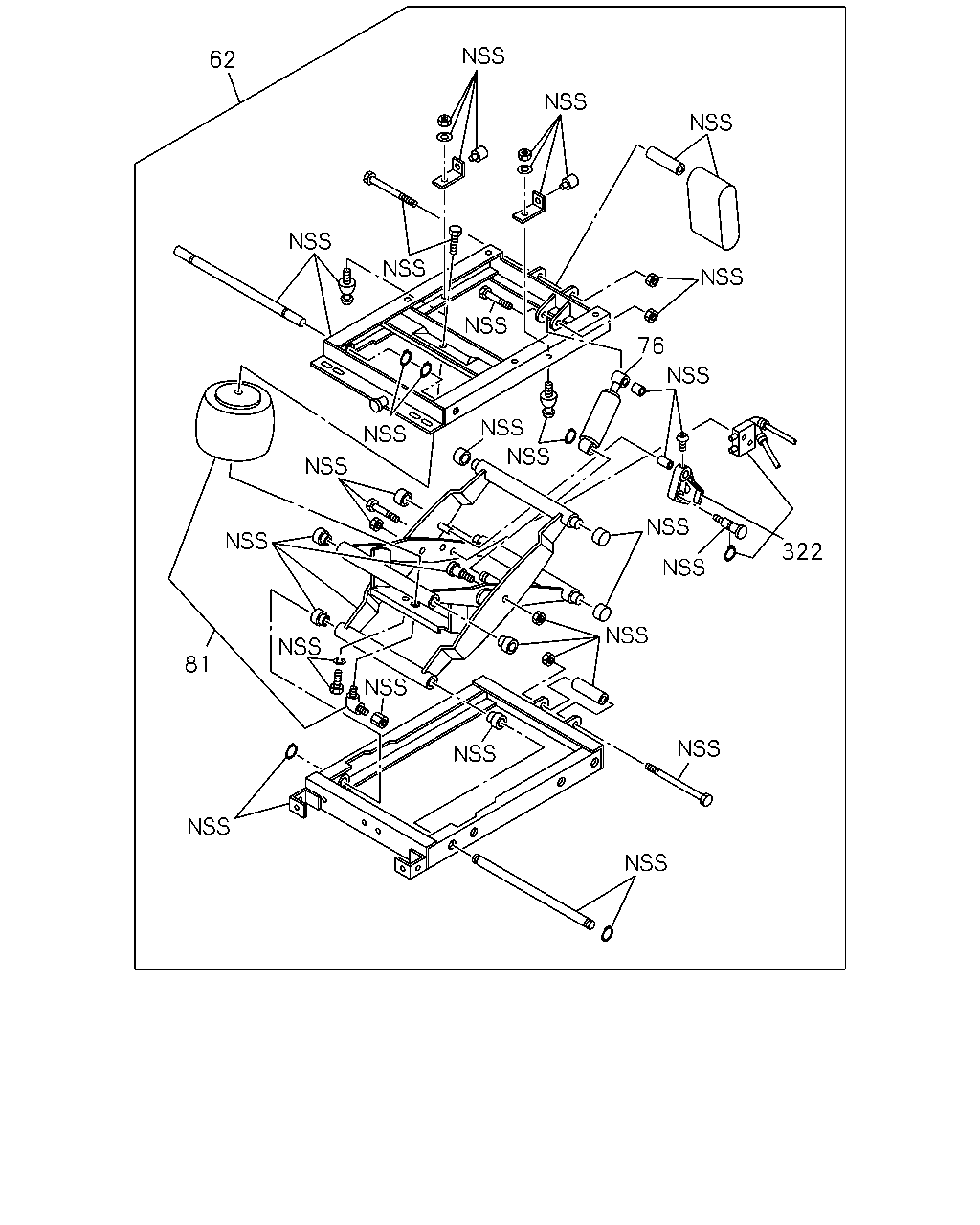

çizim 100384
62 76 322 81
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
DRIVER 		1-75538-198-0 01 1 0005- ● ●
76 DAMPER; AIR SUSP 1-75538-201-0 01 1 0005- ● ●
81 SPRING; AIR 1-75538-199-0 01 1 0005- ● ●
322 VALVE; AIR SPRING 1-75538-200-0 01 1 0005- ● ●
