◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#8571) — 22 parça

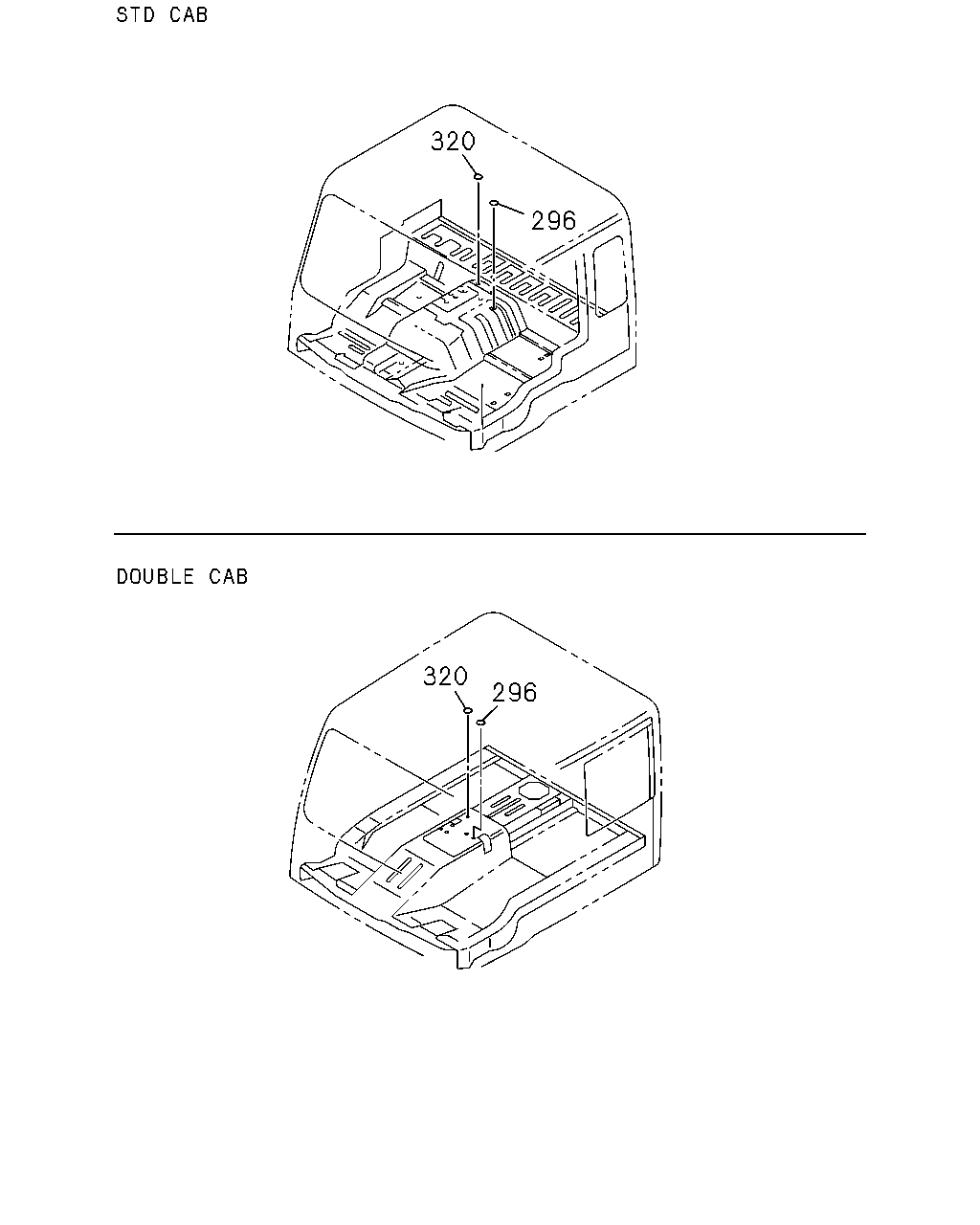

çizim 41663
320 296 320 296
BalonParca AdiParca NoAdetTipApplied Date A B
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 0005- ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 0005- ●
çizim 41664
316 315 317 249 351 317
BalonParca AdiParca NoAdetTipApplied Date A B
249 COVER 1-82529-001-0 01 1 0005- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0612- ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0406-0611 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 09 1 0612- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 08 1 0005-0405 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0406-0611 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 07 1 0612- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005- ● ●
316 BOX; COIN 8-94482-280-2 02 1 0005- ● ●
317 CONSENT
(A) 		1-82523-020-2 01 1 0005-0310 ● ●
317 CONSENT
(B) 		8-94382-451-1 01 1 0005- ● ●
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 0403- ● ●

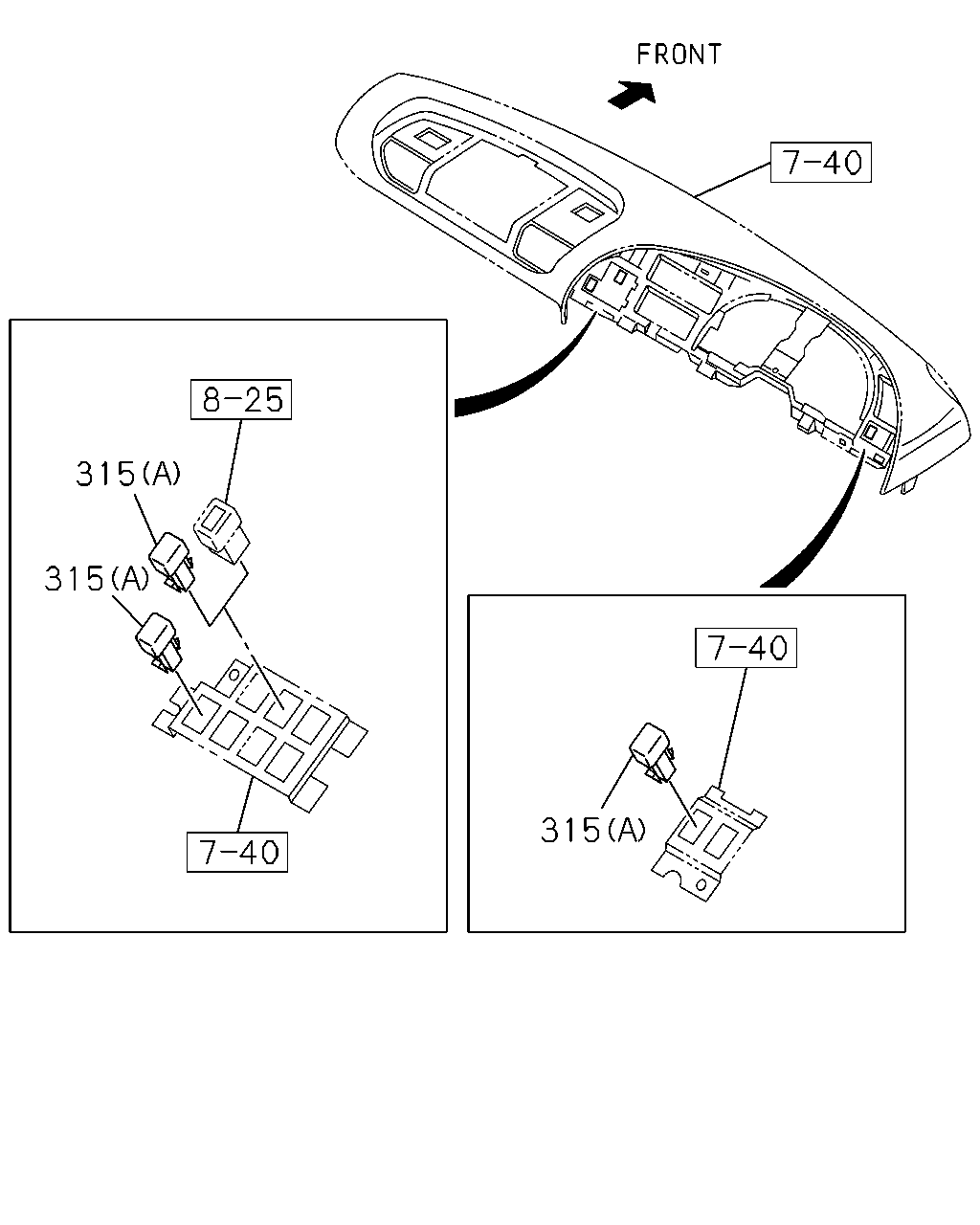

çizim 41775
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0612- ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 10 1 0406-0611 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 09 1 0612- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 08 1 0005-0405 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 08 1 0406-0611 ● ●
315 COVER; HOLE,SW
EXC. MAP LAMP<C85> (A) 		1-82359-069-2 07 1 0612- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
