7-43 — SUN VISOR AND ASSIST GRIP (#8570) — 131 parça

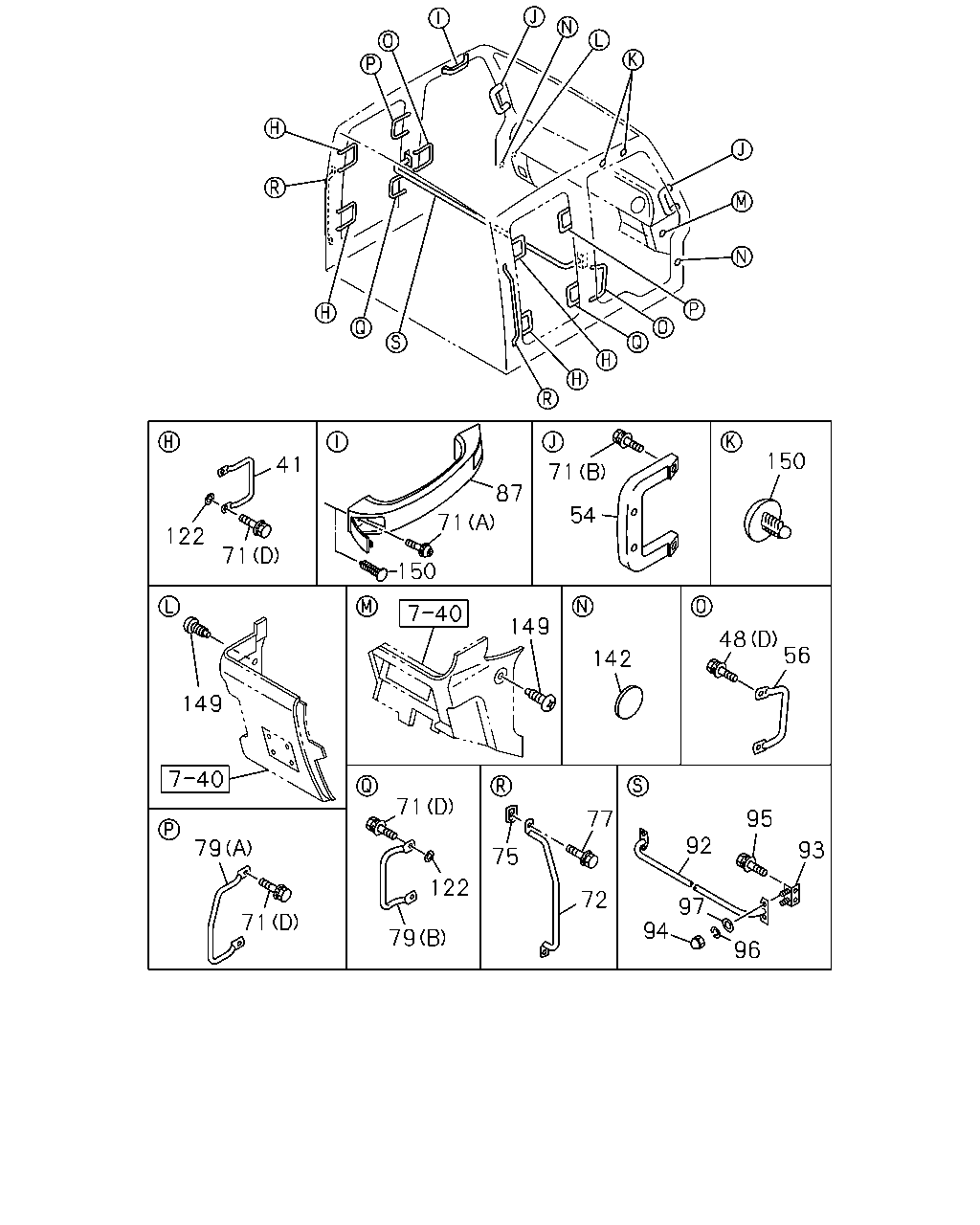

150 41 71 87 54 71 122 71 150 149 48 56 142 149 71 95 77 92 79 93 75 122 72 97 71 94 79 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	GRIP; ASSIST,BACK SIDE	1-71998-467-0	04	1	0005-	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-0611	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0612-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	0005-0211	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005	●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-	●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-	●
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71998-278-0	02	1	0005-0210	●
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71998-278-0	02	1	0211-	●
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-478-1	04	1	0005-	●
77	SCREW; ASSIST GRIP	8-94279-407-0	04	1	0005-	●
79	GRIP; ASSIST (A)	1-71996-134-0	02	1	0005-	●
79	GRIP; ASSIST (B)	1-71998-467-0	02	1	0005-	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●
92	BAR; ASSIST	1-73618-123-2	01	1	0005-	●
93	BRACKET; ASSIST BAR	1-73618-126-1	02	1	0005-	●
94	NUT; CAP,ASSIST BAR M8 FLANGE	1-09984-126-0	04	1	0005-	●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904	●
95	SCREW; ASSIST BAR BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●
96	WASHER; LK,ASSIST BAR ID=8.2	1-09985-177-0	04	1	0005-	●
97	WASHER; PL,ASSIST BAR ID=8.4 OD=16	1-09985-174-0	04	1	0005-	●
122	WASHER; PL,ASSIST GRIP ID=10.2 OD=22 T=6	1-09989-009-1	02	1	0005-	●
122	WASHER; PL,ASSIST GRIP ID=6.4 OD=14 T=1	1-09985-187-0	08	1	0006-	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●

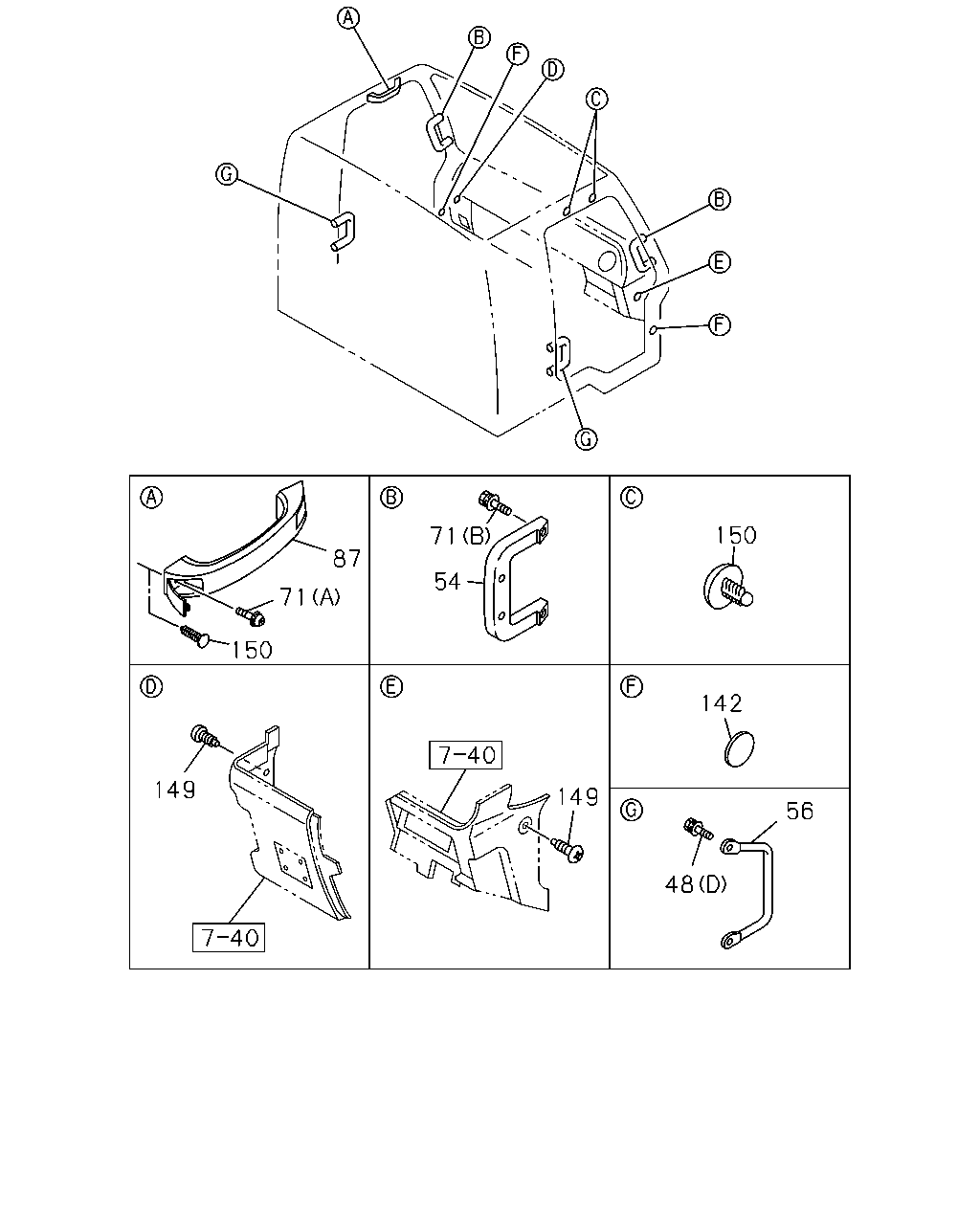

150 71 87 54 71 150 142 149 149 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-0611	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0612-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	0005-0211	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0005-0402	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005	●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-	●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY	8-97098-476-2	01	1	0301-	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	0005-	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0005-0302	●	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-	●	●

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0005-0411	●	●
48	BOLT; ASSIST GRIP BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-0611	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0612-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0005-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0005-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0005-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0005-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0005-0907	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0005-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0005-	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0005-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0005-0411	●	●
103	GRIP; ASSIST,FRT PNL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	1-71998-792-2	01	1	0412-0611	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0612-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0005-0411	●	●
103	GRIP; ASSIST,FRT PNL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	1-71998-791-2	01	1	0412-0611	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0612-	●	●

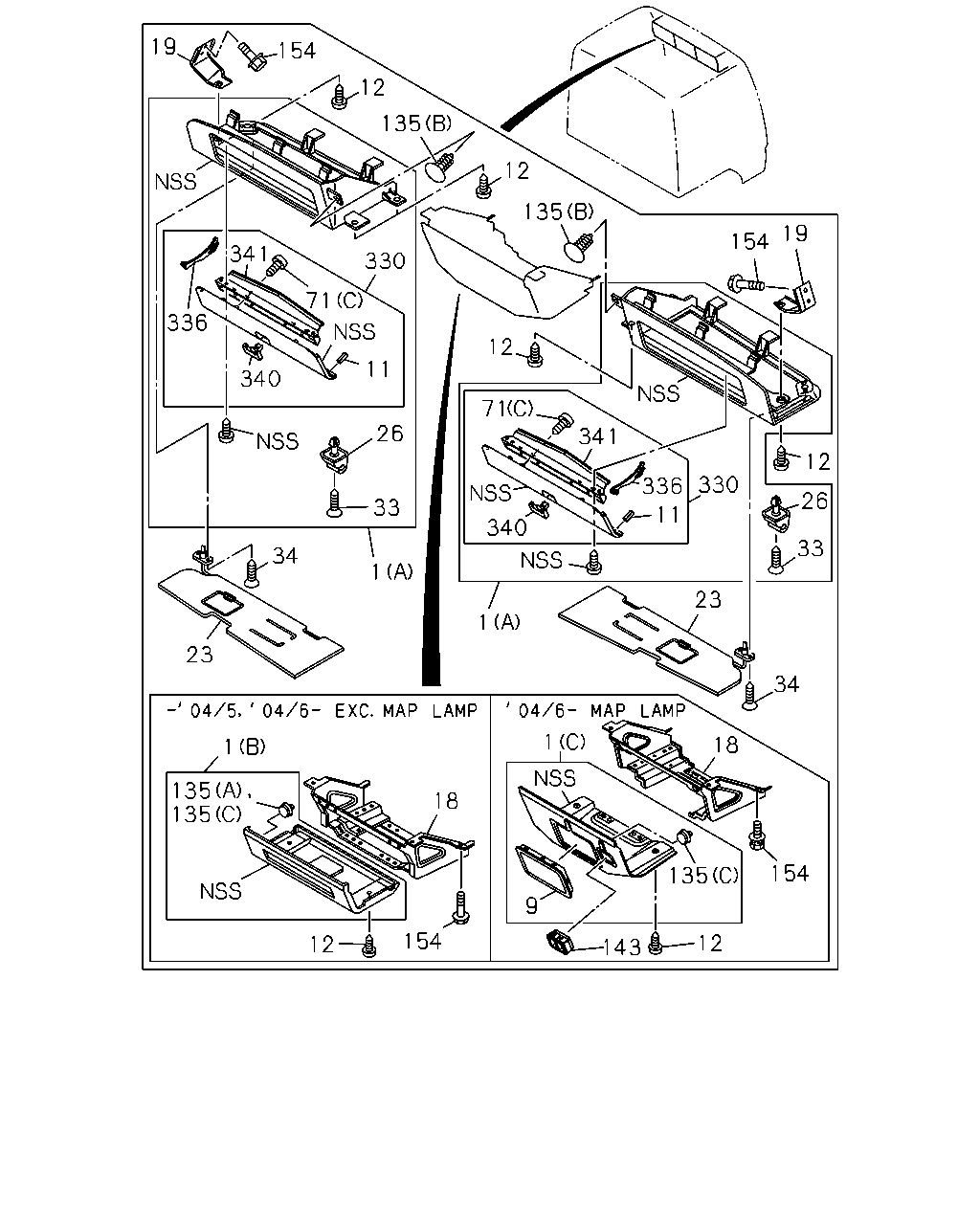

19 154 12 135 12 135 19 154 341 330 71 336 12 11 340 71 26 341 12 330 336 26 33 11 340 33 34 1 23 1 23 34 1 18 1 135 135 18 154 135 9 154 12 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF MAP LAMP<C85> (C)	1-72448-667-0	01	1	0406-	●	●
1	BOARD; HEADER SHELF (B) CENTER	1-72448-663-0	01	1	0005-0405	●	●
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B) CENTER	1-72448-663-0	01	1	0406-	●	●
1	BOARD; HEADER SHELF (A)	1-73318-691-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF (A)	1-73318-690-0	01	1	0005-	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	0406-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	0005-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-1	01	1	0406-	●	●
18	SUPPORT; HEADER SHELF CENTER	8-97865-124-1	01	1	0005-0405	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0406-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	0005-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	0005-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR	1-73138-156-1	01	1	0005-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0005-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0005-	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0005-0212	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0005-0211	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-	●	●
71	SCREW (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-	●	●
71	SCREW (D) M6X24 W/LK&PL WASHER	8-94279-404-0	16	1	0005-0005	●
71	SCREW (D) M6X18 W/LK&PL WASHER	8-94279-328-0	08	1	0006-	●
71	SCREW (D) M6X25	8-94279-342-0	08	1	0006-	●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> (C) OD=7.9 BLACK	8-94279-974-1	06	1	0406-	●	●
135	CLIP; HEADER SHELF (A) CENTER D6X23 DARK GRAY	1-09987-238-0	02	1	0005-0209	●	●
135	CLIP; HEADER SHELF (A) CENTER D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●
135	CLIP; HEADER SHELF (B) SIDE OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005	●	●
135	CLIP; HEADER SHELF (B) SIDE OD=7.9 BLACK	8-94279-974-1	06	1	0006-0405	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> (C) OD=7.9 BLACK	8-94279-974-1	03	1	0406-	●	●
143	BEZEL MAP LAMP<C85>	1-72448-532-0	01	1	0408-	●	●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-	●	●
330	LID; HEADER SHELF	1-72448-679-0	02	1	0005-	●	●
336	STAY; LID	1-72448-379-3	04	1	0005-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	0005-	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	0005-	●	●
