Isuzu WW
▶
TRUCKS
▶
FTR
▶
10827 - FTR(AUSTRALIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

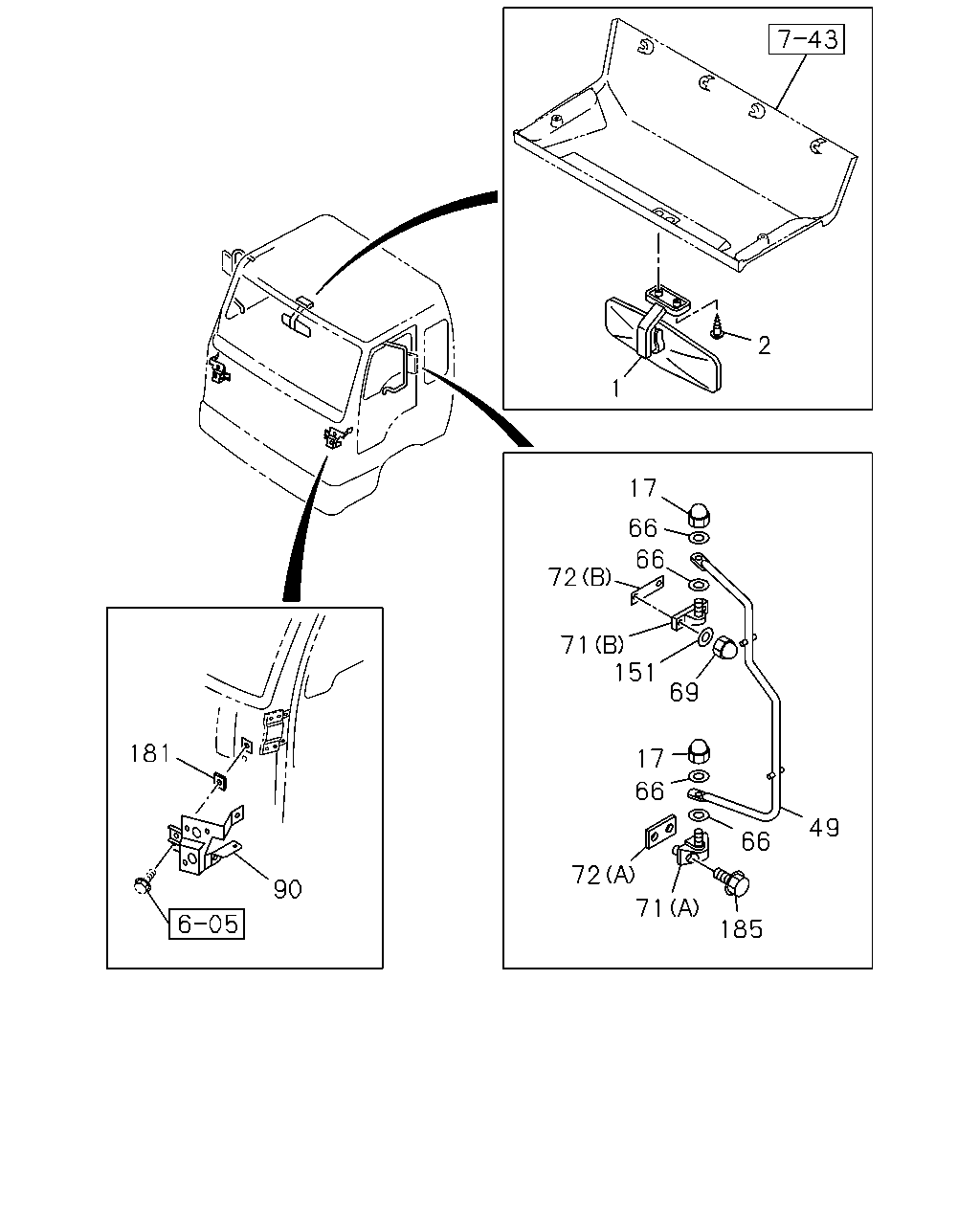

7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#8567) — 21 parça
Tümü
A - FTR5MF
B - FTR5WF
2
1
17
66
66
72
71
151
69
181
17
66
49
66
72
90
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MIRROR; ROOM
1-73117-033-1
01
1
0005-
●
●
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0005-
●
●
17
NUT; CAP,MIRROR STAY
M10
1-09984-183-0
04
1
0005-0208
●
●
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
0209-
●
●
49
STAY; MIRROR SIDE
1-71798-719-1
01
1
0005-
●
●
49
STAY; MIRROR SIDE
1-71798-583-3
01
1
0005-
●
●
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0005-
●
●
69
NUT; CAP
M8
1-09984-187-0
04
1
0005-0809
●
●
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
0810-
●
●
71
BRACKET; OUTSIDE MIRROR
(B) UPPER
1-71798-484-1
02
1
0005-
●
●
71
BRACKET; OUTSIDE MIRROR
(A) LOWER
1-71798-486-2
02
1
0005-
●
●
72
SHEET
(B) UPPER
1-71798-487-3
02
1
0005-
●
●
72
SHEET
(A) LOWER
1-71798-488-1
02
1
0005-
●
●
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0005-
●
●
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0005-0809
●
●
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
●
●
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
0005-
●
●
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0005-
●
●
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
04
1
0005-0512
●
●
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
04
1
0601-0605
●
●
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
04
1
0606-
●
●
