◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#8566) — 19 parça
çizim 41047
119 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE 8-94390-517-0 01 1 0005-0210 ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0211- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0005- ● ●

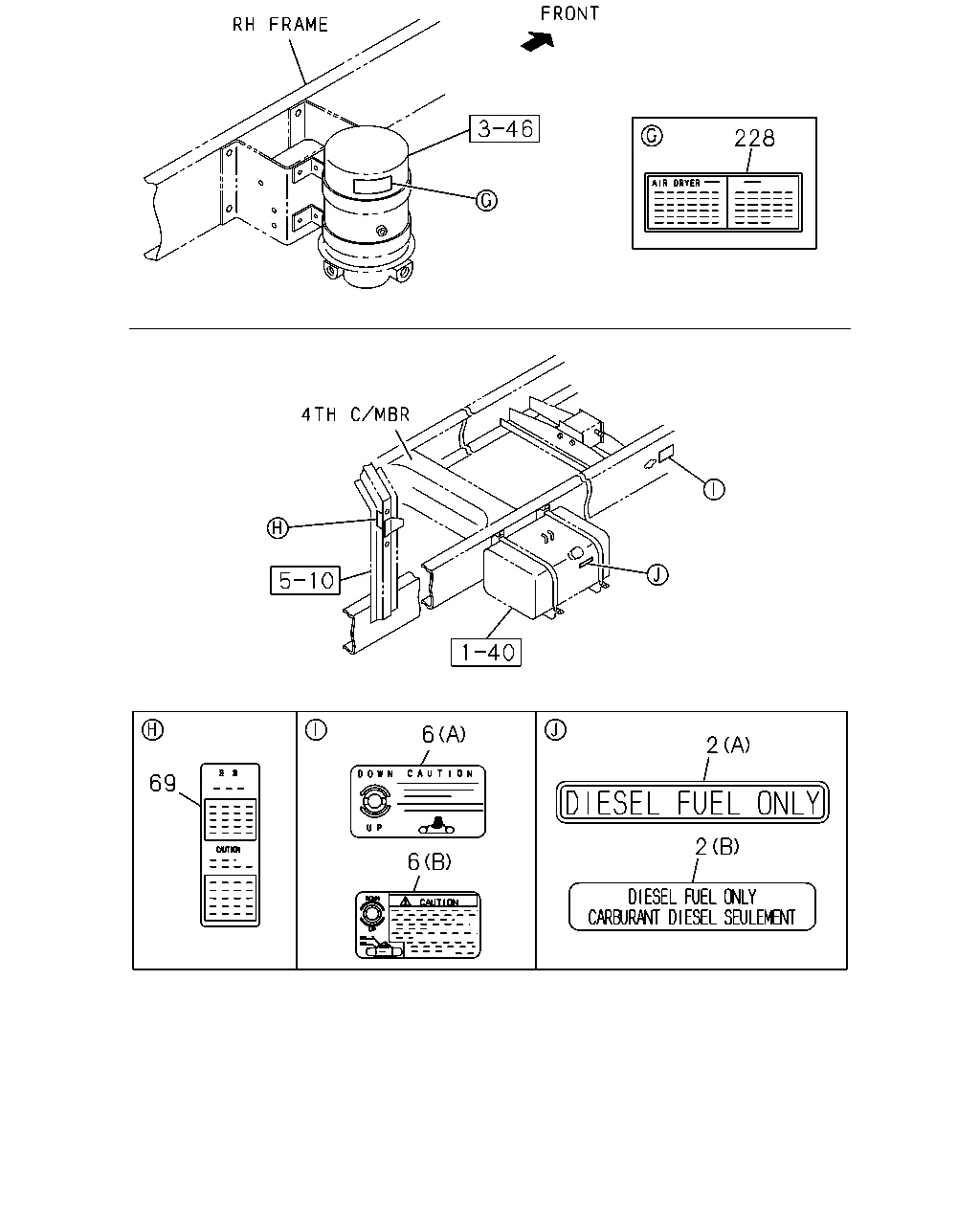

çizim 42308
228 2 6 2 6 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) 		8-97135-605-0 01 1 0005-0312 ● ●
2 LABEL; FUEL CAUTION
(B) 		1-85883-153-0 01 1 0401- ● ●
6 PLATE; CAUTION,SPARE TIRE
(A) 		1-53639-004-0 01 1 0005-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98082-437-0 01 1 0709- ● ●
69 PLATE; CAUTION,STARTER SW 1-85887-389-0 01 1 0005-0302 ● ●
69 PLATE; CAUTION,STARTER SW
EXC. STARTER SWITCH DELETION<E5D> 		1-85887-389-0 01 1 0303- ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0005-1001 ● ●

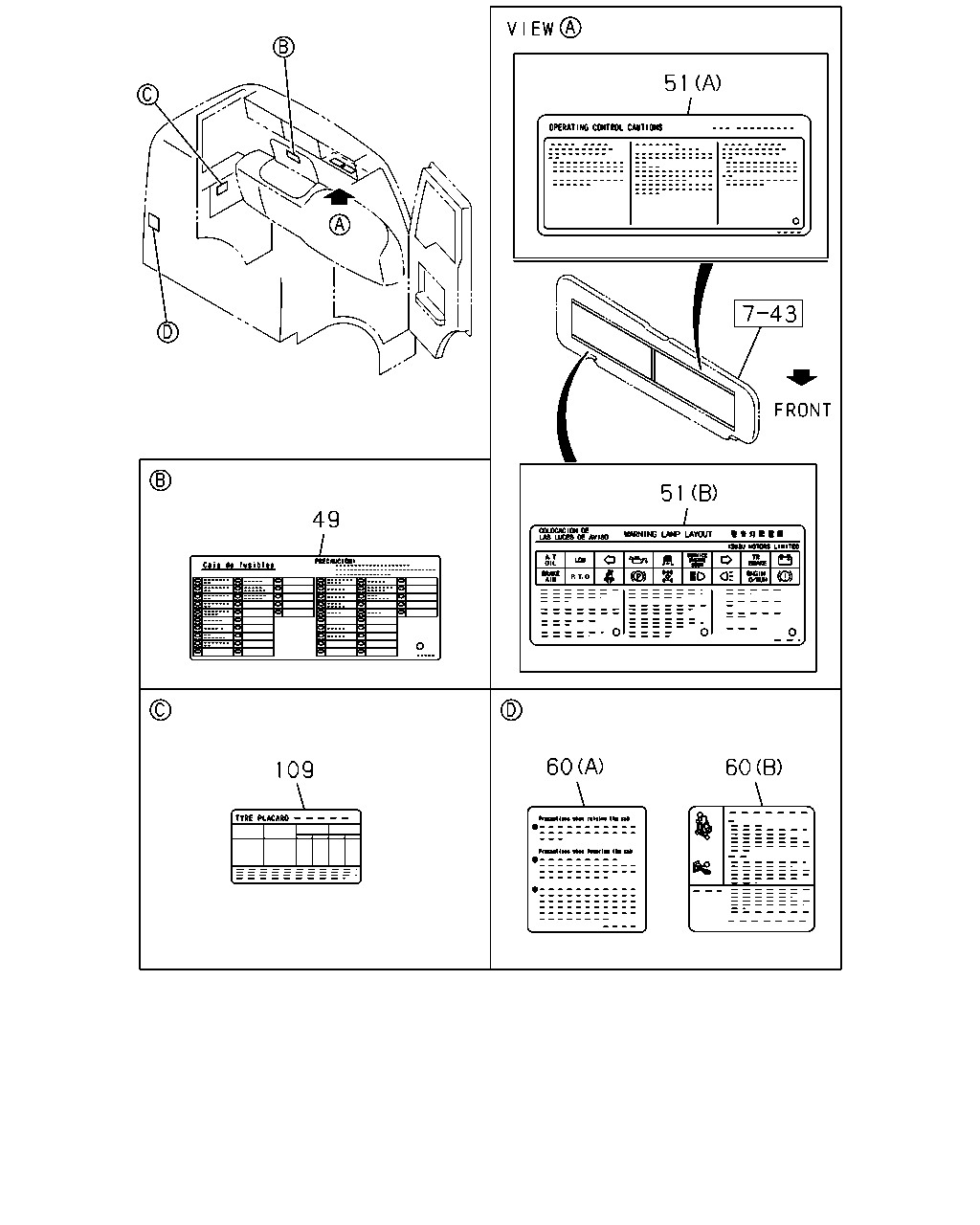

çizim 100276
51 51 49 60 60 109
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX 1-85878-278-0 01 1 0005-0210 ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-324-0 01 1 0211- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-707-1 01 1 0005- ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 0005-0305 ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85888-559-2 01 1 0306- ● ●
60 PLATE; CAUTION,CAB TILT
(A) 		1-85883-169-0 01 1 0005- ●
60 PLATE; CAUTION,CAB TILT
(B) 		1-85883-178-0 01 1 0005- ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-741-1 01 1 0005-0210 ● ●
109 PLATE; CAUTION,TIRE PLACARD 1-85881-854-0 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
