6-84 — BACK TRIM (#8563) — 25 parça

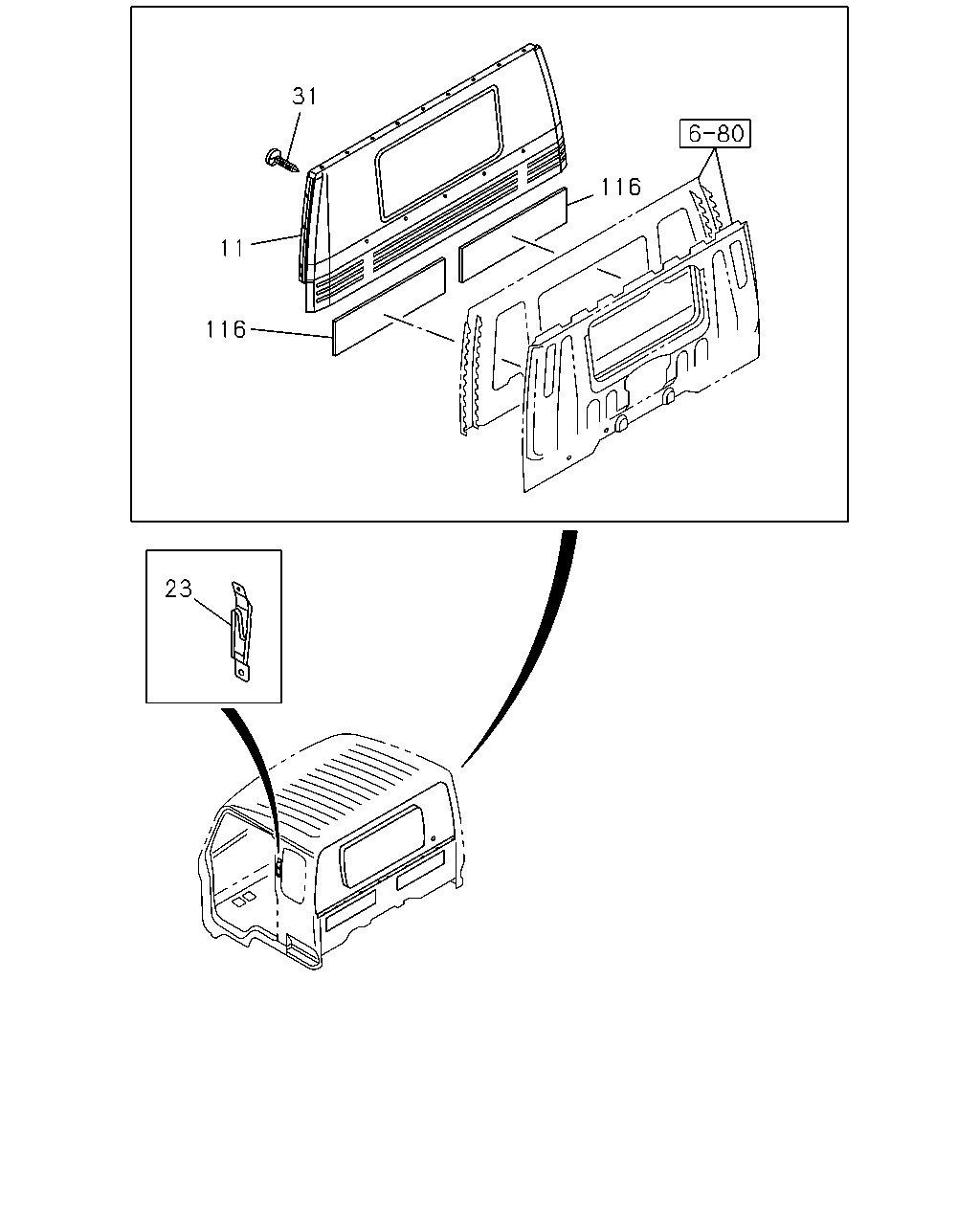

31 116 11 116 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	TRIM; ROOM,BACK INNER PROVISIONAL PACKAGE<NLY>	8-97893-967-0	01	1	0301-0405	●
11	TRIM; ROOM,BACK INNER	1-73348-942-1	01	1	0005-0212	●
11	TRIM; ROOM,BACK INNER EXC. PROVISIONAL PACKAGE<NLY>	1-73348-942-1	01	1	0301-0405	●
11	TRIM; ROOM,BACK INNER	1-73348-942-3	01	1	0406-	●
23	FINISHER; BACK INNER PANEL	1-73347-789-1	01	1	0005-	●
23	FINISHER; BACK INNER PANEL	1-73347-788-1	01	1	0005-	●
23	FINISHER; BACK INNER PANEL WHITE	1-73337-264-0	02	1	0005-		●
31	CLIP; TRIM PAD D6X23 LIGHT GRAY	1-73318-629-0	27	1	0005-	●
116	INSULATOR; BACK PANEL	1-73368-002-2	02	1	0005-	●

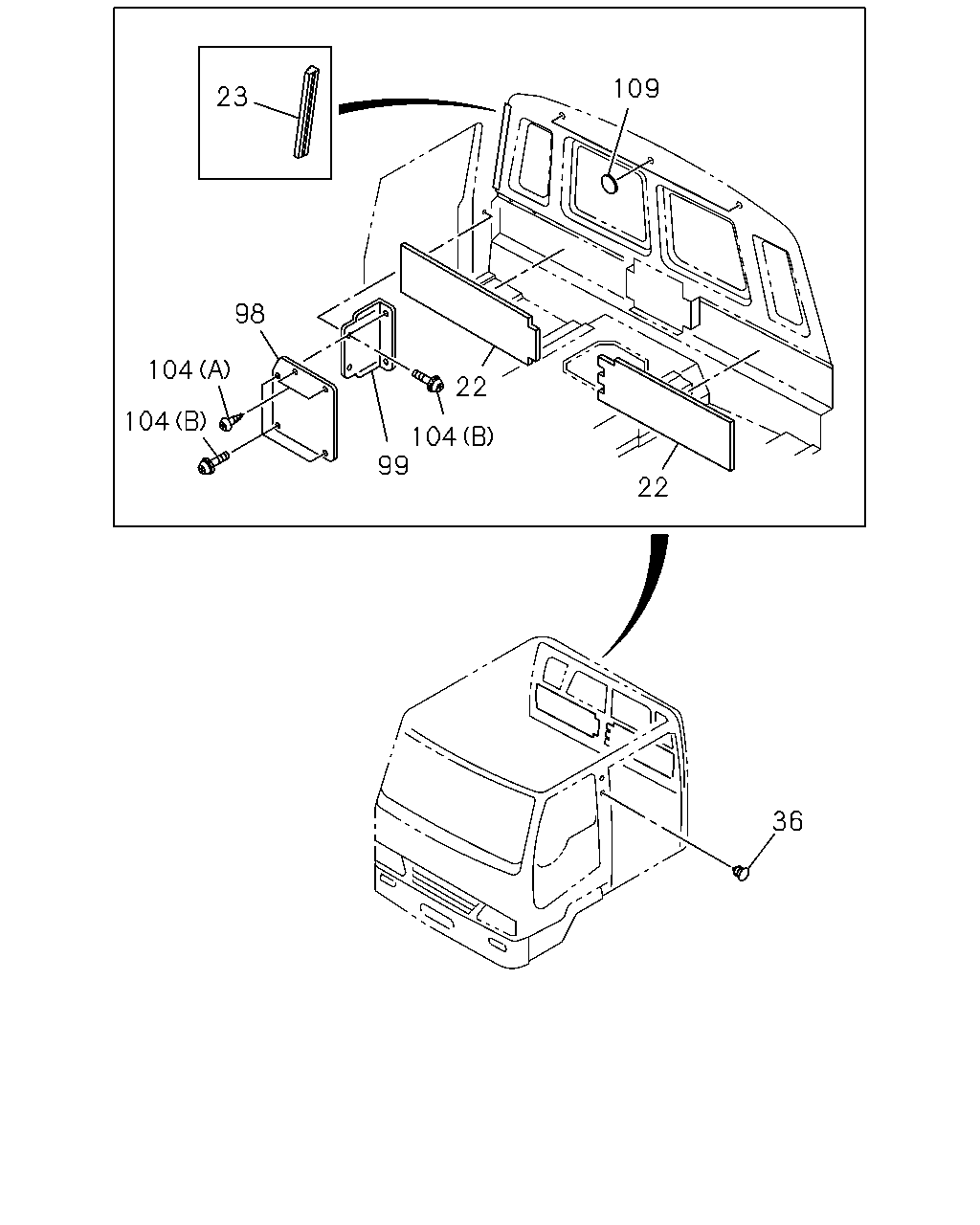

109 23 98 104 22 104 104 99 22 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	SHEET; SILENCER,CAB FLOOR	1-73348-204-2	01	1	0005-0010		●
22	SHEET; SILENCER,CAB FLOOR	1-73348-284-3	01	1	0011-		●
22	SHEET; SILENCER,CAB FLOOR	1-73348-203-1	01	1	0005-0010		●
22	SHEET; SILENCER,CAB FLOOR	1-73348-283-3	01	1	0011-		●
23	FINISHER; BACK INNER PANEL	1-73347-789-1	01	1	0005-	●
23	FINISHER; BACK INNER PANEL	1-73347-788-1	01	1	0005-	●
23	FINISHER; BACK INNER PANEL WHITE	1-73337-264-0	02	1	0005-		●
36	PLUG; TRIM COVER HOLE OD=15 L=14.5	1-76378-157-0	04	1	0005-		●
98	TRIM; BACK SIDE	1-73348-951-0	01	1	0005-		●
98	TRIM; BACK SIDE	1-73348-950-0	01	1	0005-		●
99	SUPPORT; BACK SIDE TRIM	1-73348-765-0	01	1	0005-		●
99	SUPPORT; BACK SIDE TRIM	1-73348-503-1	01	1	0005-		●
104	SCREW; BACK TRIM (A) M6X13	5-09981-074-0	04	1	0005-		●
104	SCREW; BACK TRIM (B) M6X16 W/LK&PL WASHER	8-94279-402-0	10	1	0005-		●
109	SEAL; HOLE WHITE	1-76777-076-0	03	1	0005-0404		●
109	SEAL; HOLE OD=20 T=0.05 WHITE	8-97856-832-2	03	1	0405-		●
