◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#8561) — 28 parça

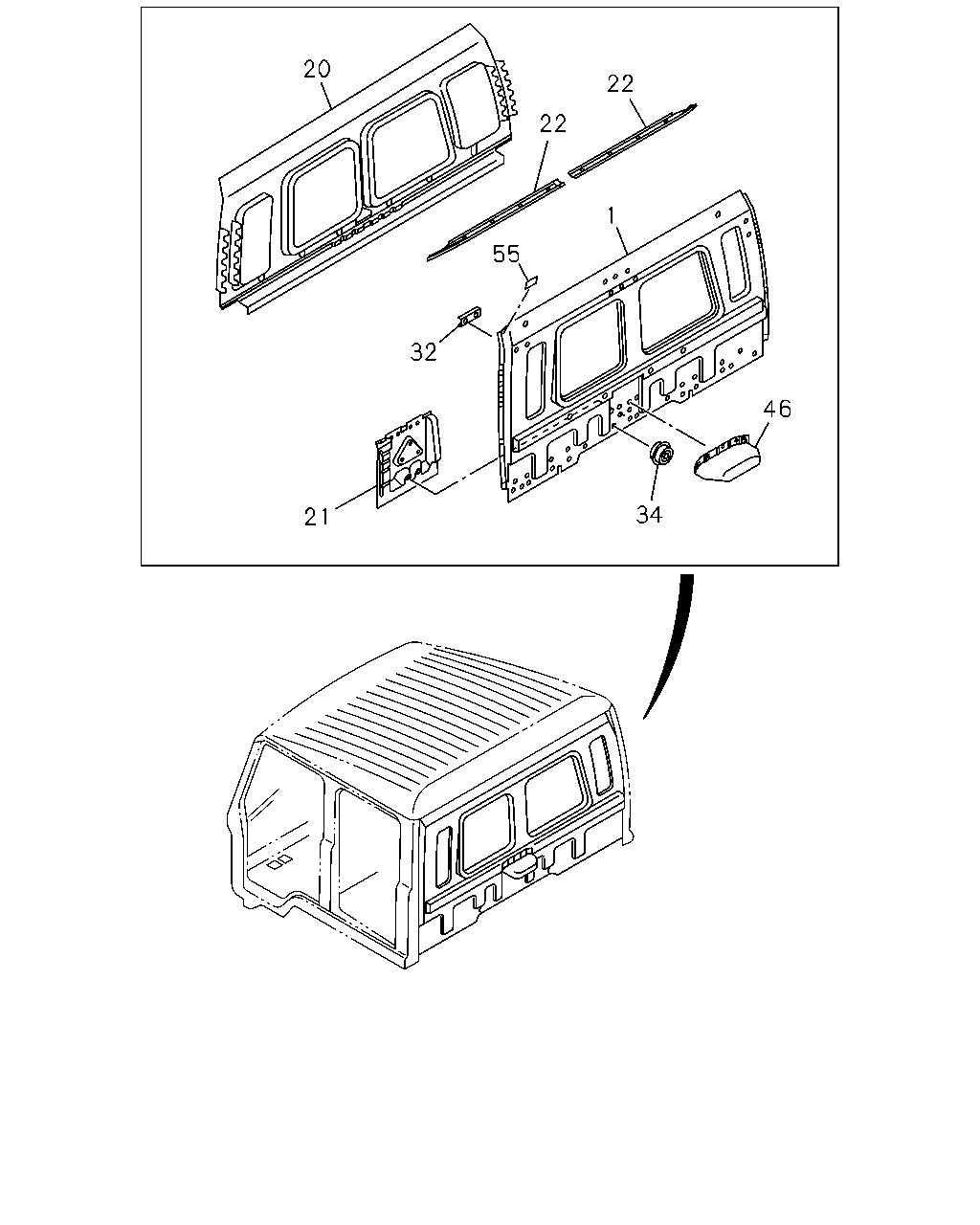

çizim 40490
20 22 22 1 55 32 46 34 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
PRIMER 		1-61580-964-0 01 1 0005- ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-867-2 01 1 0005- ●
20 PANEL; BACK INNER,CENTER 1-61580-947-1 01 1 0005- ●
20 PANEL; BACK INNER,CENTER 1-61580-717-7 01 1 0005- ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 0005- ●
21 REINFORCEMENT; CAB LK 1-61580-720-5 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-916-1 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-711-0 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-710-0 01 1 0005- ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 0005- ●
32 PATCH; AIR INT DUCT 1-61580-753-2 01 1 0005- ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 0005- ● ●
46 COVER; CAB LK 1-61580-657-1 01 1 0005- ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 0005-0511 ● ●

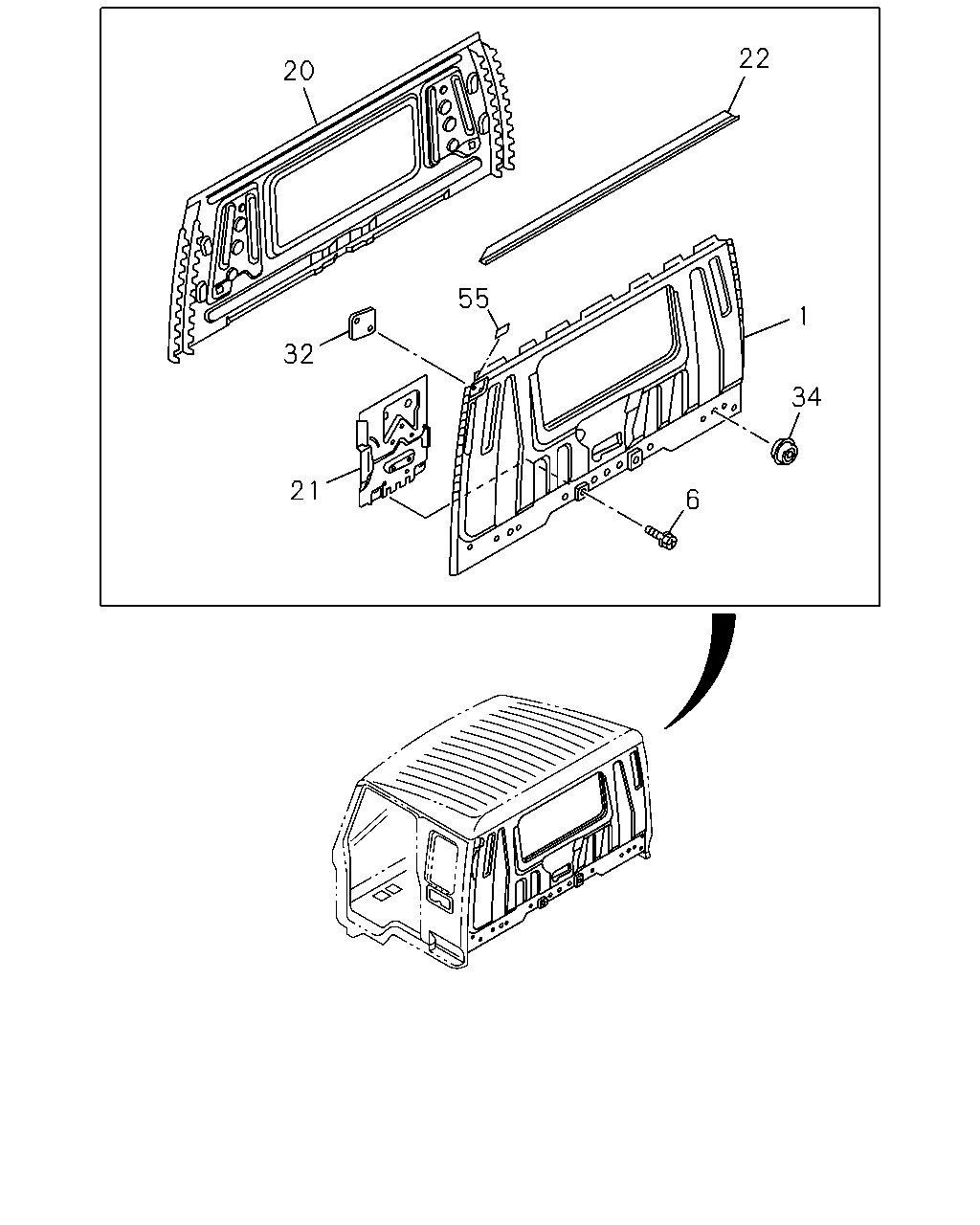

çizim 100216
22 20 55 1 32 34 21 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
PRIMER 		1-61580-964-0 01 1 0005- ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-867-2 01 1 0005- ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0005- ●
20 PANEL; BACK INNER,CENTER 1-61580-947-1 01 1 0005- ●
20 PANEL; BACK INNER,CENTER 1-61580-717-7 01 1 0005- ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 0005- ●
21 REINFORCEMENT; CAB LK 1-61580-720-5 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-916-1 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-711-0 01 1 0005- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-710-0 01 1 0005- ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 0005- ●
32 PATCH; AIR INT DUCT 1-61580-753-2 01 1 0005- ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 0005- ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 0005-0511 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
