6-70 — FLOOR PANEL (#8557) — 144 parça

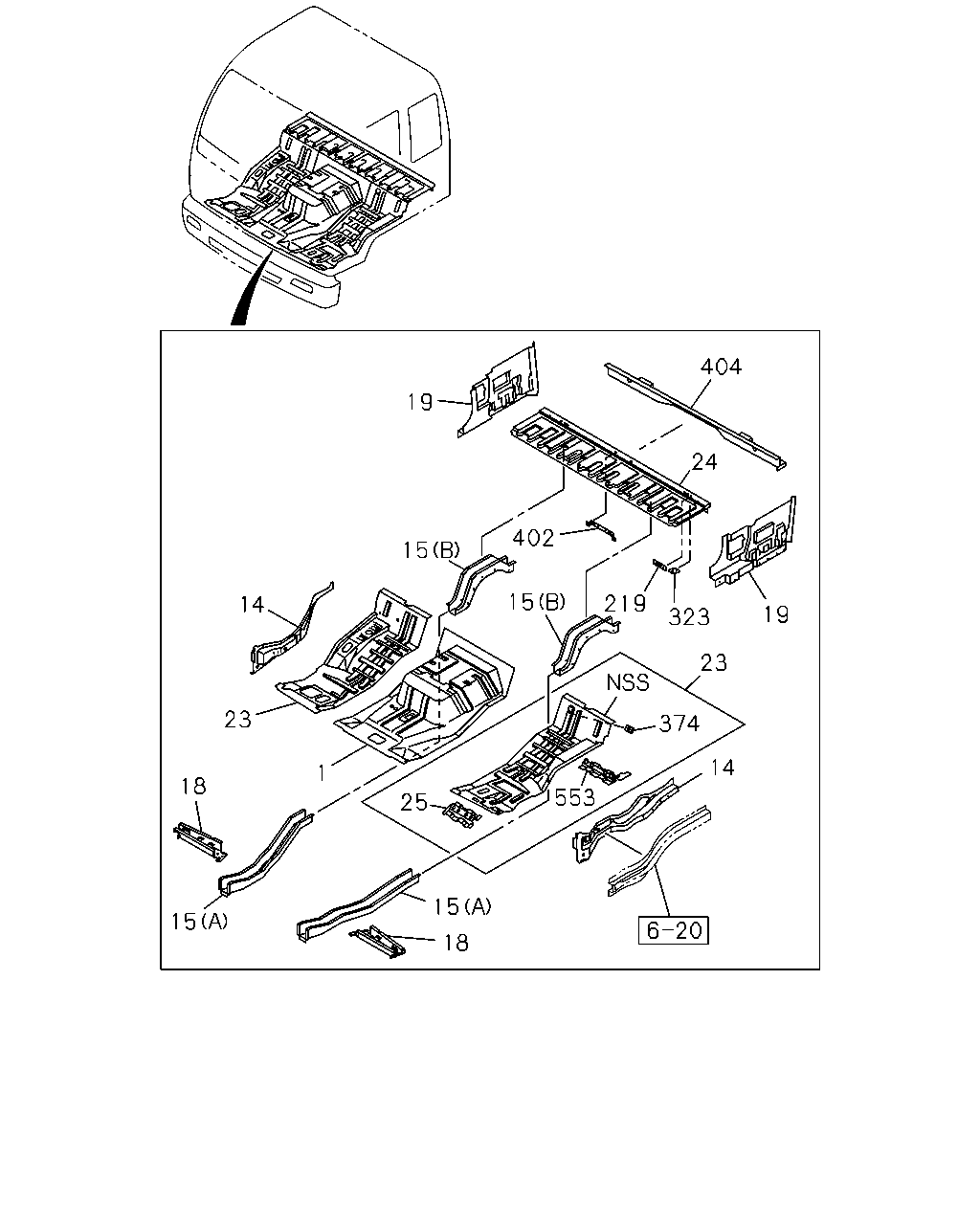

çizim 40489
404 19 24 19 323 23 219 15 402 15 14 23 18 1 15 18 15 25 553 14 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62183-656-0 01 1 0212- ●
1 PANEL; FLOOR 1-62183-405-2 01 1 0005-0210 ●
1 PANEL; FLOOR 1-62183-668-0 01 1 0211- ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005-0210 ●
1 PANEL; FLOOR 1-62183-656-0 01 1 0211-0211 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005-0210 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0211- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005-0210 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0211- ● ●
15 FRAME; UNDER
(C) 		1-62483-018-3 01 1 0212- ●
15 FRAME; UNDER
(C) 		1-62483-348-1 01 1 0212- ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0005-0401 ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0005- ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0103 ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0005- ●
15 FRAME; UNDER
(C) 		1-62483-018-2 01 1 0005-0210 ●
15 FRAME; UNDER
(C) 		1-62483-340-1 01 1 0211-0211 ●
15 FRAME; UNDER
(C) 		1-62483-017-2 01 1 0005-0210 ●
15 FRAME; UNDER
(C) 		1-62483-339-0 01 1 0211-0211 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0005- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0005- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 0005-0210 ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-5 01 1 0005-0210 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211-0211 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0211- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0005-0210 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0005-0210 ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0211- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0211- ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0005- ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0005- ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0005-0210 ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0005-0210 ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0005- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0211- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0211- ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005- ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0005-0210 ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0005- ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0211- ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0005- ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0005- ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0211- ●

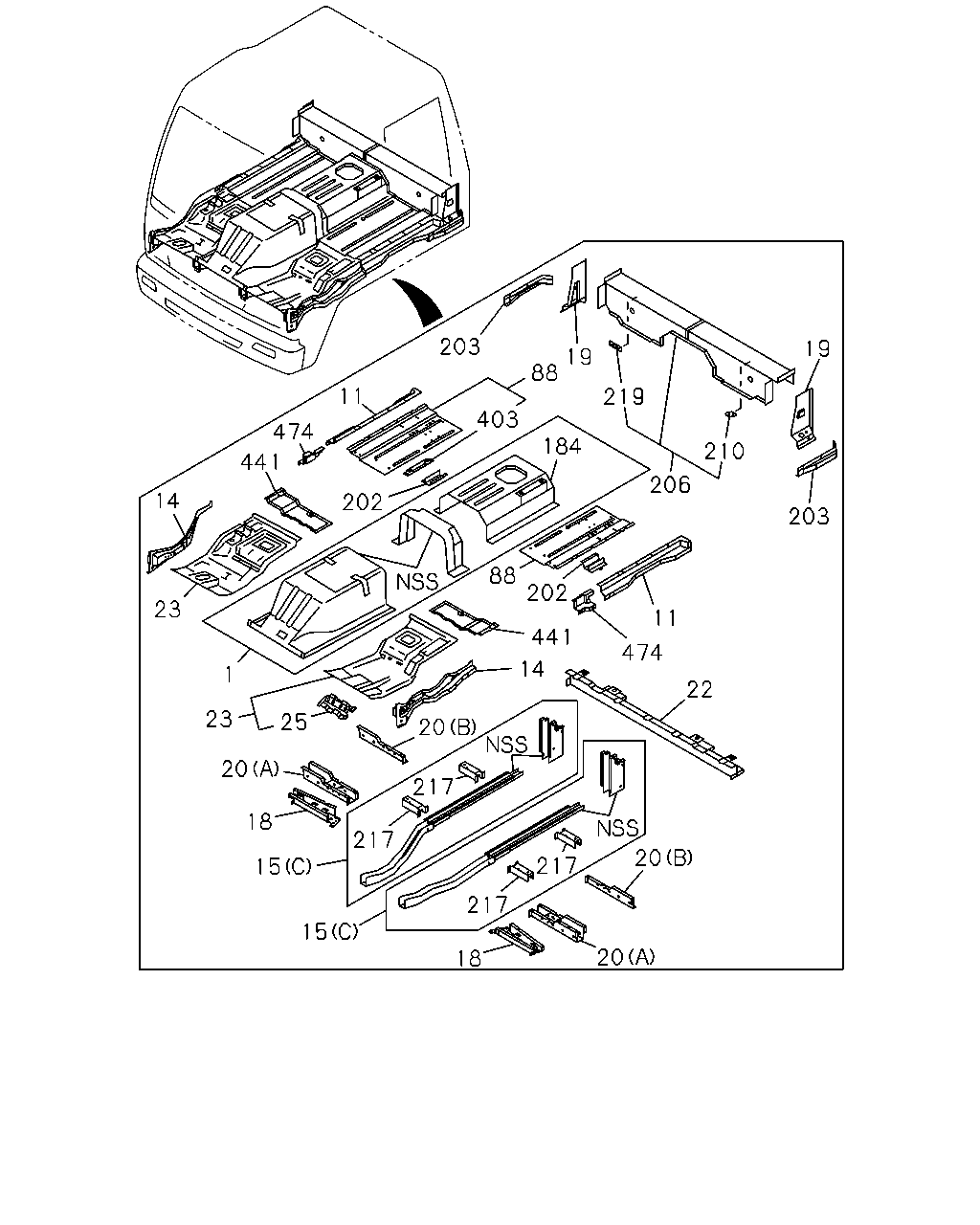

çizim 100212
19 203 210 206 219 19 88 203 403 184 88 202 11 474 22 441 14 20 20 18 217 217 15 15 18 217 217 20 25 20 23 1 23 202 11 474 441 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62183-656-0 01 1 0212- ●
1 PANEL; FLOOR 1-62183-405-2 01 1 0005-0210 ●
1 PANEL; FLOOR 1-62183-668-0 01 1 0211- ●
1 PANEL; FLOOR 1-62183-225-3 01 1 0005-0210 ●
1 PANEL; FLOOR 1-62183-656-0 01 1 0211-0211 ●
11 PANEL; FLOOR SIDE RR 1-62483-317-0 01 1 0211- ●
11 PANEL; FLOOR SIDE RR 1-62483-318-0 01 1 0211- ●
11 PANEL; FLOOR SIDE RR 1-62483-265-0 01 1 0005-0008 ●
11 PANEL; FLOOR SIDE RR 1-62483-318-0 01 1 0009-0210 ●
11 PANEL; FLOOR SIDE RR 1-62483-264-0 01 1 0005-0008 ●
11 PANEL; FLOOR SIDE RR 1-62483-317-0 01 1 0009-0210 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005-0210 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0211- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005-0210 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0211- ● ●
15 FRAME; UNDER
(C) 		1-62483-018-3 01 1 0212- ●
15 FRAME; UNDER
(C) 		1-62483-348-1 01 1 0212- ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0005-0401 ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0005- ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0103 ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0005- ●
15 FRAME; UNDER
(C) 		1-62483-018-2 01 1 0005-0210 ●
15 FRAME; UNDER
(C) 		1-62483-340-1 01 1 0211-0211 ●
15 FRAME; UNDER
(C) 		1-62483-017-2 01 1 0005-0210 ●
15 FRAME; UNDER
(C) 		1-62483-339-0 01 1 0211-0211 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-6 01 1 0211- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0005- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0005- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 0005-0210 ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-023-5 01 1 0005-0210 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211-0211 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0211- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0211- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 0005-0210 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 0005-0210 ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 0211- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 0211- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 0211- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 0211- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 0005-0210 ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 0005-0210 ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 0005-0210 ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 0005-0210 ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 0211- ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 0005-0210 ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0211- ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0211- ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0005- ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0005- ●
23 PANEL; FLOOR,SIDE 1-62183-310-0 01 1 0005-0210 ●
23 PANEL; FLOOR,SIDE 1-62183-311-0 01 1 0005-0210 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0211- ● ●
88 BOARD ASM; FLOOR 1-62483-334-0 01 1 0212- ●
88 BOARD ASM; FLOOR 1-62483-336-0 01 1 0212- ●
88 BOARD ASM; FLOOR 1-62483-038-1 01 1 0005-0210 ●
88 BOARD ASM; FLOOR 1-62483-336-0 01 1 0211-0211 ●
88 BOARD ASM; FLOOR 1-62483-037-1 01 1 0005-0210 ●
88 BOARD ASM; FLOOR 1-62483-334-0 01 1 0211-0211 ●
184 HOOD ASM; ENG RR 1-62183-657-0 01 1 0212- ●
184 HOOD ASM; ENG RR 1-62183-036-1 01 1 0005-0210 ●
184 HOOD ASM; ENG RR 1-62183-657-0 01 1 0211-0211 ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 0211- ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 0211- ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 0005-0210 ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 0005-0210 ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 0005- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 0005- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 0211- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 0005-0210 ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-085-0 01 1 0211- ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-085-0 01 1 0005-0210 ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 0212- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 0212- ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 0005-0210 ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 02 1 0211-0211 ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 0005-0210 ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-341-0 01 1 0211-0211 ●
217 PANEL; SEAT STAND
W/NUT 		1-62483-342-1 01 1 0211-0211 ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0211- ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005- ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 0005-0210 ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0211- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0005-0210 ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-031-4 01 1 0005-0210 ●
441 PANEL; EXTENSION,FLOOR SIDE 1-62483-030-5 01 1 0005-0210 ●
474 EXTENSION; FLOOR SIDE 1-62182-991-2 01 1 0211- ●
474 EXTENSION; FLOOR SIDE 1-62182-992-2 01 1 0211- ●
474 EXTENSION; FLOOR SIDE 1-62182-992-2 01 1 0005-0210 ●
474 EXTENSION; FLOOR SIDE 1-62182-991-2 01 1 0005-0210 ●
