6-66 — HEAD LINING AND TRIM (#8556) — 99 parça

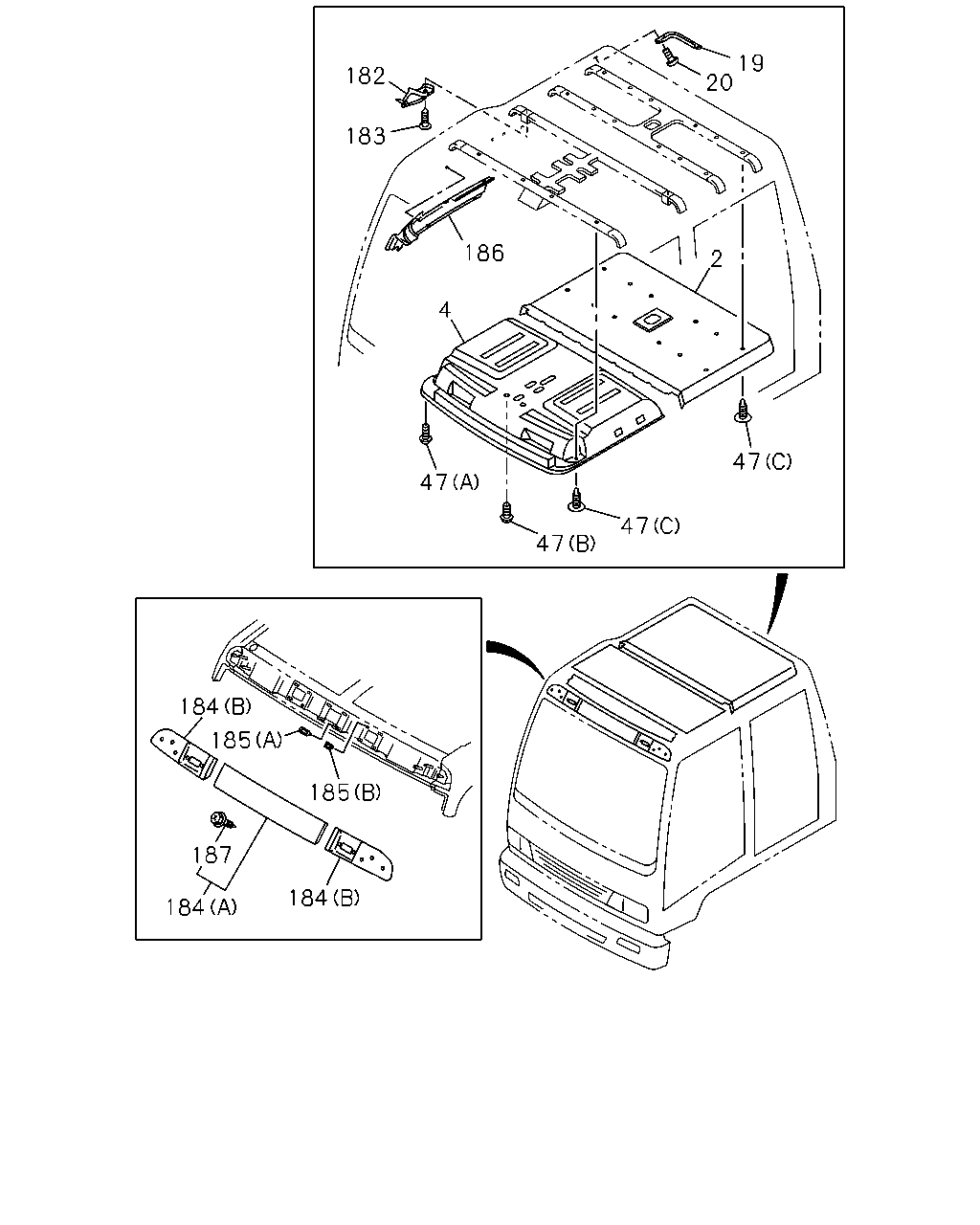

19 20 182 183 186 2 4 47 47 47 47 184 185 185 187 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY>	1-73318-709-0	01	1	0301-0405	●
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY>	1-73318-721-0	01	1	0301-0405		●
2	LINING; HD,ROOF RR	1-73318-646-1	01	1	0005-0212	●
2	LINING; HD,ROOF RR EXC. PROVISIONAL PACKAGE<NLY>	1-73318-646-1	01	1	0301-0405	●
2	LINING; HD,ROOF RR	1-73318-646-3	01	1	0406-	●
2	LINING; HD,ROOF RR	1-73318-620-1	01	1	0005-0212		●
2	LINING; HD,ROOF RR EXC. PROVISIONAL PACKAGE<NLY>	1-73318-620-1	01	1	0301-0405		●
2	LINING; HD,ROOF RR	1-73318-620-2	01	1	0406-		●
4	LINING; ROOF,FRT MAP LAMP<C85>	1-73318-597-7	01	1	0406-	●
4	LINING; ROOF,FRT MAP LAMP<C85>	1-73318-619-7	01	1	0406-		●
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY>	8-97893-788-1	01	1	0301-0405	●
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY>	1-73318-698-1	01	1	0301-0405		●
4	LINING; ROOF,FRT	8-97865-577-1	01	1	0005-0212	●
4	LINING; ROOF,FRT EXC. PROVISIONAL PACKAGE<NLY>	8-97865-577-2	01	1	0301-0405	●
4	LINING; ROOF,FRT	8-97865-577-2	01	1	0406-0406	●
4	LINING; ROOF,FRT EXC. MAP LAMP<C85>	8-97865-577-4	01	1	0406-	●
4	LINING; ROOF,FRT	1-73318-647-2	01	1	0005-0212		●
4	LINING; ROOF,FRT EXC. PROVISIONAL PACKAGE<NLY>	1-73318-647-3	01	1	0301-0405		●
4	LINING; ROOF,FRT	1-73318-647-3	01	1	0406-0406		●
4	LINING; ROOF,FRT EXC. MAP LAMP<C85>	1-73318-647-5	01	1	0406-		●
19	FINISHER; BACK CORNER,HEADLINING	1-73318-611-0	01	1	0005-0006		●
19	FINISHER; BACK CORNER,HEADLINING	1-73318-665-0	01	1	0007-		●
19	FINISHER; BACK CORNER,HEADLINING	1-73318-610-0	01	1	0005-0006		●
19	FINISHER; BACK CORNER,HEADLINING	1-73318-664-0	01	1	0007-		●
20	SCREW; FINISHER,BACK CORNER,HEADLINING M4X16 TAPPING	1-09981-477-0	04	1	0005-		●
47	CLIP; HEADLINING MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	16	1	0406-		●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	17	1	0406-		●
47	CLIP; HEADLINING (C) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0005-0405	●
47	CLIP; HEADLINING MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0406-	●
47	CLIP; HEADLINING (A) D7.7X25 LIGHT GRAY	1-73317-371-0	06	1	0005-	●	●
47	CLIP; HEADLINING (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0405	●	●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0406-	●	●
47	CLIP; HEADLINING (C) D6X23 LIGHT GRAY	1-73318-629-0	17	1	0005-0405		●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0406-	●
182	COVER; HEAD LIMING	1-73318-624-2	01	1	0005-		●
182	COVER; HEAD LIMING	1-73318-623-2	01	1	0005-		●
183	CLIP; COVER D4.6X14.7 BLACK	1-09983-104-0	06	1	0005-0005		●
183	CLIP; COVER D5X14.7	1-09983-183-0	06	1	0006-		●
184	ORNAMENT; ROOF (A)	1-73318-587-0	01	1	0005-	●	●
184	ORNAMENT; ROOF (B)	1-73318-581-0	01	1	0005-	●	●
184	ORNAMENT; ROOF (B)	1-73318-580-0	01	1	0005-	●	●
185	GROMMET; ORNAMENT (A)	1-79198-012-0	06	1	0005-	●	●
185	GROMMET; ORNAMENT (B)	1-79198-013-0	02	1	0005-	●	●
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-962-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-963-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-0	01	1	0005-0212	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. PROVISIONAL PACKAGE<NLY>	1-73348-919-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-2	01	1	0406-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-0	01	1	0005-0212	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. PROVISIONAL PACKAGE<NLY>	1-73348-918-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-2	01	1	0406-	●	●
187	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	0211-	●	●
187	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	0005-0210	●	●

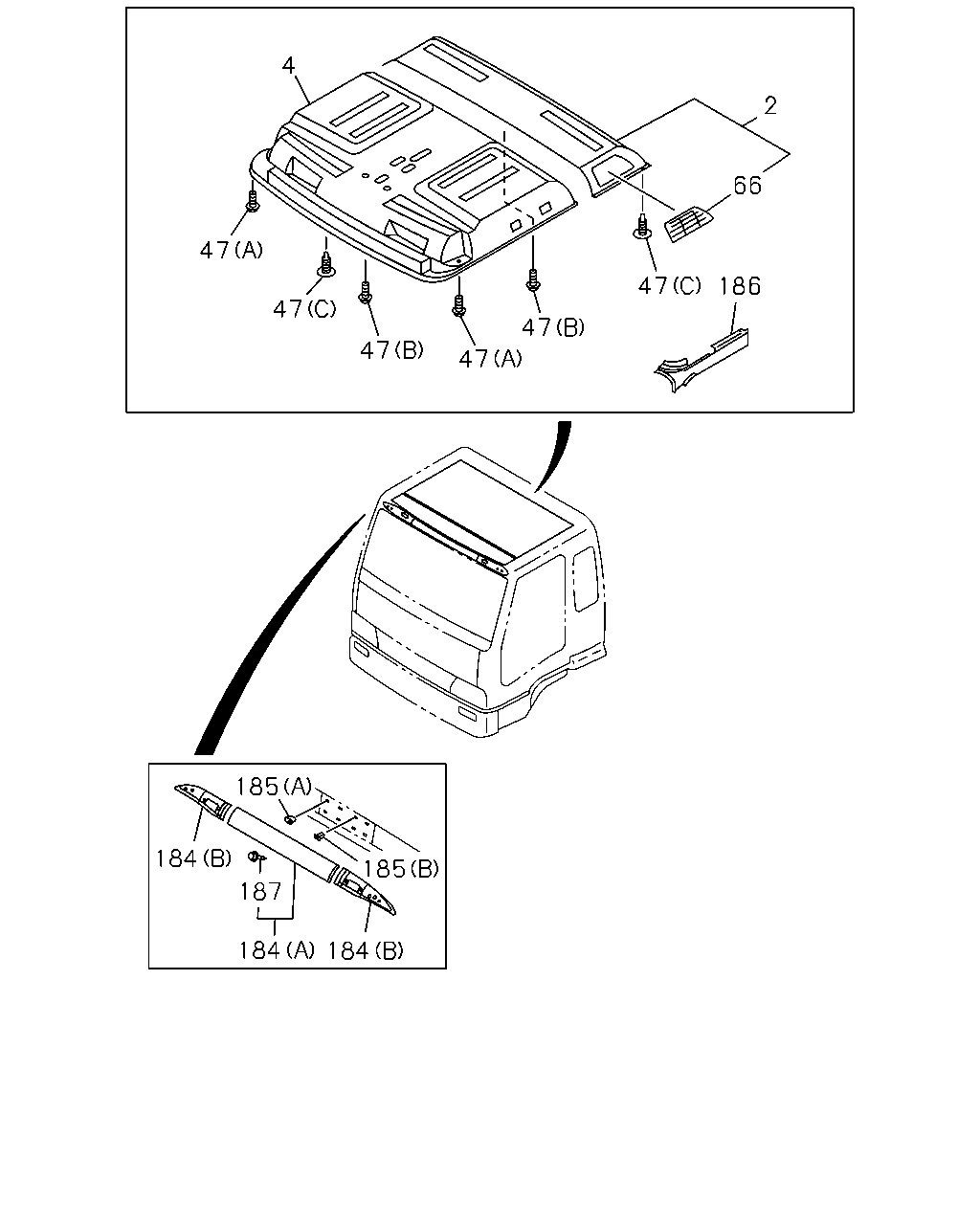

4 2 66 47 47 186 47 47 47 47 185 184 185 187 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY>	1-73318-709-0	01	1	0301-0405	●
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY>	1-73318-721-0	01	1	0301-0405		●
2	LINING; HD,ROOF RR	1-73318-646-1	01	1	0005-0212	●
2	LINING; HD,ROOF RR EXC. PROVISIONAL PACKAGE<NLY>	1-73318-646-1	01	1	0301-0405	●
2	LINING; HD,ROOF RR	1-73318-646-3	01	1	0406-	●
2	LINING; HD,ROOF RR	1-73318-620-1	01	1	0005-0212		●
2	LINING; HD,ROOF RR EXC. PROVISIONAL PACKAGE<NLY>	1-73318-620-1	01	1	0301-0405		●
2	LINING; HD,ROOF RR	1-73318-620-2	01	1	0406-		●
4	LINING; ROOF,FRT MAP LAMP<C85>	1-73318-597-7	01	1	0406-	●
4	LINING; ROOF,FRT MAP LAMP<C85>	1-73318-619-7	01	1	0406-		●
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY>	8-97893-788-1	01	1	0301-0405	●
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY>	1-73318-698-1	01	1	0301-0405		●
4	LINING; ROOF,FRT	8-97865-577-1	01	1	0005-0212	●
4	LINING; ROOF,FRT EXC. PROVISIONAL PACKAGE<NLY>	8-97865-577-2	01	1	0301-0405	●
4	LINING; ROOF,FRT	8-97865-577-2	01	1	0406-0406	●
4	LINING; ROOF,FRT EXC. MAP LAMP<C85>	8-97865-577-4	01	1	0406-	●
4	LINING; ROOF,FRT	1-73318-647-2	01	1	0005-0212		●
4	LINING; ROOF,FRT EXC. PROVISIONAL PACKAGE<NLY>	1-73318-647-3	01	1	0301-0405		●
4	LINING; ROOF,FRT	1-73318-647-3	01	1	0406-0406		●
4	LINING; ROOF,FRT EXC. MAP LAMP<C85>	1-73318-647-5	01	1	0406-		●
47	CLIP; HEADLINING MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	16	1	0406-		●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	17	1	0406-		●
47	CLIP; HEADLINING (C) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0005-0405	●
47	CLIP; HEADLINING MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0406-	●
47	CLIP; HEADLINING (A) D7.7X25 LIGHT GRAY	1-73317-371-0	06	1	0005-	●	●
47	CLIP; HEADLINING (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0405	●	●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0406-	●	●
47	CLIP; HEADLINING (C) D6X23 LIGHT GRAY	1-73318-629-0	17	1	0005-0405		●
47	CLIP; HEADLINING EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0406-	●
66	GRILLE; AIR OUTLET	1-73317-366-1	01	1	0211-	●
66	GRILLE; AIR OUTLET	1-73317-367-1	01	1	0211-	●
184	ORNAMENT; ROOF (A)	1-73318-587-0	01	1	0005-	●	●
184	ORNAMENT; ROOF (B)	1-73318-581-0	01	1	0005-	●	●
184	ORNAMENT; ROOF (B)	1-73318-580-0	01	1	0005-	●	●
185	GROMMET; ORNAMENT (A)	1-79198-012-0	06	1	0005-	●	●
185	GROMMET; ORNAMENT (B)	1-79198-013-0	02	1	0005-	●	●
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-962-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-963-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-0	01	1	0005-0212	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. PROVISIONAL PACKAGE<NLY>	1-73348-919-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-919-2	01	1	0406-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-0	01	1	0005-0212	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. PROVISIONAL PACKAGE<NLY>	1-73348-918-0	01	1	0301-0405	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-918-2	01	1	0406-	●	●
187	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	0211-	●	●
187	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	0005-0210	●	●
