Isuzu WW
▶
TRUCKS
▶
FTR
▶
10827 - FTR(AUSTRALIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

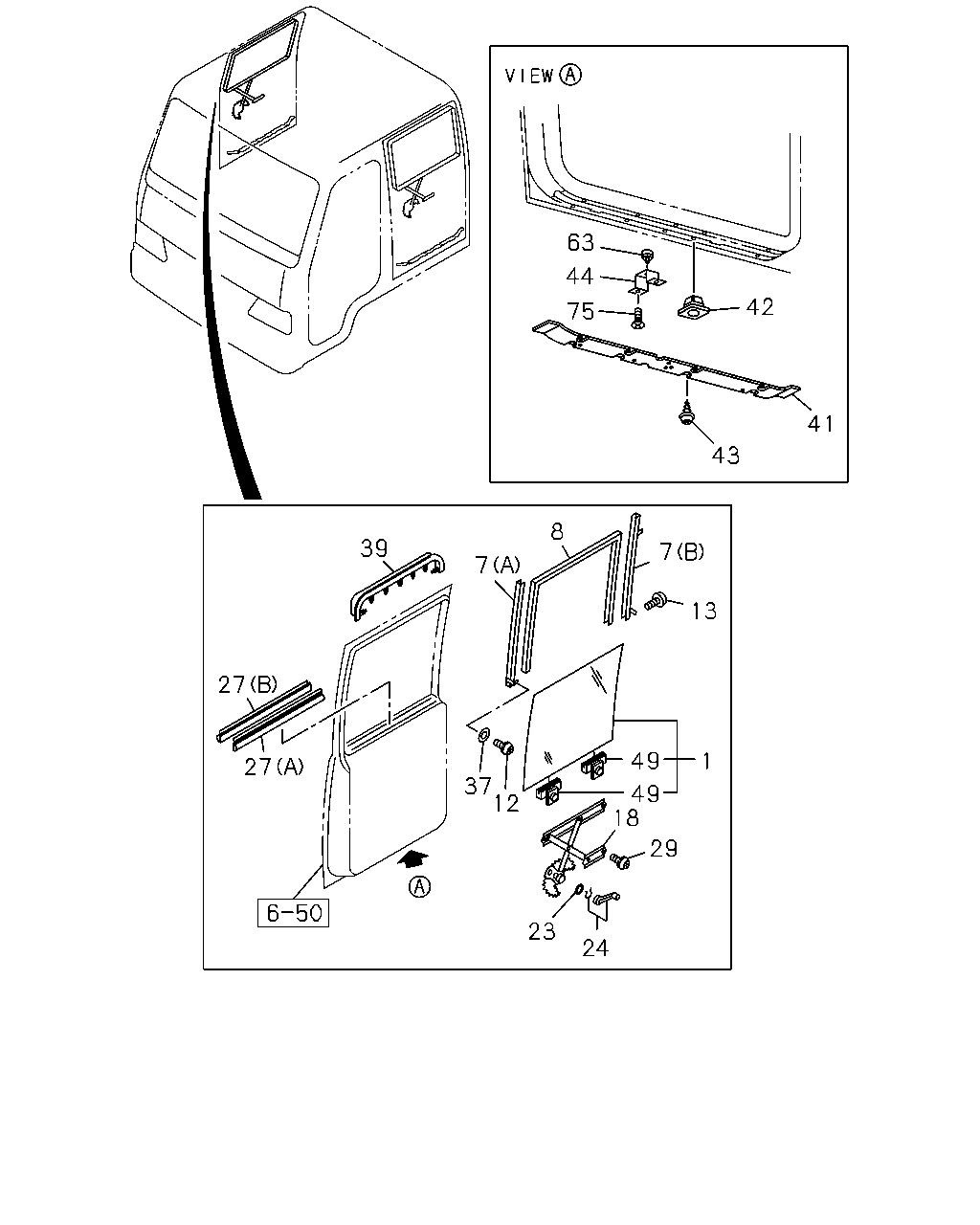

6-51 — REAR DOOR GLASS AND REGULATOR
(#8552) — 31 parça
63
44
42
75
41
43
8
39
7
7
13
27
49
1
27
37
12
49
18
29
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; RR DOOR
1-76148-075-0
01
1
0005-0204
1
GLASS; RR DOOR
1-76148-085-1
01
1
0205-
1
GLASS; RR DOOR
1-76148-074-0
01
1
0005-0204
1
GLASS; RR DOOR
1-76148-084-1
01
1
0205-
7
CHANNEL; GLASS RUN,RR DOOR
(B)
1-74338-023-4
01
1
0005-
7
CHANNEL; GLASS RUN,RR DOOR
(A)
1-74338-025-2
01
1
0005-
7
CHANNEL; GLASS RUN,RR DOOR
(B)
1-74338-022-4
01
1
0005-
7
CHANNEL; GLASS RUN,RR DOOR
(A)
1-74338-024-2
01
1
0005-
8
RUN; GLASS,RR DOOR
1-74318-020-2
02
1
0005-
12
SCREW; CHANNEL,GLASS RUN
M6X20 W/LK&PL WASHER
8-94279-403-0
04
1
0005-
13
SCREW; RR GLASS CHANNEL,RR DOOR
M6X20 W/LK&PL WASHER
8-94279-403-0
06
1
0005-
18
REGULATOR; WINDOW,RR DOOR
1-74418-110-1
01
1
0005-
18
REGULATOR; WINDOW,RR DOOR
1-74418-109-1
01
1
0005-
23
ESCUTCHEON; HANDLE,WINDOW REG
1-74458-020-0
02
1
0005-
24
HANDLE; WINDOW REG,RR DOOR
5-74457-001-3
02
1
0005-
27
SEAL; WAIST,RR DOOR
(A)
1-76738-050-3
02
1
0005-
27
SEAL; WAIST,RR DOOR
(B)
1-76738-070-2
02
1
0005-
29
SCREW; WINDOW REG
M6X16 W/LK&PL WASHER
8-94279-402-0
16
1
0005-0006
29
SCREW; WINDOW REG
M6X16 W/LK&PL WASHER
8-94279-402-0
12
1
0007-
29
SCREW; WINDOW REG
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0007-
37
WASHER; RUBBER,FRT CHANNEL
ID=5.5
1-71997-525-1
02
1
0005-
39
SEAL; SIDE UPR SUB,REAR DOOR
1-76718-185-2
01
1
0005-
39
SEAL; SIDE UPR SUB,REAR DOOR
1-76718-186-2
01
1
0005-
41
PANEL; COVER,RR DOOR GLASS
1-74998-064-0
02
1
0005-
42
GROMMET; SCREW,COVER PANEL,RR DOOR GLA
1-09983-061-0
16
1
0005-0202
42
GROMMET; SCREW,COVER PANEL,RR DOOR GLA
D=9.7X9.7 L=8
8-94222-314-0
16
1
0203-
43
SCREW; COVER PANEL,RR DOOR GLASS
M6X16 W/LK&PL WASHER
1-09981-426-0
16
1
0005-
44
BRACKET; GLASS STOPPER
1-74998-037-0
02
1
0005-
49
HOLDER; DOOR GLASS
1-74427-160-0
04
1
0005-
63
STOPPER; RR DOOR GLASS
1-74907-022-0
02
1
0005-
75
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0005-
