Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#8550) — 366 parça

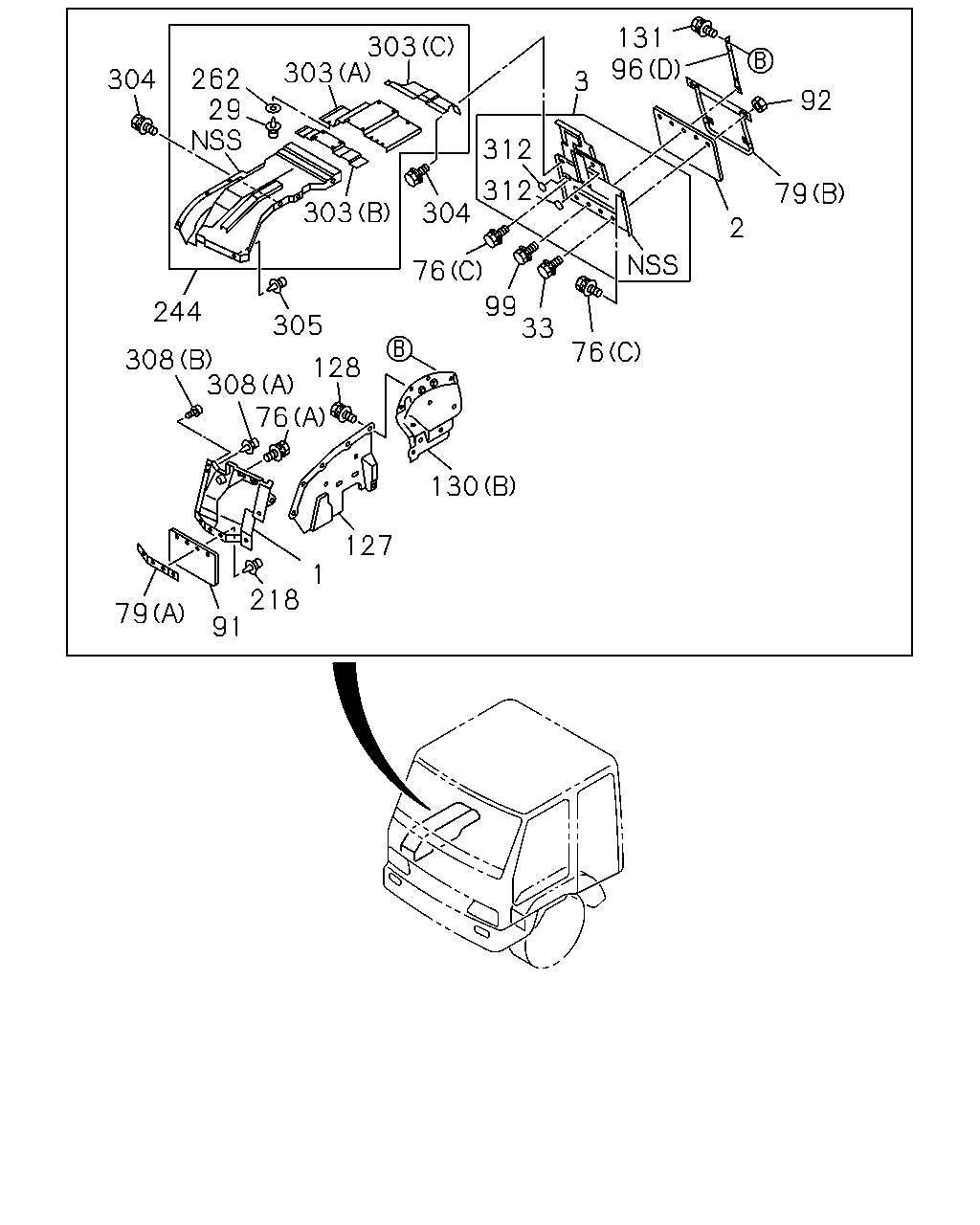

131 96 303 303 262 29 304 3 92 312 312 304 79 303 2 76 99 33 244 305 76 308 308 76 128 130 127 1 218 91 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79936-022-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79936-021-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0005-0210	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0211-	●
2	COVER; MUD,TIRE RR	1-79931-229-2	02	1	0005-		●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-	●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
29	RIVET	1-09987-240-0	21	1	0005-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0411-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0211-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904		●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	0005-	●
79	RETAINER; MUD COVER (A)	1-79931-349-0	02	1	0211-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0210	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0211-		●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
91	COVER; MUD,FRT	1-79931-348-0	02	1	0211-	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0210	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0211-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
96	STAY; MUD GUARD (C)	1-53497-577-2	01	1	0005-0210	●
96	STAY; MUD GUARD (C)	1-53497-661-0	01	1	0211-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0005-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0211-	●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	0005-		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-		●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-	●	●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●
244	GUARD; MUD,SPLASH	1-79938-921-8	01	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-947-3	01	1	0005-		●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	21	1	0005-		●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-5	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-5	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-3	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-3	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-1	01	1	0005-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904		●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●
312	SEAL; DUMMY HOLE OD=36 T=0.05 BLACK	5-76777-035-0	03	1	0005-		●

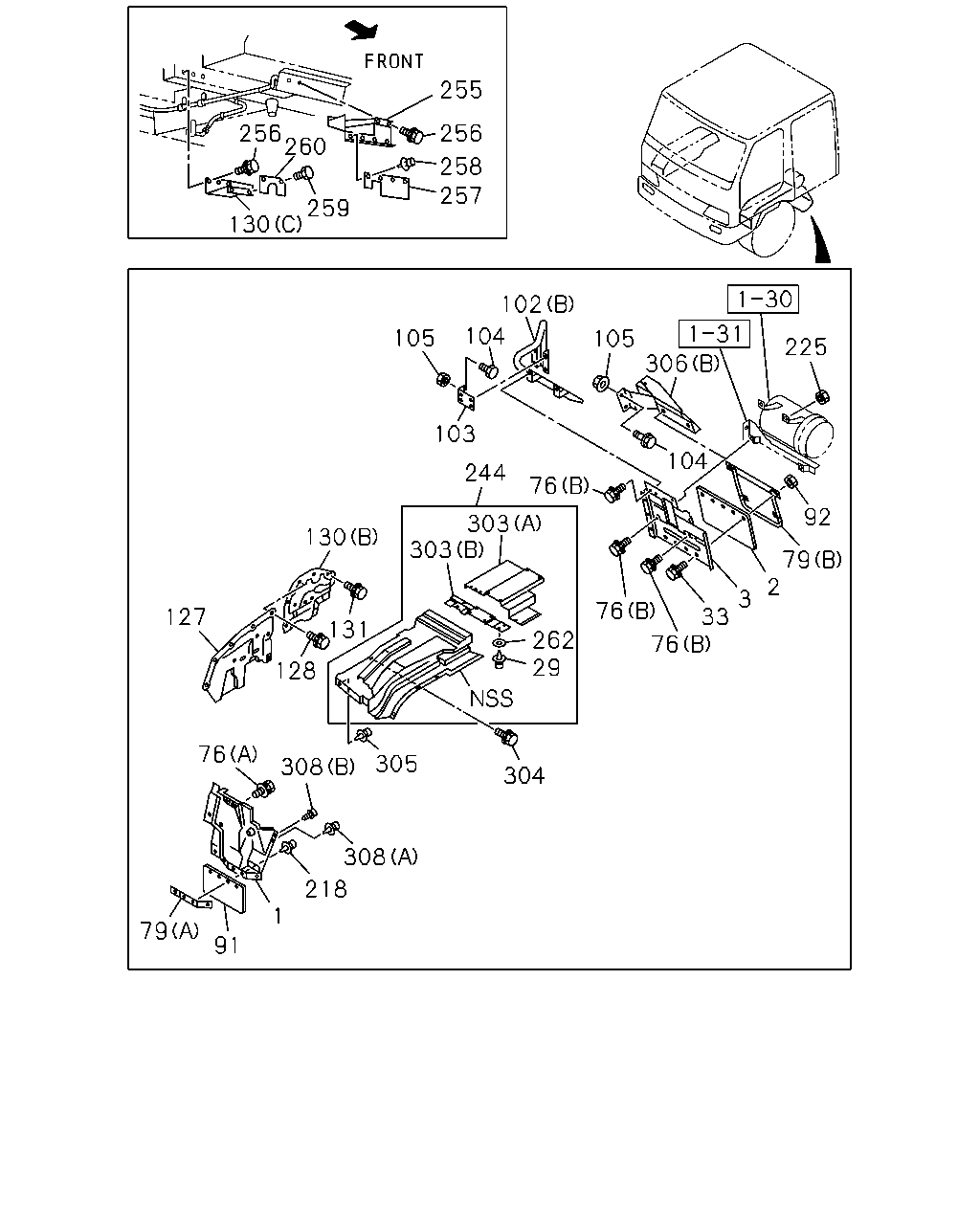

255 256 260 256 258 257 259 130 102 104 105 105 225 306 103 104 244 76 92 303 303 130 79 2 3 33 76 76 127 131 262 29 128 76 305 308 304 308 218 1 79 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79936-022-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79936-021-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0005-0210	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0211-	●
2	COVER; MUD,TIRE RR	1-79931-229-2	02	1	0005-		●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-	●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
29	RIVET	1-09987-240-0	21	1	0005-		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0411-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0211-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904		●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	0005-	●
79	RETAINER; MUD COVER (A)	1-79931-349-0	02	1	0211-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0210	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0211-		●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
91	COVER; MUD,FRT	1-79931-348-0	02	1	0211-	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0210	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0211-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
102	STAY; LWR,MUD GUARD (A)	1-53497-528-0	01	1	0005-0210	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	0211-	●
102	STAY; LWR,MUD GUARD (B)	1-53497-676-0	01	1	0211-		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0005-0210	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28081-230-0	01	1	0301-0512		●
104	BOLT; BRKT M12X30 FLANGE	0-28051-230-0	01	1	0601-		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	03	1	0211-0212		●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	02	1	0301-0512		●
104	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
105	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0301-0602		●
105	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	0603-		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-	●	●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●
225	NUT; MUD GUARD M6 FLANGE	1-09984-141-0	02	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-921-8	01	1	0005-		●
244	GUARD; MUD,SPLASH	1-79938-947-3	01	1	0005-		●
255	COVER; SIDE,REAR	1-79938-785-0	01	1	0005-0402		●
255	COVER; SIDE,REAR	1-79938-951-0	01	1	0403-		●
255	COVER; SIDE,REAR	1-79938-784-0	01	1	0005-0402		●
255	COVER; SIDE,REAR	1-79936-034-0	01	1	0403-		●
256	BOLT; SIDE COVER REAR M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-791-0	01	1	0005-0402		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-950-0	02	1	0403-		●
257	SHUTTER; RUBBER,SIDE COVER REAR	1-79938-790-0	01	1	0005-0402		●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	10	1	0005-0402		●
258	RIVET; SCREW,SHUTTER D6X16 PUSH RIVET	1-09983-105-0	08	1	0403-		●
259	BOLT; NOISE PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-		●
260	SHUTTER; RUBBER,NOISE PANEL	1-79938-792-0	01	1	0005-		●
262	WASHER; MUD GUARD ID=5.3 OD=10 T=0.8	1-09985-175-0	21	1	0005-		●
303	EXTENSION; SPLASH GUARD (A)	1-79938-923-5	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (B)	1-79938-929-5	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (A)	1-79938-922-3	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (B)	1-79938-928-3	01	1	0005-		●
303	EXTENSION; SPLASH GUARD (C)	1-79938-948-1	01	1	0005-		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904		●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0005-0210	●
306	BRACKET; MUD GUARD (A)	1-53497-593-2	01	1	0211-0302	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0303-	●
306	BRACKET; MUD GUARD (B)	1-53497-677-2	01	1	0211-0211		●
306	BRACKET; MUD GUARD (B)	1-53497-707-0	01	1	0212-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●

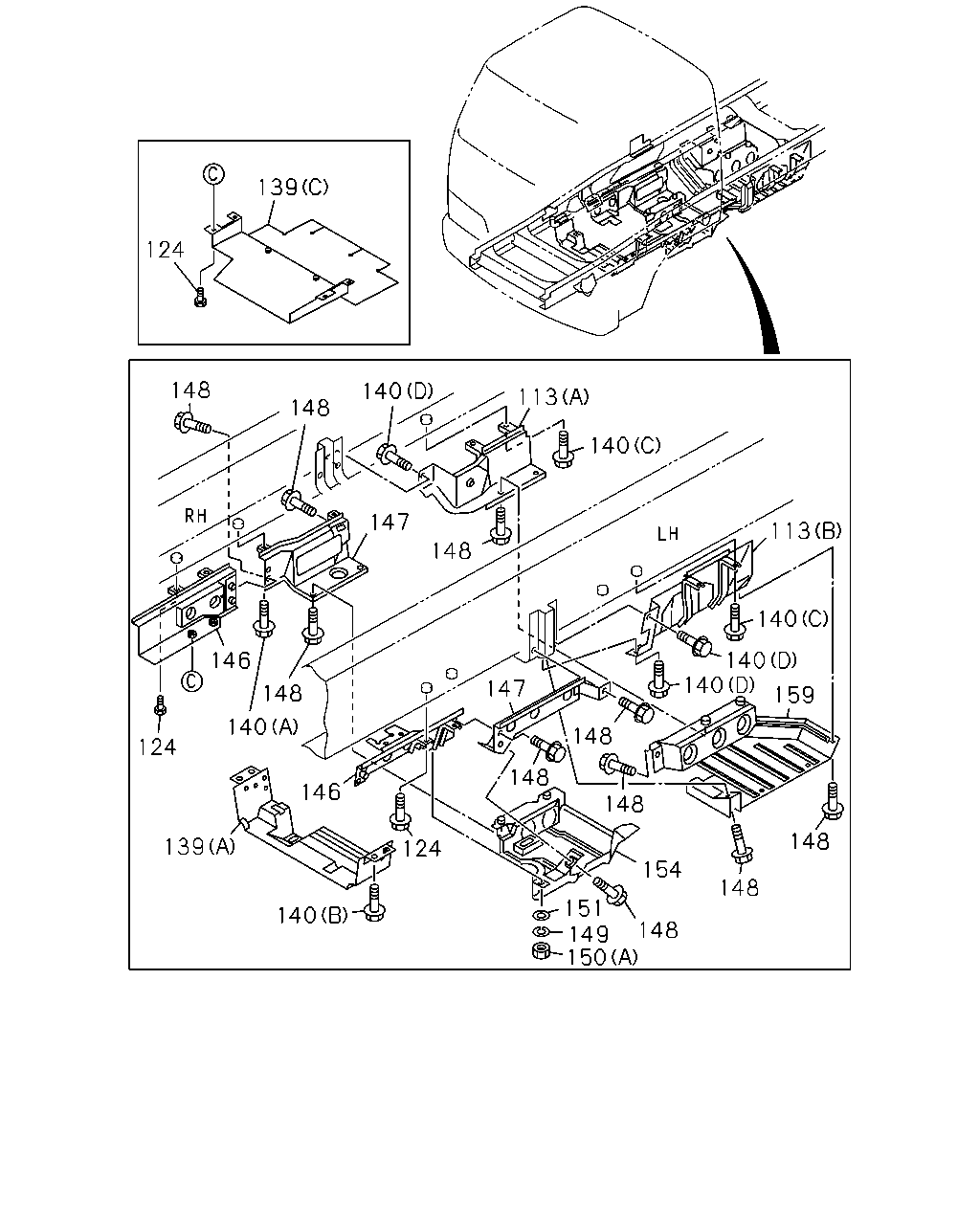

139 124 148 140 113 148 140 147 113 148 140 140 140 146 147 148 159 140 148 124 148 146 148 148 139 124 154 148 151 149 150 140 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
113	PANEL; SIDE (A)	1-53192-910-1	01	1	0005-0210	●
113	PANEL; SIDE (B)	1-53192-912-2	01	1	0005-0210	●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0005-0210	●
139	PANEL; SIDE (A)	1-53192-593-0	01	1	0005-0210	●
139	PANEL; SIDE (C)	1-53192-917-2	01	1	0005-0210	●
139	PANEL; SIDE (B)	1-53192-129-1	01	1	0005-	●
139	PANEL; SIDE (B)	1-53192-128-0	01	1	0005-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (C) M8X40 FLANGE	0-28680-840-0	04	1	0005-0210	●
140	BOLT; SIDE PANEL (D) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0005-0210	●
146	PANEL; SIDE,UNDER,FRT	1-53192-939-0	01	1	0005-0210	●
146	PANEL; SIDE,UNDER,FRT	1-53192-937-1	01	1	0005-0210	●
147	PANEL; SIDE,UNDER,RR	1-53193-051-1	01	1	0005-0210	●
147	PANEL; SIDE,UNDER,RR	1-53192-923-1	01	1	0005-0210	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0005-0210	●
149	WASHER; LK,SIDE PANEL ID=8.2	9-09150-508-0	01	1	0005-0205	●
150	NUT; SIDE PANEL (A) M8	9-09110-408-0	01	1	0005-0205	●
150	NUT; SIDE PANEL (A) M8 FLANGE	0-91150-108-0	01	1	0206-0210	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
151	WASHER; PL,SIDE PANEL ID=8.4 OD=22	9-09160-708-0	01	1	0005-0205	●
154	PANEL; SIDE,UNDER ENG CTR	1-53192-920-1	01	1	0005-0210	●
159	PANEL; SIDE,TRANS,CTR	1-53192-913-1	01	1	0005-0210	●

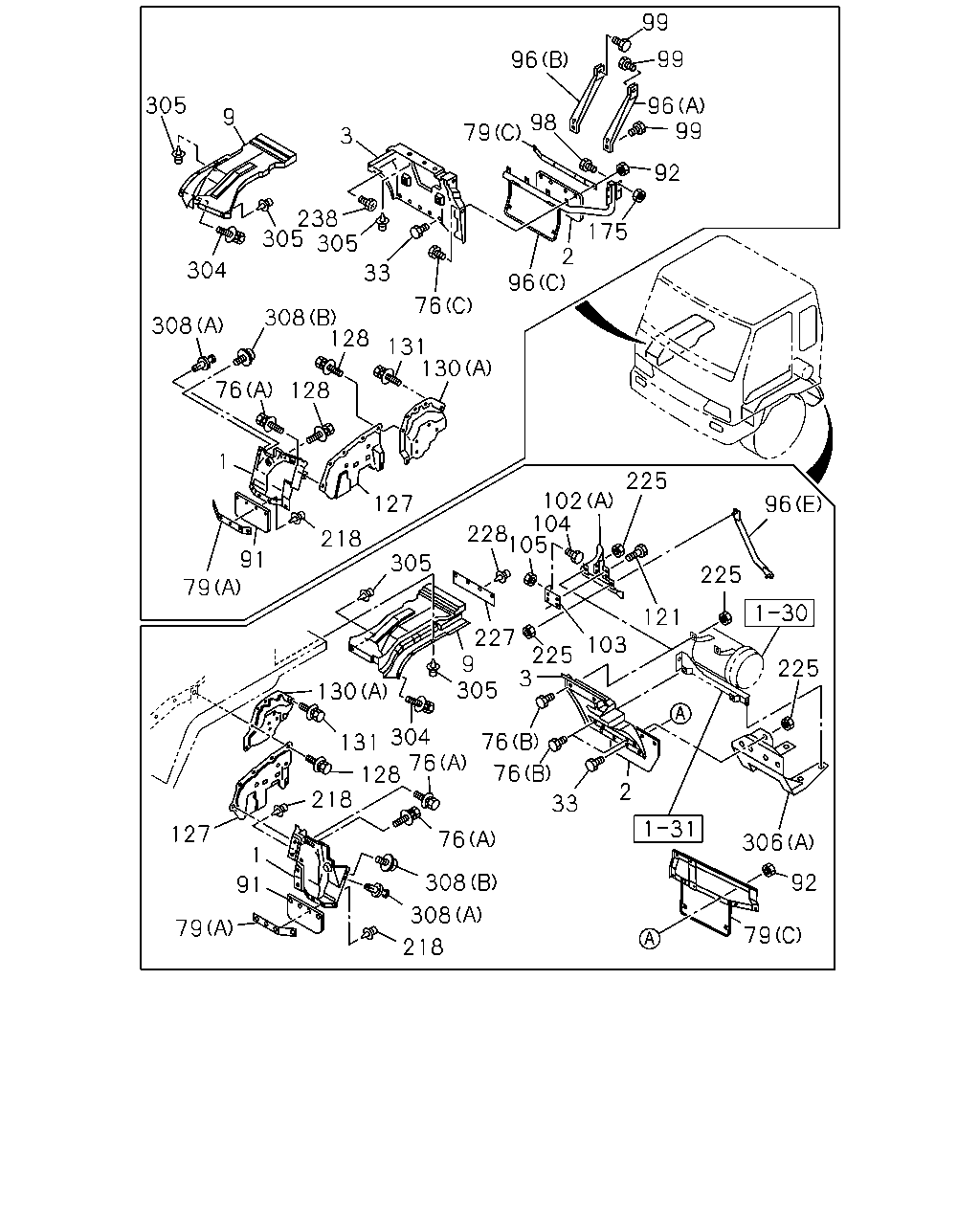

99 99 96 305 96 99 9 98 79 3 92 238 305 305 175 2 96 304 33 76 308 128 308 131 130 76 128 1 225 102 104 228 105 127 96 218 91 305 225 79 121 227 225 9 3 305 103 225 130 304 76 128 76 131 76 2 218 33 1 127 76 306 308 92 91 308 79 79 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79936-022-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79936-021-0	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0005-0210	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0005-	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0005-0210	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0211-	●
2	COVER; MUD,TIRE RR	1-79931-229-2	02	1	0005-		●
3	GUARD; MUD,RR	1-79938-959-2	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210	●
3	GUARD; MUD,RR	1-79936-012-0	01	1	0211-	●
3	GUARD; MUD,RR	1-79936-025-0	01	1	0005-		●
3	GUARD; MUD,RR	1-79938-940-1	01	1	0005-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0005-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0005-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-0210	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0211-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	0005-0410		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	14	1	0411-		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0211-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0904		●
76	BOLT; MUD GUARD (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0005-	●
79	RETAINER; MUD COVER (C)	1-79931-269-0	01	1	0005-	●
79	RETAINER; MUD COVER (A)	1-79931-349-0	02	1	0211-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0005-0210	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0211-		●
79	RETAINER; MUD COVER (B)	1-79931-131-0	02	1	0005-		●
91	COVER; MUD,FRT	1-79931-348-0	02	1	0211-	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0005-0210	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0211-		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	0005-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0603-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	10	1	0005-0602		●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	10	1	0603-		●
96	STAY; MUD GUARD (C)	1-53497-577-2	01	1	0005-0210	●
96	STAY; MUD GUARD (C)	1-53497-661-0	01	1	0211-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0005-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0211-	●
96	STAY; MUD GUARD (D)	1-79938-859-0	01	1	0005-		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-		●
102	STAY; LWR,MUD GUARD (A)	1-53497-528-0	01	1	0005-0210	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	0211-	●
102	STAY; LWR,MUD GUARD (B)	1-53497-676-0	01	1	0211-		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0005-0210	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-	●	●
104	BOLT; BRKT M12X30 FLANGE	0-28081-230-0	01	1	0301-0512		●
104	BOLT; BRKT M12X30 FLANGE	0-28051-230-0	01	1	0601-		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	03	1	0211-0212		●
104	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	02	1	0301-0512		●
104	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
105	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0301-0602		●
105	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	0603-		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0005-0512	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
127	APRON; FRT	1-53193-223-1	01	1	0005-0011	●	●
127	APRON; FRT	1-53193-222-1	01	1	0012-0210	●	●
127	APRON; FRT	1-53192-957-2	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-957-2	01	1	0306-	●	●
127	APRON; FRT	1-53192-301-3	01	1	0005-0210	●	●
127	APRON; FRT	1-53192-956-1	01	1	0211-0305	●	●
127	APRON; FRT 6HK1 TCC ENG(81L)	1-53192-956-1	01	1	0306-	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-	●
128	BOLT; APRON,FRT M8X30 W/LK&PL WASHER	1-09030-080-0	02	1	0005-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-		●
130	PANEL; SHUTTER NOISE (A)	1-53192-307-4	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53192-955-2	01	1	0211-	●
130	PANEL; SHUTTER NOISE (A)	1-53192-305-2	01	1	0005-0210	●
130	PANEL; SHUTTER NOISE (A)	1-53193-704-1	01	1	0211-	●
130	PANEL; SHUTTER NOISE (C)	1-79938-793-0	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-718-4	01	1	0005-		●
130	PANEL; SHUTTER NOISE (B)	1-53192-717-3	01	1	0005-0210		●
130	PANEL; SHUTTER NOISE (B)	1-53194-186-2	01	1	0211-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	0005-		●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	03	1	0211-0602	●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	03	1	0603-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0005-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●
225	NUT; MUD GUARD M6 FLANGE	1-09984-141-0	02	1	0005-		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0005-	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0005-	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0005-0904		●
304	BOLT; SPLASH GUARD M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	01	1	0405-	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0005-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0005-	●	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0005-0210	●
306	BRACKET; MUD GUARD (A)	1-53497-593-2	01	1	0211-0302	●
306	BRACKET; MUD GUARD (A)	1-53497-618-0	01	1	0303-	●
306	BRACKET; MUD GUARD (B)	1-53497-677-2	01	1	0211-0211		●
306	BRACKET; MUD GUARD (B)	1-53497-707-0	01	1	0212-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●

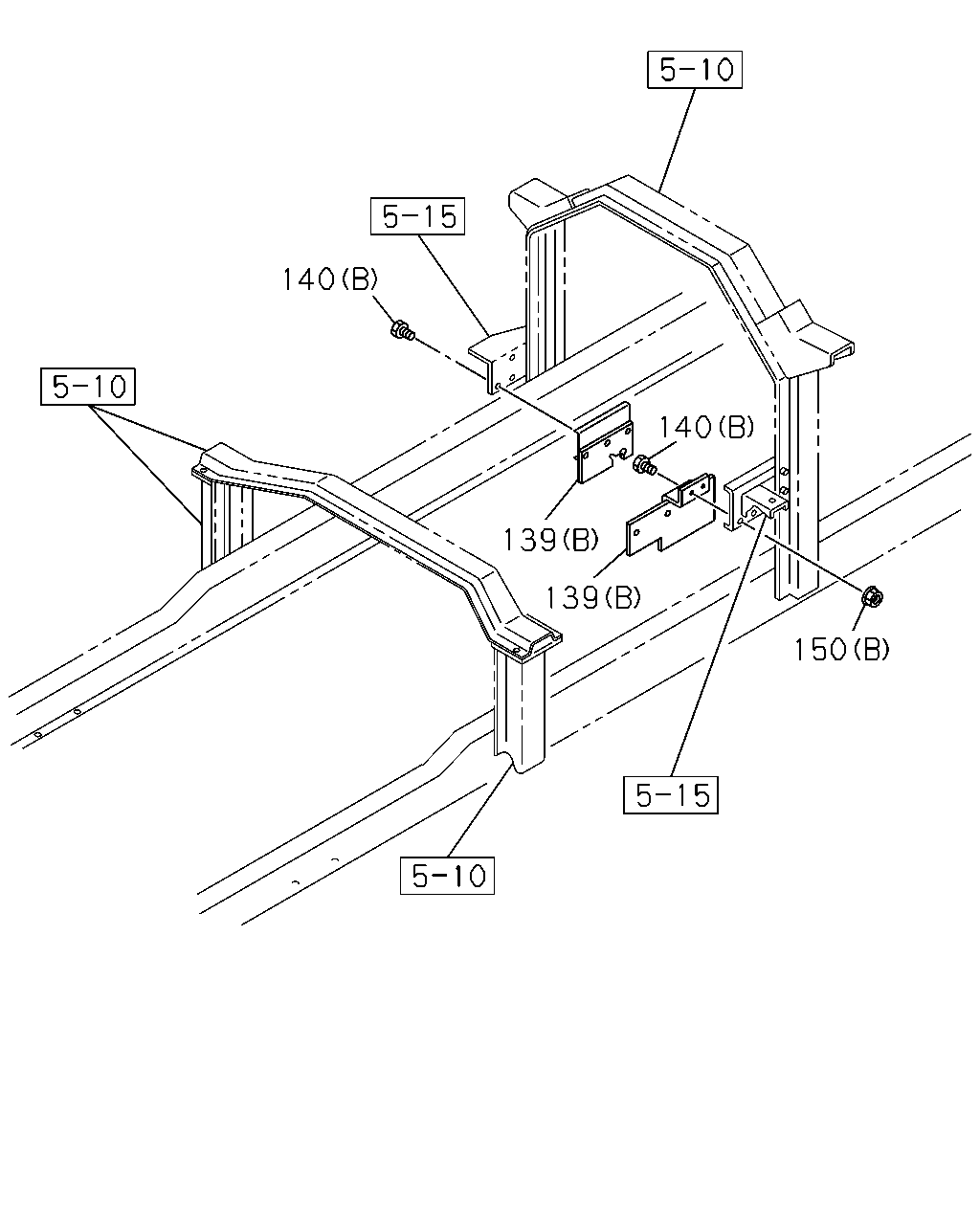

140 140 139 139 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
139	PANEL; SIDE (A)	1-53192-593-0	01	1	0005-0210	●
139	PANEL; SIDE (C)	1-53192-917-2	01	1	0005-0210	●
139	PANEL; SIDE (B)	1-53192-129-1	01	1	0005-	●
139	PANEL; SIDE (B)	1-53192-128-0	01	1	0005-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (C) M8X40 FLANGE	0-28680-840-0	04	1	0005-0210	●
140	BOLT; SIDE PANEL (D) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0005-0210	●
150	NUT; SIDE PANEL (A) M8	9-09110-408-0	01	1	0005-0205	●
150	NUT; SIDE PANEL (A) M8 FLANGE	0-91150-108-0	01	1	0206-0210	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
150	NUT; SIDE PANEL (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
