◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#8549) — 31 parça

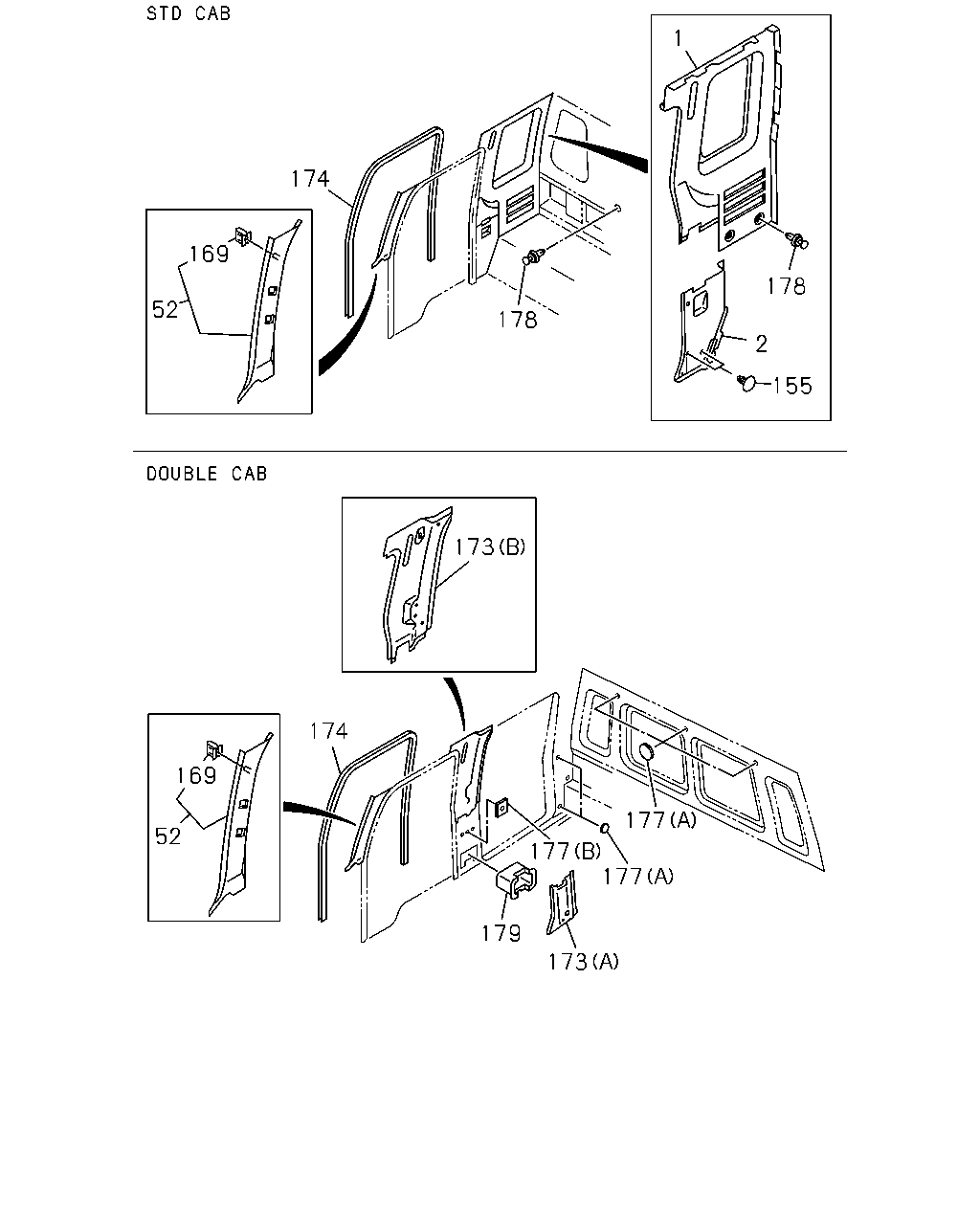

çizim 41046
1 174 169 178 178 52 2 155 173 174 169 177 52 177 177 179 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-1 01 1 0301-0405 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-1 01 1 0301-0405 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-941-4 01 1 0301-0405 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-7 01 1 0406- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-934-4 01 1 0301-0405 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-7 01 1 0406- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73346-032-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-1 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-927-2 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-3 01 1 0406- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-0 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-980-0 01 1 0301-0405 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-1 01 1 0406- ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ● ●
155 CLIP; TRIM,QUARTER
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005- ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0005- ● ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-986-2 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-987-1 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(B) 		1-73348-984-2 01 1 0005- ●
173 TRIM; ROOM,CENTER PILLAR
(A) 		1-73348-991-1 01 1 0005- ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0005- ● ●
177 SEAL; SIDE PANEL
(A) WHITE 		1-76777-076-0 07 1 0005-0404 ●
177 SEAL; SIDE PANEL
(A) OD=20 T=0.05 WHITE 		8-97856-832-2 07 1 0405- ●
177 SEAL; SIDE PANEL
(B) 25X25 		8-94272-533-0 04 1 0005- ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ●
179 COVER; SIDE PANEL 1-73348-768-2 01 1 0005- ●
179 COVER; SIDE PANEL 1-73348-767-2 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
