0-31 — THERMOSTAT AND HOUSING (#8542) — 84 parça

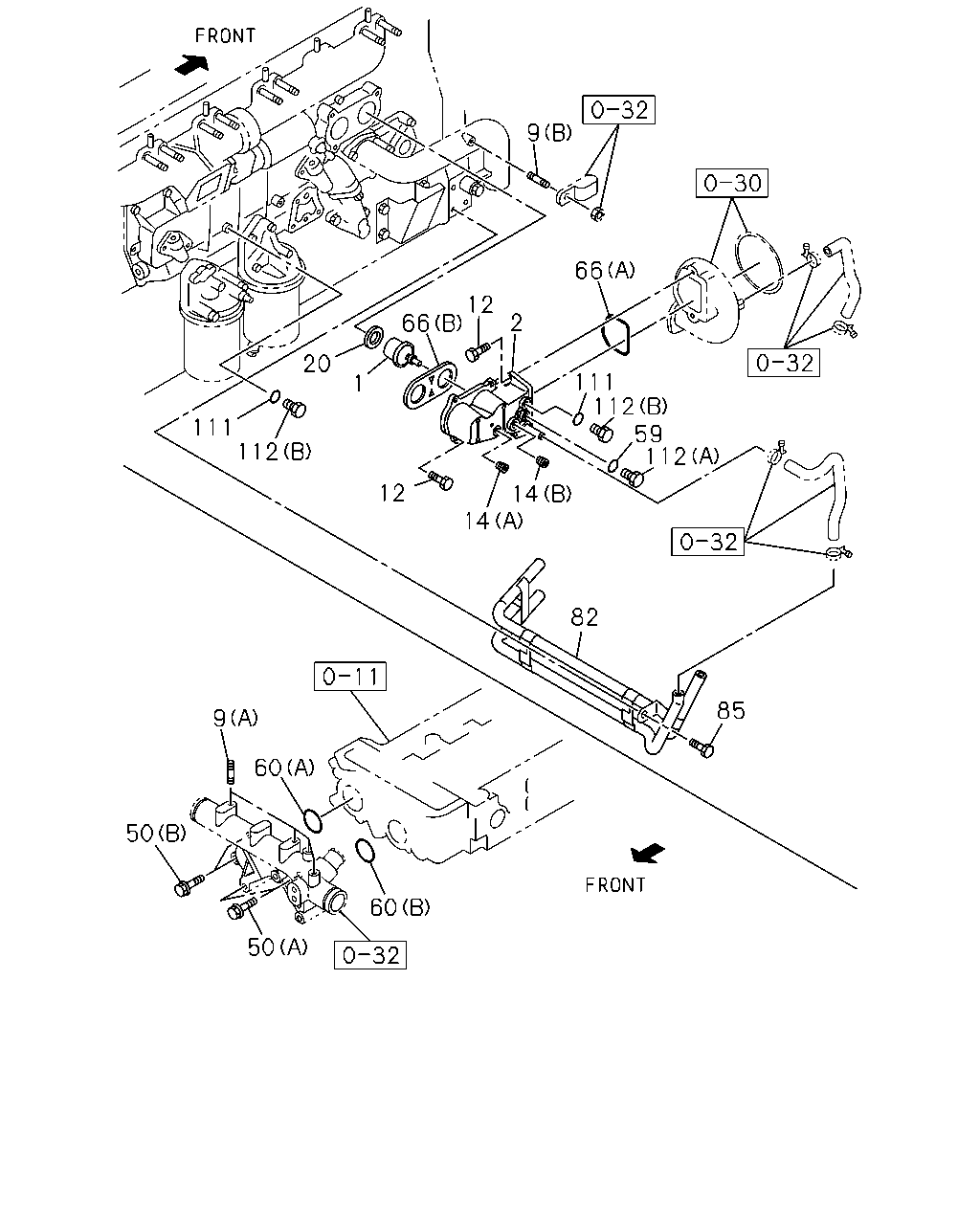

çizim 48012
9 66 12 66 2 20 111 112 59 112 1 111 112 12 14 14 82 85 9 60 50 60 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 9902-9904 ●
1 THERMOSTAT
EXC. BRAZIL EQUIPMENT(TKK) 79 CELSIUS 		1-13770-041-1 02 1 9905-9909 ●
1 THERMOSTAT
EXC. BRAZIL EQUIPMENT(TKK) 79 CELSIUS 		1-13770-041-1 02 1 9910-0003 ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 9910-0003 ●
1 THERMOSTAT
EXC. BRAZIL EQUIPMENT(TKK) 79 CELSIUS 		1-13770-041-2 02 1 0004- ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-2 02 1 0004- ● ●
1 THERMOSTAT
BRAZIL EQUIPMENT(TKK) 82 CELSIUS 		8-98271-161-0 02 1 9905- ●
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 9905- ●
2 HOUSING; THERMOSTAT 1-13710-530-0 01 1 9902-9904 ●
2 HOUSING; THERMOSTAT 1-13710-530-0 01 1 9905-9909 ● ●
2 HOUSING; THERMOSTAT 1-13710-530-0 01 1 9910-0003 ● ● ●
2 HOUSING; THERMOSTAT 1-13710-530-0 01 1 0004- ● ● ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9902-9904 ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9905-9909 ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 9910-0003 ● ● ●
9 STUD; WATER PIPE
(A) M8X20 L=32 		9-04110-820-0 04 1 0004- ● ● ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9902-9904 ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9905-9909 ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 9910-0003 ● ● ●
9 STUD; WATER PIPE
(B) M10X20 L=35 		9-04411-020-0 01 1 0004- ● ● ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9902-9904 ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9905-9909 ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 9910-0003 ● ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0004- ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9902-9904 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9905-9909 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9910-0003 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0004- ● ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 9902-9904 ●
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 9905-9909 ● ●
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 9910-0003 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94475-259-0 01 1 0004- ● ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 9902-9904 ●
20 RING; SEAL 1-13779-011-0 02 1 9905-9909 ● ●
20 RING; SEAL 1-13779-011-0 02 1 9910-0003 ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 0004- ● ● ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9902-9904 ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9905-9909 ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 9910-0003 ● ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 0004- ● ● ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 9902- ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9905-9909 ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 9910-0003 ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0004- ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9902-9904 ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9905-9909 ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9910-0003 ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0004- ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9902-9904 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9905-9909 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 9910-0003 ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0004- ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9902-9904 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9905-9909 ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 9910-0003 ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0004- ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9902-9904 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9905-9909 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 9910-0003 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0004- ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9902-9904 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9905-9909 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 9910-0003 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0004- ● ● ● ●
82 PIPE; WATER,HTR 1-13721-669-1 01 1 9902- ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 9905-9909 ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 9910-0003 ● ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 0004- ● ● ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 9902-9904 ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 9905-9909 ● ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 9910-0003 ● ● ●
85 BOLT; CLIP
M14X20 FLANGE 		0-28981-420-0 01 1 0004- ● ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9902-9904 ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9905-9909 ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 9910-0003 ● ● ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=25 		1-09630-141-0 02 1 0004- ● ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9902-9904 ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9905-9909 ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 9910-0003 ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0004- ● ● ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9902-9904 ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9905-9909 ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 9910-0003 ● ● ●
112 PLUG
(B) M14X9 		9-99202-314-0 02 1 0004- ● ● ● ●
