0-30 — WATER PUMP AND CORROSION RESISTOR (#8541) — 104 parça

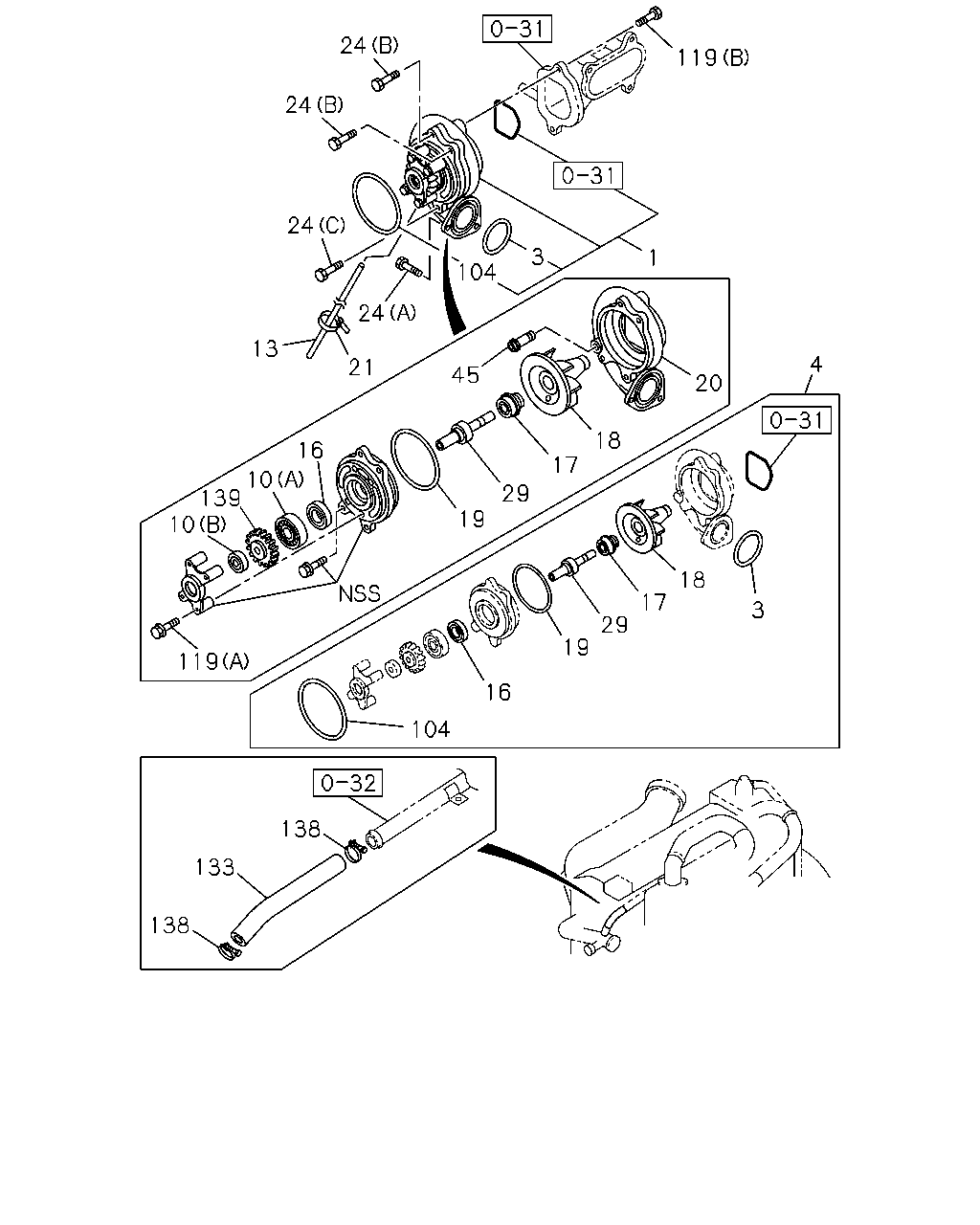

çizim 45088
24 119 24 24 3 1 104 24 13 4 21 45 20 18 16 17 10 139 10 29 19 18 17 3 29 19 119 16 104 138 133 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET 1-13650-057-0 01 1 9902-9904 ●
1 PUMP ASM; WATER,W/GASKET
EXC. BRAZIL EQUIPMENT(TKK) 		1-13650-057-1 01 1 9905-9909 ●
1 PUMP ASM; WATER,W/GASKET
EXC. BRAZIL EQUIPMENT(TKK) 		1-13650-057-1 01 1 9910-0003 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-057-1 01 1 9910-0003 ●
1 PUMP ASM; WATER,W/GASKET
EXC. BRAZIL EQUIPMENT(TKK) 		1-13650-057-2 01 1 0004- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-057-2 01 1 0004- ● ●
1 PUMP ASM; WATER,W/GASKET
BRAZIL EQUIPMENT(TKK) 		1-13650-075-1 01 1 9905-0003 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-075-1 01 1 9905-0003 ●
1 PUMP ASM; WATER,W/GASKET
BRAZIL EQUIPMENT(TKK) 		1-13650-084-1 01 1 0004- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-084-1 01 1 0004- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9902-9904 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9905-9909 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9910-0003 ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0004- ● ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 9902-9904 ●
4 REPAIR KIT; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-87811-843-0 01 1 9905-9909 ●
4 REPAIR KIT; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-87811-843-0 01 1 9910-0003 ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 9910-0003 ●
4 REPAIR KIT; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-87811-843-0 01 1 0004- ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0004- ● ●
4 REPAIR KIT; WATER PUMP
BRAZIL EQUIPMENT(TKK) 		1-87811-879-0 01 1 9905- ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 9905- ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9902-9904 ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9905-9909 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9910-0003 ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0004- ● ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9902-9904 ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9905-9909 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9910-0003 ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0004- ● ● ● ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9902-9904 ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9905-9909 ● ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9910-0003 ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9902-9904 ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9905-9909 ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9910-0003 ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0004- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9902-9904 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9905-9909 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9910-0003 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0004- ● ● ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 9902-9904 ●
18 IMPELLER; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-13621-049-0 01 1 9905-9909 ●
18 IMPELLER; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-13621-049-0 01 1 9910-0003 ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 9910-0003 ●
18 IMPELLER; WATER PUMP
EXC. BRAZIL EQUIPMENT(TKK) 		1-13621-049-0 01 1 0004- ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0004- ● ●
18 IMPELLER; WATER PUMP
BRAZIL EQUIPMENT(TKK) 		1-13621-060-0 01 1 9905- ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 9905- ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9902-9904 ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9905-9909 ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9910-0003 ● ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0004- ● ● ● ●
20 COVER; WATER PUMP 1-13612-041-0 01 1 9902-9904 ●
20 COVER; WATER PUMP 1-13612-041-0 01 1 9905-9909 ● ●
20 COVER; WATER PUMP 1-13612-041-0 01 1 9910-0003 ● ● ●
20 COVER; WATER PUMP 1-13612-041-1 01 1 0004- ● ● ● ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-1 01 1 9902-9904 ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-1 01 1 9905-9909 ● ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-1 01 1 9910-0003 ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9902-9904 ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9905-9909 ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9910-0003 ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0004- ● ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9902-9904 ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9905-9909 ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9910-0003 ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0004- ● ● ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9902-9904 ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9905-9909 ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9910-0003 ● ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0004- ● ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9902-9904 ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9905-9909 ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9910-0003 ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0004- ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9902-9904 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9905-9909 ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9910-0003 ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0004- ● ● ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9902-9904 ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9905-9909 ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9910-0003 ● ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0004- ● ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9902-9904 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9905-9909 ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9910-0003 ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0004- ● ● ● ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9902-9904 ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9905-9909 ● ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9910-0003 ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0004- ● ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9902-9904 ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9905-9909 ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9910-0003 ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 0004- ● ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9902-9904 ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9905-9909 ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9910-0003 ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0004- ● ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9902-9904 ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9905-9909 ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9910-0003 ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0004- ● ● ● ●
