0-27 — EXHAUST MANIFOLD (#8539) — 51 parça

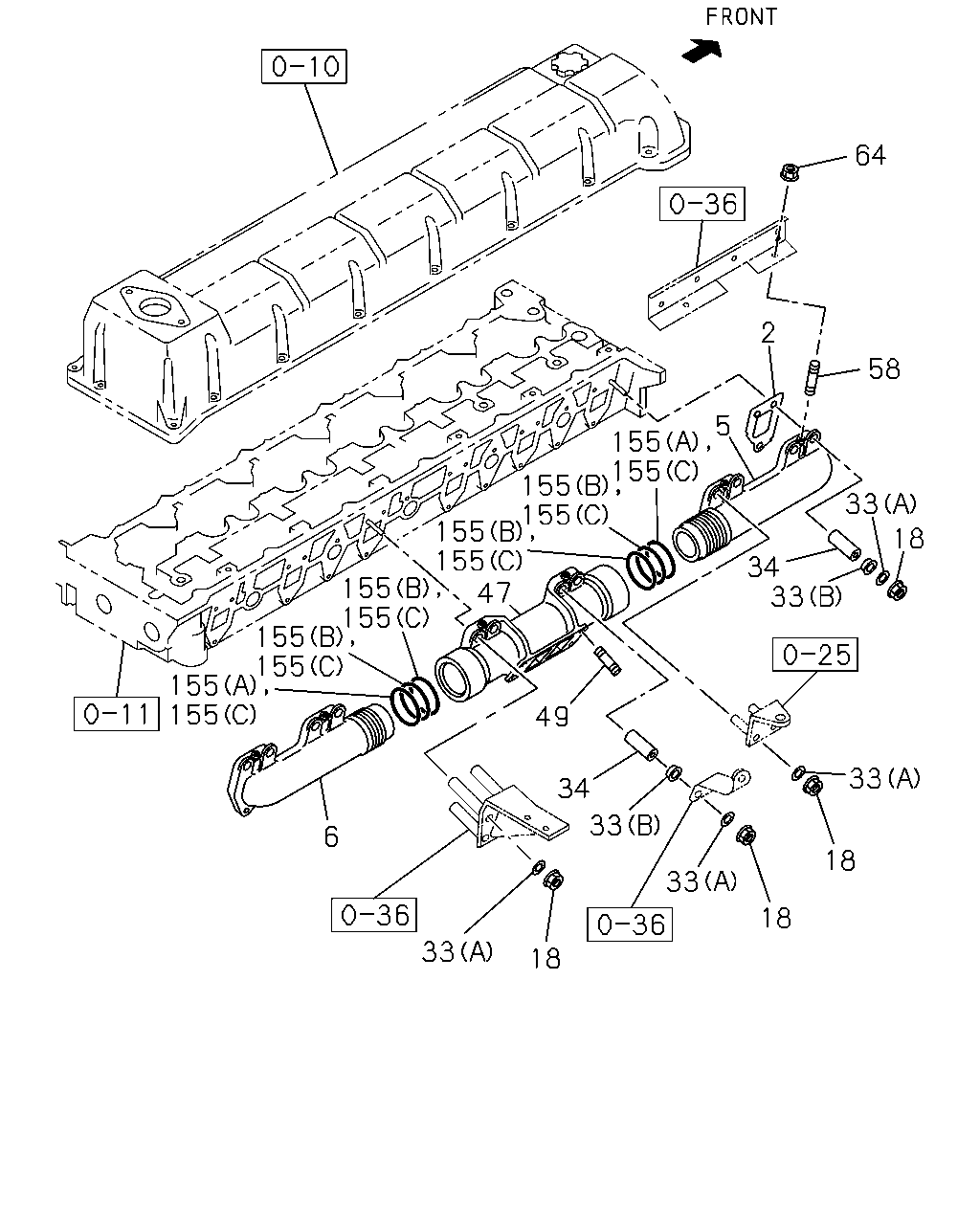

çizim 46605
64 2 58 5 155 155 155 155 155 155 155 47 155 155 155 155 155 33 18 34 33 49 33 34 33 6 18 33 18 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-1 06 1 9902-9904 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-1 06 1 9905-9909 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-1 06 1 9910-0003 ● ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-182-1 06 1 0004- ● ● ● ●
5 MANIFOLD; EXH,FRT 1-14141-801-2 01 1 9902- ●
5 MANIFOLD; EXH,FRT 1-14141-881-0 01 1 9905-9909 ●
5 MANIFOLD; EXH,FRT 1-14141-881-0 01 1 9910-0003 ● ●
5 MANIFOLD; EXH,FRT 1-14141-881-0 01 1 0004- ● ● ●
6 MANIFOLD; EXH,RR 1-14141-803-2 01 1 9902- ●
6 MANIFOLD; EXH,RR 1-14141-883-0 01 1 9905-9909 ●
6 MANIFOLD; EXH,RR 1-14141-883-0 01 1 9910-0003 ● ●
6 MANIFOLD; EXH,RR 1-14141-883-0 01 1 0004- ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 18 1 9902-9904 ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 18 1 9905-9909 ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 18 1 9910-0003 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 18 1 0004- ● ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 18 1 9902-9904 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 18 1 9905-9909 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 18 1 9910-0003 ● ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 18 1 0004- ● ● ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 13 1 9902-9904 ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 13 1 9905-9909 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 13 1 9910-0003 ● ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 13 1 0004- ● ● ● ●
34 COLLAR; DIST,EXH MANIF
L=43 		8-94396-406-0 13 1 9902-9904 ●
34 COLLAR; DIST,EXH MANIF
L=43 		8-94396-406-0 13 1 9905-9909 ● ●
34 COLLAR; DIST,EXH MANIF
L=43 		8-94396-406-0 13 1 9910-0003 ● ● ●
34 COLLAR; DIST,EXH MANIF
L=43 		8-94396-406-0 13 1 0004- ● ● ● ●
47 MANIFOLD; EXH,CENTER 1-14141-802-3 01 1 9902- ●
47 MANIFOLD; EXH,CENTER 1-14141-882-0 01 1 9905-9909 ●
47 MANIFOLD; EXH,CENTER 1-14141-882-0 01 1 9910-0003 ● ●
47 MANIFOLD; EXH,CENTER 1-14141-882-0 01 1 0004- ● ● ●
49 STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45 		9-04731-030-0 04 1 9902- ●
49 STUD; CENTER MANIF TO TURBOCHARGER 1-09302-134-0 04 1 9905-9909 ●
49 STUD; CENTER MANIF TO TURBOCHARGER 1-09302-134-0 04 1 9910-0003 ● ●
49 STUD; CENTER MANIF TO TURBOCHARGER 1-09302-134-0 04 1 0004- ● ● ●
58 STUD; HEAT PROTECTOR
M8X20 L=32 		9-04110-820-0 06 1 9902-9904 ●
58 STUD; HEAT PROTECTOR
M8X20 L=32 		9-04110-820-0 06 1 9905-9909 ● ●
58 STUD; HEAT PROTECTOR
M8X20 L=32 		9-04110-820-0 06 1 9910-0003 ● ● ●
58 STUD; HEAT PROTECTOR
M8X20 L=32 		9-04110-820-0 06 1 0004- ● ● ● ●
64 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 05 1 9902-9904 ●
64 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 05 1 9905-9909 ● ●
64 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 05 1 9910-0003 ● ● ●
64 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 05 1 0004- ● ● ● ●
155 RING; SEAL,EXH MANIF
(C) 		1-14149-151-0 06 1 9902- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 9905-9909 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 9910-0003 ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 0004- ● ● ●
155 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 9905-9909 ●
155 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 9910-0003 ● ●
155 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 0004- ● ● ●
