0-22 — ENGINE MOUNTING (#8537) — 63 parça

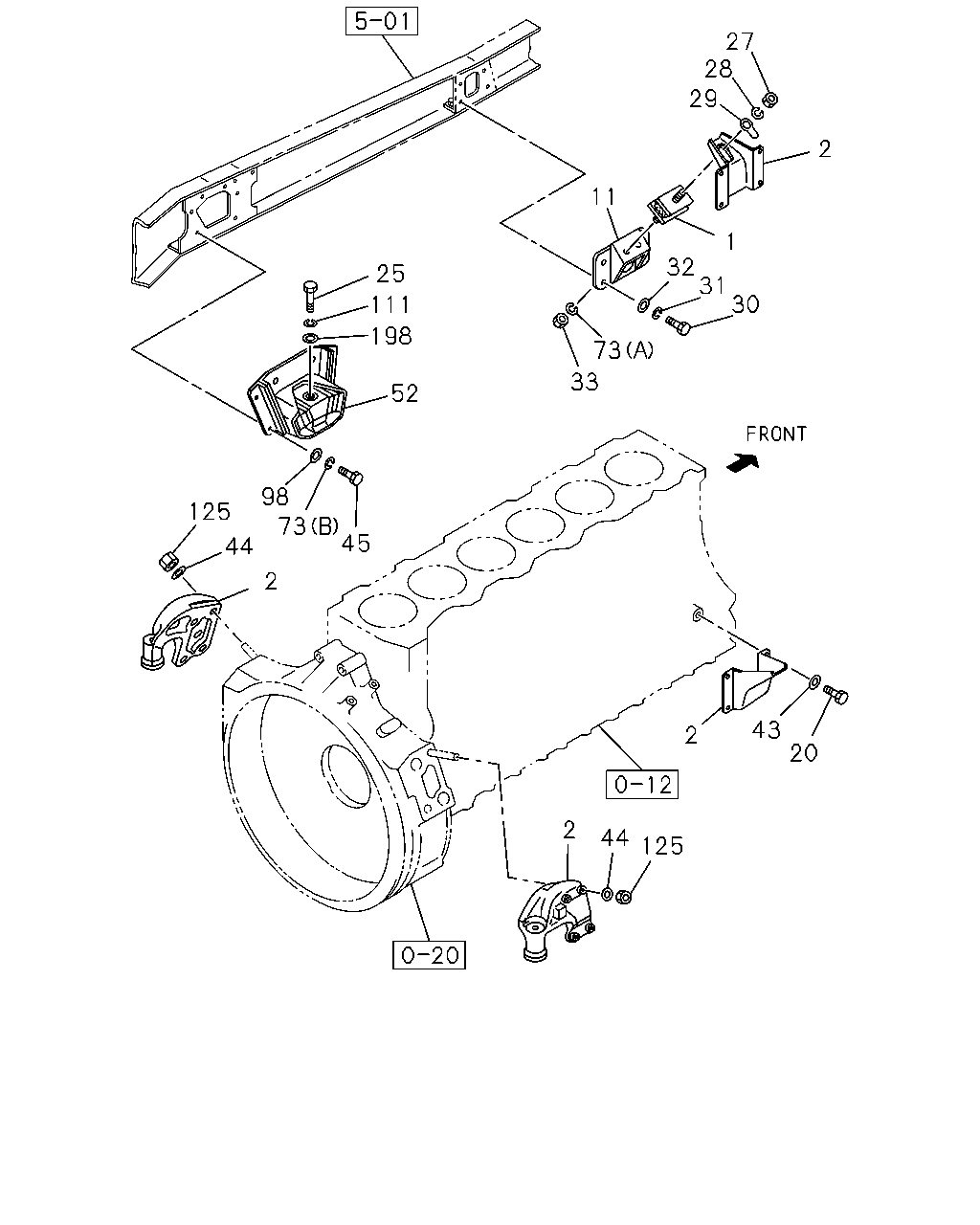

çizim 44790
27 28 29 2 11 1 32 31 30 25 111 198 73 33 52 98 73 45 125 44 2 43 20 2 2 44 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 9902-0003 ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 0004- ● ● ● ●
2 FOOT; ENG
FRONT 		1-11771-220-0 02 1 9902-9904 ●
2 FOOT; ENG
FRONT 		1-11771-220-0 02 1 9905-9909 ● ●
2 FOOT; ENG
FRONT 		1-11771-220-0 02 1 9910-0003 ● ● ●
2 FOOT; ENG
FRONT 		1-11771-220-0 02 1 0004- ● ● ● ●
2 FOOT; ENG
REAR 		1-11777-197-1 01 1 9902-9904 ●
2 FOOT; ENG
REAR 		1-11777-197-1 01 1 9905-9909 ● ●
2 FOOT; ENG
REAR 		1-11777-197-1 01 1 9910-0003 ● ● ●
2 FOOT; ENG
REAR 		1-11777-197-1 01 1 0004- ● ● ● ●
2 FOOT; ENG
REAR 		1-11777-189-1 01 1 9902-9904 ●
2 FOOT; ENG
REAR 		1-11777-189-1 01 1 9905-9909 ● ●
2 FOOT; ENG
REAR 		1-11777-189-1 01 1 9910-0003 ● ● ●
2 FOOT; ENG
REAR 		1-11777-189-1 01 1 0004- ● ● ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-219-1 02 1 9902-0003 ● ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-219-1 02 1 0004- ● ● ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9902-9904 ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9905-9909 ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 9910-0003 ● ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 0004- ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 9902-0003 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 0004- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9902-0003 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 0004- ● ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9902-0003 ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 0004- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9902-0003 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 0004- ● ● ● ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 9902-0003 ● ● ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 0004- ● ● ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 9902-0003 ● ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 0004- ● ● ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 9902-0003 ● ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 0004- ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-514-0 04 1 9902-0003 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-514-0 04 1 0004-0006 ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 0007- ● ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9902-9904 ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9905-9909 ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 9910-0003 ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 0004- ● ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9902-9904 ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9905-9909 ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 9910-0003 ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 0004- ● ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		9-92061-440-0 12 1 9902-0003 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		9-92061-440-0 12 1 0004- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-327-0 02 1 9902-0003 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-327-0 02 1 0004- ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-514-0 04 1 9902-0003 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2 		9-09150-514-0 04 1 0004- ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-814-0 12 1 9902-0003 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-814-0 12 1 0004- ● ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 12 1 9902-0003 ● ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 12 1 0004- ● ● ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 9902-0003 ● ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 0004- ● ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9902-9904 ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9905-9909 ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 9910-0003 ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 0004- ● ● ● ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 9902-0003 ● ● ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 0004- ● ● ● ●
