Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#8531) — 231 parça

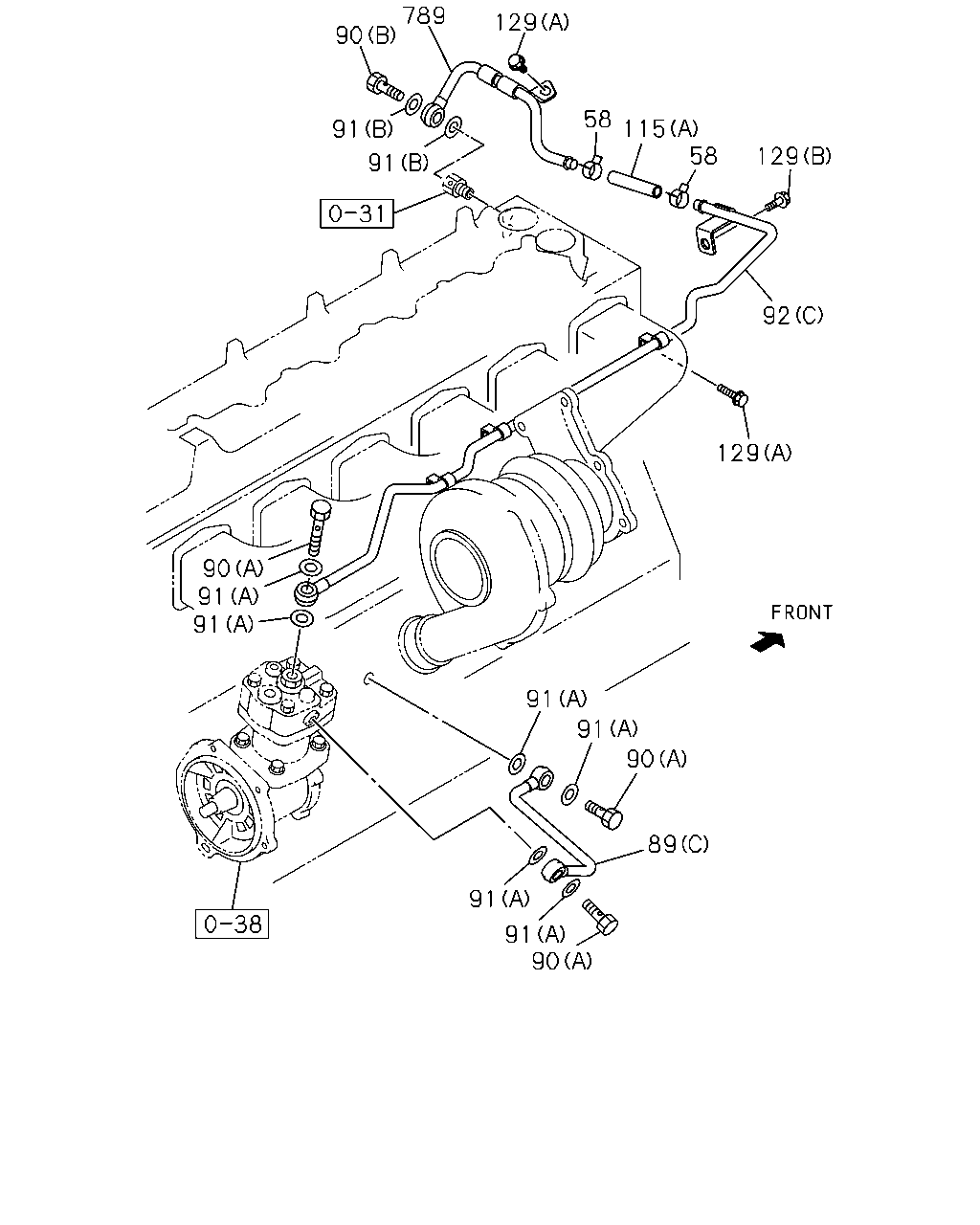

789 90 129 58 115 58 91 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0307-	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-0210		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0005-0210		●
89	PIPE; WATER,AIR CMPR,IN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94391-114-0	01	1	0211-			●	●
89	PIPE; WATER,AIR CMPR,IN FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94395-178-1	01	1	0005-0210					●	●
89	PIPE; WATER,AIR CMPR,IN FRR DOUBLE CAB(FR*W) FSR(FS****) (A)	8-94395-178-1	01	1	0005-0210					●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-0306			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-0306			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●
92	PIPE; WATER,AIR CMPR,OUT (C)	8-94390-070-0	01	1	0005-0210		●
92	PIPE; WATER,AIR CMPR,OUT FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94395-742-1	01	1	0005-0210					●	●
92	PIPE; WATER,AIR CMPR,OUT FRR DOUBLE CAB(FR*W) FSR(FS****) (A)	8-94395-742-1	01	1	0005-0210					●
92	PIPE; WATER,AIR CMPR,OUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94391-115-0	01	1	0211-0306			●	●
92	PIPE; WATER,AIR CMPR,OUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-97603-477-0	01	1	0307-			●	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0307-	●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0307-	●
115	HOSE; RUBBER (B)	8-97119-655-0	02	1	0307-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206		●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210		●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0307-	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210		●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210		●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	0005-0210		●

91 91 90 90 91 91 91 91 90 91 91 90 89 92 89 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0005-0210		●
89	PIPE; WATER,AIR CMPR,IN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94391-114-0	01	1	0211-			●	●
89	PIPE; WATER,AIR CMPR,IN FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94395-178-1	01	1	0005-0210					●	●
89	PIPE; WATER,AIR CMPR,IN FRR DOUBLE CAB(FR*W) FSR(FS****) (A)	8-94395-178-1	01	1	0005-0210					●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-0306			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-0306			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●
92	PIPE; WATER,AIR CMPR,OUT (C)	8-94390-070-0	01	1	0005-0210		●
92	PIPE; WATER,AIR CMPR,OUT FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94395-742-1	01	1	0005-0210					●	●
92	PIPE; WATER,AIR CMPR,OUT FRR DOUBLE CAB(FR*W) FSR(FS****) (A)	8-94395-742-1	01	1	0005-0210					●
92	PIPE; WATER,AIR CMPR,OUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94391-115-0	01	1	0211-0306			●	●
92	PIPE; WATER,AIR CMPR,OUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-97603-477-0	01	1	0307-			●	●

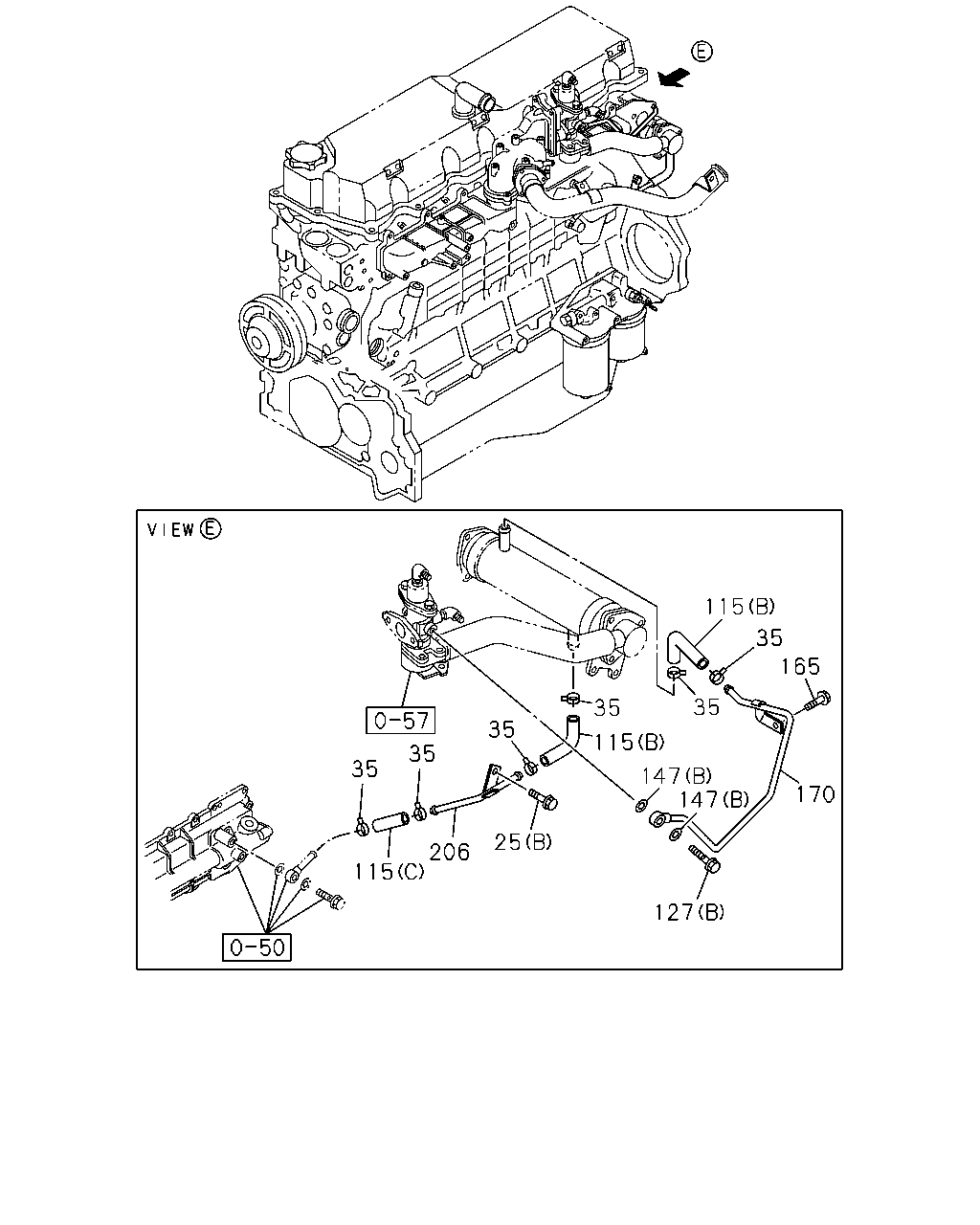

115 35 165 35 35 35 115 35 35 147 147 170 25 206 115 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
25	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
25	BOLT; WATER PIPE (A) M8X14,M8X14 L=33	1-09300-058-1	02	1	0307-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	0005-0210					●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0512			●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0307-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0307-	●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0307-	●
115	HOSE; RUBBER (B)	8-97119-655-0	02	1	0307-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206		●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210		●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	0307-	●
127	BOLT; EYE (C)	1-09675-109-0	01	1	0307-	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0307-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0307-	●
165	BOLT; PIPE TO BRKT M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
165	BOLT; PIPE TO BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
170	PIPE; WATER,INL	8-97601-485-0	01	1	0307-	●
206	PIPE; WATER,EGR COOLER	8-97601-484-0	01	1	0307-	●

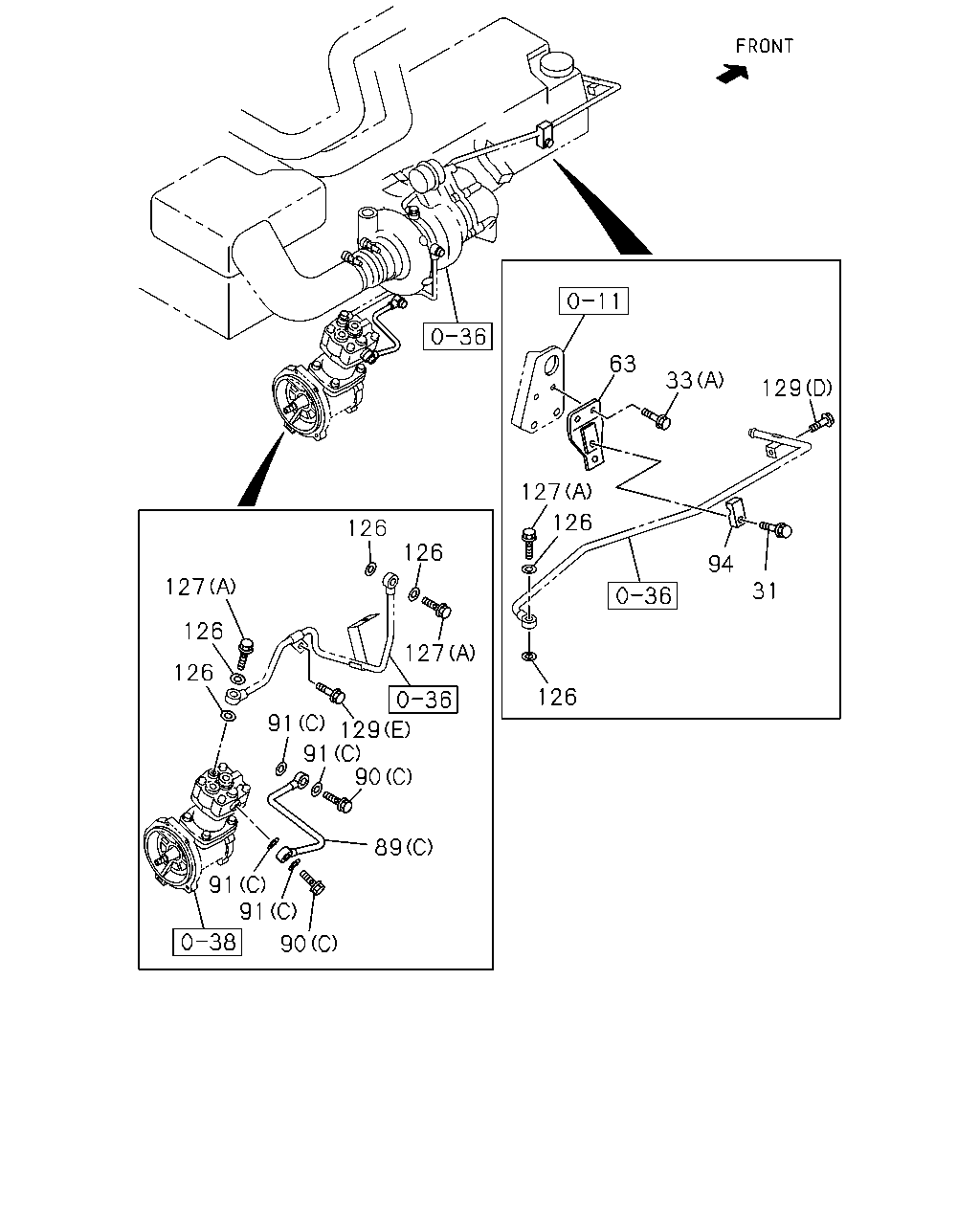

63 33 129 127 126 126 126 94 127 31 126 127 126 126 91 129 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	01	1	0307-0512	●
31	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	0601-	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
33	BOLT; BRKT (B) M10X16 FLANGE	0-28181-016-0	01	1	0307-0512	●
33	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
63	BRACKET; WATER PIPE	8-94392-951-0	01	1	0307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-94395-452-2	01	1	0005-0210		●
89	PIPE; WATER,AIR CMPR,IN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94391-114-0	01	1	0211-			●	●
89	PIPE; WATER,AIR CMPR,IN FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94395-178-1	01	1	0005-0210					●	●
89	PIPE; WATER,AIR CMPR,IN FRR DOUBLE CAB(FR*W) FSR(FS****) (A)	8-94395-178-1	01	1	0005-0210					●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-0306			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-			●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0307-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210		●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) (C) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-0306			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0307-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) (C) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210					●
94	CLIP; WATER PIPE	8-94396-860-0	01	1	0307-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0307-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	0307-	●
127	BOLT; EYE (C)	1-09675-109-0	01	1	0307-	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0307-	●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0307-	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210		●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210		●

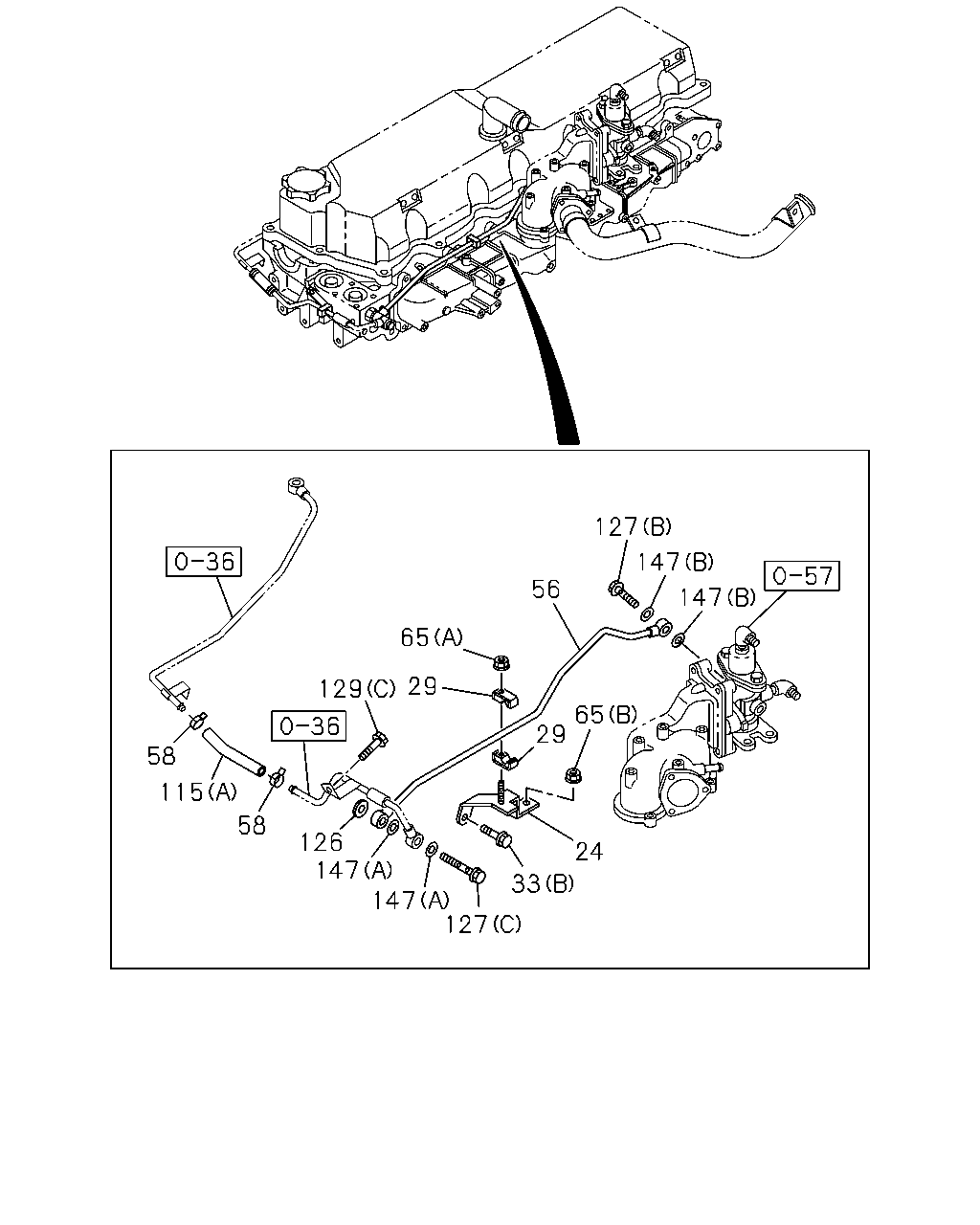

127 147 56 147 65 29 129 65 29 58 115 58 126 147 147 24 33 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE	8-97601-487-0	01	1	0307-	●
29	CLIP; PIPE	1-09701-282-0	02	1	0307-	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
33	BOLT; BRKT (B) M10X16 FLANGE	0-28181-016-0	01	1	0307-0512	●
33	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●
56	PIPE; WATER OUTLET	8-97601-486-0	01	1	0307-	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0307-	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-0210		●
65	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0307-0602	●
65	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
65	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0307-0602	●
65	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0307-	●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0307-	●
115	HOSE; RUBBER (B)	8-97119-655-0	02	1	0307-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206		●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0307-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	0307-	●
127	BOLT; EYE (C)	1-09675-109-0	01	1	0307-	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0307-	●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0307-0512	●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0307-	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210		●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0307-	●

25 178 179 76 177 77 180 177 46 47 177 47 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
25	BOLT; WATER PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
25	BOLT; WATER PIPE (A) M8X14,M8X14 L=33	1-09300-058-1	02	1	0307-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	0005-0210					●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0512			●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-0210		●			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0211-0306			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0307-	●		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●			●	●
47	BOLT; DUCT,TO OIL COOLER EXC. ENGINE REAR PTO(SV1) (B) M8X45 FLANGE	0-28080-845-0	03	1	0211-0512			●	●
47	BOLT; DUCT,TO OIL COOLER EXC. ENGINE REAR PTO(SV1) (B) M8X45 FLANGE	0-28050-845-0	03	1	0601-			●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210		●			●	●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (A) M8X25 FLANGE	0-28680-825-0	01	1	0211-0306				●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (A) M8X25 FLANGE	0-28680-825-0	01	1	0307-0512				●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0307-0512	●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (B) M8X45 FLANGE	0-28080-845-0	01	1	0211-0306				●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (B) M8X45 FLANGE	0-28080-845-0	01	1	0307-0512				●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0307-0512	●
47	BOLT; DUCT,TO OIL COOLER ENGINE REAR PTO(SV1) (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-				●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-0210		●			●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0211-0306			●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0307-	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0211-0306			●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0307-0512	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0210					●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210		●			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0211-0306			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0307-0512	●		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210		●			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0306			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0307-0512	●		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-0210		●			●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0211-0306			●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0307-	●		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-0210		●			●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0211-0306			●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0307-	●		●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0005-0210		●			●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0211-0306			●	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0307-	●		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-0210		●			●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0211-0306			●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0307-1408	●		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-0210		●			●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0211-0306			●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0307-	●		●	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0005-0210		●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0211-0306			●	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0307-	●		●	●
182	DUCT; WATER,HTR	8-94396-724-4	01	1	0005-0210					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
