◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#8530) — 53 parça

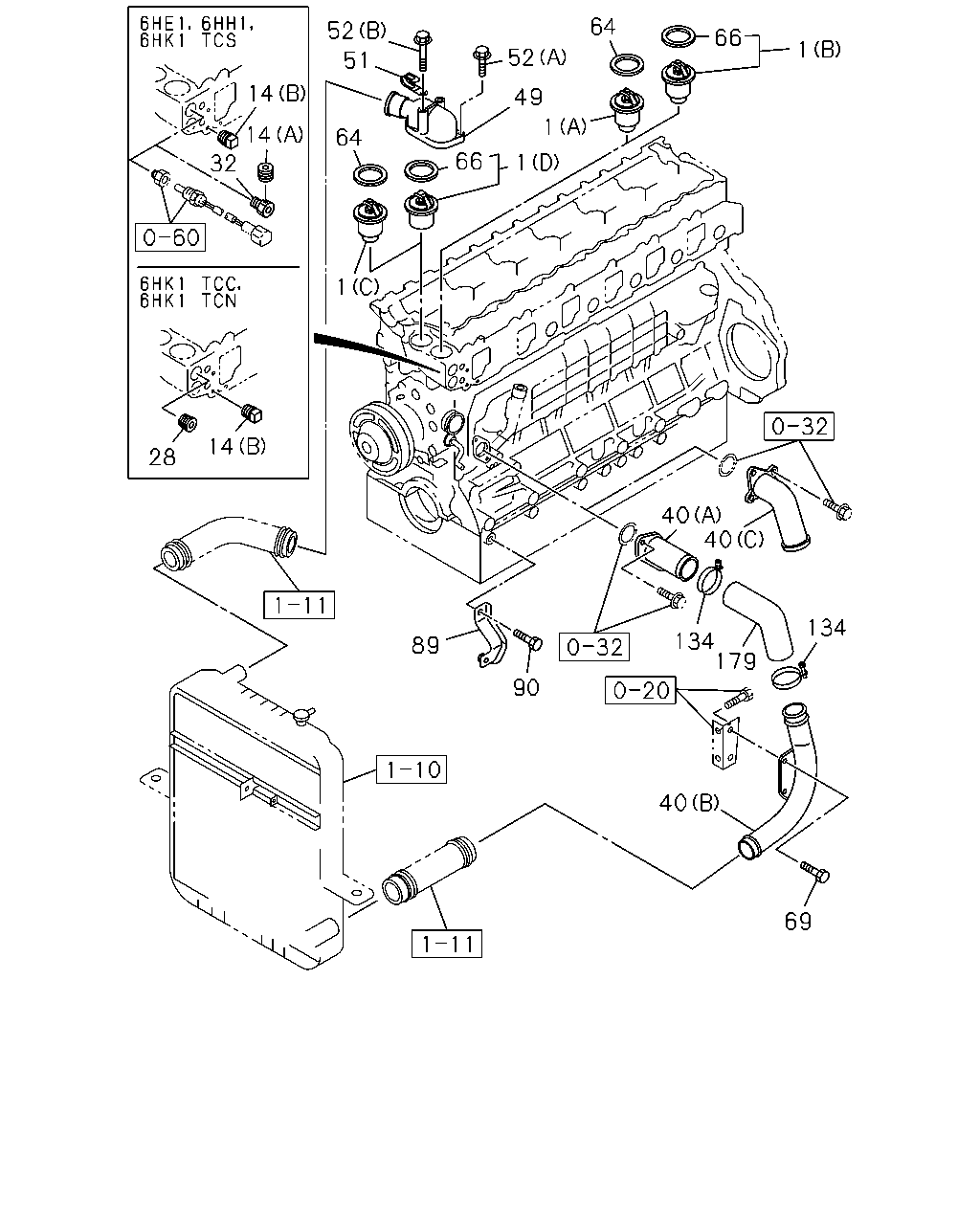

çizim 38646
64 52 66 1 52 51 14 14 49 1 64 66 1 32 1 14 28 40 40 134 134 179 89 90 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
(A) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0210 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0211-0306 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0307- ● ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-1 01 1 0106-0210 ● ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-1 01 1 0211-0306 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-2 01 1 0307- ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005-0210 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0211-0306 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0307- ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0210 ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0211- ● ●
32 CONNECTOR; HTR 8-97601-492-0 01 1 0307- ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0005-0210 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0307- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0210 ● ● ●
40 DUCT; WATER,SUCTION
ENGINE REAR PTO(SV1) (A) 		8-94391-091-0 01 1 0211-0306 ●
40 DUCT; WATER,SUCTION
ENGINE REAR PTO(SV1) (A) 		8-94391-091-1 01 1 0307- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0307- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0210 ● ● ●
40 DUCT; WATER,SUCTION
EXC. ENGINE REAR PTO(SV1) (C) 		8-94391-080-1 01 1 0211- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0210 ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0211-0306 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0307- ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0211-0306 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0307-0801 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0210 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0211-0306 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0307-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0306 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0307-0512 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106-0210 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0211-0306 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0307- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0307-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
89 BRACKET
EXC. ENGINE REAR PTO(SV1) 		8-94390-983-2 01 1 0211- ● ●
90 BOLT; BRKT
EXC. ENGINE REAR PTO(SV1) M10X16 FLANGE 		0-28181-016-0 01 1 0211-0512 ● ●
90 BOLT; BRKT
EXC. ENGINE REAR PTO(SV1) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0307- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0210 ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0307- ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005-0210 ● ● ●
