◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#8529) — 241 parça

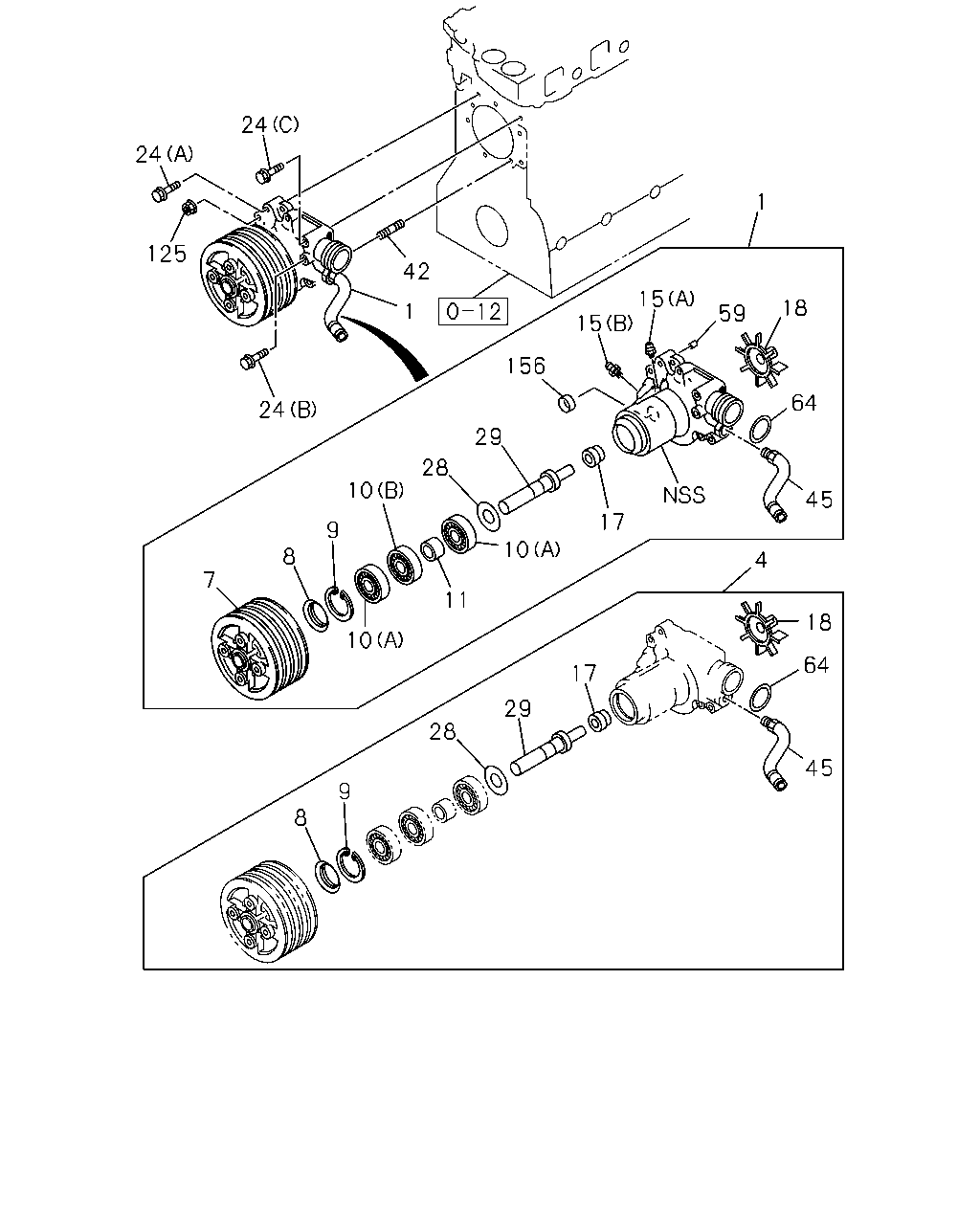

çizim 40487
24 24 1 125 42 15 15 18 1 59 156 64 24 29 28 10 45 17 9 10 8 4 7 11 18 10 64 17 29 28 45 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-94391-059-5 01 1 0005-0210 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		8-94391-670-5 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		8-97602-776-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-844-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-904-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-976-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-656-6 01 1 0005-0210 ●
1 PUMP ASM; WATER,W/GASKET 8-97600-197-4 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97600-197-4 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-780-0 01 1 0302-0306 ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97602-780-0 01 1 0302-0306 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-780-1 01 1 0307-1208 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97602-780-1 01 1 0307-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-834-0 01 1 1209-1312 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-834-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-901-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-901-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-973-0 01 1 1406- ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-973-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-657-6 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87814-167-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87814-607-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-166-0 01 1 1401-1405 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87814-166-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-606-0 01 1 1406- ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87814-606-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87812-040-1 01 1 0211-1208 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87813-949-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87812-029-0 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP 1-87812-041-0 01 1 0211-0306 ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87812-041-0 01 1 0211-0306 ●
4 REPAIR KIT; WATER PUMP 1-87812-041-1 01 1 0307-1208 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87812-041-1 01 1 0307-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-953-0 01 1 1209-1312 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87813-953-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-0 01 1 0005-0210 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0005-0210 ●
7 PULLEY; WATER PUMP
EXC. A/T<X9D> 4-GROOVE 		8-94394-927-0 01 1 0211- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0005-0210 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-97600-389-0 01 1 0211-0306 ●
7 PULLEY; WATER PUMP
A/T<X9D> 4-GROOVE 		8-97600-389-0 01 1 0211-0306 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-97600-389-0 01 1 0307- ● ●
7 PULLEY; WATER PUMP
A/T<X9D> 4-GROOVE 		8-97600-389-0 01 1 0307- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0005-0210 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0211-0306 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0307- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005-0210 ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0211-0306 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0307- ● ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0005-0210 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0211-0306 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0307- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0005-0210 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0211-0306 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0307- ● ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 02 1 0005-0210 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0005-0210 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0211-0306 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0307- ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0005-0210 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0005-0210 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0211-0306 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0307- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0306 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0307-0512 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-0210 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0211-0306 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0307-1208 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0005-0210 ● ●
18 IMPELLER; WATER PUMP 8-97600-376-0 01 1 0211-0306 ●
18 IMPELLER; WATER PUMP
A/T<X9D> 		8-97600-376-0 01 1 0211-0306 ●
18 IMPELLER; WATER PUMP 8-97600-376-0 01 1 0307- ● ●
18 IMPELLER; WATER PUMP
A/T<X9D> 		8-97600-376-0 01 1 0307- ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0005-0210 ●
18 IMPELLER; WATER PUMP
EXC. A/T<X9D> 		8-94392-922-0 01 1 0211- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0307-0512 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0307- ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0307- ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0005-0210 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0211-0306 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0307- ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0005-0210 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0211-0306 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0307- ● ● ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0005-0210 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0005-0210 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0211-0306 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0307-0604 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0005-0210 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0211-0306 ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0307- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94397-377-2 01 1 0005-0210 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0005-0210 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0211-0306 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0307- ● ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0005-0210 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0005-0210 ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0211-0306 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0307- ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0211-0306 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0307-0602 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0005-0210 ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0211-0306 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0307- ● ● ●

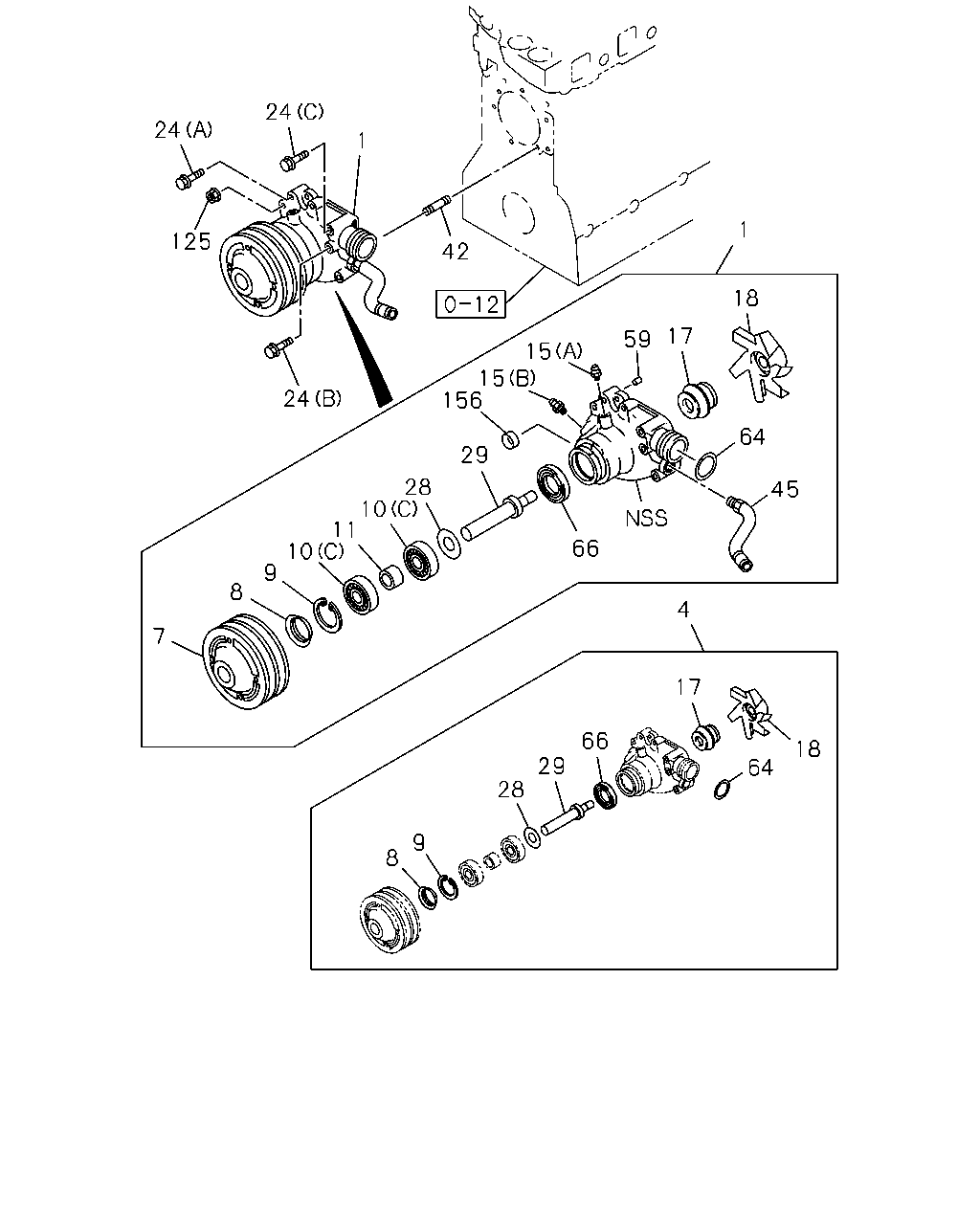

çizim 40517
24 24 1 1 125 42 18 17 59 15 15 156 24 64 29 28 10 11 10 45 66 9 8 4 7 17 66 18 29 64 28 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; WATER,W/GASKET 8-94391-059-5 01 1 0005-0210 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		8-94391-670-5 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		8-97602-776-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-844-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-904-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET
EXC. A/T<X9D> 		1-87310-976-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-656-6 01 1 0005-0210 ●
1 PUMP ASM; WATER,W/GASKET 8-97600-197-4 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97600-197-4 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-780-0 01 1 0302-0306 ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97602-780-0 01 1 0302-0306 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-780-1 01 1 0307-1208 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		8-97602-780-1 01 1 0307-1208 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-834-0 01 1 1209-1312 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-834-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-901-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-901-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-973-0 01 1 1406- ● ●
1 PUMP ASM; WATER,W/GASKET
A/T<X9D> 		1-87310-973-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET 8-94395-657-6 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87814-167-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87814-607-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87814-166-0 01 1 1401-1405 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87814-166-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP 1-87814-606-0 01 1 1406- ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87814-606-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87812-040-1 01 1 0211-1208 ●
4 REPAIR KIT; WATER PUMP
EXC. A/T<X9D> 		1-87813-949-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87812-029-0 01 1 0005-0210 ●
4 REPAIR KIT; WATER PUMP 1-87812-041-0 01 1 0211-0306 ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87812-041-0 01 1 0211-0306 ●
4 REPAIR KIT; WATER PUMP 1-87812-041-1 01 1 0307-1208 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87812-041-1 01 1 0307-1208 ●
4 REPAIR KIT; WATER PUMP 1-87813-953-0 01 1 1209-1312 ● ●
4 REPAIR KIT; WATER PUMP
A/T<X9D> 		1-87813-953-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-0 01 1 0005-0210 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0005-0210 ●
7 PULLEY; WATER PUMP
EXC. A/T<X9D> 4-GROOVE 		8-94394-927-0 01 1 0211- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0005-0210 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-97600-389-0 01 1 0211-0306 ●
7 PULLEY; WATER PUMP
A/T<X9D> 4-GROOVE 		8-97600-389-0 01 1 0211-0306 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-97600-389-0 01 1 0307- ● ●
7 PULLEY; WATER PUMP
A/T<X9D> 4-GROOVE 		8-97600-389-0 01 1 0307- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0005-0210 ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0211-0306 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0307- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0005-0210 ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0211-0306 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0307- ● ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0005-0210 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0211-0306 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0307- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0005-0210 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0211-0306 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0307- ● ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 02 1 0005-0210 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0005-0210 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0211-0306 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0307- ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0005-0210 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0005-0210 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0211-0306 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0307- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0306 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0307-0512 ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0005-0210 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0211-0306 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0307-1208 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ● ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0005-0210 ● ●
18 IMPELLER; WATER PUMP 8-97600-376-0 01 1 0211-0306 ●
18 IMPELLER; WATER PUMP
A/T<X9D> 		8-97600-376-0 01 1 0211-0306 ●
18 IMPELLER; WATER PUMP 8-97600-376-0 01 1 0307- ● ●
18 IMPELLER; WATER PUMP
A/T<X9D> 		8-97600-376-0 01 1 0307- ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0005-0210 ●
18 IMPELLER; WATER PUMP
EXC. A/T<X9D> 		8-94392-922-0 01 1 0211- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0307-0512 ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0307- ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0005-0210 ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0211-0306 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0307- ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0005-0210 ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0211-0306 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0307- ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0005-0210 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0211-0306 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0307- ● ● ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0005-0210 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0005-0210 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0211-0306 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0307-0604 ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0005-0210 ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0211-0306 ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94394-389-0 01 1 0307- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94397-377-2 01 1 0005-0210 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0005-0210 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0211-0306 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0307- ● ● ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0005-0210 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0005-0210 ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0211-0306 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0307- ● ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 0005-0210 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0211-0306 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0307-0602 ● ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0005-0210 ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0211-0306 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0307- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
