Sayfa 0-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶

0-27 — EXHAUST MANIFOLD (#8527) — 200 parça

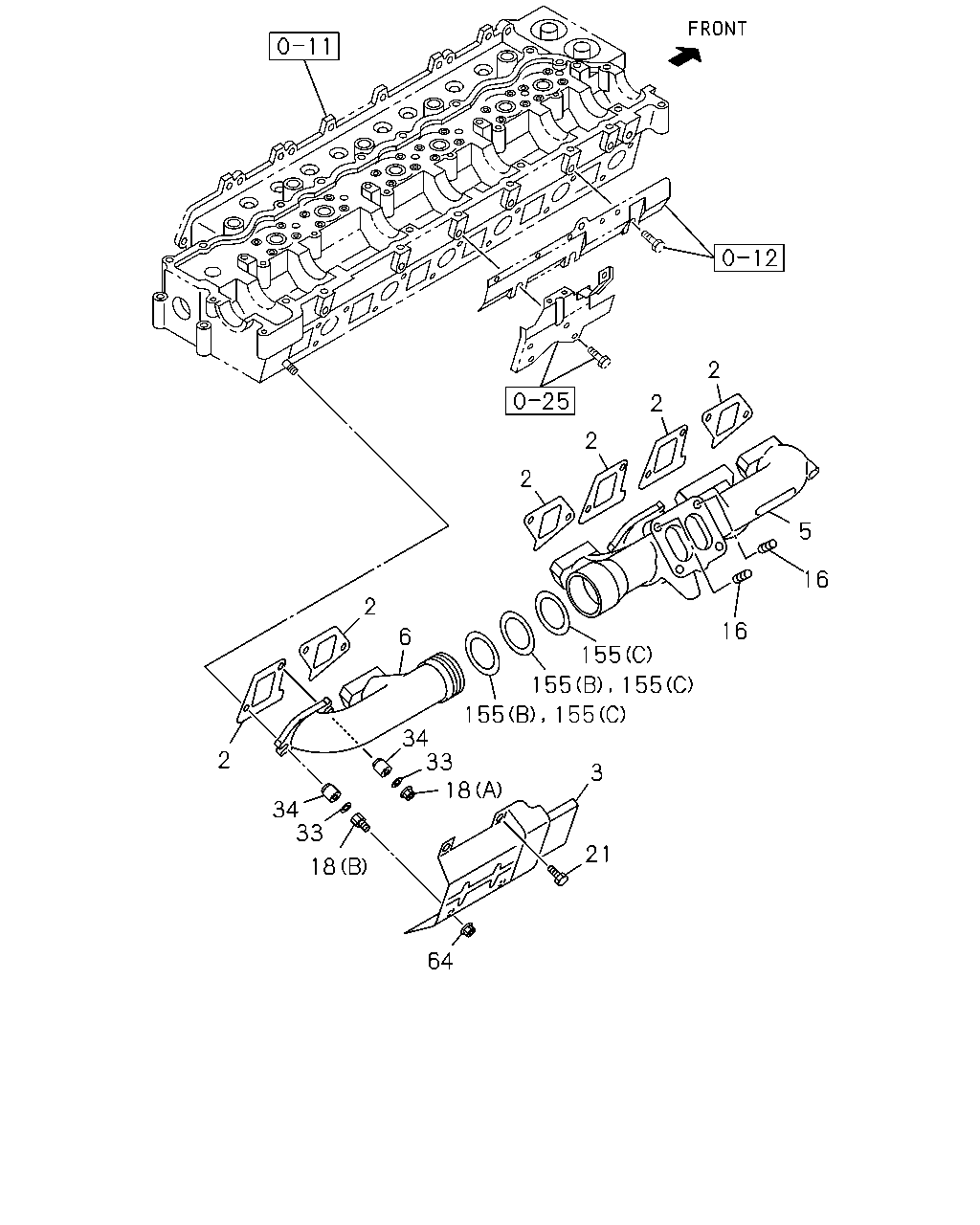

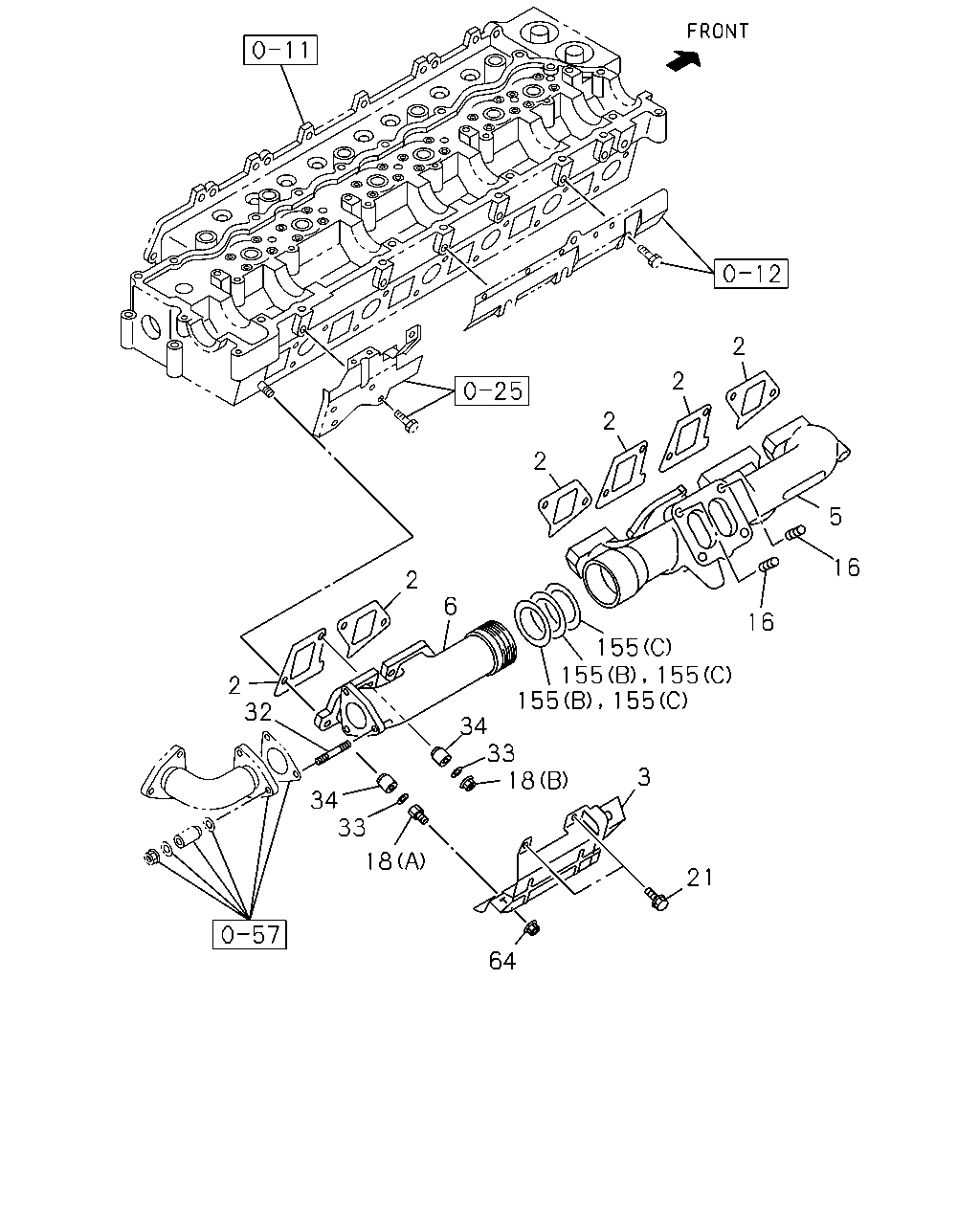

2 2 2 2 5 16 2 6 16 155 155 155 155 155 2 32 34 33 18 3 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0211-0306				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0307-				●	●	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0307-						●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210	●
3	PROTECTOR; HEAT,EXH MANIF	8-97602-394-0	01	1	0211-				●	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0211-0306				●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0307-				●	●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●	●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0307-						●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0211-				●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0211-0306				●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0307-				●	●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0211-0306				●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0307-0602				●	●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0211-0306				●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0307-1202				●	●	●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●	●	●
18	NUT; EXH MANIF (C) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0211-0306				●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0307-0512				●	●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-				●	●	●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0307-0604						●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-						●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0211-0306				●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0307-				●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0210	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0211-0306				●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0307-				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0211-0306				●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0307-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0211-0306				●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0307-0501				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●	●

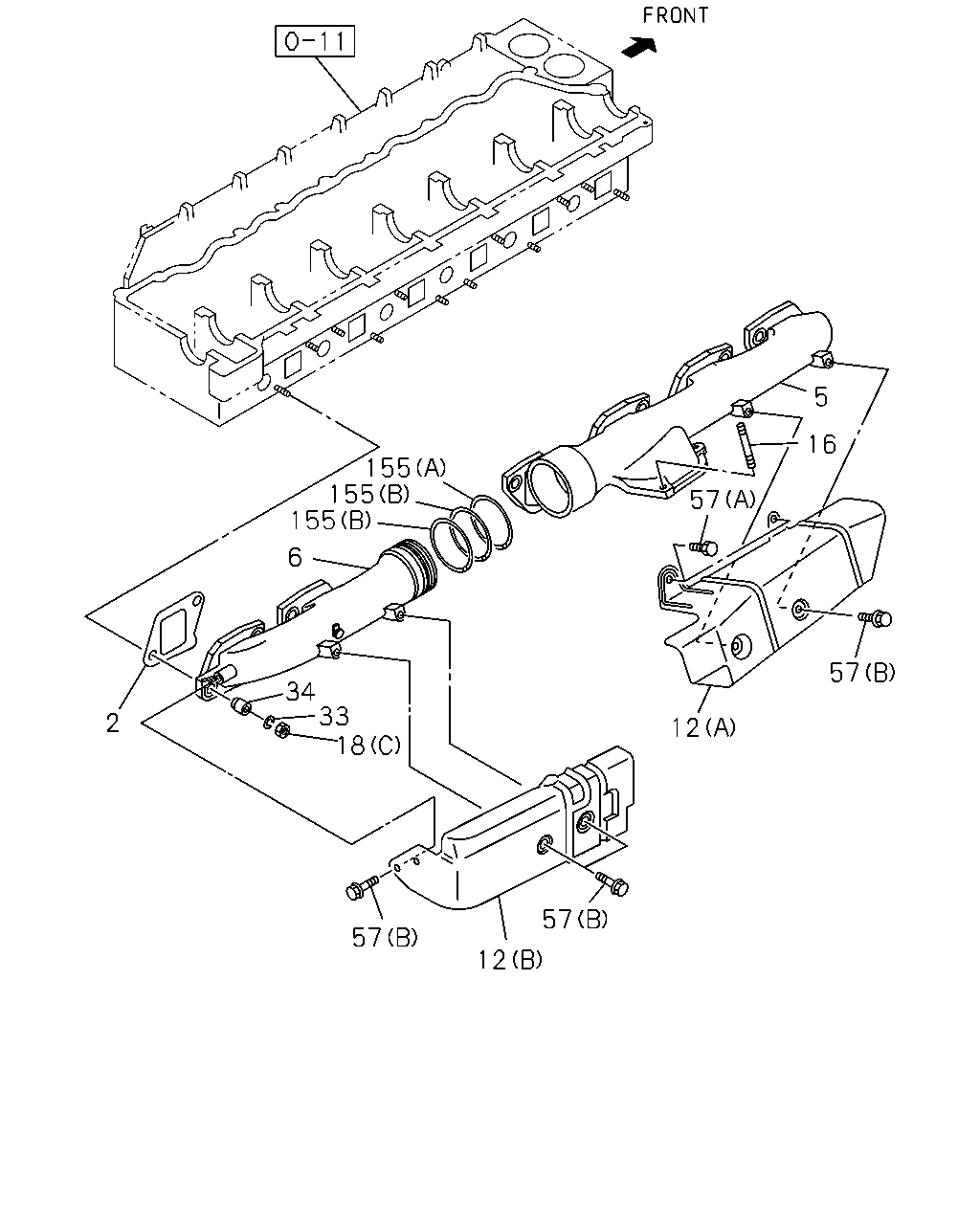

5 16 155 155 155 57 6 57 34 33 18 2 12 57 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0211-0306				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0307-				●	●	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0211-0306				●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0307-				●	●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●	●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0307-						●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0211-				●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	0005-0210		●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-0210		●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0211-0306				●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0307-				●	●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0211-0306				●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0307-0602				●	●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0211-0306				●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0307-1202				●	●	●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●	●	●
18	NUT; EXH MANIF (C) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0211-0306				●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0307-				●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0210	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0211-0306				●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0307-				●	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210		●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0210		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0211-0306				●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0307-0501				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●	●

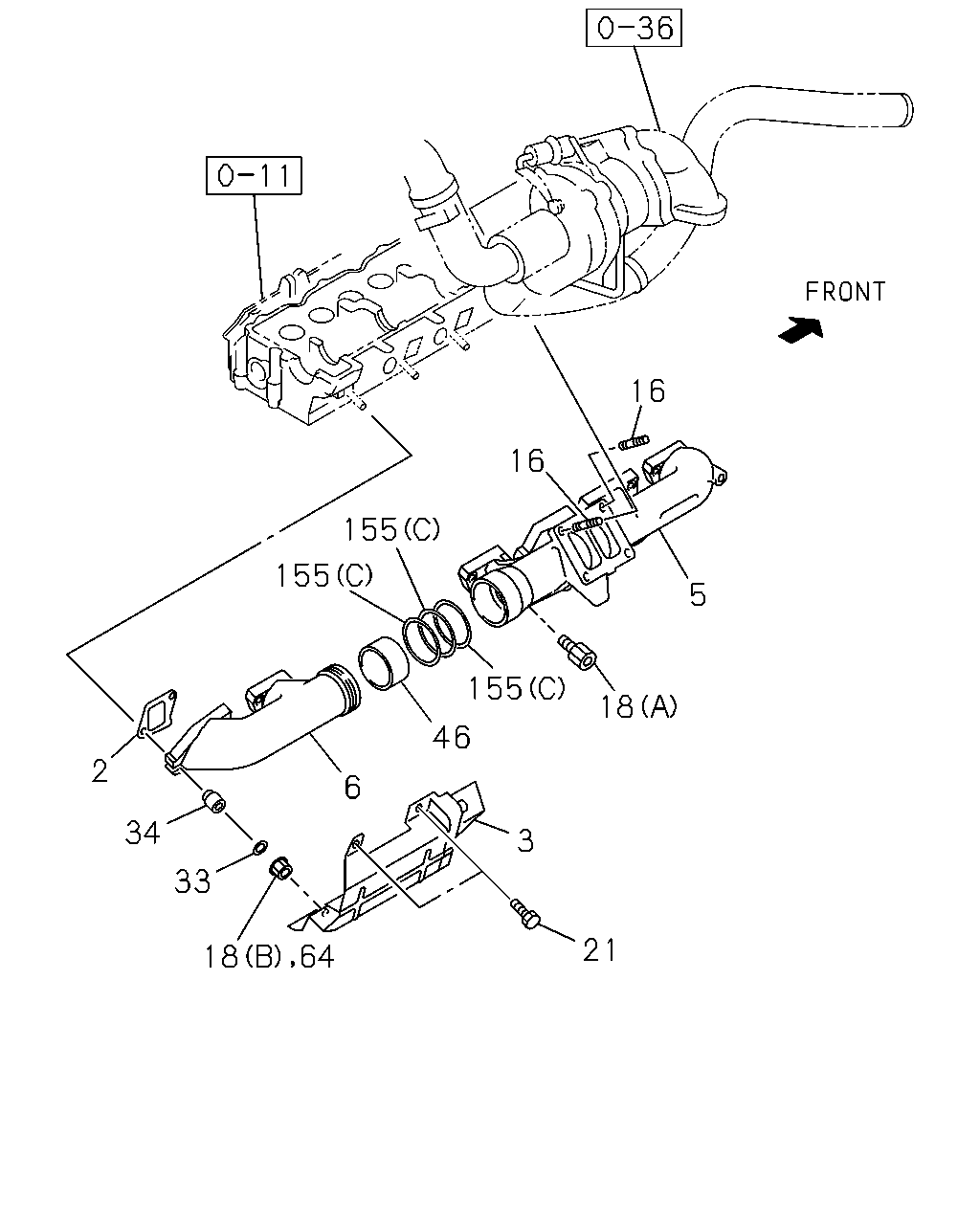

16 16 155 155 5 155 18 46 2 6 34 3 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0211-0306				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0307-				●	●	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0307-						●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210	●
3	PROTECTOR; HEAT,EXH MANIF	8-97602-394-0	01	1	0211-				●	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0211-0306				●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0307-				●	●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●	●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0307-						●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0211-				●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0211-0306				●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0307-				●	●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0211-0306				●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0307-0602				●	●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0211-0306				●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0307-1202				●	●	●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●	●	●
18	NUT; EXH MANIF (C) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0211-0306				●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0307-0512				●	●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-				●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0211-0306				●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0307-				●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0210	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0211-0306				●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0307-				●	●	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0005-0104	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0211-0306				●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0307-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0211-0306				●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0307-0501				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●	●

2 2 2 2 5 16 2 16 6 155 155 155 155 155 34 33 18 2 3 34 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0211-0306				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0307-				●	●	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0307-						●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210	●
3	PROTECTOR; HEAT,EXH MANIF	8-97602-394-0	01	1	0211-				●	●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0211-0306				●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0307-				●	●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●	●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0307-						●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0211-				●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0211-0306				●	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0307-				●	●	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0211-0306				●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0307-0602				●	●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0211-0306				●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0307-1202				●	●	●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●	●	●
18	NUT; EXH MANIF (C) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0211-0306				●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0307-0512				●	●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-				●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0211-0306				●	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	12	1	0307-				●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-94395-679-0	12	1	0005-0209	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0210-0210	●	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0211-0306				●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0307-				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0211-0306				●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0307-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0211-0306				●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	03	1	0307-0501				●	●	●
155	RING; SEAL,EXH MANIF (C)	1-14149-151-0	01	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
