Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#8526) — 334 parça

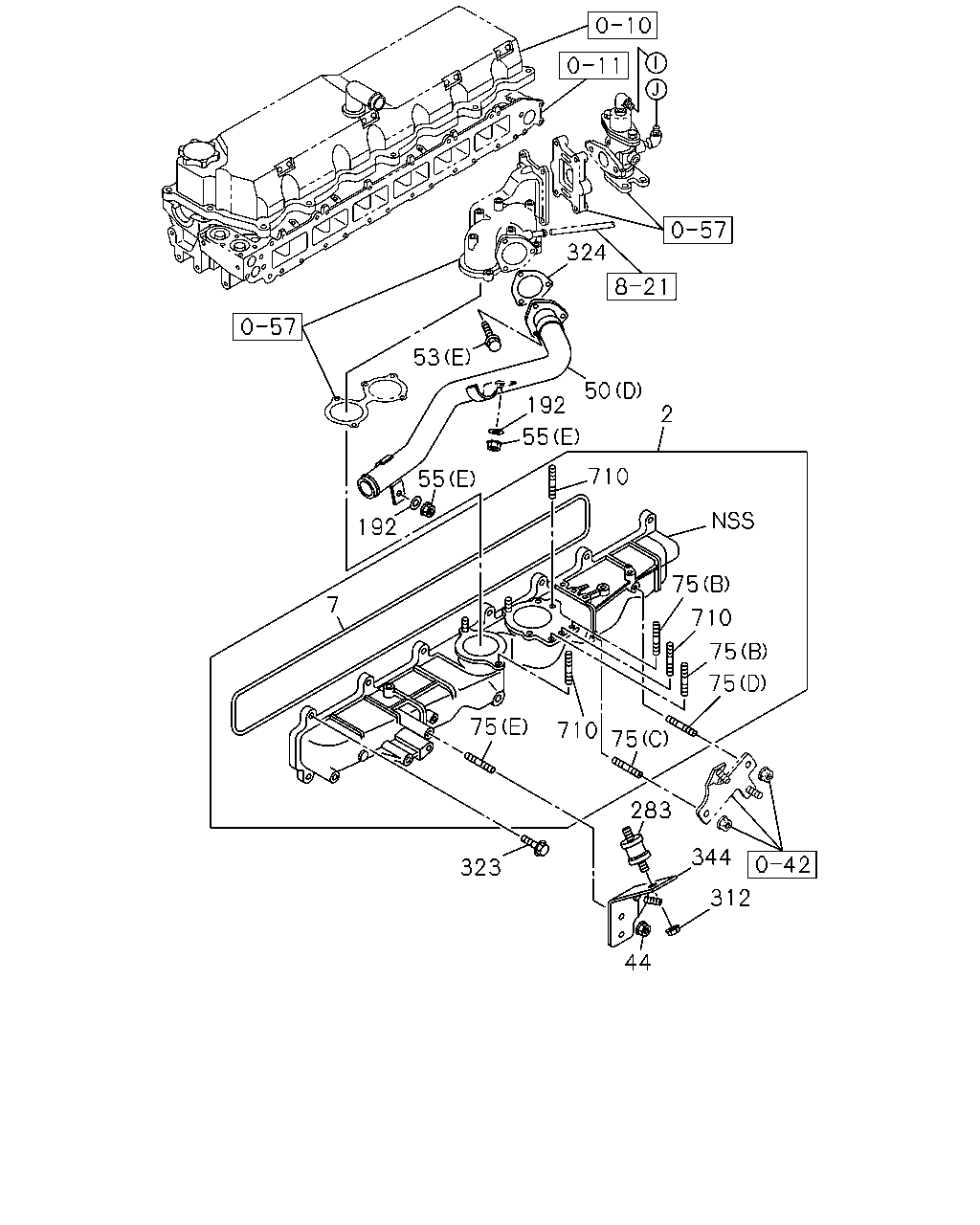

324 53 50 192 2 55 710 55 192 75 7 710 75 75 75 710 75 283 344 323 312 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97600-658-1	01	1	0307-	●
2	COVER; INL	8-94391-106-1	01	1	0005-0108		●
2	COVER; INL	8-97602-255-0	01	1	0109-0210		●
2	COVER; INL	8-94395-825-2	01	1	0211-			●	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210		●			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-0306			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0307-	●		●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
50	PIPE; INL (D)	8-97601-469-0	01	1	0307-	●
50	PIPE; INL (A)	8-97601-301-0	01	1	0005-0210		●
50	PIPE; INL (C)	8-94390-319-2	01	1	0211-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	0211-			●	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
53	BOLT; INL PIPE FRR STD CAB(FR*M) FSR(FS****) (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210					●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●		●	●
53	BOLT; INL PIPE FRR DOUBLE CAB(FR*W) (B) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210					●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●		●	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91180-108-0	02	1	0603-	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210		●
55	NUT; INL PIPE (D) M8 FLANGE	0-91150-208-0	01	1	0211-0602			●	●
55	NUT; INL PIPE (D) M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210					●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602			●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-			●	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	9-04110-616-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	0-41010-616-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	9-04110-625-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	0-41010-625-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	9-04110-816-0	04	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	0-41010-816-0	04	1	0605-	●
75	STUD; BRKT,AIR PIPE (A) M10X25 L=40	9-04411-025-0	02	1	0005-0210		●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0211-0306			●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0307-0604	●		●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	0-44011-025-0	02	1	0605-	●		●	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	02	1	0307-0605	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210		●
283	RUBBER	8-94394-268-1	01	1	0307-0910	●
283	RUBBER	8-98148-109-0	01	1	0911-	●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0307-0602	●
312	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0211-0306			●	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0307-0512	●		●	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-	●		●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0307-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210					●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-			●	●
344	BRACKET; INL PIPE	8-97602-160-0	01	1	0307-	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0005-0210		●
710	STUD; DUCT M8X25 L=37	9-04110-825-0	03	1	0307-0604	●
710	STUD; DUCT M8X25 L=37	0-41010-825-0	03	1	0605-	●

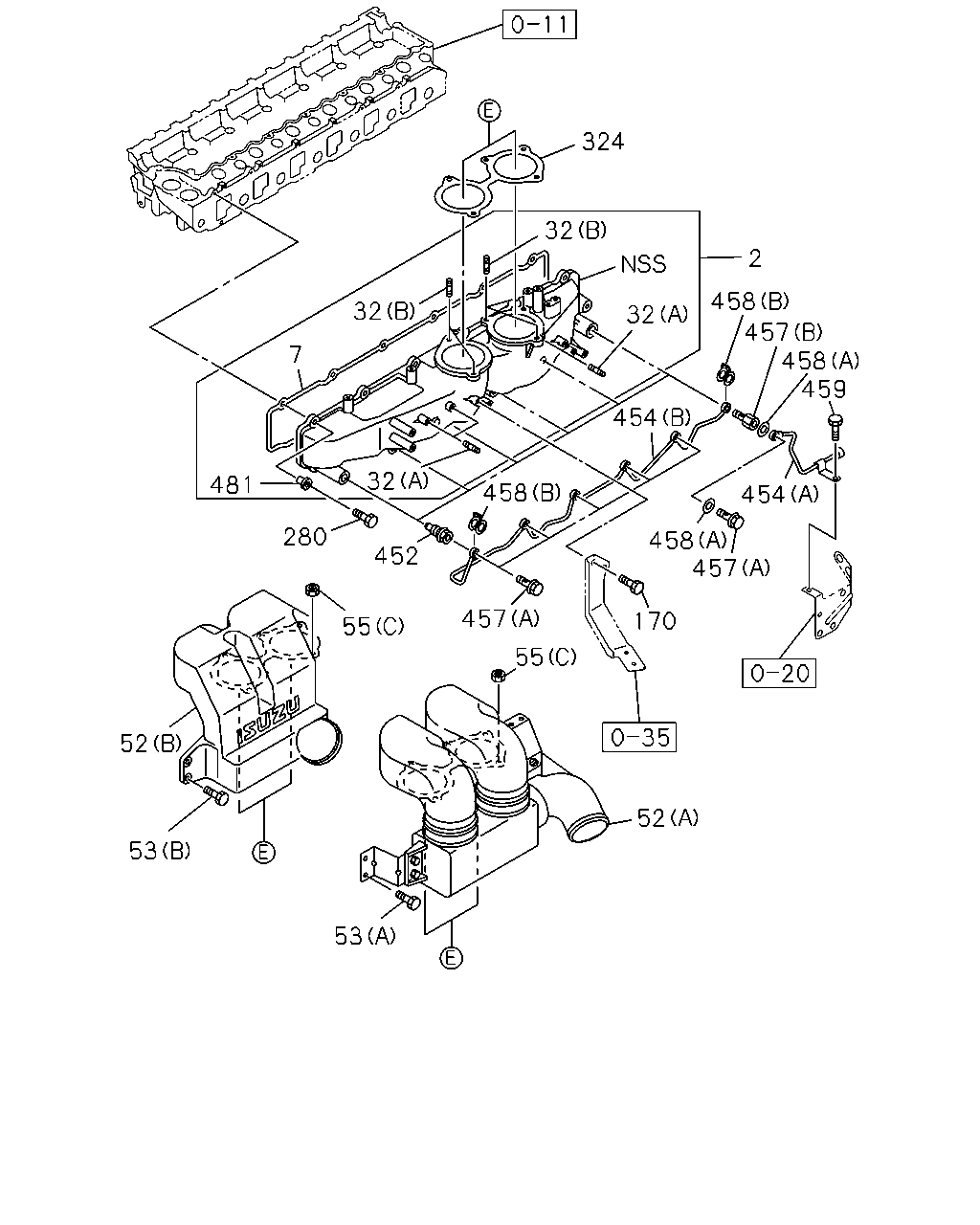

324 32 2 458 32 32 457 458 459 7 454 32 458 481 454 280 458 457 452 457 170 55 55 52 52 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97600-658-1	01	1	0307-	●
2	COVER; INL	8-94391-106-1	01	1	0005-0108		●
2	COVER; INL	8-97602-255-0	01	1	0109-0210		●
2	COVER; INL	8-94395-825-2	01	1	0211-			●	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210		●			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-0306			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0307-	●		●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210		●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604			●	●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210					●	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210					●	●
52	PIPE; INL FRR STD CAB(FR*M) FSR(FS****) (A)	8-94395-597-1	01	1	0005-0210					●	●
52	PIPE; INL FRR DOUBLE CAB(FR*W) (B)	8-94395-703-0	01	1	0005-0210					●	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
53	BOLT; INL PIPE FRR STD CAB(FR*M) FSR(FS****) (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210					●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●		●	●
53	BOLT; INL PIPE FRR DOUBLE CAB(FR*W) (B) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210					●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●		●	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91180-108-0	02	1	0603-	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210		●
55	NUT; INL PIPE (D) M8 FLANGE	0-91150-208-0	01	1	0211-0602			●	●
55	NUT; INL PIPE (D) M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210					●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602			●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-			●	●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0005-0210		●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0005-0210		●
170	BOLT; BRKT AT545 A/T ALLISON(MD1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210						●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	0005-0210					●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0307-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210					●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-			●	●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210		●			●	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210		●			●	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210		●			●	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210		●			●	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210		●			●	●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●			●	●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210		●			●	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●			●	●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	0005-0210					●	●

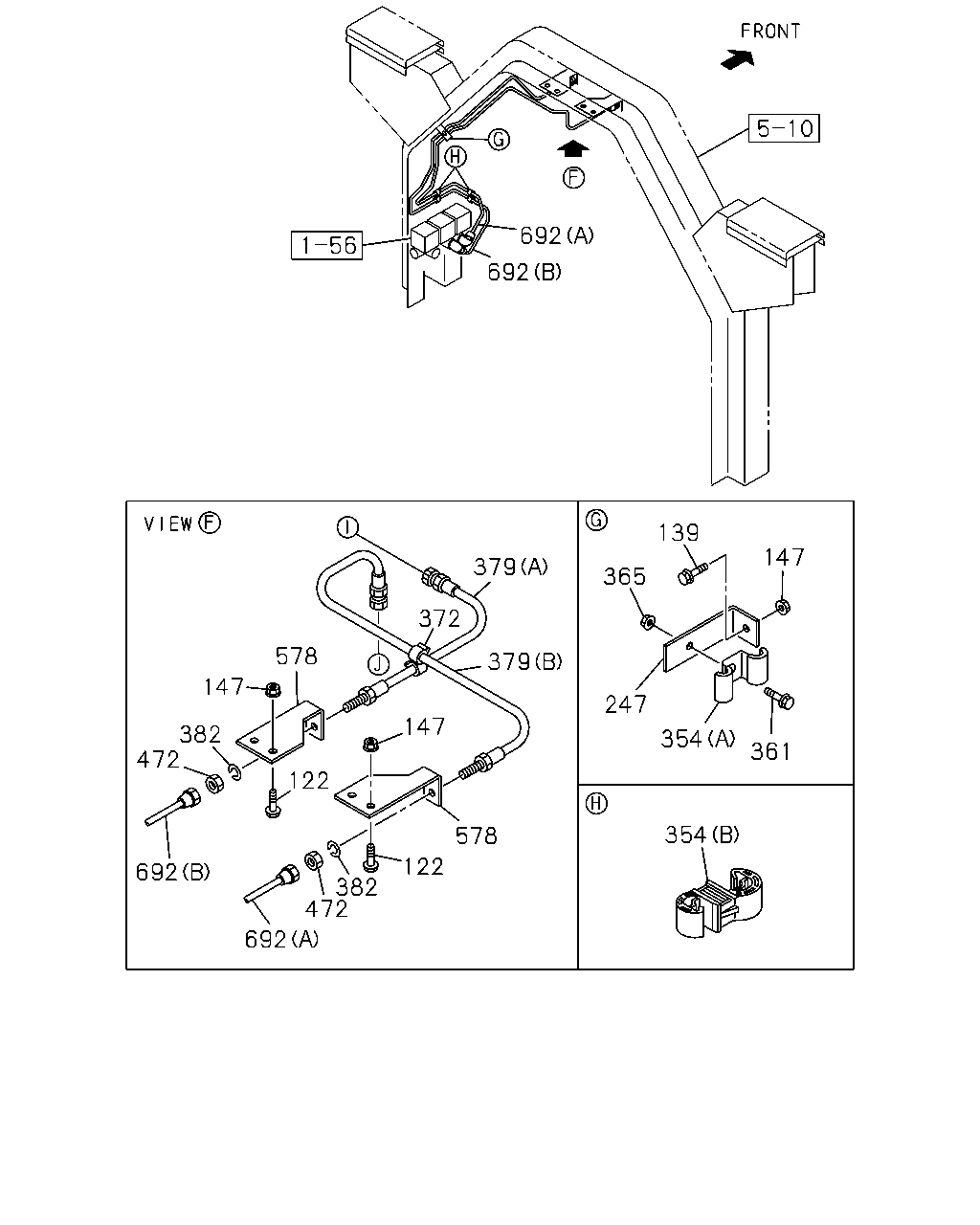

692 692 139 147 379 365 372 578 379 147 247 147 382 472 354 361 122 354 578 122 692 382 472 692

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
122	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0307-0512	●
122	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
139	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	01	1	0307-0512	●
139	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
147	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0307-0602	●
147	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
247	BRACKET; CLIP L=60	1-47475-455-0	01	1	0307-	●
354	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0307-	●
354	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	02	1	0307-	●
361	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0307-0512	●
361	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
365	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0307-0602	●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
372	CLIP; HOSE ID=10 & 10	1-09709-277-1	01	1	0307-	●
372	CLIP; HOSE ID=86	9-09915-592-0	02	1	0211-		●	●
379	HOSE; FLEX (A) L=260	1-09363-609-0	01	1	0307-	●
379	HOSE; FLEX (B) L=380	1-09363-884-0	01	1	0307-	●
382	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0307-0603	●
382	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-	●
472	NUT M12	9-09840-280-0	02	1	0307-	●
578	BRACKET; FLEX HOSE	1-47479-243-0	01	1	0307-	●
578	BRACKET; FLEX HOSE	1-47479-244-0	01	1	0307-	●
692	PIPE; AIR,MAG VLV (A)	1-49123-072-0	01	1	0307-	●
692	PIPE; AIR,MAG VLV (B)	1-49123-073-0	01	1	0307-	●

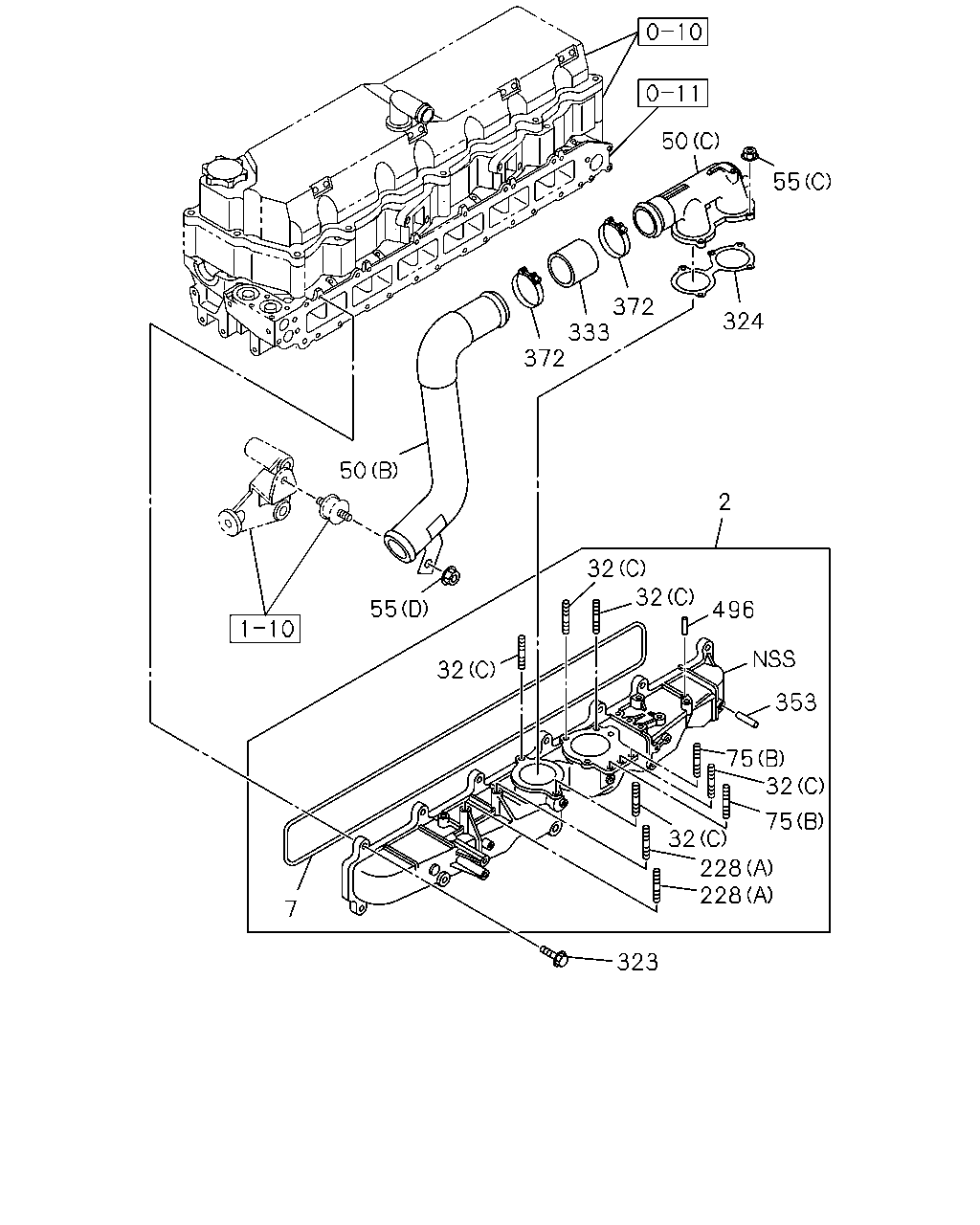

50 55 372 333 372 324 50 2 32 32 55 496 32 353 75 32 75 32 228 228 7 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97600-658-1	01	1	0307-	●
2	COVER; INL	8-94391-106-1	01	1	0005-0108		●
2	COVER; INL	8-97602-255-0	01	1	0109-0210		●
2	COVER; INL	8-94395-825-2	01	1	0211-			●	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210		●			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-0306			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0307-	●		●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210		●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604			●	●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210					●	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210					●	●
50	PIPE; INL (D)	8-97601-469-0	01	1	0307-	●
50	PIPE; INL (A)	8-97601-301-0	01	1	0005-0210		●
50	PIPE; INL (C)	8-94390-319-2	01	1	0211-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	0211-			●	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91180-108-0	02	1	0603-	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210		●
55	NUT; INL PIPE (D) M8 FLANGE	0-91150-208-0	01	1	0211-0602			●	●
55	NUT; INL PIPE (D) M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210					●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602			●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-			●	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	9-04110-616-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	0-41010-616-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	9-04110-625-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	0-41010-625-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	9-04110-816-0	04	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	0-41010-816-0	04	1	0605-	●
75	STUD; BRKT,AIR PIPE (A) M10X25 L=40	9-04411-025-0	02	1	0005-0210		●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0211-0306			●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0307-0604	●		●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	0-44011-025-0	02	1	0605-	●		●	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	0211-0604			●	●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-			●	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210		●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210		●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0211-0306			●	●
323	BOLT; DUCT M8X25 FLANGE	0-28680-825-0	14	1	0307-0512	●		●	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	14	1	0601-	●		●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0307-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210					●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-			●	●
333	HOSE; RUBBER,INL PIPE	1-09360-600-0	01	1	0211-			●	●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210		●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	0211-			●	●
372	CLIP; HOSE ID=10 & 10	1-09709-277-1	01	1	0307-	●
372	CLIP; HOSE ID=86	9-09915-592-0	02	1	0211-			●	●
496	PIN; INL MANIF	9-08160-512-0	01	1	0211-			●	●

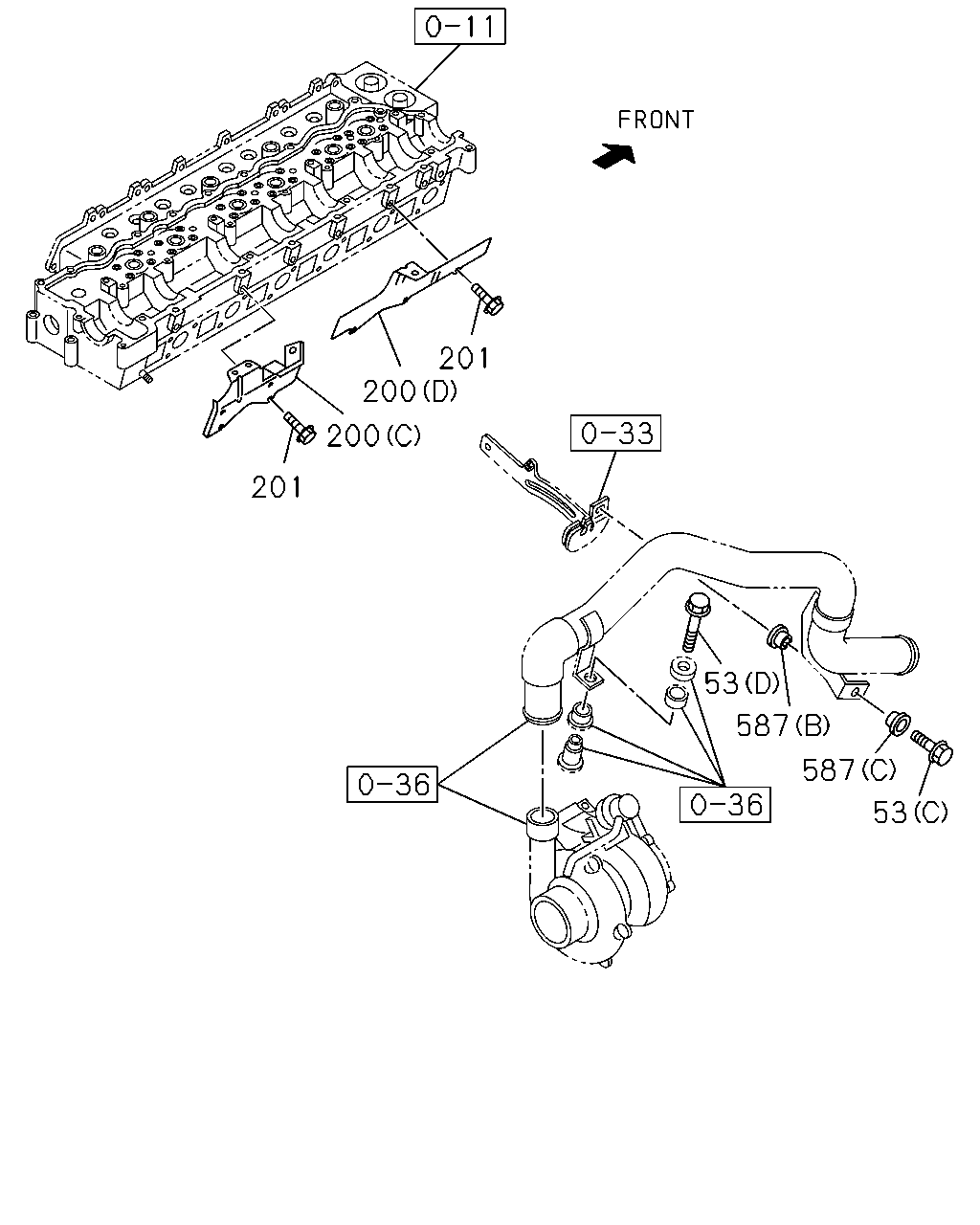

201 200 200 53 201 587 587 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
53	BOLT; INL PIPE FRR STD CAB(FR*M) FSR(FS****) (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210					●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●		●	●
53	BOLT; INL PIPE FRR DOUBLE CAB(FR*W) (B) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210					●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●		●	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210		●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0307-	●		●	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210		●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0307-	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0211-0306			●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0307-0512	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-	●		●	●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210		●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0307-	●		●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0307-	●		●	●

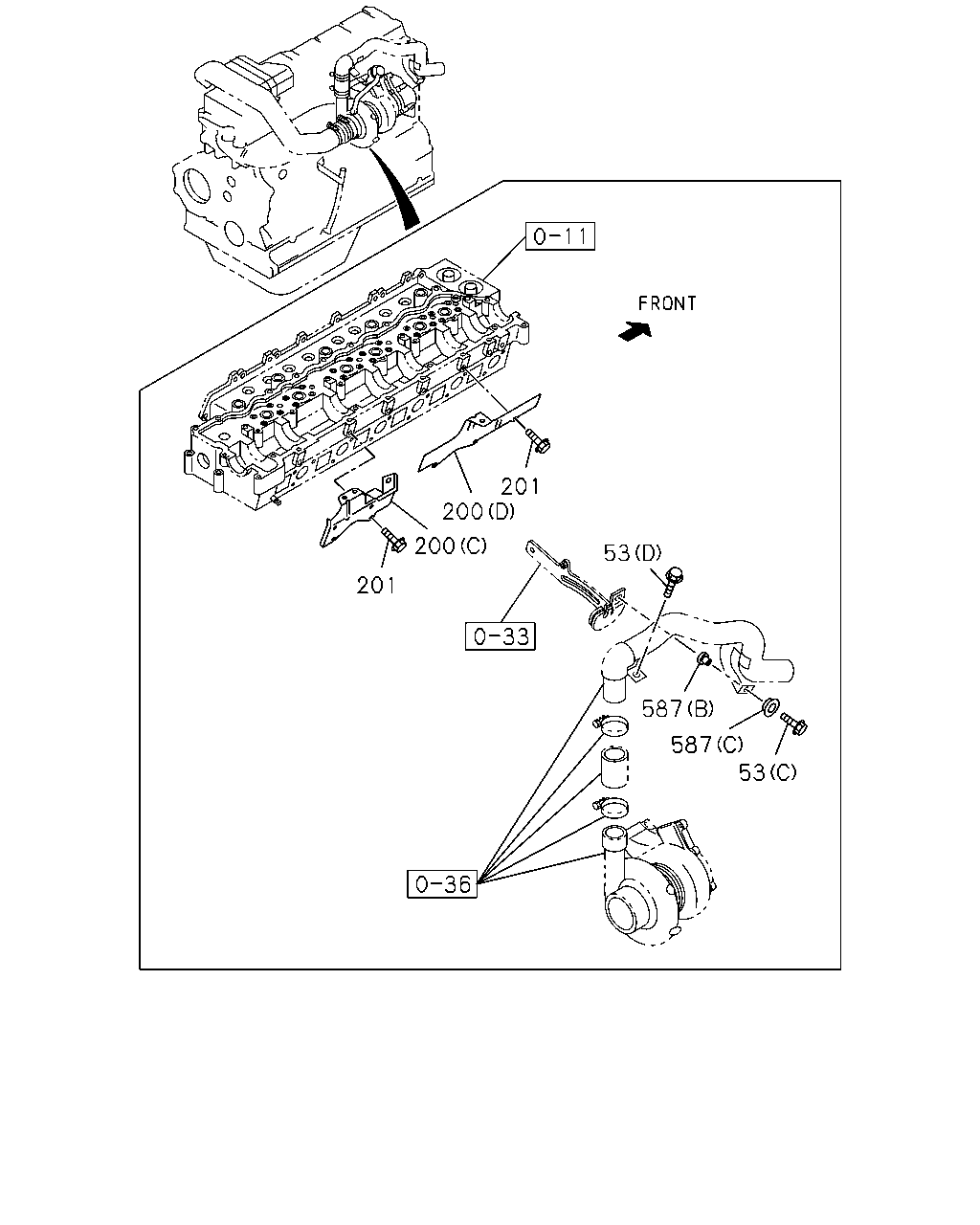

201 200 200 201 53 587 587 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
53	BOLT; INL PIPE (E) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
53	BOLT; INL PIPE FRR STD CAB(FR*M) FSR(FS****) (A) M8X12 FLANGE	0-28080-812-0	04	1	0005-0210					●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28680-835-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●		●	●
53	BOLT; INL PIPE FRR DOUBLE CAB(FR*W) (B) M8X22 FLANGE	0-28080-822-0	02	1	0005-0210					●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0211-0306			●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28681-035-0	01	1	0307-0512	●		●	●
53	BOLT; INL PIPE (D) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●		●	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210		●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0307-	●		●	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210		●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0307-	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0211-0306			●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0307-0512	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-	●		●	●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210		●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0307-	●		●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0307-	●		●	●

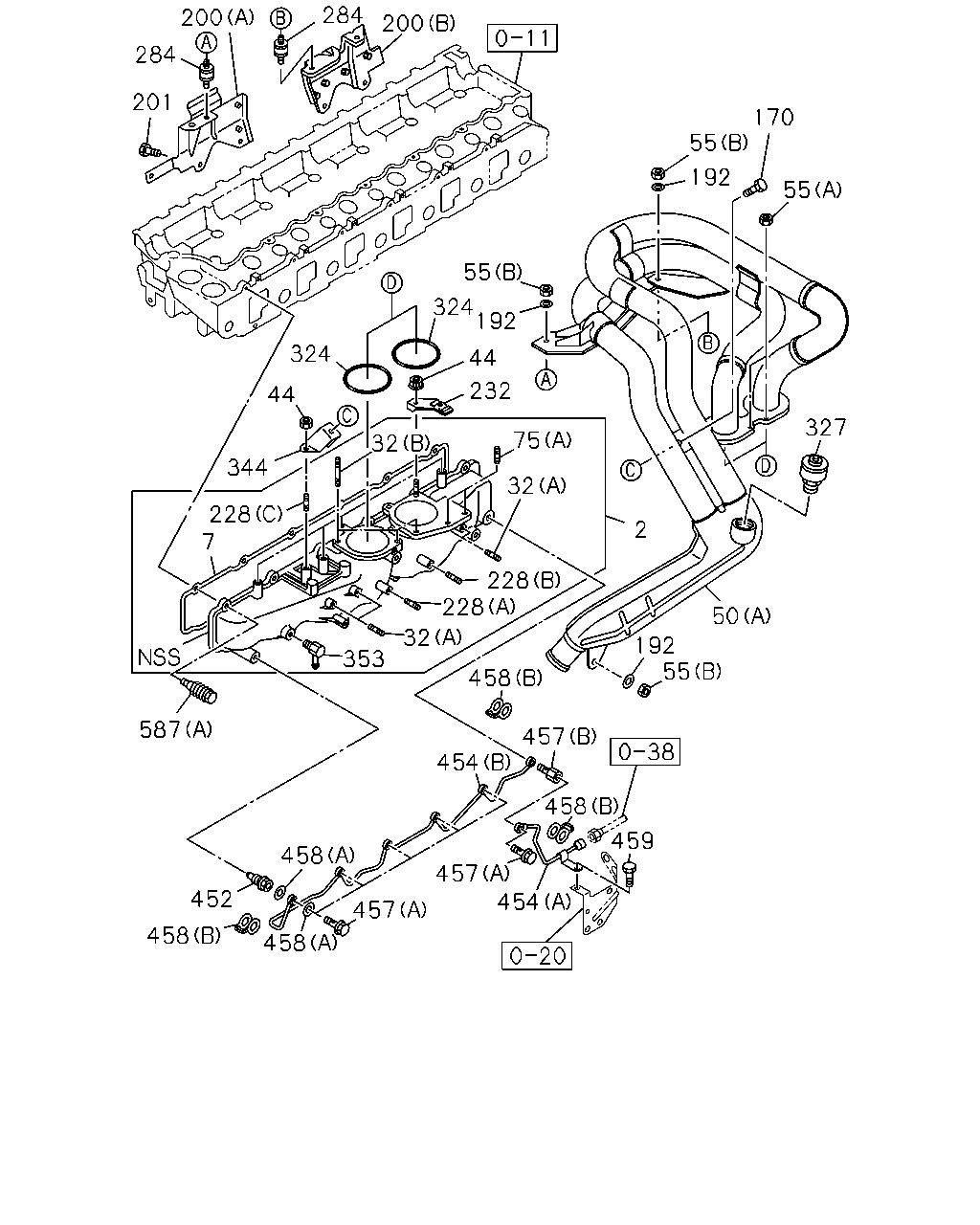

284 200 200 284 201 170 55 192 55 55 324 192 324 44 232 44 32 327 75 344 32 228 7 2 228 228 50 32 192 55 353 458 587 457 454 458 459 458 457 454 452 458 457 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL	8-97600-658-1	01	1	0307-	●
2	COVER; INL	8-94391-106-1	01	1	0005-0108		●
2	COVER; INL	8-97602-255-0	01	1	0109-0210		●
2	COVER; INL	8-94395-825-2	01	1	0211-			●	●
2	COVER; INL	8-94395-532-2	01	1	0005-0210					●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0005-0210		●			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0211-0306			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	0307-	●		●	●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	03	1	0005-0108		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0109-0210		●
32	STUD; INL PIPE (C) M8X25 L=37	9-04110-825-0	05	1	0211-0604			●	●
32	STUD; INL PIPE (C) M8X25 L=37	0-41010-825-0	05	1	0605-			●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0005-0210		●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	0005-0210					●	●
32	STUD; INL PIPE (B) M8X20 L=32	9-04110-820-0	05	1	0005-0210					●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
50	PIPE; INL (D)	8-97601-469-0	01	1	0307-	●
50	PIPE; INL (A)	8-97601-301-0	01	1	0005-0210		●
50	PIPE; INL (C)	8-94390-319-2	01	1	0211-			●	●
50	PIPE; INL (B)	8-94392-850-2	01	1	0211-			●	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
55	NUT; INL PIPE (E) M8 FLANGE	0-91180-108-0	02	1	0603-	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0005-0210		●
55	NUT; INL PIPE (D) M8 FLANGE	0-91150-208-0	01	1	0211-0602			●	●
55	NUT; INL PIPE (D) M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0005-0210		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0005-0210					●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	05	1	0211-0602			●	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	05	1	0603-			●	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	9-04110-616-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (C) M6X16 L=25	0-41010-616-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	9-04110-625-0	01	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (D) M6X25 L=34	0-41010-625-0	01	1	0605-	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	9-04110-816-0	04	1	0307-0604	●
75	STUD; BRKT,AIR PIPE (E) M8X16 L=28	0-41010-816-0	04	1	0605-	●
75	STUD; BRKT,AIR PIPE (A) M10X25 L=40	9-04411-025-0	02	1	0005-0210		●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0211-0306			●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	9-04411-025-0	02	1	0307-0604	●		●	●
75	STUD; BRKT,AIR PIPE (B) M10X25 L=40	0-44011-025-0	02	1	0605-	●		●	●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0005-0210		●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0005-0210		●
170	BOLT; BRKT AT545 A/T ALLISON(MD1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210						●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	02	1	0307-0605	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0005-0210		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0005-0210		●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (C)	8-97601-726-0	01	1	0307-	●		●	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0005-0210		●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0211-0306			●	●
200	BRACKET; AIR DUCT (D)	8-97601-818-0	01	1	0307-	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0005-0210		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0211-0306			●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0307-0512	●		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-	●		●	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0005-0210		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	02	1	0211-0604			●	●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	02	1	0605-			●	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0005-0210		●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0005-0210		●
232	BRACKET; INJ PIPE	8-94395-027-0	01	1	0005-0108		●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	0109-0210		●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-471-2	01	1	0307-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0005-0210		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0005-0210					●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-141-0	01	1	0211-			●	●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	0005-0210		●
344	BRACKET; INL PIPE	8-97602-160-0	01	1	0307-	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0005-0210		●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0005-0210		●
353	PIPE; AIR,BOOST	8-97010-495-0	01	1	0211-			●	●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0005-0210		●			●	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0005-0210		●			●	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0005-0210		●			●	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	0005-0210		●			●	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0005-0210		●			●	●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●			●	●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0005-0210		●			●	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●			●	●
587	MOUNTING; INTAKE DUCT (A)	8-94395-966-0	13	1	0005-0210		●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (C)	8-94395-766-0	01	1	0307-	●		●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0211-0306			●	●
587	MOUNTING; INTAKE DUCT (B) OD=23	8-97105-689-6	01	1	0307-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
