0-22 — ENGINE MOUNTING (#8525) — 177 parça

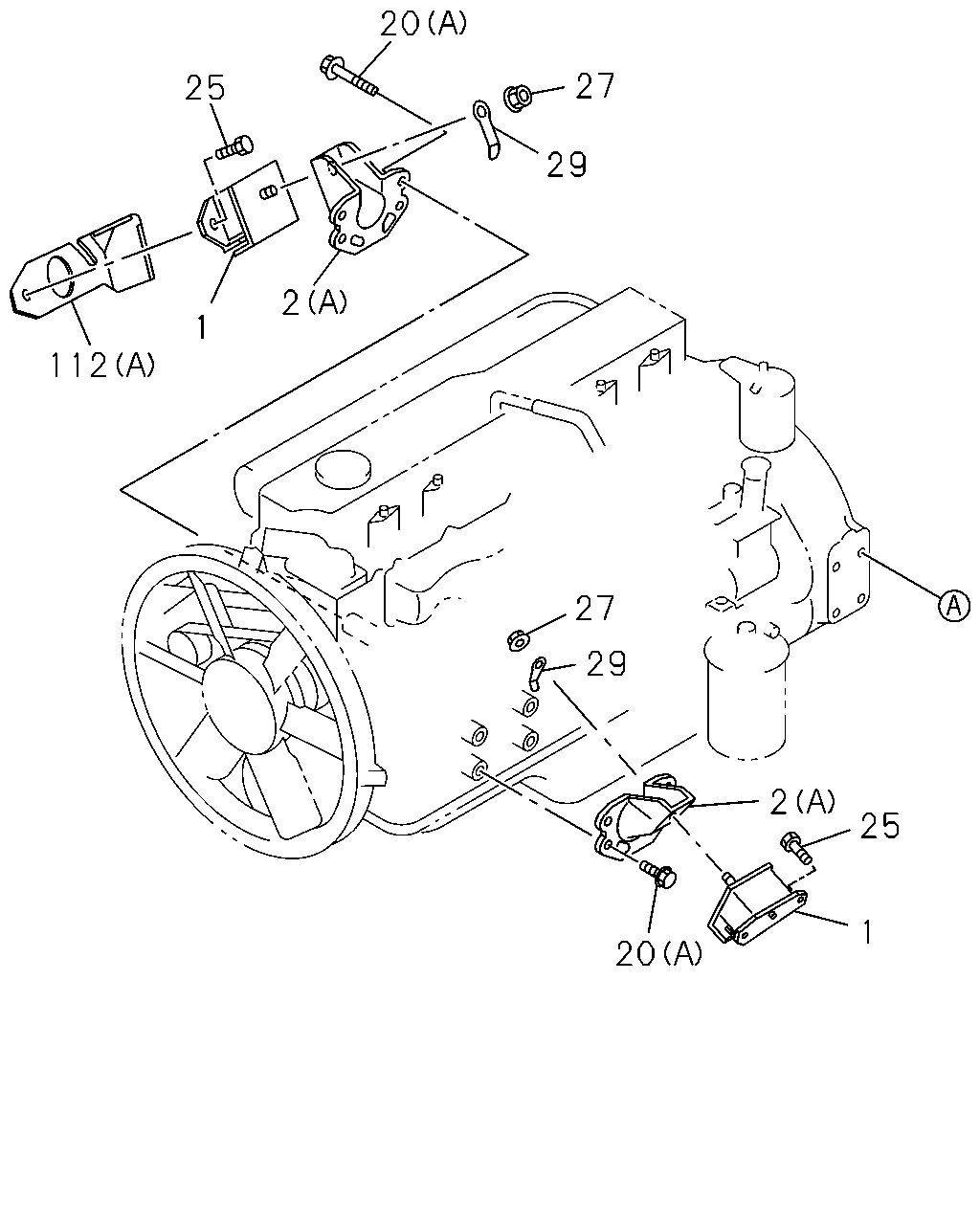

çizim 38626
20 27 25 29 2 1 112 27 29 2 25 1 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT
FRR(FR****) WHEEL BASE 4800MM(48W) 		1-53215-172-0 02 1 0005-0210 ● ● ●
1 RUBBER; ENG FOOT,FRT
FSR(FS****) 		1-53215-172-0 02 1 0005-0210 ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 5100MM(51W) 		1-53215-172-0 02 1 0211- ● ● ●
1 RUBBER; ENG FOOT,FRT
FSR(FS****) 		1-53215-172-0 02 1 0211- ● ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-53215-173-0 02 1 0005-0210 ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-53215-173-0 02 1 0211- ● ●
1 RUBBER; ENG FOOT,FRT
FRR DOUBLE CAB(FR**W*) WHEEL BASE 4200MM(42W) 		1-53215-184-0 02 1 0005-0210 ●
1 RUBBER; ENG FOOT,FRT
FRR DOUBLE CAB(FR**W*) WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) 		1-53215-184-0 02 1 0211- ● ●
2 FOOT; ENG
(F) 		8-94395-941-0 01 1 0307- ●
2 FOOT; ENG
(F) 		8-94395-942-0 01 1 0307- ●
2 FOOT; ENG
(B) 		8-94395-942-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-564-1 01 1 0211- ● ●
2 FOOT; ENG
(C) 		8-94395-941-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-563-1 01 1 0211- ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0005-0210 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0211-0306 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0307- ● ● ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-738-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94395-738-0 01 1 0211- ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-739-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94394-542-2 01 1 0211- ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-895-1 01 1 0005-0210 ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-894-1 01 1 0005-0210 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0307- ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
A/T<X9D> (B) M12X55 		8-94399-884-1 08 1 0211-0306 ●
20 BOLT; ENG FOOT
EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0307- ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0307- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0210 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0211-0512 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005-0210 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0211- ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0211- ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0211- ● ● ●

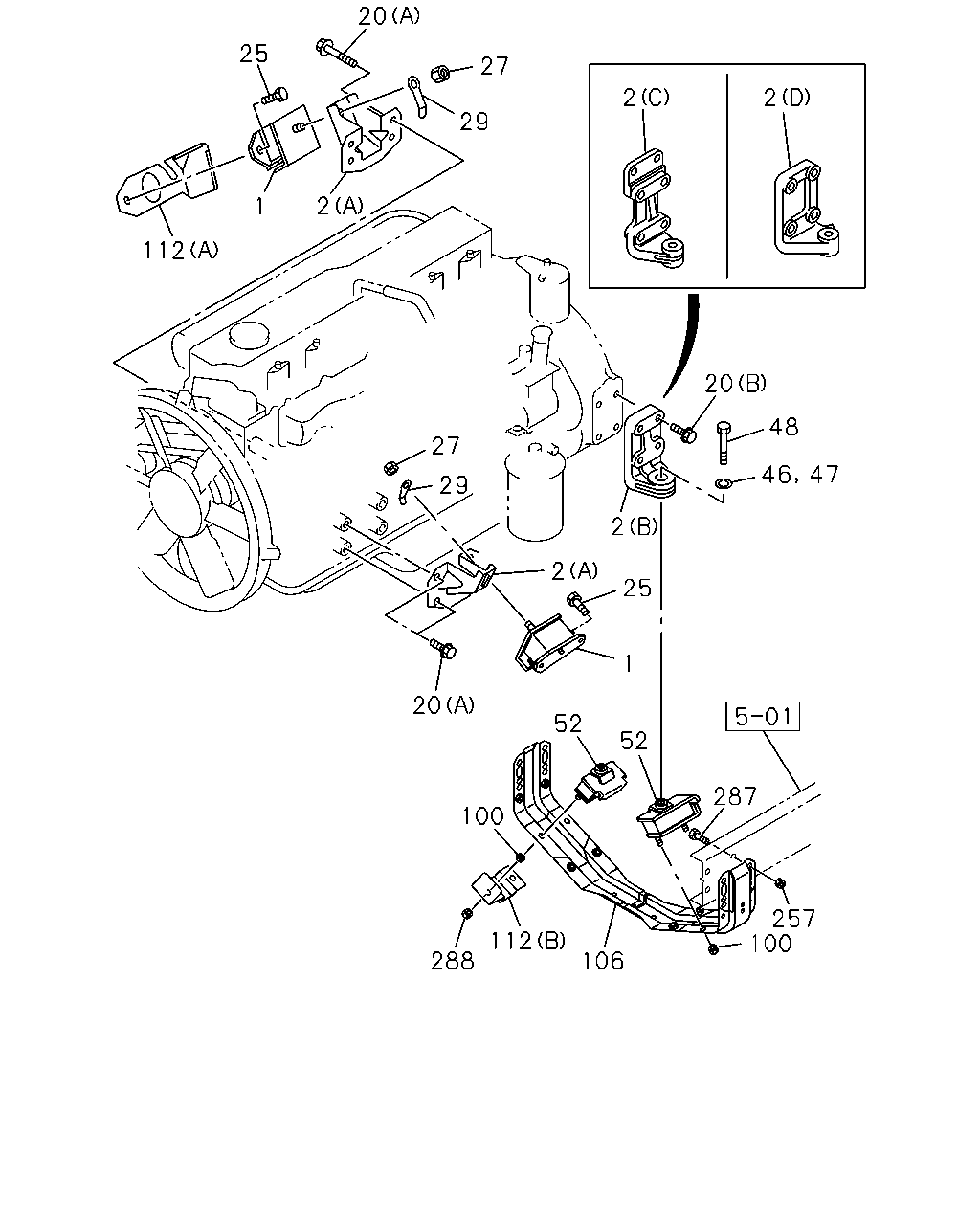

çizim 38694
20 25 27 2 2 29 2 1 112 20 48 27 46 47 29 2 2 25 1 20 52 52 287 100 257 100 112 288 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT
FRR(FR****) WHEEL BASE 4800MM(48W) 		1-53215-172-0 02 1 0005-0210 ● ● ●
1 RUBBER; ENG FOOT,FRT
FSR(FS****) 		1-53215-172-0 02 1 0005-0210 ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 5100MM(51W) 		1-53215-172-0 02 1 0211- ● ● ●
1 RUBBER; ENG FOOT,FRT
FSR(FS****) 		1-53215-172-0 02 1 0211- ● ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-53215-173-0 02 1 0005-0210 ● ●
1 RUBBER; ENG FOOT,FRT
FRR STD CAB(FR**M*) WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-53215-173-0 02 1 0211- ● ●
1 RUBBER; ENG FOOT,FRT
FRR DOUBLE CAB(FR**W*) WHEEL BASE 4200MM(42W) 		1-53215-184-0 02 1 0005-0210 ●
1 RUBBER; ENG FOOT,FRT
FRR DOUBLE CAB(FR**W*) WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W) 		1-53215-184-0 02 1 0211- ● ●
2 FOOT; ENG
(F) 		8-94395-941-0 01 1 0307- ●
2 FOOT; ENG
(F) 		8-94395-942-0 01 1 0307- ●
2 FOOT; ENG
(B) 		8-94395-942-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-564-1 01 1 0211- ● ●
2 FOOT; ENG
(C) 		8-94395-941-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-563-1 01 1 0211- ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0005-0210 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0211-0306 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0307- ● ● ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-738-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94395-738-0 01 1 0211- ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-739-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94394-542-2 01 1 0211- ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-895-1 01 1 0005-0210 ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-894-1 01 1 0005-0210 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0307- ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
A/T<X9D> (B) M12X55 		8-94399-884-1 08 1 0211-0306 ●
20 BOLT; ENG FOOT
EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0307- ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0307- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0210 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0211-0512 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005-0210 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0211- ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010-0210 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0211- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0005-0009 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0210 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0211-0512 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0211- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO(SV1) 		1-53225-314-1 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0211- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO(SV1) 		1-53225-313-1 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) FSR(FS****) 		1-53225-278-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) 		1-53225-278-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR(FR****) ENGINE REAR PTO(SV1) 		1-53225-283-2 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) FSR(FS****) 		1-53225-277-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) 		1-53225-277-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR(FR****) ENGINE REAR PTO(SV1) 		1-53225-282-2 01 1 0211- ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0211-0602 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0005-0210 ● ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0211- ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0211- ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0211- ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0005-0210 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0211-0602 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0210 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0211-0512 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●

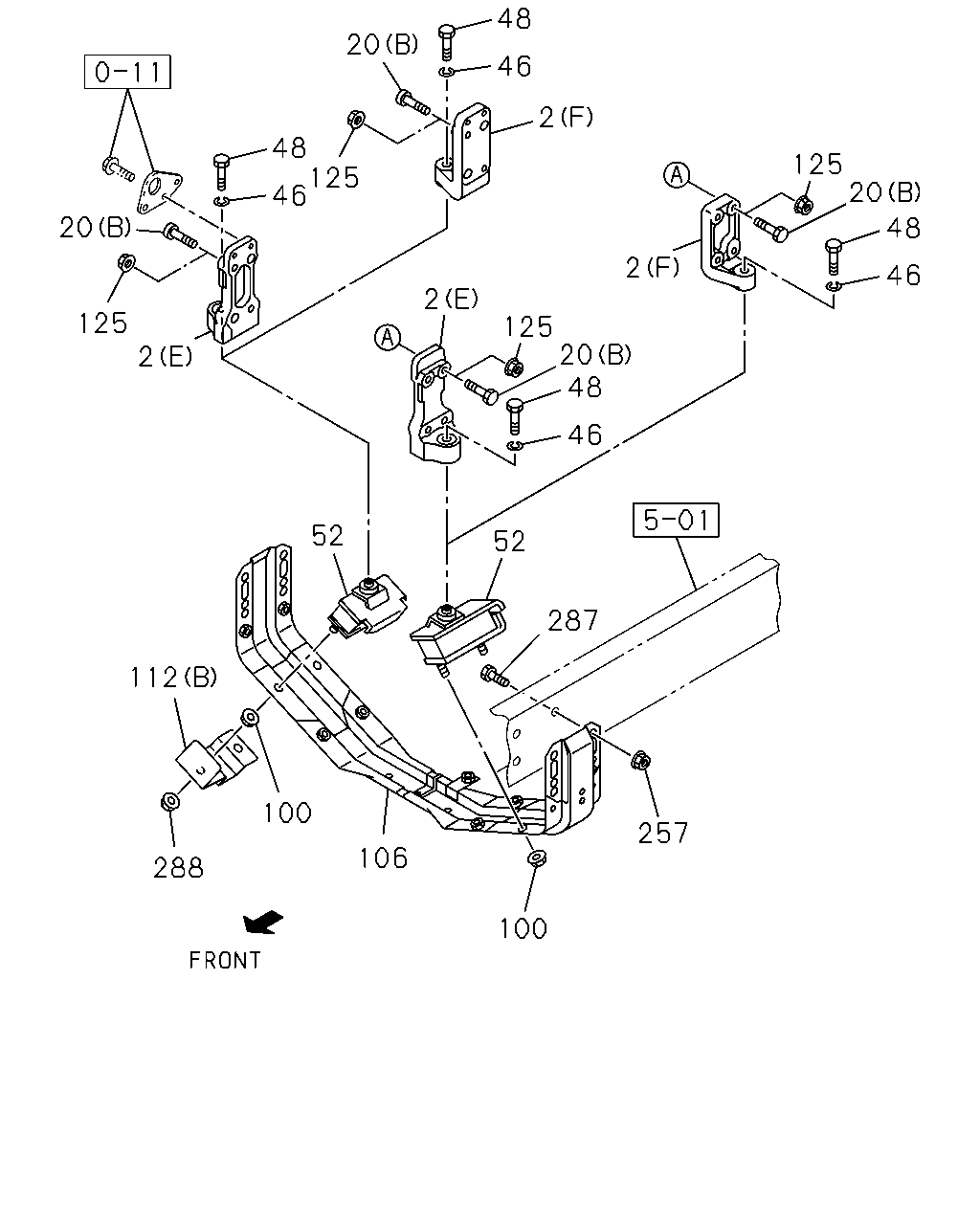

çizim 39081
48 20 46 2 48 125 46 125 20 20 48 2 46 2 125 2 125 20 48 46 52 52 287 112 100 257 106 288 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 FOOT; ENG
(F) 		8-94395-941-0 01 1 0307- ●
2 FOOT; ENG
(F) 		8-94395-942-0 01 1 0307- ●
2 FOOT; ENG
(B) 		8-94395-942-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-564-1 01 1 0211- ● ●
2 FOOT; ENG
(C) 		8-94395-941-0 01 1 0005-0210 ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		8-94390-563-1 01 1 0211- ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0005-0210 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0211-0306 ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0307- ● ● ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-738-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94395-738-0 01 1 0211- ●
2 FOOT; ENG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94395-739-0 01 1 0005-0210 ● ●
2 FOOT; ENG
A/T<X9D> (F) 		8-94394-542-2 01 1 0211- ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-895-1 01 1 0005-0210 ●
2 FOOT; ENG
ENGINE REAR PTO(SV1) (D) 		8-94393-894-1 01 1 0005-0210 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0307- ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005-0210 ● ● ●
20 BOLT; ENG FOOT
ISUZU M/T<X9A> EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0211-0306 ● ●
20 BOLT; ENG FOOT
A/T<X9D> (B) M12X55 		8-94399-884-1 08 1 0211-0306 ●
20 BOLT; ENG FOOT
EXC. ENGINE REAR PTO(SV1) (B) M12X55 		8-94399-884-1 08 1 0307- ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0307- ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010-0210 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0211- ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0210 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0211-0512 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0211- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO(SV1) 		1-53225-314-1 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0211- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. ENGINE REAR PTO(SV1) 		1-53225-313-1 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) FSR(FS****) 		1-53225-278-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) 		1-53225-278-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR(FR****) ENGINE REAR PTO(SV1) 		1-53225-283-2 01 1 0211- ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) FSR(FS****) 		1-53225-277-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR STD CAB(FRR***) 		1-53225-277-4 01 1 0005-0210 ●
52 RUBBER; CUSHION,ENG MTG,RR
FRR(FR****) ENGINE REAR PTO(SV1) 		1-53225-282-2 01 1 0211- ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0211-0602 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0005-0210 ● ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0211- ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0211- ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005-0210 ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0211- ● ● ●
125 NUT; ENG FOOT
ENGINE REAR PTO(SV1) M12 FLANGE 		8-94394-704-0 08 1 0211- ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0005-0210 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0211-0602 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0210 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0211-0512 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
