◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#8524) — 893 parça

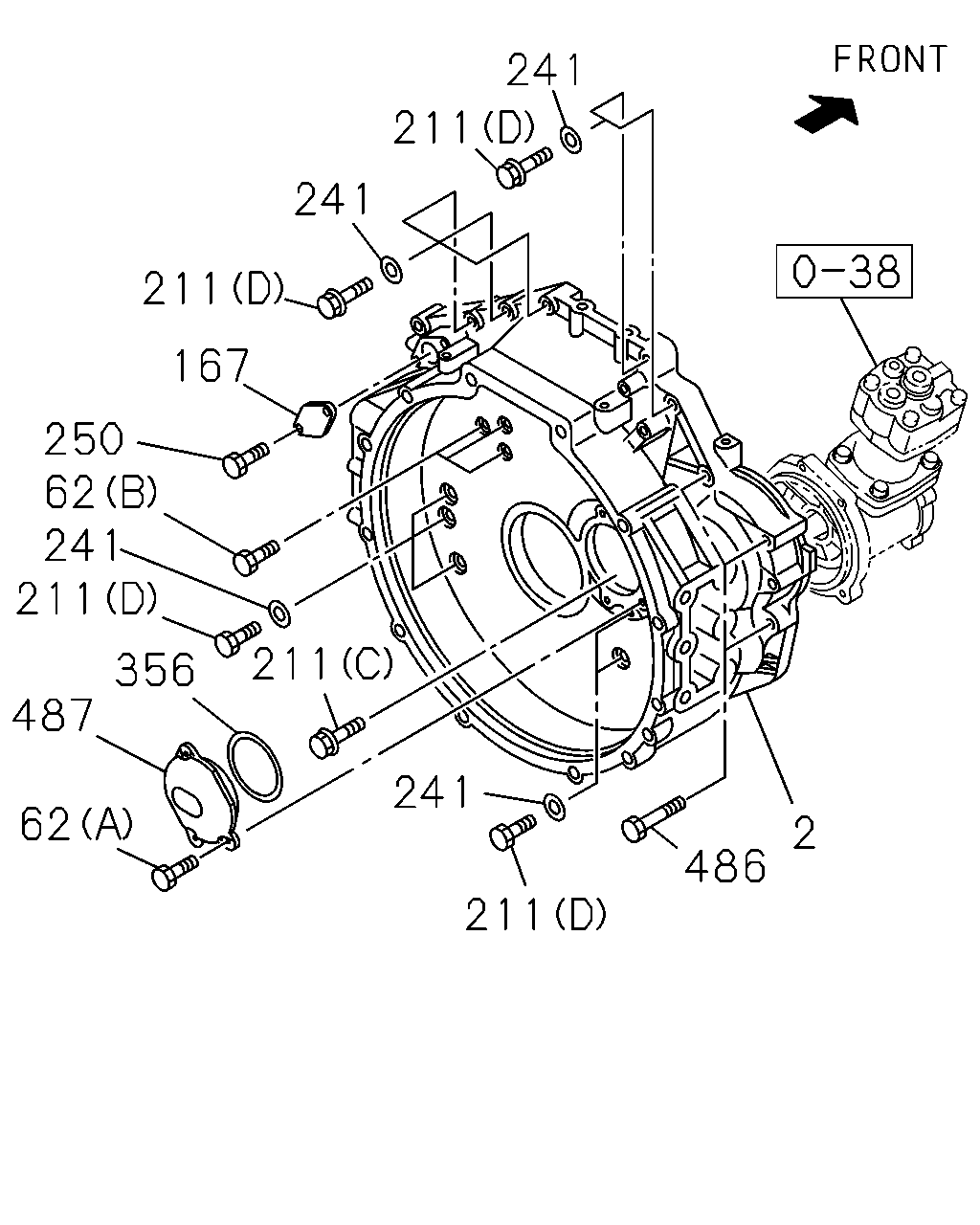

çizim 38308
241 211 241 211 167 250 62 241 211 211 356 487 241 62 2 486 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0005-0210 ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0211-0306 ● ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0307- ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0210 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0306 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0307-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0210 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0211-0211 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0212-0306 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0307- ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0211-0211 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0212-0306 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ● ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0005-0210 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0211-0306 ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0307- ● ● ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 02 1 0307-0512 ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28151-270-0 02 1 0601- ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 03 1 0005-0210 ●
487 COVER; HOLE 8-94394-513-1 01 1 0005-0210 ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0211-0306 ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0307-0805 ● ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-98023-824-1 01 1 0806- ● ● ●

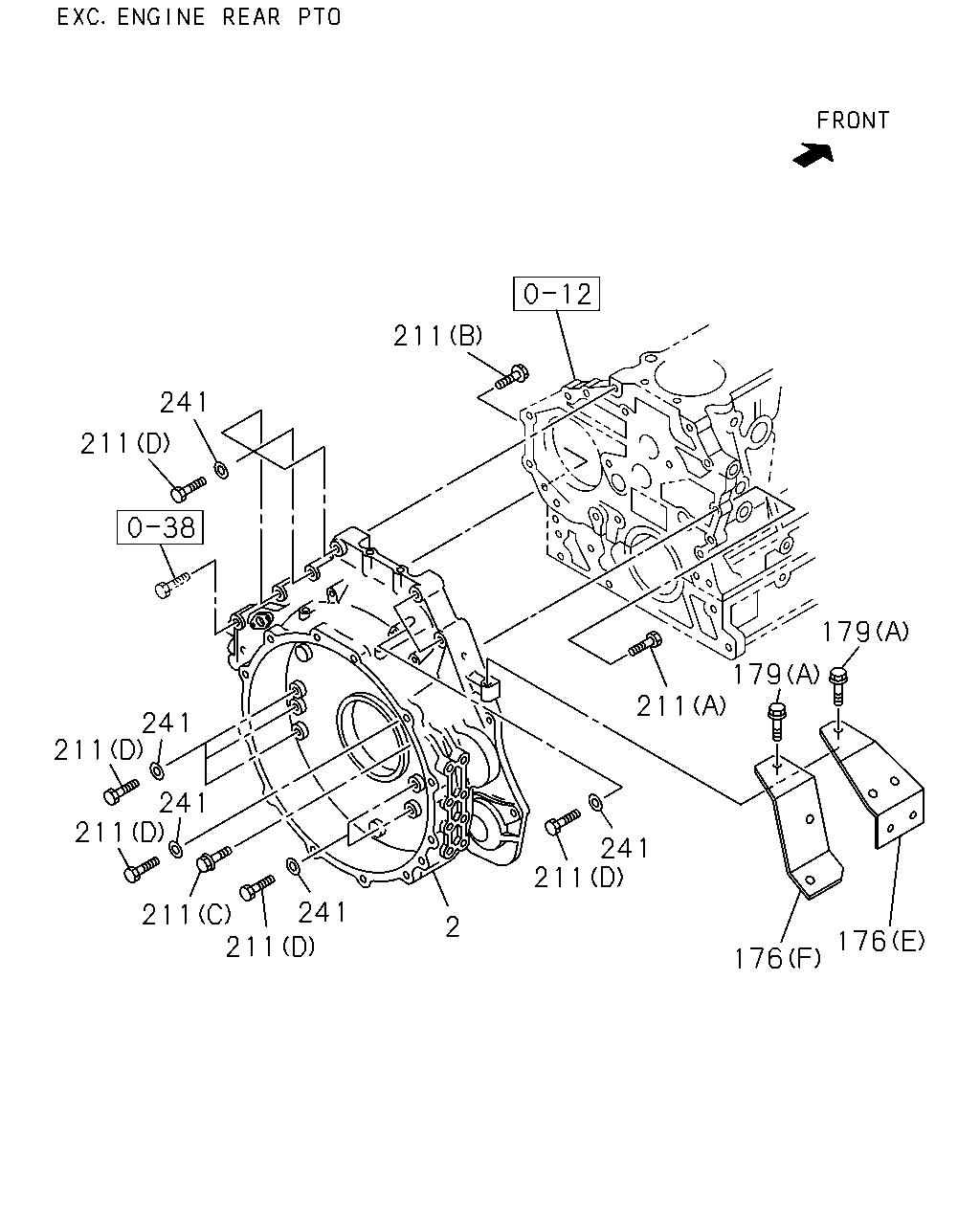

çizim 38326
211 241 211 179 179 211 241 211 241 211 241 211 211 241 211 2 176 176
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●

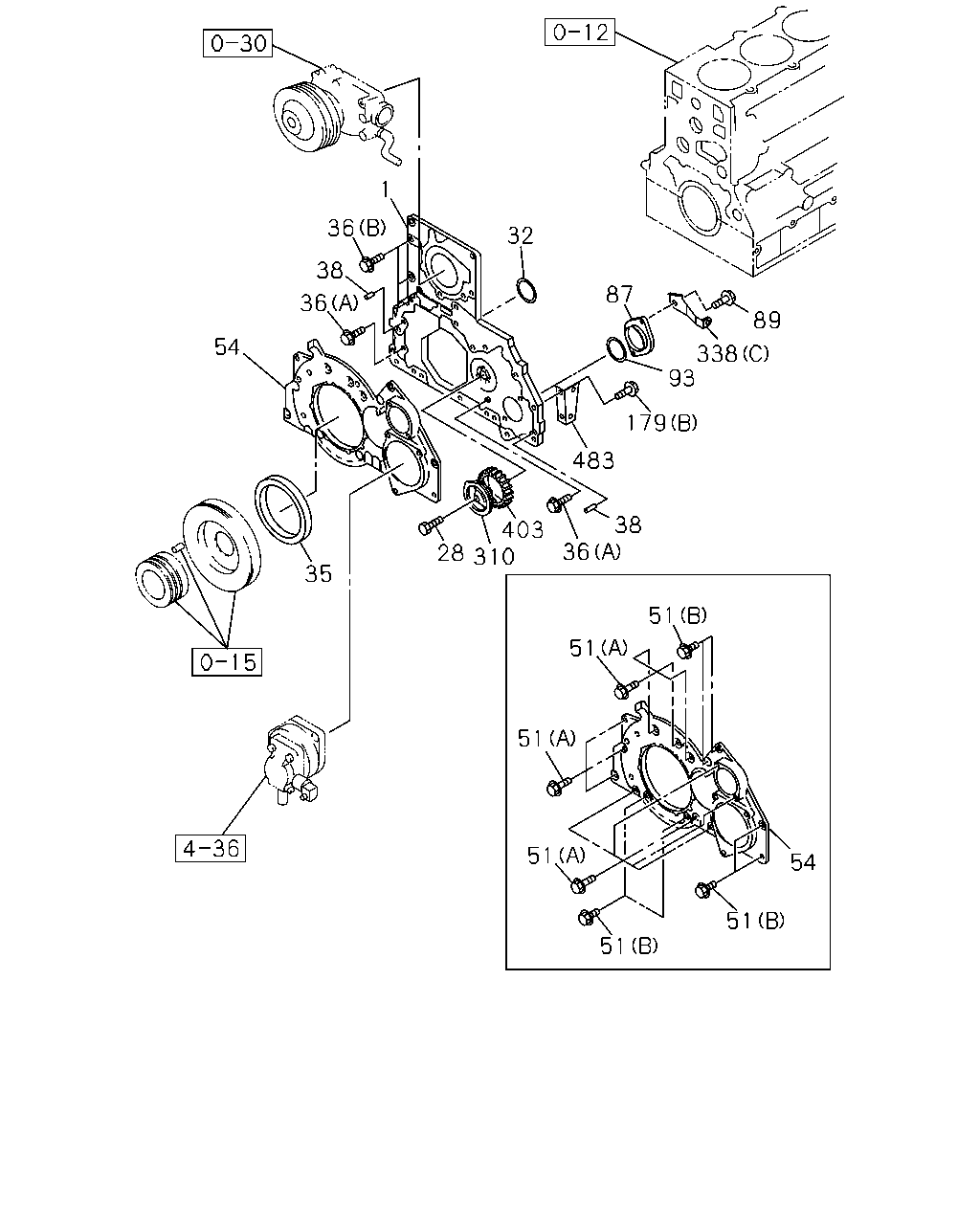

çizim 38592
1 36 32 38 87 36 89 54 338 93 179 483 38 403 28 310 36 35 51 51 51 51 54 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0005-0210 ● ● ●
1 CASE; TIMING GEAR
ENGINE REAR PTO(SV1) 		8-94396-434-6 01 1 0211-0306 ●
1 CASE; TIMING GEAR
ENGINE REAR PTO(SV1) 		8-94396-434-6 01 1 0307- ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0005-0210 ● ● ●
28 BOLT; DRIVE GEAR
ENGINE REAR PTO(SV1) M8X28 		8-94399-256-0 03 1 0211-0306 ●
28 BOLT; DRIVE GEAR
ENGINE REAR PTO(SV1) M8X28 		8-94399-256-0 03 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0307- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0005-0210 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0211-0306 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0307- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0005-0112 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0210 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0211-0306 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0307- ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0210 ● ● ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (A) M8X28 FLANGE 		0-28080-828-0 02 1 0211-0306 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (A) M8X28 FLANGE 		0-28080-828-0 02 1 0307-0401 ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0307-0401 ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0402-0801 ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0005-0210 ● ● ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X32 FLANGE 		0-28080-832-0 04 1 0211-0306 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X32 FLANGE 		0-28080-832-0 04 1 0307-0801 ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0307-0801 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X35 FLANGE 		0-28050-835-0 04 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0802- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0005-0210 ● ● ●
38 PIN; GEAR CASE COVER
ENGINE REAR PTO(SV1) L=22 		8-94483-674-0 02 1 0211-0306 ●
38 PIN; GEAR CASE COVER
ENGINE REAR PTO(SV1) L=22 		8-94483-674-0 02 1 0307- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0307- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0005-0210 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0005-0210 ● ● ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 0005-0210 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28080-835-0 16 1 0211-0512 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28050-835-0 16 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0210 ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0005-0210 ● ● ●
54 COVER; GEAR CASE
ENGINE REAR PTO(SV1) 		8-94393-304-1 01 1 0211-0306 ●
54 COVER; GEAR CASE
ENGINE REAR PTO(SV1) 		8-94393-304-1 01 1 0307- ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0307- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0005-0210 ● ● ●
87 COVER; TACHOMETER DRIVE
ENGINE REAR PTO(SV1) 		8-94396-370-0 01 1 0211-0306 ●
87 COVER; TACHOMETER DRIVE
ENGINE REAR PTO(SV1) 		8-94396-370-0 01 1 0307- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0307- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
89 BOLT; ELBOW
ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0211-0306 ●
89 BOLT; ELBOW
ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0307- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0005-0210 ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) OD=54.7 		1-09623-180-0 01 1 0211-0306 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1). OD=54.7 		1-09623-180-0 01 1 0307- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0307- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0005-0210 ● ● ●
310 SHAFT; IDLE GEAR
ENGINE REAR PTO(SV1) 		8-94394-806-0 01 1 0211-0306 ●
310 SHAFT; IDLE GEAR
ENGINE REAR PTO(SV1) 		8-94394-806-0 01 1 0307- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0307- ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0005-0210 ● ● ●
338 BRACKET; CLIP,HARNESS
AT545 A/T ALLISON(MD1) (B) 		1-82699-182-0 01 1 0005-0210 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0211-0306 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0307- ●
338 BRACKET; CLIP,HARNESS
(C) 		1-82699-889-0 01 1 0307- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0005-0210 ● ● ●
403 GEAR; IDLE,FRONT
ENGINE REAR PTO(SV1) Z=33 		8-94395-943-1 01 1 0211-0306 ●
403 GEAR; IDLE,FRONT
ENGINE REAR PTO(SV1) Z=33 		8-94395-943-1 01 1 0307- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0307- ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0005-0210 ● ● ●
483 BRACKET; WATER DUCT
ENGINE REAR PTO(SV1) 		8-94394-405-1 01 1 0211-0306 ●
483 BRACKET; WATER DUCT
ENGINE REAR PTO(SV1) 		8-94394-405-1 01 1 0307- ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0307- ●

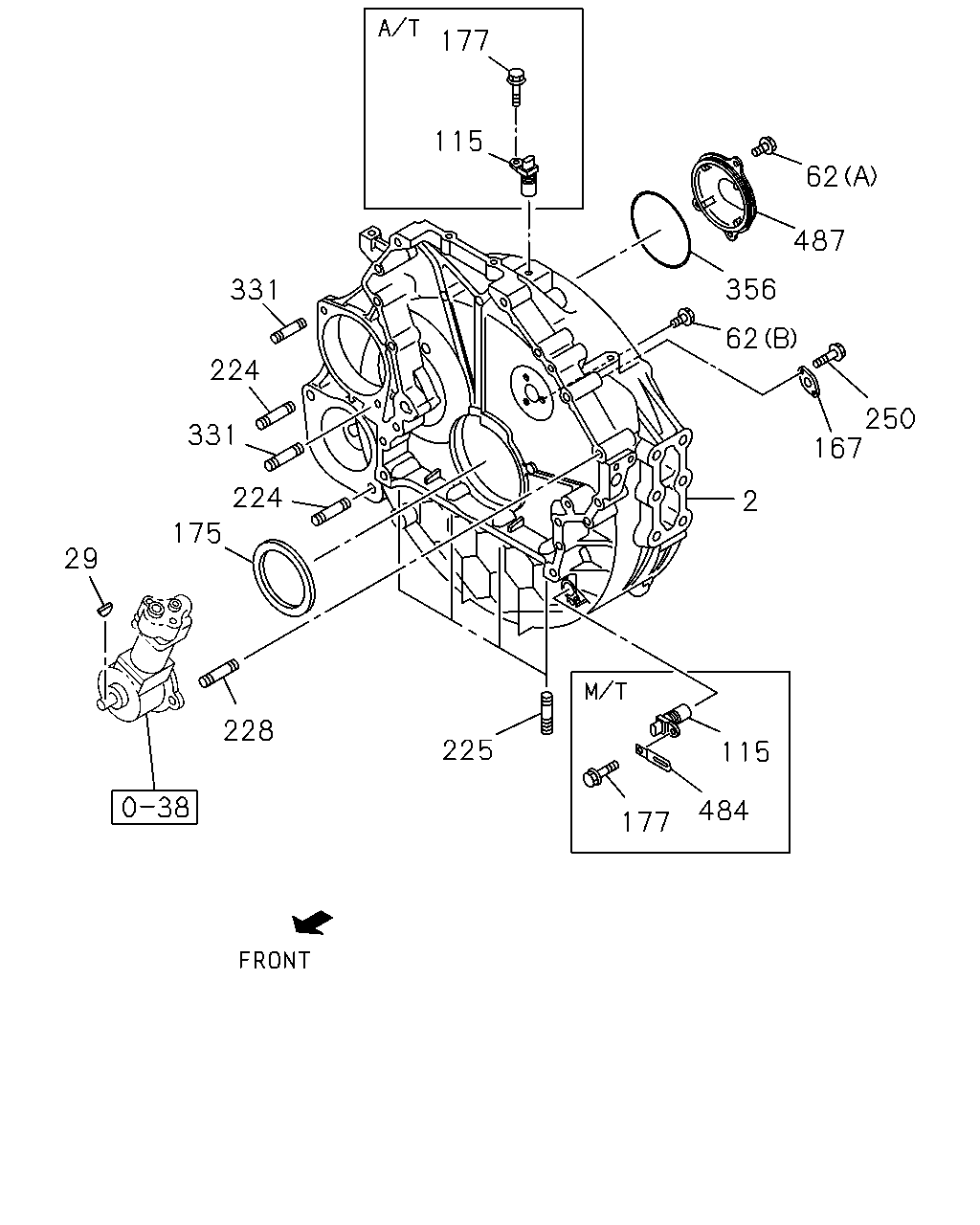

çizim 38593
177 115 62 487 356 331 62 224 250 167 331 224 2 175 29 228 225 115 484 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0211-0306 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0307- ● ● ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005-0210 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0005-0210 ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0211-0306 ● ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0307- ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0210 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0306 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0307-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-747-4 01 1 0307- ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 0005-0210 ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0211- ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0210 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0211-0211 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0212-0306 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0307- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0005-0112 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0210 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0211-0306 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0307- ● ● ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0210 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0210 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0211-0306 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0307-0604 ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0210 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0211-0306 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0307- ● ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0307-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0005-0210 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0211- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0210 ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0211-0211 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0212-0306 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ● ● ●
331 STUD; P/S PUMP
EXC. ENGINE REAR PTO(SV1) M10X36.5 L=48.5 		8-94396-145-0 02 1 0211-0301 ● ●
331 STUD; P/S PUMP
EXC. ENGINE REAR PTO(SV1) M10X25 L=40 		0-49841-025-0 02 1 0302-0512 ● ●
331 STUD; P/S PUMP
EXC. ENGINE REAR PTO(SV1) M10X25 L=48.5 		0-49241-025-0 02 1 0601- ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0005-0210 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0211-0306 ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0307- ● ● ●
484 CLIP; BAND
EXC. A/T<X9D> L=80 		5-09700-307-1 01 1 0211- ● ●
487 COVER; HOLE 8-94394-513-1 01 1 0005-0210 ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0211-0306 ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0307-0805 ● ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-98023-824-1 01 1 0806- ● ● ●

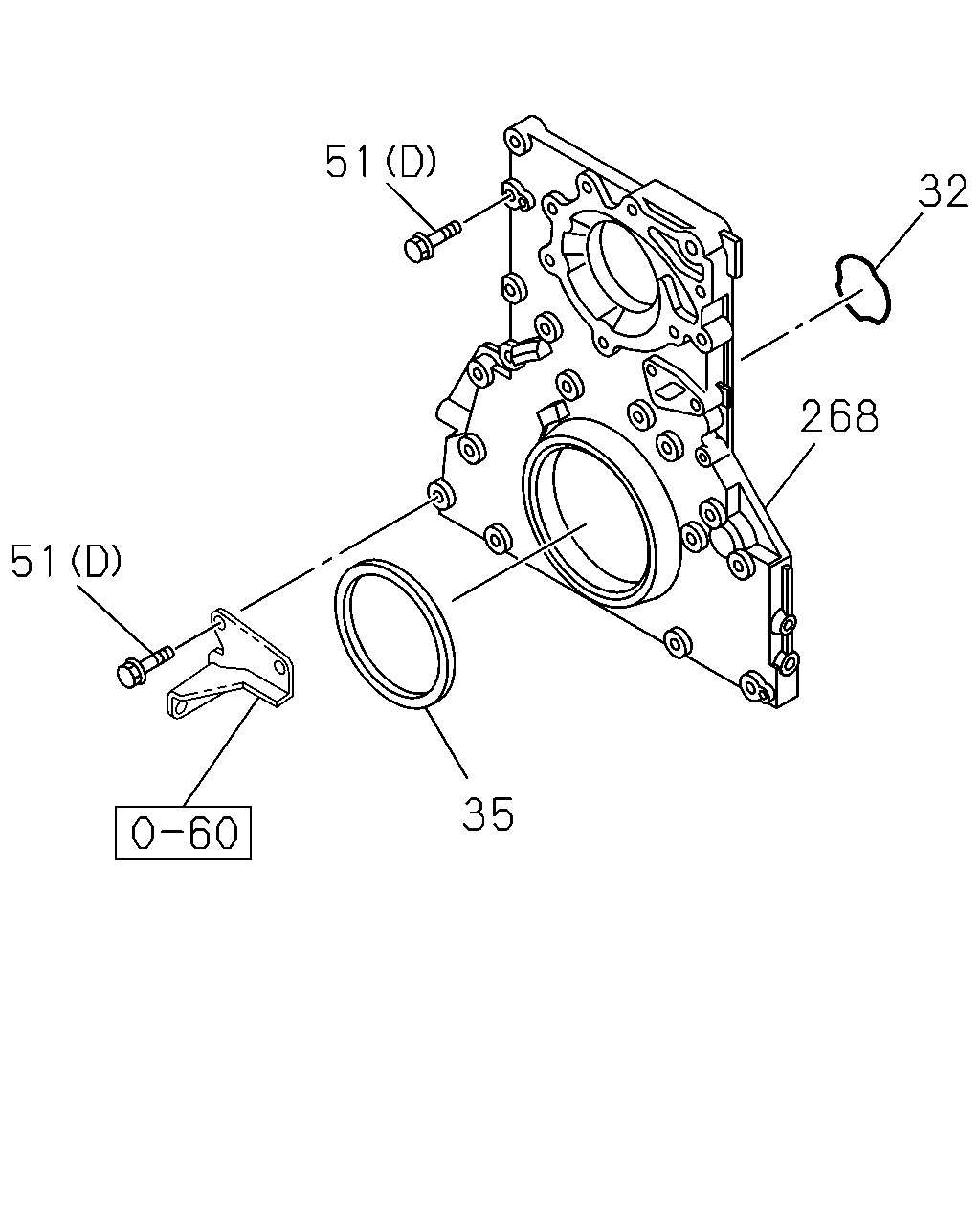

çizim 38624
51 32 268 51 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0005-0210 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0211-0306 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0307- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0005-0112 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0210 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0211-0306 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0307- ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0005-0210 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0005-0210 ● ● ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 0005-0210 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28080-835-0 16 1 0211-0512 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28050-835-0 16 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0210 ● ●
268 COVER; FRT
EXC. ENGINE REAR PTO(SV1) 		8-94392-480-0 01 1 0211- ● ●

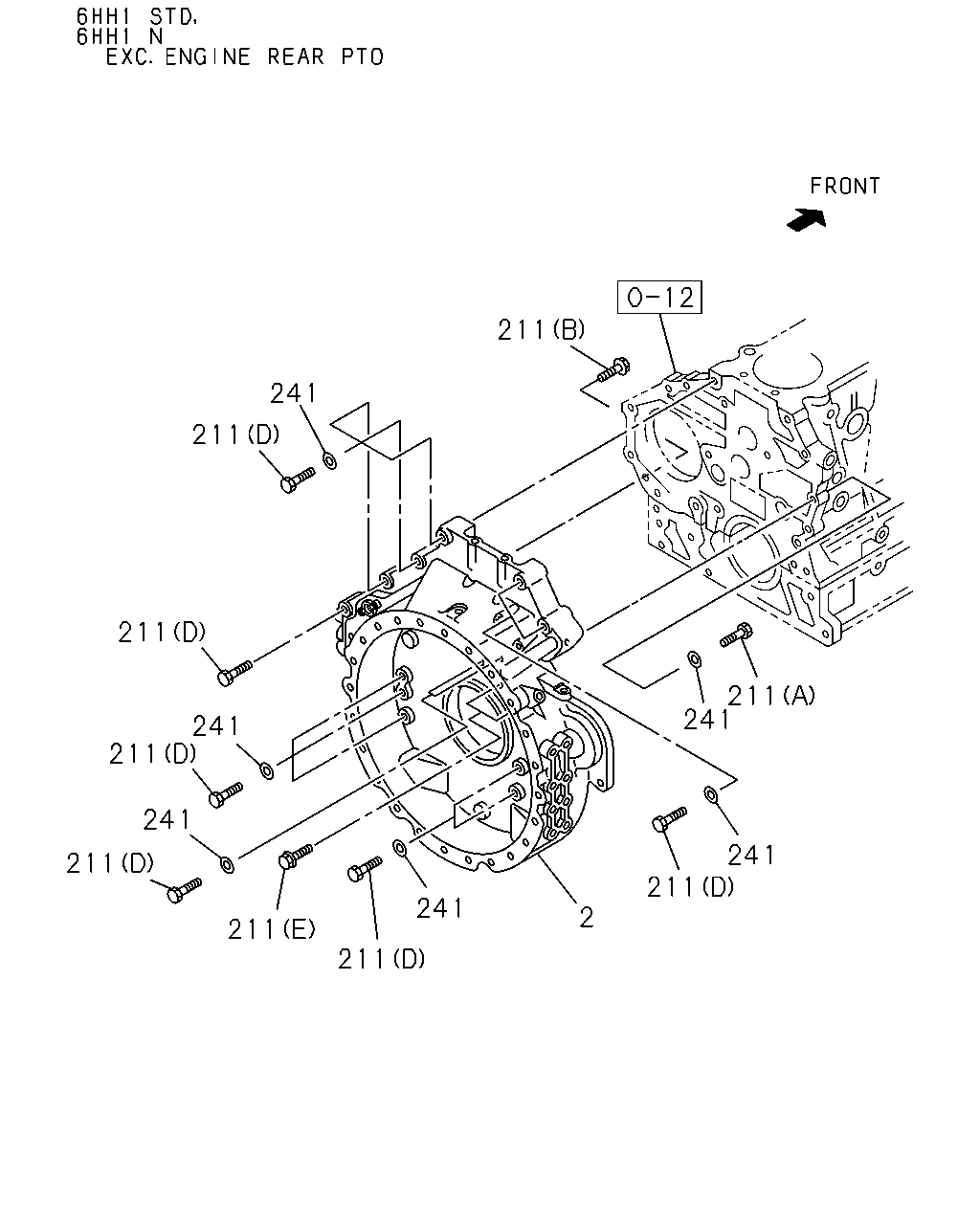

çizim 38665
211 241 211 211 211 241 241 211 241 241 211 211 241 2 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●

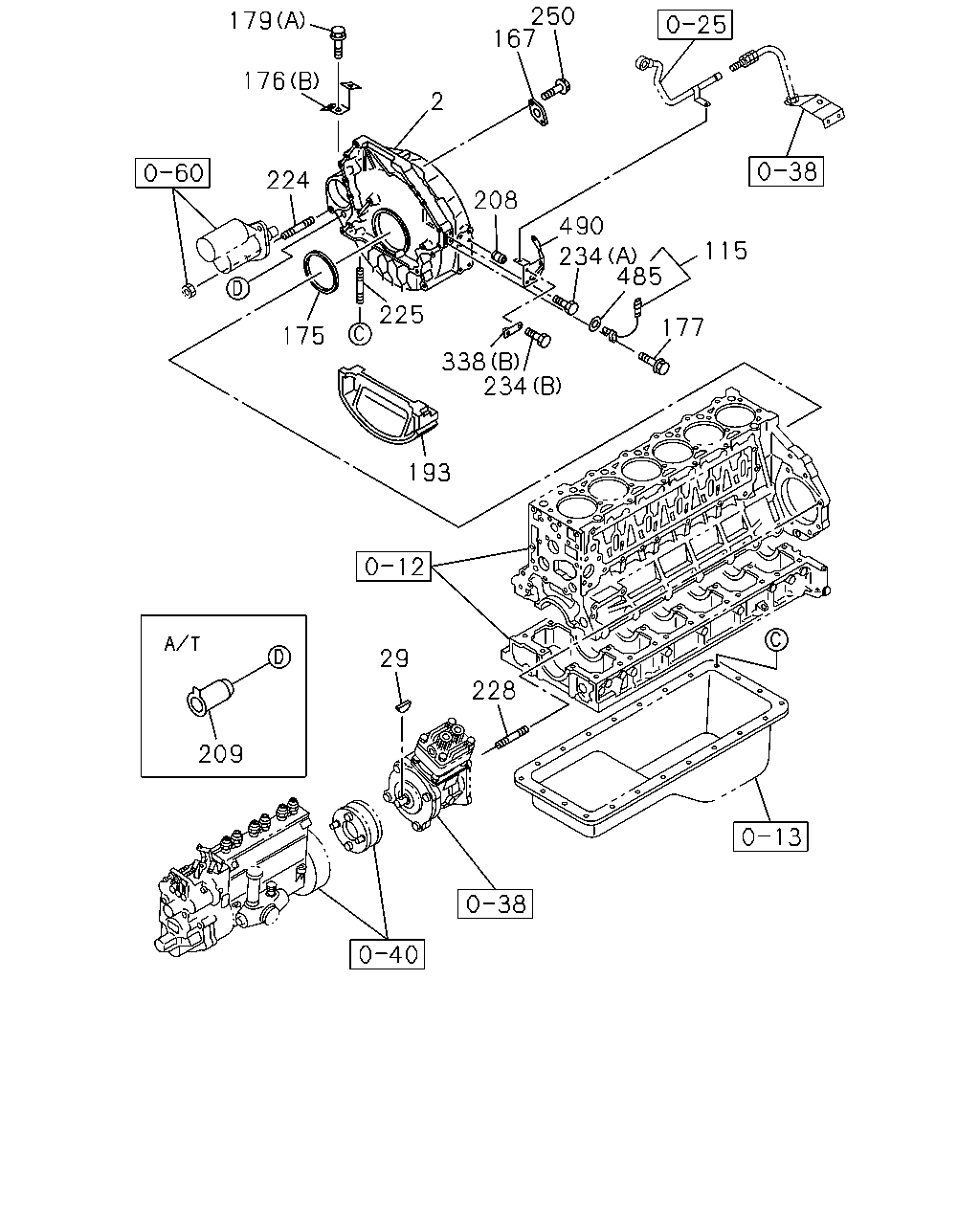

çizim 38667
250 167 179 176 2 224 208 490 234 485 115 225 177 175 338 234 193 29 228 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0211-0306 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0307- ● ● ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005-0210 ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-747-4 01 1 0307- ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 0005-0210 ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0211- ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0210 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0211-0211 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0212-0306 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0307- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0005-0112 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0210 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0211-0306 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0307- ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0210 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
193 SPACER; STAY TO OIL,PAN
EXC. ENGINE REAR PTO(SV1) 		8-94395-674-0 01 1 0005-0210 ● ●
193 SPACER; STAY TO OIL,PAN
ENGINE REAR PTO(SV1) 		8-94396-830-3 01 1 0005-0210 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0210 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0211-0306 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0307- ● ● ●
209 COVER; CONV HOLE
AT545 A/T ALLISON(MD1) 		8-94396-842-0 01 1 0005-0210 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0210 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0211-0306 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0307-0604 ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0210 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0211-0306 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0307- ● ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0307-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0005-0210 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0211- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0210 ● ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ● ●
234 BOLT; BRKT
AT545 A/T ALLISON(MD1) (B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0211-0211 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0212-0306 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ● ● ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0005-0210 ● ● ●
338 BRACKET; CLIP,HARNESS
AT545 A/T ALLISON(MD1) (B) 		1-82699-182-0 01 1 0005-0210 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0211-0306 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0307- ●
338 BRACKET; CLIP,HARNESS
(C) 		1-82699-889-0 01 1 0307- ●
485 GASKET; SENSOR 9-09565-212-0 01 1 0005-0210 ● ●
490 BRACKET; AIR PIPE,VSS 8-94394-857-0 01 1 0005-0210 ● ●

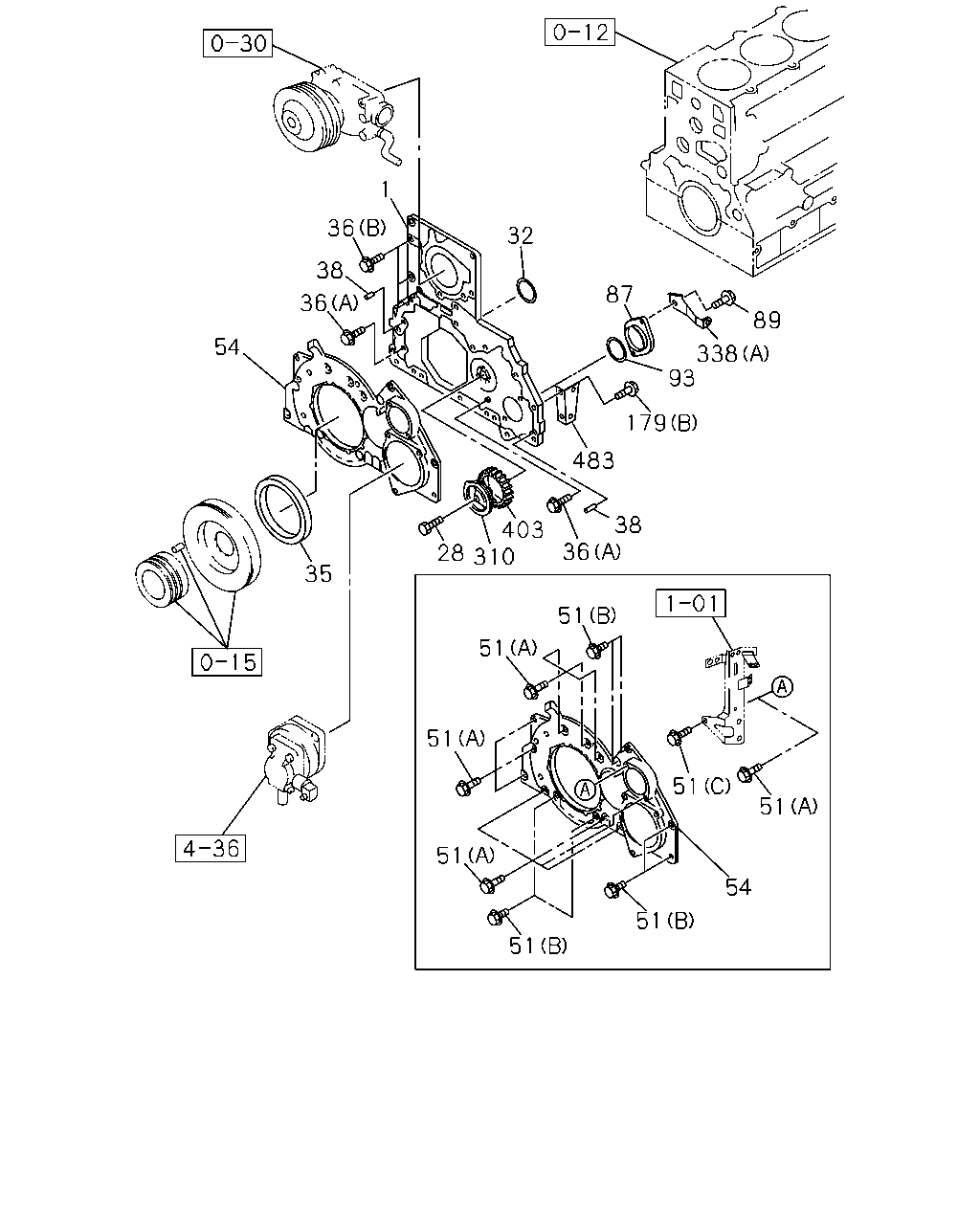

çizim 38670
1 36 32 38 87 36 89 54 338 93 179 483 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0005-0210 ● ● ●
1 CASE; TIMING GEAR
ENGINE REAR PTO(SV1) 		8-94396-434-6 01 1 0211-0306 ●
1 CASE; TIMING GEAR
ENGINE REAR PTO(SV1) 		8-94396-434-6 01 1 0307- ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0005-0210 ● ● ●
28 BOLT; DRIVE GEAR
ENGINE REAR PTO(SV1) M8X28 		8-94399-256-0 03 1 0211-0306 ●
28 BOLT; DRIVE GEAR
ENGINE REAR PTO(SV1) M8X28 		8-94399-256-0 03 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0307- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0307- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0005-0210 ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0211-0306 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0307- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0005-0112 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0210 ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0211-0306 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 0307- ● ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0005-0210 ● ● ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (A) M8X28 FLANGE 		0-28080-828-0 02 1 0211-0306 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (A) M8X28 FLANGE 		0-28080-828-0 02 1 0307-0401 ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0307-0401 ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0402-0801 ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0005-0210 ● ● ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X32 FLANGE 		0-28080-832-0 04 1 0211-0306 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X32 FLANGE 		0-28080-832-0 04 1 0307-0801 ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0307-0801 ●
36 BOLT; GEAR CASE
ENGINE REAR PTO(SV1) (B) M8X35 FLANGE 		0-28050-835-0 04 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0802- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0005-0210 ● ● ●
38 PIN; GEAR CASE COVER
ENGINE REAR PTO(SV1) L=22 		8-94483-674-0 02 1 0211-0306 ●
38 PIN; GEAR CASE COVER
ENGINE REAR PTO(SV1) L=22 		8-94483-674-0 02 1 0307- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0307- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0005-0210 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0005-0210 ● ● ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0211-0306 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0307-0512 ●
51 BOLT; GEAR CASE COVER
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 0005-0210 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28080-835-0 16 1 0211-0512 ● ●
51 BOLT; GEAR CASE COVER
EXC. ENGINE REAR PTO(SV1) (D) M8X35 FLANGE 		0-28050-835-0 16 1 0601- ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0210 ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0005-0210 ● ● ●
54 COVER; GEAR CASE
ENGINE REAR PTO(SV1) 		8-94393-304-1 01 1 0211-0306 ●
54 COVER; GEAR CASE
ENGINE REAR PTO(SV1) 		8-94393-304-1 01 1 0307- ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0307- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0005-0210 ● ● ●
87 COVER; TACHOMETER DRIVE
ENGINE REAR PTO(SV1) 		8-94396-370-0 01 1 0211-0306 ●
87 COVER; TACHOMETER DRIVE
ENGINE REAR PTO(SV1) 		8-94396-370-0 01 1 0307- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0307- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
89 BOLT; ELBOW
ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0211-0306 ●
89 BOLT; ELBOW
ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0307- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0005-0210 ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) OD=54.7 		1-09623-180-0 01 1 0211-0306 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1). OD=54.7 		1-09623-180-0 01 1 0307- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0307- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0005-0210 ● ● ●
310 SHAFT; IDLE GEAR
ENGINE REAR PTO(SV1) 		8-94394-806-0 01 1 0211-0306 ●
310 SHAFT; IDLE GEAR
ENGINE REAR PTO(SV1) 		8-94394-806-0 01 1 0307- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0307- ●
338 BRACKET; CLIP,HARNESS
(A) 		1-82699-889-0 01 1 0005-0210 ● ● ●
338 BRACKET; CLIP,HARNESS
AT545 A/T ALLISON(MD1) (B) 		1-82699-182-0 01 1 0005-0210 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0211-0306 ●
338 BRACKET; CLIP,HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-889-0 01 1 0307- ●
338 BRACKET; CLIP,HARNESS
(C) 		1-82699-889-0 01 1 0307- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0005-0210 ● ● ●
403 GEAR; IDLE,FRONT
ENGINE REAR PTO(SV1) Z=33 		8-94395-943-1 01 1 0211-0306 ●
403 GEAR; IDLE,FRONT
ENGINE REAR PTO(SV1) Z=33 		8-94395-943-1 01 1 0307- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0307- ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0005-0210 ● ● ●
483 BRACKET; WATER DUCT
ENGINE REAR PTO(SV1) 		8-94394-405-1 01 1 0211-0306 ●
483 BRACKET; WATER DUCT
ENGINE REAR PTO(SV1) 		8-94394-405-1 01 1 0307- ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0307- ●

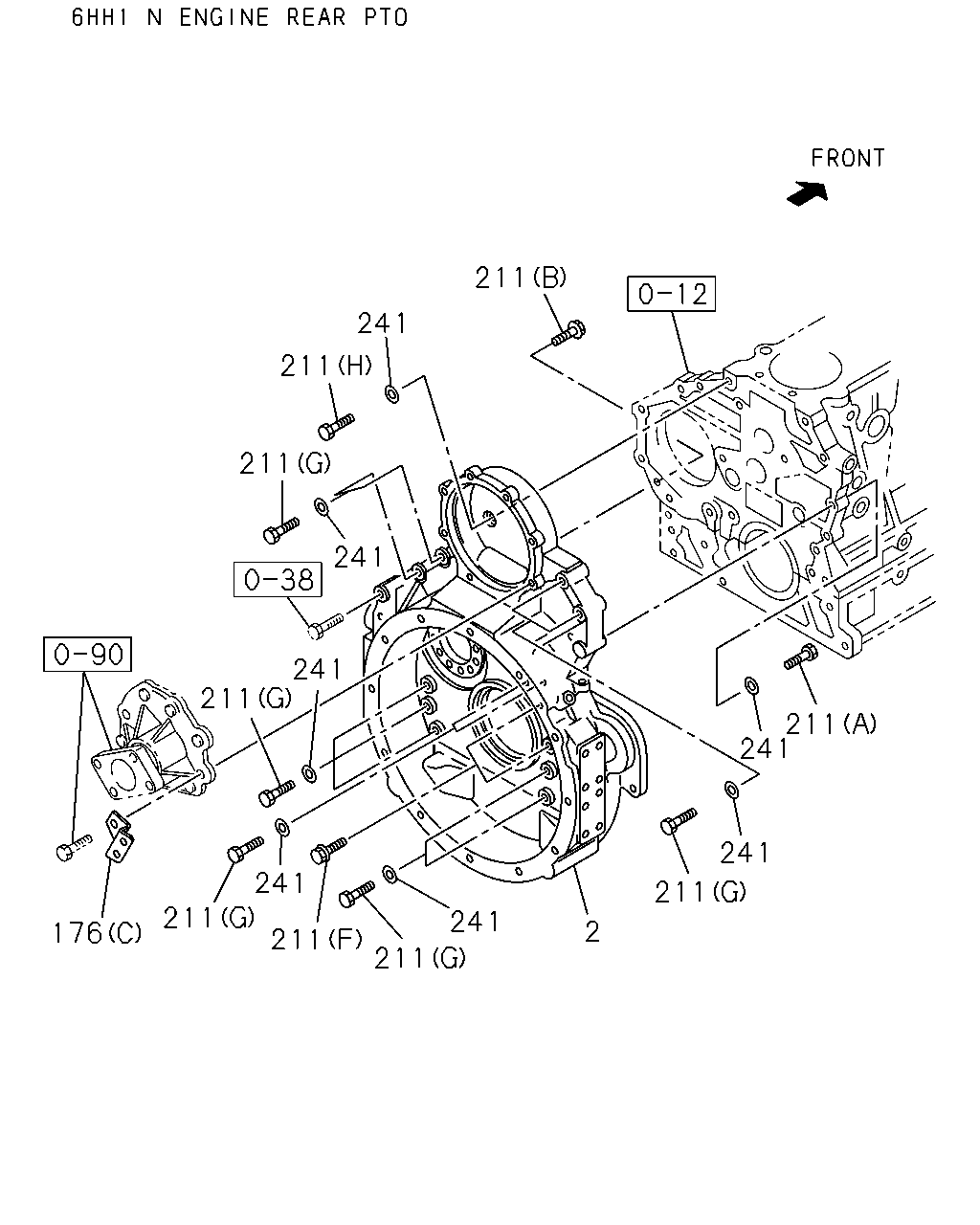

çizim 38671
211 241 211 211 241 241 211 211 241 241 241 211 211 241 2 176 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●

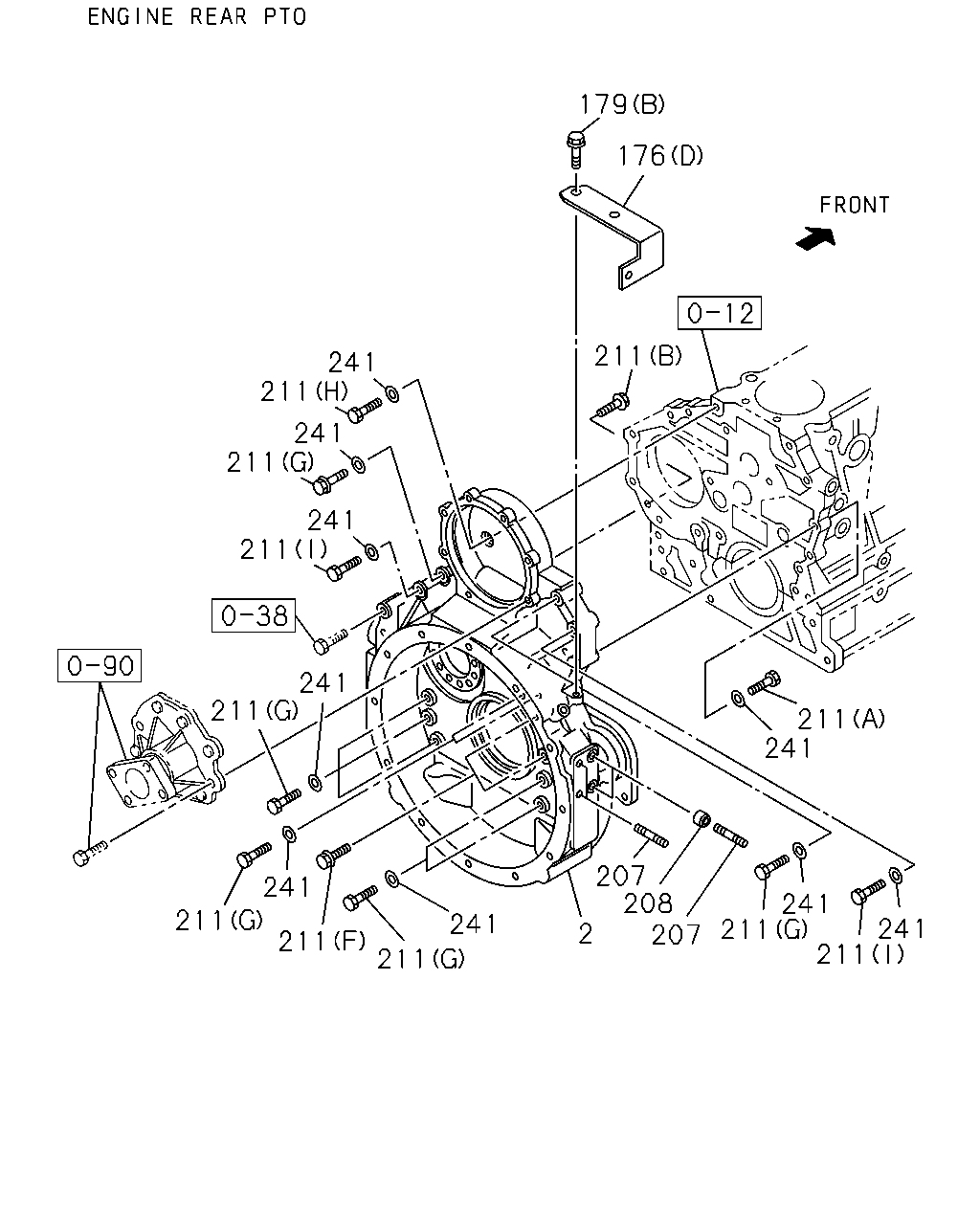

çizim 38683
179 176 211 241 211 241 211 241 211 241 211 211 241 207 208 207 241 241 211 241 211 211 241 2 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X24 L=104 		8-94390-111-0 02 1 0211- ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X10 L=55 		9-94321-255-0 06 1 0211-0604 ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X10 L=55 		0-43211-255-0 06 1 0605- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0210 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0211-0306 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0307- ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●
çizim 38730
179 176 2 19 224 241 207 228 224 175 208 234 556 177 211 419 225 115 556 20 211 404 18 405 29 43 109 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0307- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0005-0210 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 0307-0512 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28151-200-0 01 1 0601- ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 0005-0210 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 0307-0602 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 0307-0602 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0211-0306 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0307- ● ● ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005-0210 ● ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 0307- ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 0005-0210 ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 0307- ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-747-4 01 1 0307- ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 0005-0210 ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0211- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0005-0112 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0210 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0211-0306 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0307- ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0210 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X24 L=104 		8-94390-111-0 02 1 0211- ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X10 L=55 		9-94321-255-0 06 1 0211-0604 ●
207 STUD; ENG FOOT
ENGINE REAR PTO(SV1) M12X10 L=55 		0-43211-255-0 06 1 0605- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0210 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0211-0306 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0307- ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0210 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0211-0306 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0307-0604 ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0210 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0211-0306 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0307- ● ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0307-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0005-0210 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0211- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0210 ● ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0307-0512 ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
234 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ● ●
234 BOLT; BRKT
AT545 A/T ALLISON(MD1) (B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 0307- ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 0005-0210 ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 0307- ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 0005-0210 ●
419 BRACKET; SENSOR 8-97600-360-0 01 1 0307- ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0005-0210 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 03 1 0307-0801 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-97367-985-1 03 1 0802- ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ●
çizim 100585
179 176 2 19 224 228 224 175 241 208 556 177 211 211 419 225 20 115 404 18 405 29 43 241 211 109 20 211 241 167 250 62 241 211 211 356 487 241 62 2 211 486
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOUSING; FLYWHEEL 8-97601-765-8 01 1 0307- ●
2 HOUSING; FLYWHEEL 8-97600-260-2 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-94391-983-9 01 1 0211-1308 ● ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1),A/T<X9D> 		8-98215-259-0 01 1 1309- ● ●
2 HOUSING; FLYWHEEL
FRR(FR****) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
FRR(FR****) MBJ6T M/T(Y2A) EXC. ENGINE REAR PTO(SV1) 		8-94394-757-4 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-133-1 01 1 0211- ●
2 HOUSING; FLYWHEEL
AT545 A/T ALLISON(MD1) 		8-94394-759-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94394-939-3 01 1 0005-0210 ●
2 HOUSING; FLYWHEEL
A/T<X9D> 		8-94391-981-9 01 1 0211- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0307- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0005-0210 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 0307-0512 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28151-200-0 01 1 0601- ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 0005-0210 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 0307-0602 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 0307-0602 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 0005-0210 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0005-0210 ●
29 KEY; COUPLING 9-08055-516-0 01 1 0211-0306 ● ●
29 KEY; COUPLING 9-08055-516-0 01 1 0307- ● ● ●
29 KEY; COUPLING 9-08055-416-0 01 1 0005-0210 ● ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 0307- ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 0005-0210 ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0005-0210 ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0211-0306 ● ●
62 BOLT; COVER
EXC. ENGINE REAR PTO(SV1) (A) M8X14 FLANGE 		0-28080-814-0 03 1 0307- ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0005-0210 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0306 ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0307-0512 ● ● ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 0307- ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-747-4 01 1 0307- ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-0 01 1 0005-0210 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 0005-0210 ● ●
115 SENSOR; REVOLUTION,ENG SPD 8-94390-279-0 01 1 0211- ● ●
167 COVER; OIL 1-11219-163-0 01 1 0005-0210 ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 0211-0211 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0212-0306 ● ●
167 COVER; OIL
EXC. ENGINE REAR PTO(SV1) 		1-11219-163-0 01 1 0307- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0005-0112 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0210 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0211-0306 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0307- ● ● ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0307- ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 0005-0210 ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1),A/T<X9D> (E) 		1-82698-079-1 01 1 0211- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 0005-0210 ● ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (D) 		1-82698-449-0 01 1 0211- ●
176 BRACKET; HARNESS
ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 0005-0210 ●
176 BRACKET; HARNESS
A/T<X9D> (F) 		1-82698-141-0 01 1 0211- ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0005-0210 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0211-0512 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ● ● ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0211-0306 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
179 BOLT; BRKT
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0005-0210 ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0211-0306 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0307- ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X27 FLANGE 		8-94393-995-0 01 1 0307- ● ● ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0005-0210 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 11 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		0-16956-270-0 11 1 0601- ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0211-0306 ● ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 0601- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0005-0210 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0211-0306 ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 01 1 0307-0512 ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28181-050-0 02 1 0211-0512 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (D) M12X70 		9-01666-270-0 12 1 0005-0210 ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (I) M12X185 		8-94393-483-0 02 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 02 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 11 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 11 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (G) M12X128 		8-94399-252-0 09 1 0211- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0005-0210 ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (H) M12X75 		9-01666-275-0 01 1 0211- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0005-0210 ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0211-0306 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0307-0604 ● ● ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0005-0210 ● ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0211-0306 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0307- ● ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0307-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0005-0210 ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0211- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 0005-0210 ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0005-0210 ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0211-0306 ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 0307- ● ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0005-0210 ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 0211- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0005-0210 ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0211-0211 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0212-0306 ● ●
250 BOLT; COVER,OIL
EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE 		0-28080-818-0 02 1 0307- ● ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0005-0210 ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0211-0306 ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=110 		8-94394-186-0 01 1 0307- ● ● ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 0307- ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 0005-0210 ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 0307- ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 0005-0210 ●
419 BRACKET; SENSOR 8-97600-360-0 01 1 0307- ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0005-0210 ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 02 1 0307-0512 ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28151-270-0 02 1 0601- ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 03 1 0005-0210 ●
487 COVER; HOLE 8-94394-513-1 01 1 0005-0210 ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0211-0306 ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-94394-513-1 01 1 0307-0805 ● ● ●
487 COVER; HOLE
EXC. ENGINE REAR PTO(SV1) 		8-98023-824-1 01 1 0806- ● ● ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 03 1 0307-0801 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-97367-985-1 03 1 0802- ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
