Sayfa 0-15 - Isuzu EPC

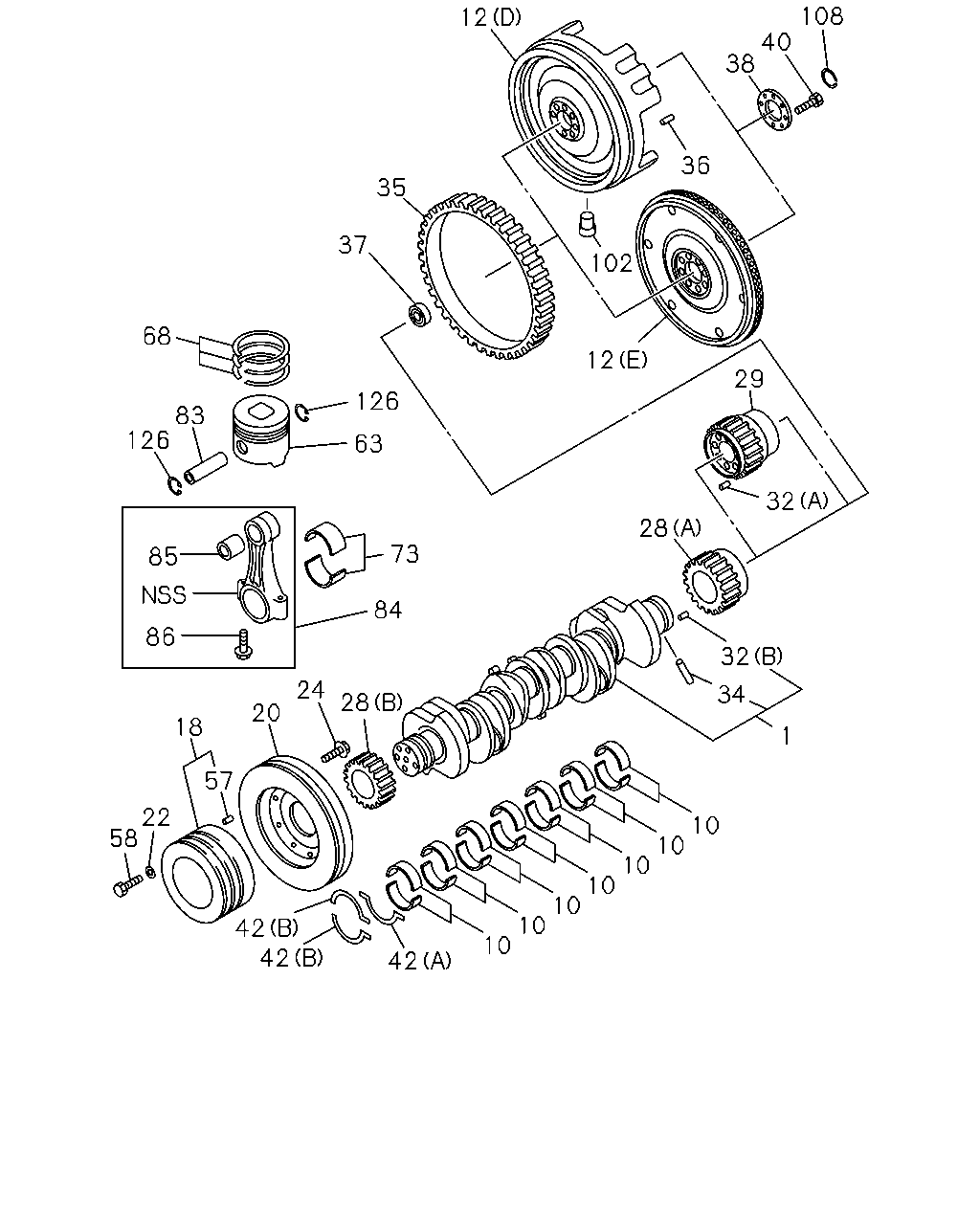

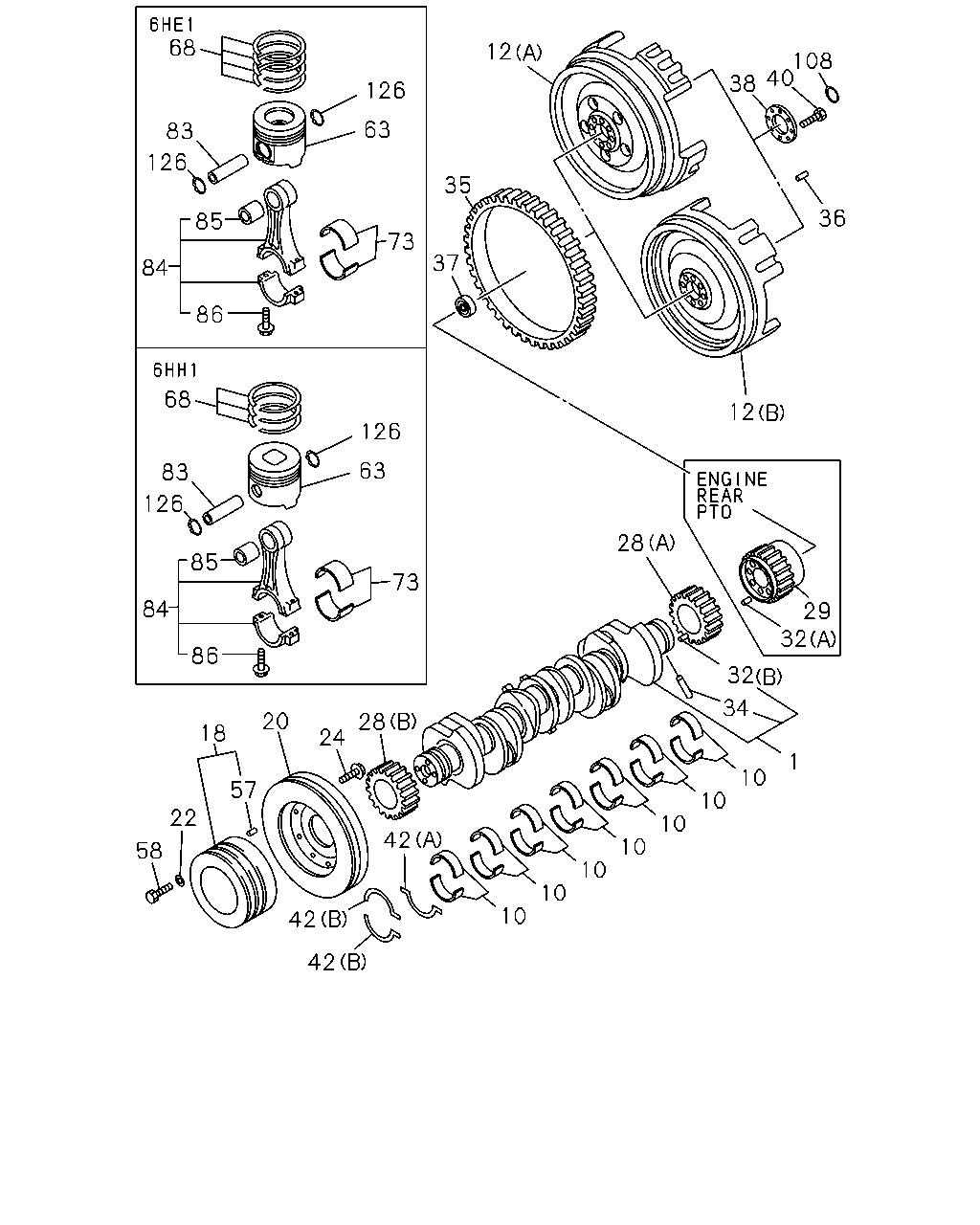

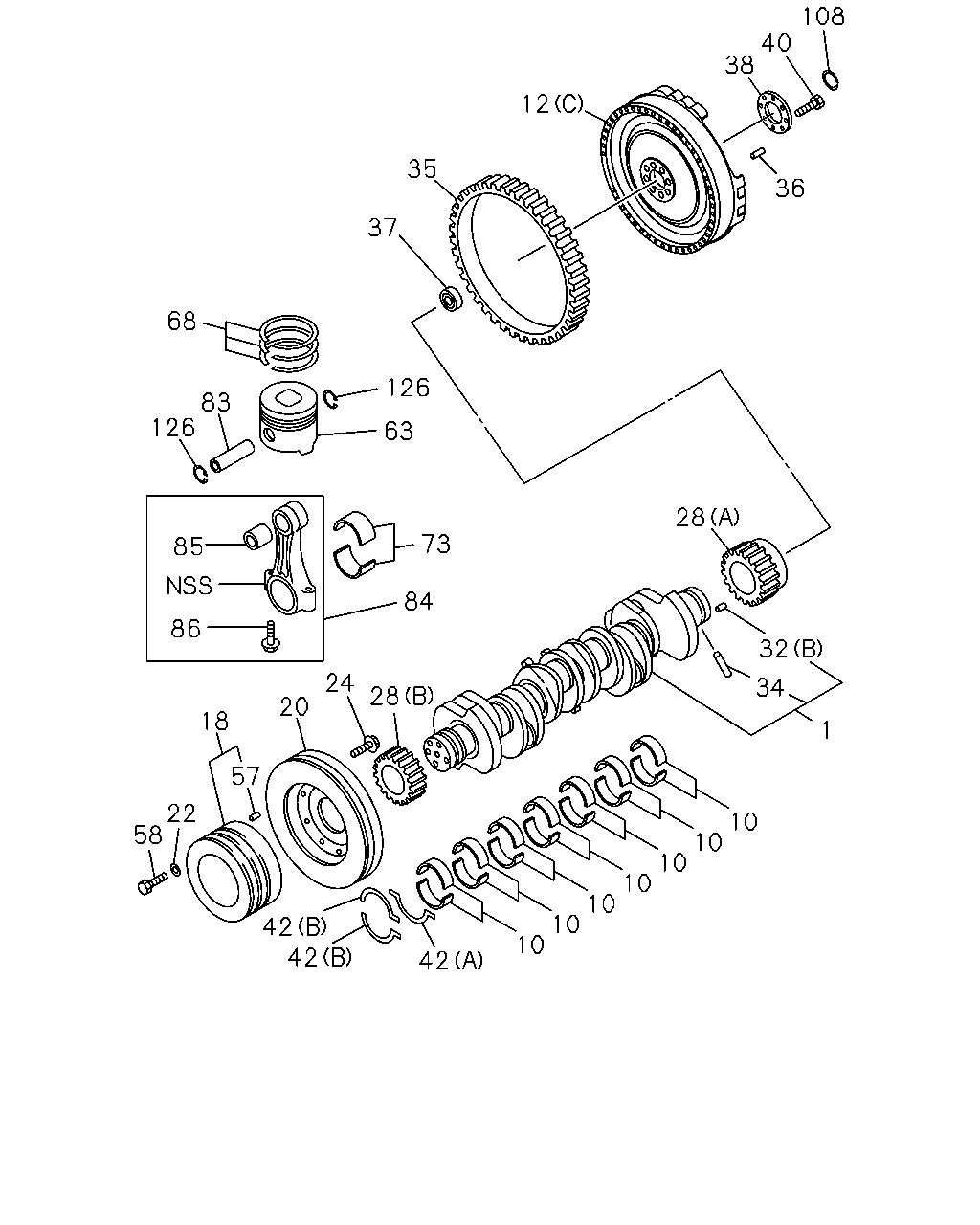

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#8523) — 430 parça

68 108 40 38 126 63 83 126 35 36 85 73 37 84 86 68 126 63 83 126 28 85 73 84 29 86 32 34 20 28 18 24 1 10 57 10 22 10 42 10 58 10 10 10 42 42 12 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0306		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0307-		●	●	●
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210					●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0306	●	●	●		●	●
12	FLYWHEEL (D)	8-97601-269-1	01	1	0307-				●
12	FLYWHEEL (B)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
12	FLYWHEEL (B)	8-94390-131-0	01	1	0005-0210					●
12	FLYWHEEL FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94390-131-0	01	1	0005-0210						●
12	FLYWHEEL EXC. A/T<X9D> (D)	8-94390-941-2	01	1	0211-			●
12	FLYWHEEL AT545 A/T ALLISON(MD1) (A)	8-94397-007-3	01	1	0005-0210						●
12	FLYWHEEL A/T<X9D> (E)	8-94390-258-1	01	1	0211-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF FRR STD CAB(FRR***) AT545 A/T ALLISON(MD1) 3-GROOVE	8-94390-166-2	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210					●
18	PULLEY; CR/SHF FRR(FR****) MBJ6T M/T(Y2A) 3-GROOVE	8-94394-296-3	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-0306		●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0307-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0211-0306		●	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0307-1110		●	●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	0005-0210					●
20	DAMPER; CR/SHF FRR(FR****) MBJ6T M/T(Y2A)	8-94394-354-4	02	1	0005-0210						●
20	DAMPER; CR/SHF AT545 A/T ALLISON(MD1)	8-94396-846-1	01	1	0005-0210						●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●				●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0306		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0307-		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●				●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0306		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0307-0512		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-0306		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0307-		●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0211-0306			●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0307-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0307-				●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0005-0210						●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0211-0304			●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-97365-949-0	01	1	0305-			●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0005-0210	●				●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0211-0306		●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0307-		●	●	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0005-0210						●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0211-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●				●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0306		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0307-		●	●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0211-0302		●
35	GEAR; RING ISUZU M/T<X9A> Z=140	8-94396-784-0	01	1	0211-0302			●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0303-0306		●
35	GEAR; RING MLD6 M/T<X9Y> Z=140	8-94396-784-0	01	1	0303-0306			●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0307-		●		●
35	GEAR; RING EXC. A/T<X9D> Z=140	8-94396-784-1	01	1	0307-			●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0005-0210					●	●
35	GEAR; RING A/T<X9D> Z=129	8-94394-105-0	01	1	0211-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●				●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0306		●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0307-		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●				●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0211-0306		●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0307-		●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●				●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-0306		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0307-		●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●				●
40	BOLT; FLYWHEEL FRR(FR****) EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0211-0306		●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0307-		●	●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0211-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●				●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-0306		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0307-		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●				●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0306		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0307-0512		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0307-				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210					●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-0306		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0307-		●	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-0306		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0307-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210					●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0306		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0307-0706		●	●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●	●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0306		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0307-0706		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210					●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-0306		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0307-1004		●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●				●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0211-0306		●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-0306		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210					●	●

108 40 38 12 35 36 37 68 126 83 126 63 28 73 85 84 86 32 24 34 28 20 18 1 57 22 58 10 10 10 10 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0306		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0307-		●	●	●
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210					●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0306	●	●	●		●	●
12	FLYWHEEL (D)	8-97601-269-1	01	1	0307-				●
12	FLYWHEEL (B)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
12	FLYWHEEL (B)	8-94390-131-0	01	1	0005-0210					●
12	FLYWHEEL FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94390-131-0	01	1	0005-0210						●
12	FLYWHEEL EXC. A/T<X9D> (D)	8-94390-941-2	01	1	0211-			●
12	FLYWHEEL AT545 A/T ALLISON(MD1) (A)	8-94397-007-3	01	1	0005-0210						●
12	FLYWHEEL A/T<X9D> (E)	8-94390-258-1	01	1	0211-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF FRR STD CAB(FRR***) AT545 A/T ALLISON(MD1) 3-GROOVE	8-94390-166-2	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210					●
18	PULLEY; CR/SHF FRR(FR****) MBJ6T M/T(Y2A) 3-GROOVE	8-94394-296-3	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-0306		●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0307-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0211-0306		●	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0307-1110		●	●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	0005-0210					●
20	DAMPER; CR/SHF FRR(FR****) MBJ6T M/T(Y2A)	8-94394-354-4	02	1	0005-0210						●
20	DAMPER; CR/SHF AT545 A/T ALLISON(MD1)	8-94396-846-1	01	1	0005-0210						●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●				●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0306		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0307-		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●				●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0306		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0307-0512		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-0306		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0307-		●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0211-0306			●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0307-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0307-				●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0005-0210	●				●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0211-0306		●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0307-		●	●	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0005-0210						●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0211-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●				●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0306		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0307-		●	●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0211-0302		●
35	GEAR; RING ISUZU M/T<X9A> Z=140	8-94396-784-0	01	1	0211-0302			●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0303-0306		●
35	GEAR; RING MLD6 M/T<X9Y> Z=140	8-94396-784-0	01	1	0303-0306			●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0307-		●		●
35	GEAR; RING EXC. A/T<X9D> Z=140	8-94396-784-1	01	1	0307-			●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0005-0210					●	●
35	GEAR; RING A/T<X9D> Z=129	8-94394-105-0	01	1	0211-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●				●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0306		●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0307-		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●				●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0211-0306		●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0307-		●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●				●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-0306		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0307-		●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●				●
40	BOLT; FLYWHEEL FRR(FR****) EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0211-0306		●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0307-		●	●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0211-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●				●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-0306		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0307-		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●				●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0306		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0307-0512		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0307-				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210					●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-0306		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0307-		●	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-0306		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0307-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210					●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0306		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0307-0706		●	●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●	●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0306		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0307-0706		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210					●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-0306		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0307-1004		●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●				●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0211-0306		●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-0306		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210					●	●

108 12 40 38 36 35 37 102 68 12 29 126 83 126 63 32 28 73 85 84 86 32 24 34 28 20 18 1 57 22 58 10 10 10 10 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	8-94396-737-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-0306		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0307-		●	●	●
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210					●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0307-		●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0306	●	●	●		●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0306	●	●	●		●	●
12	FLYWHEEL (D)	8-97601-269-1	01	1	0307-				●
12	FLYWHEEL (B)	8-94395-450-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
12	FLYWHEEL (B)	8-94390-131-0	01	1	0005-0210					●
12	FLYWHEEL FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94390-131-0	01	1	0005-0210						●
12	FLYWHEEL EXC. A/T<X9D> (D)	8-94390-941-2	01	1	0211-			●
12	FLYWHEEL AT545 A/T ALLISON(MD1) (A)	8-94397-007-3	01	1	0005-0210						●
12	FLYWHEEL A/T<X9D> (E)	8-94390-258-1	01	1	0211-			●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0005-0210	●
18	PULLEY; CR/SHF FRR STD CAB(FRR***) AT545 A/T ALLISON(MD1) 3-GROOVE	8-94390-166-2	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210					●
18	PULLEY; CR/SHF FRR(FR****) MBJ6T M/T(Y2A) 3-GROOVE	8-94394-296-3	01	1	0005-0210						●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-0306		●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0307-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	0211-0306		●	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0307-1110		●	●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●	●	●
20	DAMPER; CR/SHF	8-94394-354-4	02	1	0005-0210					●
20	DAMPER; CR/SHF FRR(FR****) MBJ6T M/T(Y2A)	8-94394-354-4	02	1	0005-0210						●
20	DAMPER; CR/SHF AT545 A/T ALLISON(MD1)	8-94396-846-1	01	1	0005-0210						●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●				●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-0306		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0307-		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●				●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0306		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0307-0512		●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-0306		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0307-		●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●				●	●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0211-0306			●
28	GEAR; CR/SHF ENGINE REAR PTO(SV1) (B) Z=41	8-94396-954-2	01	1	0307-			●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0307-				●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0005-0210						●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0211-0304			●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-97365-949-0	01	1	0305-			●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0005-0210	●				●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0211-0306		●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0307-		●	●	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0005-0210						●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0211-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●				●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-0306		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0307-		●	●	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0211-0302		●
35	GEAR; RING ISUZU M/T<X9A> Z=140	8-94396-784-0	01	1	0211-0302			●
35	GEAR; RING Z=140	8-94396-784-0	01	1	0303-0306		●
35	GEAR; RING MLD6 M/T<X9Y> Z=140	8-94396-784-0	01	1	0303-0306			●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0307-		●		●
35	GEAR; RING EXC. A/T<X9D> Z=140	8-94396-784-1	01	1	0307-			●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0005-0210					●	●
35	GEAR; RING A/T<X9D> Z=129	8-94394-105-0	01	1	0211-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●				●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0211-0306		●	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	0307-		●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●				●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0211-0306		●	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	8-94392-288-0	01	1	0307-		●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●				●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-0306		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0307-		●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0005-0210	●				●
40	BOLT; FLYWHEEL FRR(FR****) EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0211-0306		●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0307-		●	●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0005-0210						●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0211-			●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●				●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0306		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0307-0703		●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●				●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-0306		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0307-		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●				●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0306		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0307-0512		●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-109-0	06	1	0307-				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210					●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-6	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-0306		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0307-		●	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0306		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0307-0701		●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-0306		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0307-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210					●	●
84	ROD ASM; CONN	8-94399-661-1	06	1	0005-0108	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0306		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0307-0706		●	●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●	●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0005-0108	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0306		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0307-0706		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210					●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-0306		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0307-1004		●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●	●	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0307-				●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●				●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0211-0306		●	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-0306		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0307-		●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
