0-13 — OIL PAN AND LEVEL GAUGE (#8521) — 142 parça

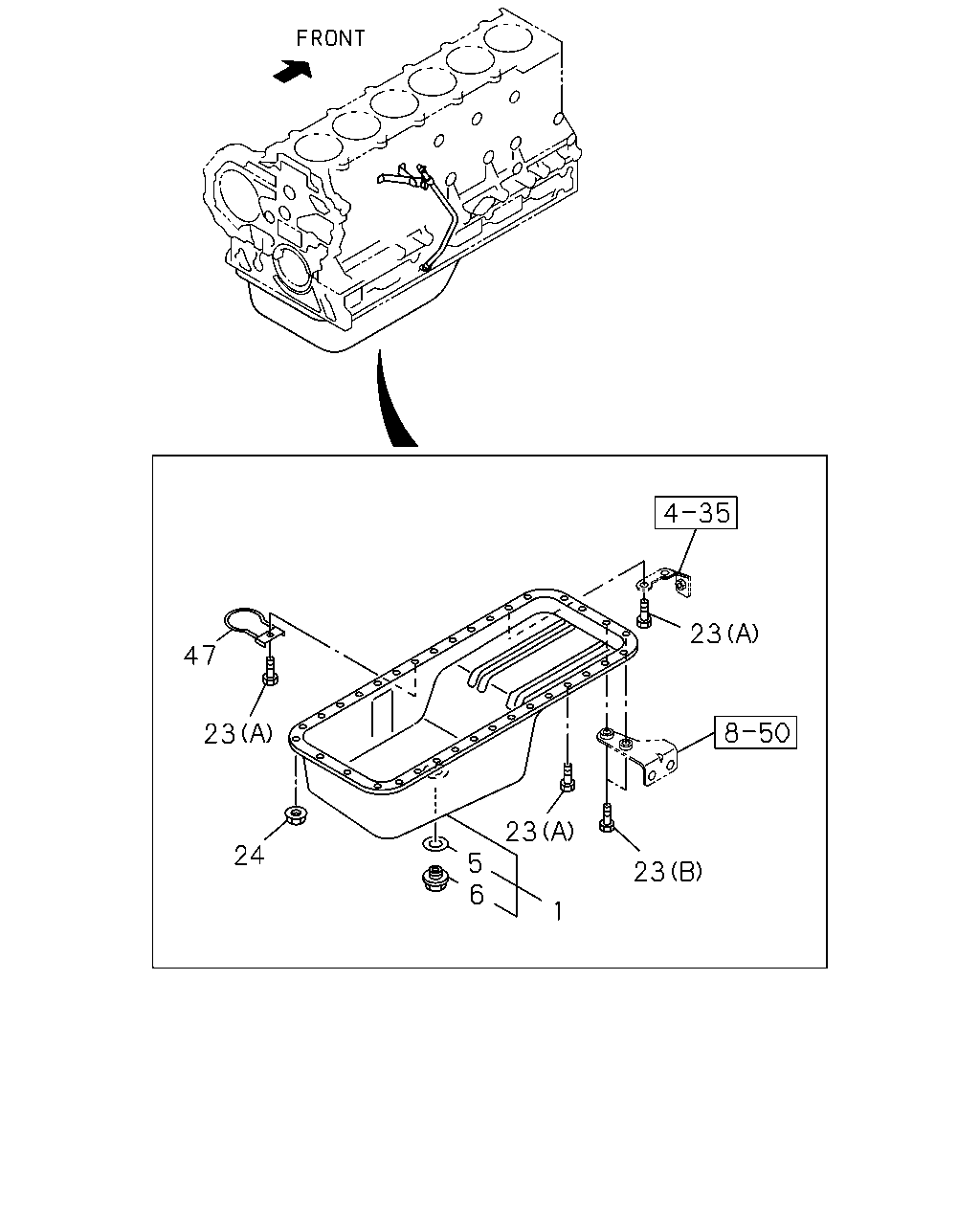

çizim 38184
23 47 23 23 24 5 6 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94394-711-1 01 1 0005-0210 ●
1 PAN ASM; OIL 8-94394-711-1 01 1 0211-0306 ● ●
1 PAN ASM; OIL 8-94394-711-2 01 1 0307- ● ● ●
1 PAN ASM; OIL 8-94395-608-1 01 1 0005-0210 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0005-0210 ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0211-0306 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0307- ● ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0005-0210 ● ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0211-0306 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0307- ● ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 0005-0210 ● ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0211-0306 ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0307- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0211-0306 ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0307- ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0211-0306 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0307-0602 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0005-0210 ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0211-0306 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0307- ● ● ●

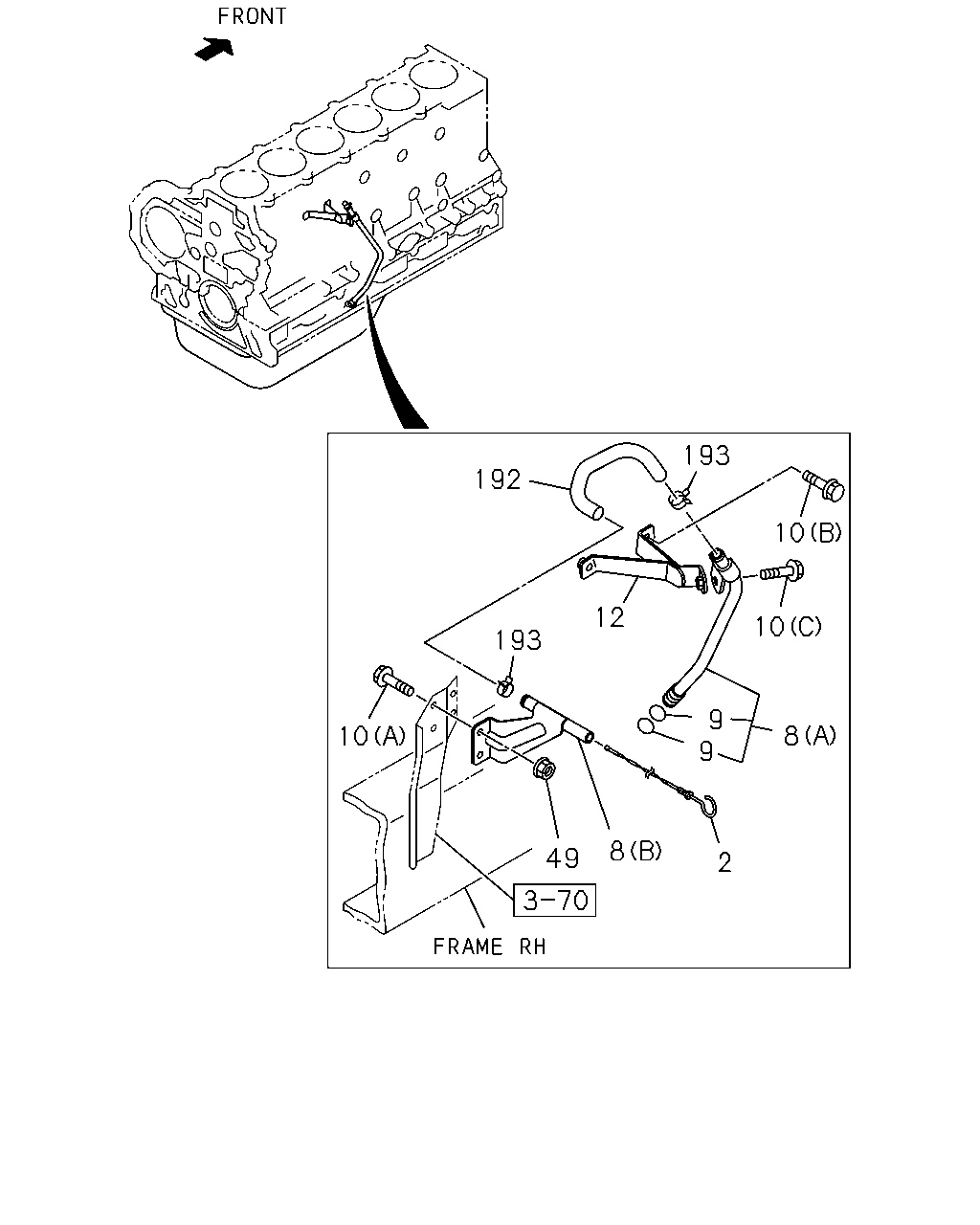

çizim 38521
193 192 10 12 10 193 9 9 8 10 8 49 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 0005-0210 ● ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0211- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0307- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0005-0210 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94392-176-1 01 1 0211- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR STD CAB(FR**M*) FSR(FS****) (B) 		1-11766-452-0 01 1 0005-0210 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR STD CAB(FR**M*) FSR(FS****) (B) 		1-11766-452-0 01 1 0211- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR DOUBLE CAB(FR**W*) (B) 		1-11766-474-0 01 1 0005-0210 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR DOUBLE CAB(FR**W*) (B) 		1-11766-474-0 01 1 0211- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0005-0112 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0210 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0211-0306 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0307- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0211-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO(SV1) 		8-94392-547-0 01 1 0408- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 0307- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94394-903-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-150-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94392-600-0 01 1 0211-0407 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. ENGINE REAR PTO(SV1) 		8-94392-600-0 01 1 0408- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0005-0210 ● ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0211-0305 ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 0306- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0005-0210 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0211- ● ● ●

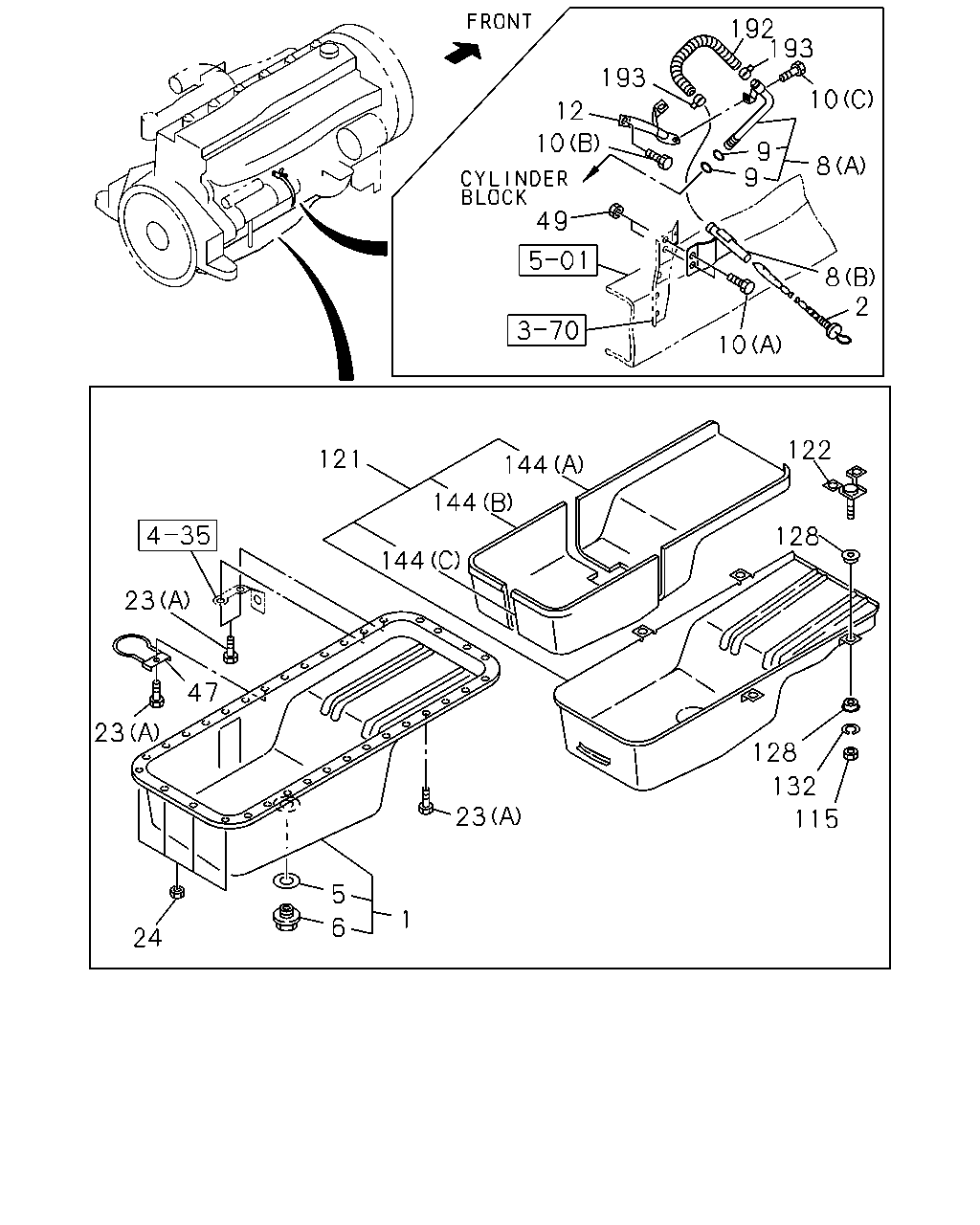

çizim 38692
192 193 193 10 12 10 9 9 8 49 8 2 10 122 121 144 144 128 144 23 47 23 128 132 23 115 5 1 6 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL 8-94394-711-1 01 1 0005-0210 ●
1 PAN ASM; OIL 8-94394-711-1 01 1 0211-0306 ● ●
1 PAN ASM; OIL 8-94394-711-2 01 1 0307- ● ● ●
1 PAN ASM; OIL 8-94395-608-1 01 1 0005-0210 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 0005-0210 ● ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0211- ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0005-0210 ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0211-0306 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0307- ● ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0005-0210 ● ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0211-0306 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0307- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0307- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0005-0210 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94392-176-1 01 1 0211- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR STD CAB(FR**M*) FSR(FS****) (B) 		1-11766-452-0 01 1 0005-0210 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR STD CAB(FR**M*) FSR(FS****) (B) 		1-11766-452-0 01 1 0211- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR DOUBLE CAB(FR**W*) (B) 		1-11766-474-0 01 1 0005-0210 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
FRR DOUBLE CAB(FR**W*) (B) 		1-11766-474-0 01 1 0211- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0005-0112 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0210 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0211-0306 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0307- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0307-0512 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0211-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0307-0512 ● ● ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0005-0210 ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0512 ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE REAR PTO(SV1) 		8-94392-547-0 01 1 0408- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 0307- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94394-903-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-150-0 01 1 0005-0210 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94392-600-0 01 1 0211-0407 ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. ENGINE REAR PTO(SV1) 		8-94392-600-0 01 1 0408- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 30 1 0005-0210 ● ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0211-0306 ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0307- ● ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0211-0306 ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		0-28080-828-0 02 1 0307- ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0211-0306 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0307-0602 ● ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0005-0210 ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0211-0306 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0307- ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
115 NUT; OIL PAN COVER
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ●
121 COVER; OIL PAN 8-94395-613-2 01 1 0005-0210 ● ●
122 BRACKET; OIL PAN COVER 8-94396-827-0 04 1 0005-0210 ● ●
128 RUBBER; MTG,OIL PAN 1-09337-024-0 08 1 0005-0210 ● ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0005-0210 ● ●
144 INSULATOR; OIL PAN
(C) 		8-94395-874-0 01 1 0005-0210 ● ●
144 INSULATOR; OIL PAN
(A) 		8-94395-875-0 01 1 0005-0210 ● ●
144 INSULATOR; OIL PAN
(B) 		8-94395-876-0 01 1 0005-0210 ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0005-0210 ● ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0211-0305 ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 0306- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0005-0210 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0211- ● ● ●
