◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#8519) — 342 parça

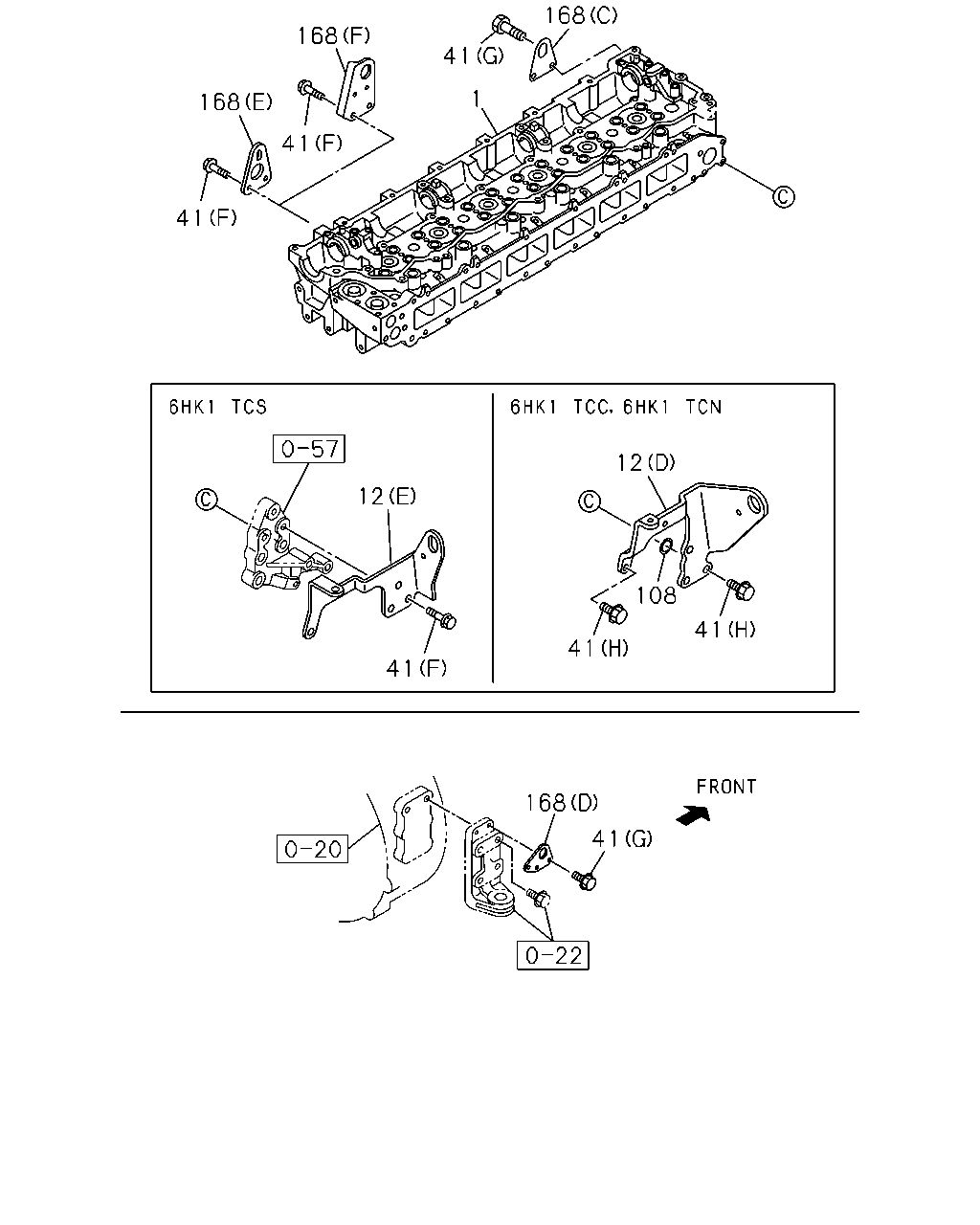

çizim 38182
168 168 41 1 168 41 41 12 12 108 41 41 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97602-687-1 01 1 0307-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0005-0210 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 0211-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ● ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ● ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ● ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0005-0210 ● ●
12 HANGER; ENG,RR
(E) 		8-97601-477-0 01 1 0307- ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 0005-0210 ●
12 HANGER; ENG,RR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-94391-640-1 01 1 0211-0302 ●
12 HANGER; ENG,RR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-94391-640-2 01 1 0303-0306 ● ●
12 HANGER; ENG,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-94391-640-2 01 1 0307- ● ●
12 HANGER; ENG,RR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-94399-405-0 01 1 0005-0210 ● ●
12 HANGER; ENG,RR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (A) 		8-94399-405-0 01 1 0005-0210 ●
12 HANGER; ENG,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-94390-417-2 01 1 0211- ● ●
12 HANGER; ENG,RR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-94399-404-2 01 1 0005-0210 ● ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28181-020-0 06 1 0307-0512 ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0210 ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28181-020-0 03 1 0211-0512 ● ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0210 ●
41 BOLT; ENG HANGER
(H) M12X22 FLANGE 		0-28181-222-0 03 1 0211- ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0005-0210 ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28781-025-0 02 1 0211-0306 ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28781-025-0 02 1 0307-0512 ● ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0210 ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 0005-0210 ● ●
41 BOLT; ENG HANGER
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005-0210 ● ●
41 BOLT; ENG HANGER
FRR DOUBLE CAB(FR**W*) FSR(FS****) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005-0210 ●
108 GASKET; HANGER,RR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.2 		1-09623-375-0 01 1 0005-0210 ● ●
108 GASKET; HANGER,RR
FRR DOUBLE CAB(FR**W*) FSR(FS****) ID=35.2 		1-09623-375-0 01 1 0005-0210 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0211-0407 ● ●
108 GASKET; HANGER,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.2 		1-09623-375-0 01 1 0408- ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0307- ●
168 HANGER; ENG,FRT
(F) 		8-94394-071-2 01 1 0307- ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 0005-0210 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 0005-0210 ●
168 HANGER; ENG,FRT
EXC. ENGINE REAR PTO(SV1) (D) 		8-94392-799-0 01 1 0211- ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 0005-0210 ● ●
168 HANGER; ENG,FRT
(E) 		8-94399-403-1 01 1 0211- ● ●

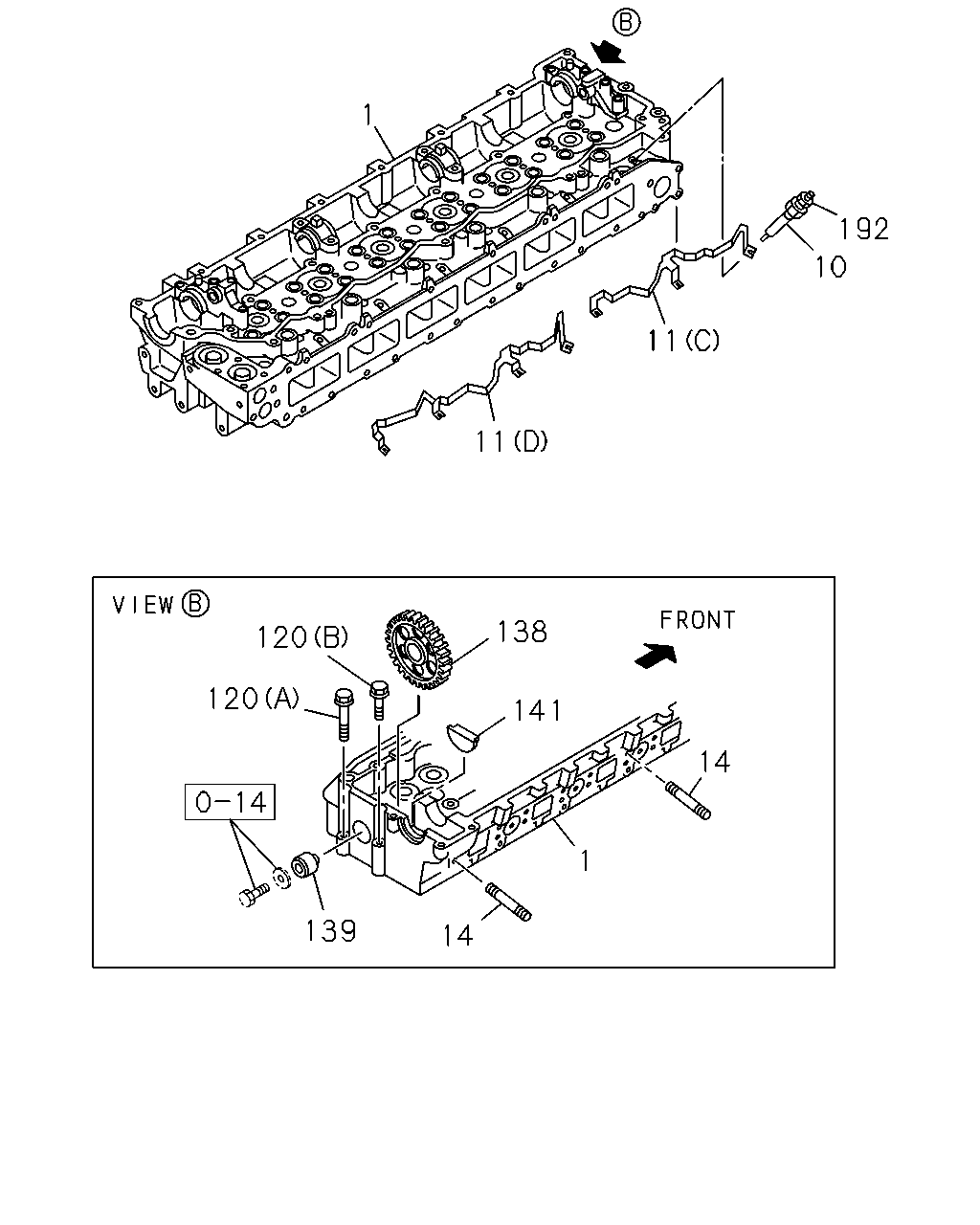

çizim 38186
1 192 10 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97602-687-1 01 1 0307-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0005-0210 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 0211-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ● ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ● ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ● ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0005-0210 ● ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0307- ●
10 PLUG; GLOW 1-82513-043-1 06 1 0005-0210 ● ● ●
10 PLUG; GLOW 8-94392-815-4 06 1 0211- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207-0210 ● ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0211-0306 ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0307-0804 ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-98040-649-0 01 1 0805- ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005-0210 ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0211-0306 ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0307-0804 ● ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-648-0 01 1 0805- ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0210 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0211-0306 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0307- ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0210 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0211-0306 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0307- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0210 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0211-0306 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0307- ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0210 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0211-0306 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0307- ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 0005-0210 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0211-0306 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0307- ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0210 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0211-0306 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0307-1005 ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0307- ●

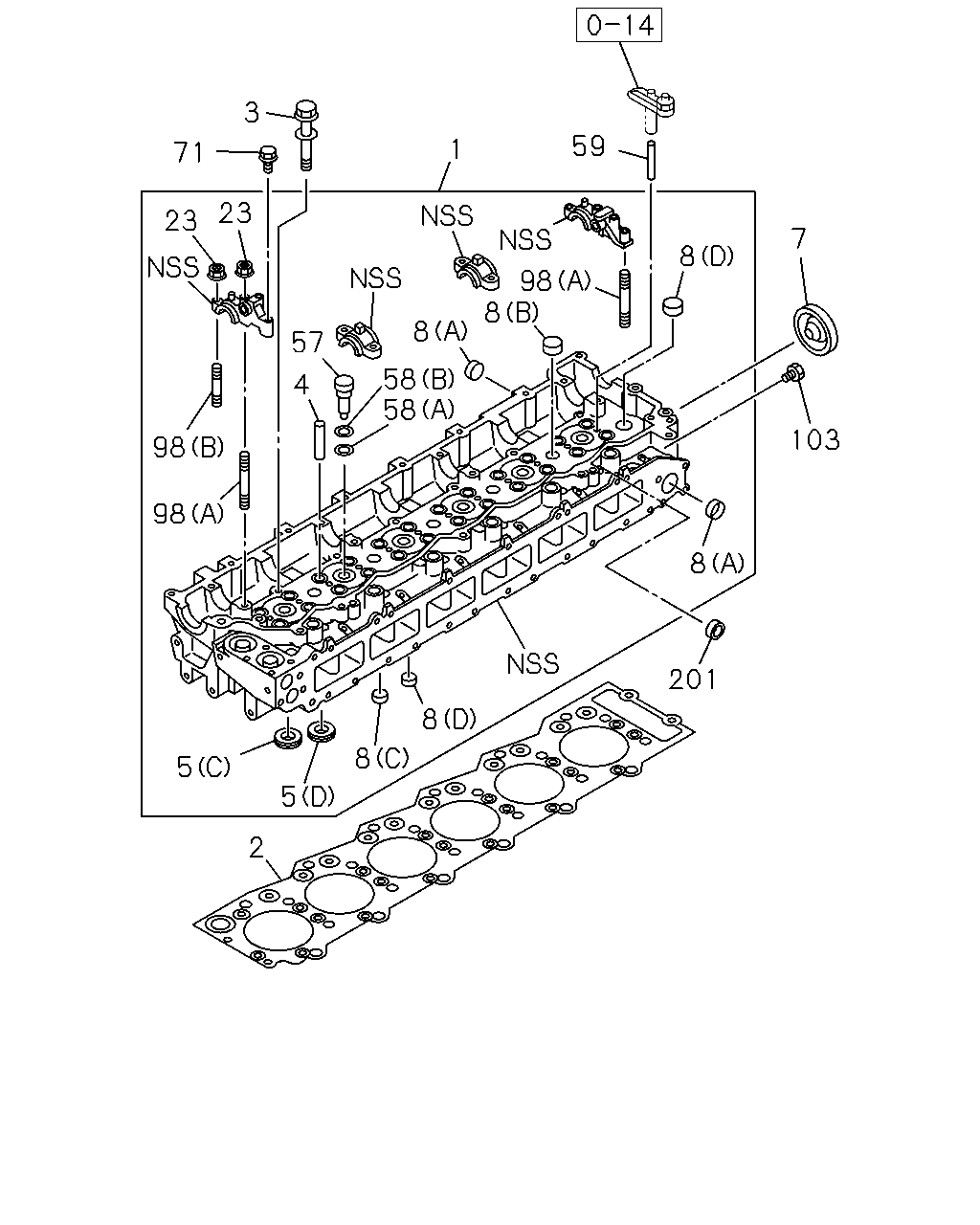

çizim 38325
14 3 59 1 71 23 23 7 8 98 8 8 57 58 58 4 103 98 98 8 201 8 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97602-687-1 01 1 0307-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0005-0210 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 0211-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ● ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ● ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ● ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0005-0210 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94392-721-3 01 1 0307- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 0005-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0211-0407 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-2 01 1 0005-0210 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0210 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0211-0306 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0307-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK 8-98260-005-0 26 1 1408- ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005-0210 ● ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0211-0306 ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0307-0707 ● ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0005-0210 ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 12 1 0211-0306 ● ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 12 1 0307-0703 ● ● ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005-0210 ● ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-0 12 1 0211-0306 ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-2 12 1 0307- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0005-0210 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0210 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0211-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0306 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 06 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=32 		1-09600-012-1 01 1 0005-0210 ● ●
8 CUP; SEALING,WATER JACKET
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (A) OD=32 		1-09600-012-1 01 1 0211-0302 ●
8 CUP; SEALING,WATER JACKET
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (A) OD=32 		1-09600-012-1 01 1 0303-0306 ● ●
8 CUP; SEALING,WATER JACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=32 		1-09600-012-2 01 1 0307- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0307- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0307- ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0210 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0211-0306 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0307- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0210 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0211-0306 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0307-0602 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0211-0306 ● ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0307-0507 ● ● ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0508- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0508- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27 		1-09623-355-0 06 1 0211-0306 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27 		1-09623-355-0 06 1 0307-0406 ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0407- ● ● ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0211-0306 ● ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0307-0409 ● ● ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0410- ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0211-0306 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0307-0512 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0210 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0211-0306 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0307- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0210 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0211-0306 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0307- ● ● ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0211-0306 ● ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0307-0501 ● ● ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502- ● ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 0211-0306 ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 0307- ● ● ●

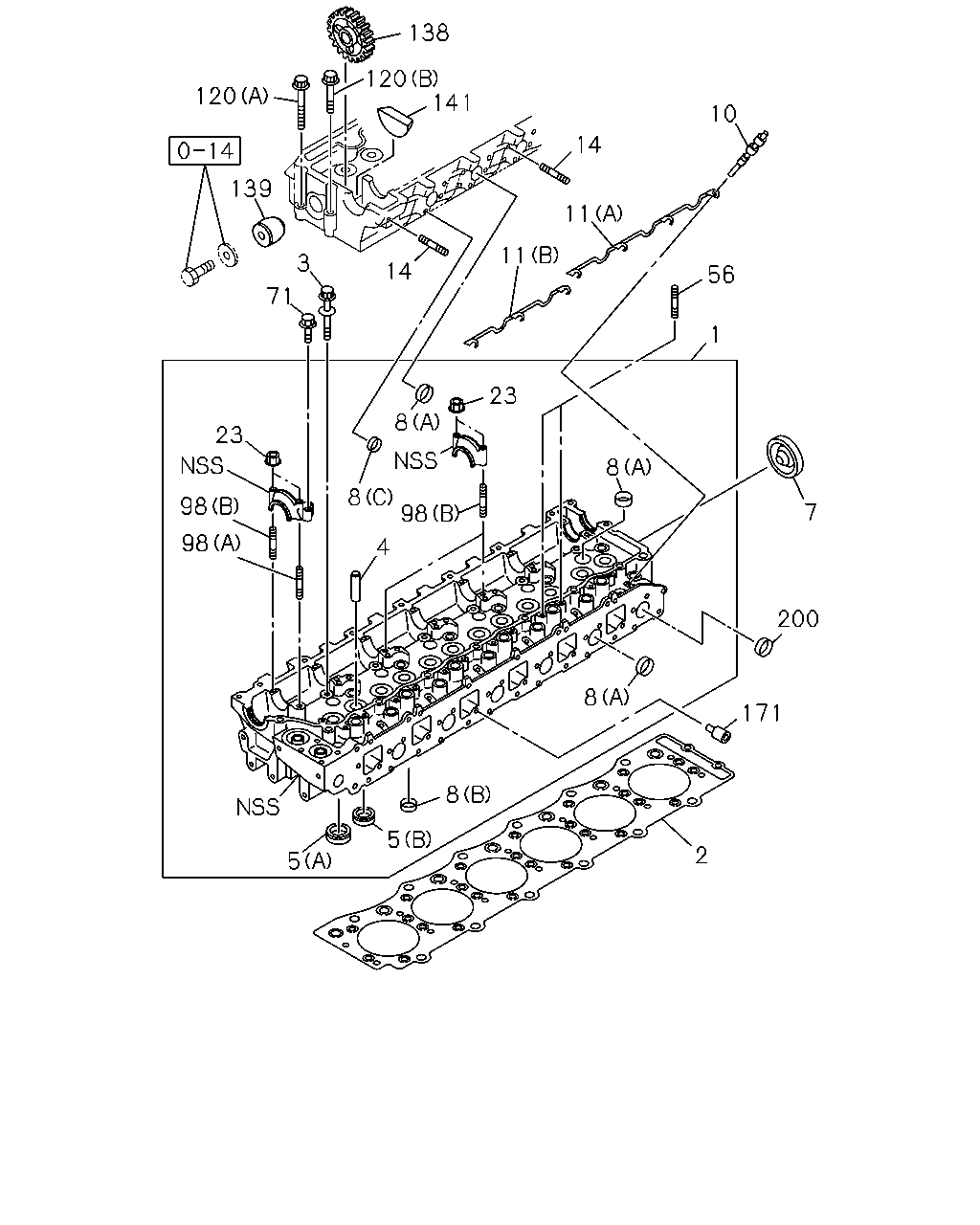

çizim 38695
138 120 141 120 10 14 139 11 11 3 14 56 71 1 23 8 23 8 8 98 98 7 98 4 200 8 171 8 5 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97602-687-1 01 1 0307-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0005-0210 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 0211-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ● ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ● ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ● ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0005-0210 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94392-721-3 01 1 0307- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 0005-0210 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0211-0407 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-2 01 1 0005-0210 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0005-0210 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0211-0306 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0307-0901 ● ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ● ● ●
3 BOLT; CYL HD TO BLOCK 8-98260-005-0 26 1 1408- ● ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0005-0210 ● ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0211-0306 ● ●
4 GUIDE; VLV
L=57 		8-94390-780-0 24 1 0307-0707 ● ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0708- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0005-0210 ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 12 1 0211-0306 ● ●
5 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 12 1 0307-0703 ● ● ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0005-0210 ● ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-0 12 1 0211-0306 ● ●
5 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-2 12 1 0307- ● ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0005-0210 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0005-0210 ● ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0211-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304-0306 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 06 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0005-0210 ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0307- ● ● ●
8 CUP; SEALING,WATER JACKET
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=32 		1-09600-012-1 01 1 0005-0210 ● ●
8 CUP; SEALING,WATER JACKET
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (A) OD=32 		1-09600-012-1 01 1 0211-0302 ●
8 CUP; SEALING,WATER JACKET
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (A) OD=32 		1-09600-012-1 01 1 0303-0306 ● ●
8 CUP; SEALING,WATER JACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=32 		1-09600-012-2 01 1 0307- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0307- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0211-0306 ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0307- ● ● ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0307- ●
10 PLUG; GLOW 1-82513-043-1 06 1 0005-0210 ● ● ●
10 PLUG; GLOW 8-94392-815-4 06 1 0211- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0005-0206 ● ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207-0210 ● ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0211-0306 ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-94392-843-1 01 1 0307-0804 ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-98040-649-0 01 1 0805- ● ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0005-0210 ● ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0211-0306 ● ●
11 CONNECTOR; GLOW PLUG
(C) 		8-94391-925-3 01 1 0307-0804 ● ● ●
11 CONNECTOR; GLOW PLUG
(D) 		8-98040-648-0 01 1 0805- ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0005-0210 ● ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0211-0306 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0307- ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0005-0210 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0211-0306 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0307-0602 ● ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0005-0210 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0211-0306 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0307-0512 ● ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0005-0210 ● ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0211-0306 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0307- ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0005-0210 ● ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0211-0306 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0307- ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0005-0210 ● ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0211-0306 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0307- ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0005-0210 ● ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0211-0306 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0307- ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0005-0210 ● ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0211-0306 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0307- ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 0005-0210 ● ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0211-0306 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0307- ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0005-0210 ● ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0211-0306 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0307-1005 ● ● ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ● ● ●
171 SEAT; VLV 8-94394-678-1 06 1 0005-0210 ●
171 SEAT; VLV 8-94395-210-0 06 1 0005-0210 ● ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-1 01 1 0005-0210 ●

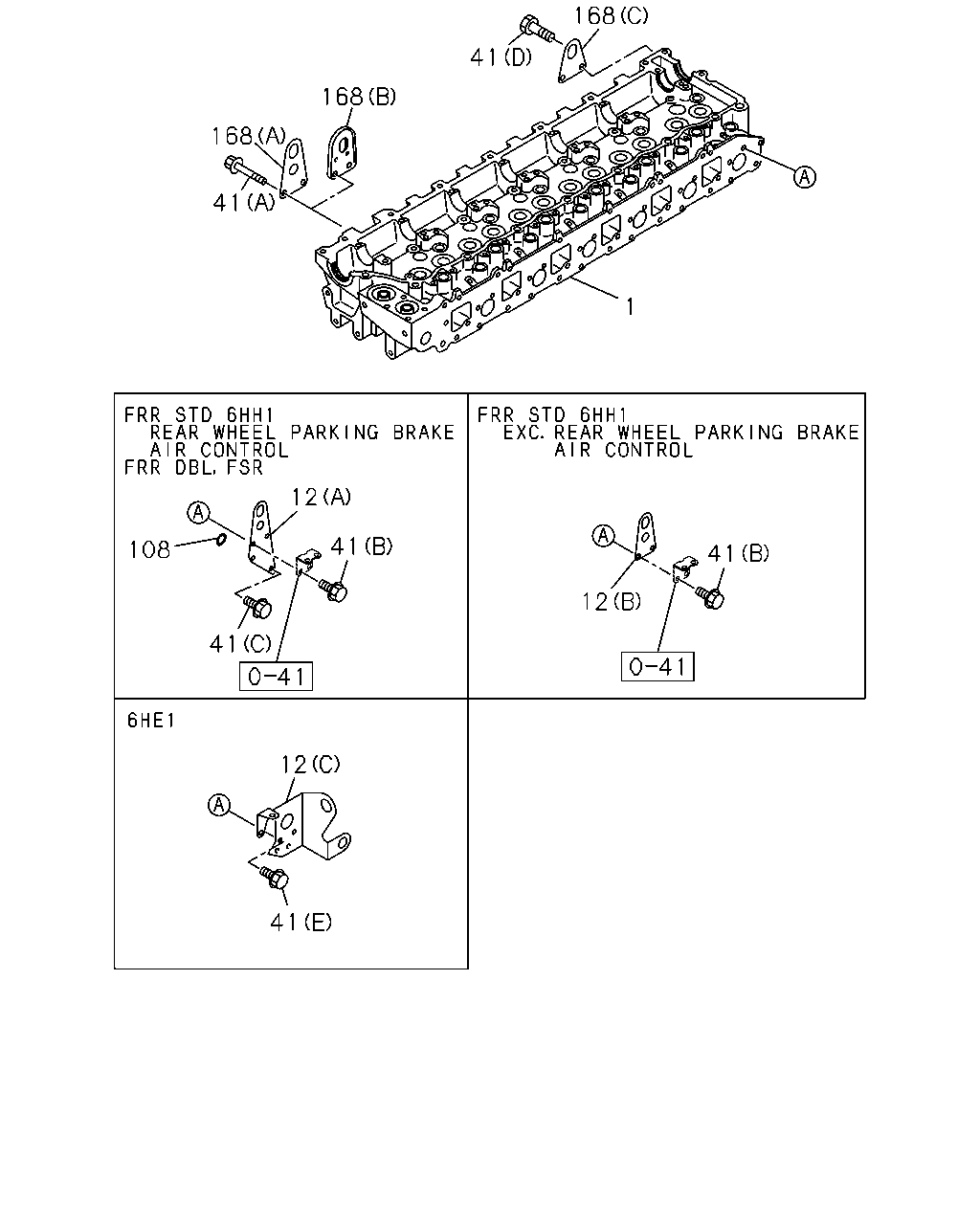

çizim 38696
168 41 168 168 41 1 12 41 41 108 12 41 12 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HEAD ASM; CYL 8-97602-687-1 01 1 0307-0406 ●
1 HEAD ASM; CYL 8-97605-005-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-992-6 01 1 0508-1004 ●
1 HEAD ASM; CYL 8-98170-623-0 01 1 1005-1012 ●
1 HEAD ASM; CYL 8-98180-562-2 01 1 1101-1305 ●
1 HEAD ASM; CYL 8-98243-816-0 01 1 1306- ●
1 HEAD ASM; CYL 8-94391-162-3 01 1 0005-0210 ●
1 HEAD ASM; CYL 8-94392-449-9 01 1 0211-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508-1004 ● ●
1 HEAD ASM; CYL 8-98170-622-0 01 1 1005-1012 ● ●
1 HEAD ASM; CYL 8-98180-561-2 01 1 1101-1305 ● ●
1 HEAD ASM; CYL 8-98243-815-0 01 1 1306- ● ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0005-0210 ● ●
12 HANGER; ENG,RR
(E) 		8-97601-477-0 01 1 0307- ●
12 HANGER; ENG,RR
(C) 		8-94394-337-1 01 1 0005-0210 ●
12 HANGER; ENG,RR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-94391-640-1 01 1 0211-0302 ●
12 HANGER; ENG,RR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-94391-640-2 01 1 0303-0306 ● ●
12 HANGER; ENG,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-94391-640-2 01 1 0307- ● ●
12 HANGER; ENG,RR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-94399-405-0 01 1 0005-0210 ● ●
12 HANGER; ENG,RR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (A) 		8-94399-405-0 01 1 0005-0210 ●
12 HANGER; ENG,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-94390-417-2 01 1 0211- ● ●
12 HANGER; ENG,RR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-94399-404-2 01 1 0005-0210 ● ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28181-020-0 06 1 0307-0512 ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28151-020-0 06 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0005-0210 ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28181-020-0 03 1 0211-0512 ● ●
41 BOLT; ENG HANGER
(F) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0005-0210 ●
41 BOLT; ENG HANGER
(H) M12X22 FLANGE 		0-28181-222-0 03 1 0211- ● ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 0005-0210 ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28781-025-0 02 1 0211-0306 ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28781-025-0 02 1 0307-0512 ● ● ●
41 BOLT; ENG HANGER
EXC. ENGINE REAR PTO(SV1) (G) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0005-0210 ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 0005-0210 ● ●
41 BOLT; ENG HANGER
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005-0210 ● ●
41 BOLT; ENG HANGER
FRR DOUBLE CAB(FR**W*) FSR(FS****) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0005-0210 ●
108 GASKET; HANGER,RR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.2 		1-09623-375-0 01 1 0005-0210 ● ●
108 GASKET; HANGER,RR
FRR DOUBLE CAB(FR**W*) FSR(FS****) ID=35.2 		1-09623-375-0 01 1 0005-0210 ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0211-0407 ● ●
108 GASKET; HANGER,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.2 		1-09623-375-0 01 1 0408- ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-1 01 1 0307- ●
168 HANGER; ENG,FRT
(F) 		8-94394-071-2 01 1 0307- ●
168 HANGER; ENG,FRT
(B) 		8-94391-505-0 01 1 0005-0210 ●
168 HANGER; ENG,FRT
(C) 		8-94394-398-0 01 1 0005-0210 ●
168 HANGER; ENG,FRT
EXC. ENGINE REAR PTO(SV1) (D) 		8-94392-799-0 01 1 0211- ● ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 0005-0210 ● ●
168 HANGER; ENG,FRT
(E) 		8-94399-403-1 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
