0-10 — CYLINDER HEAD COVER (#8518) — 83 parça

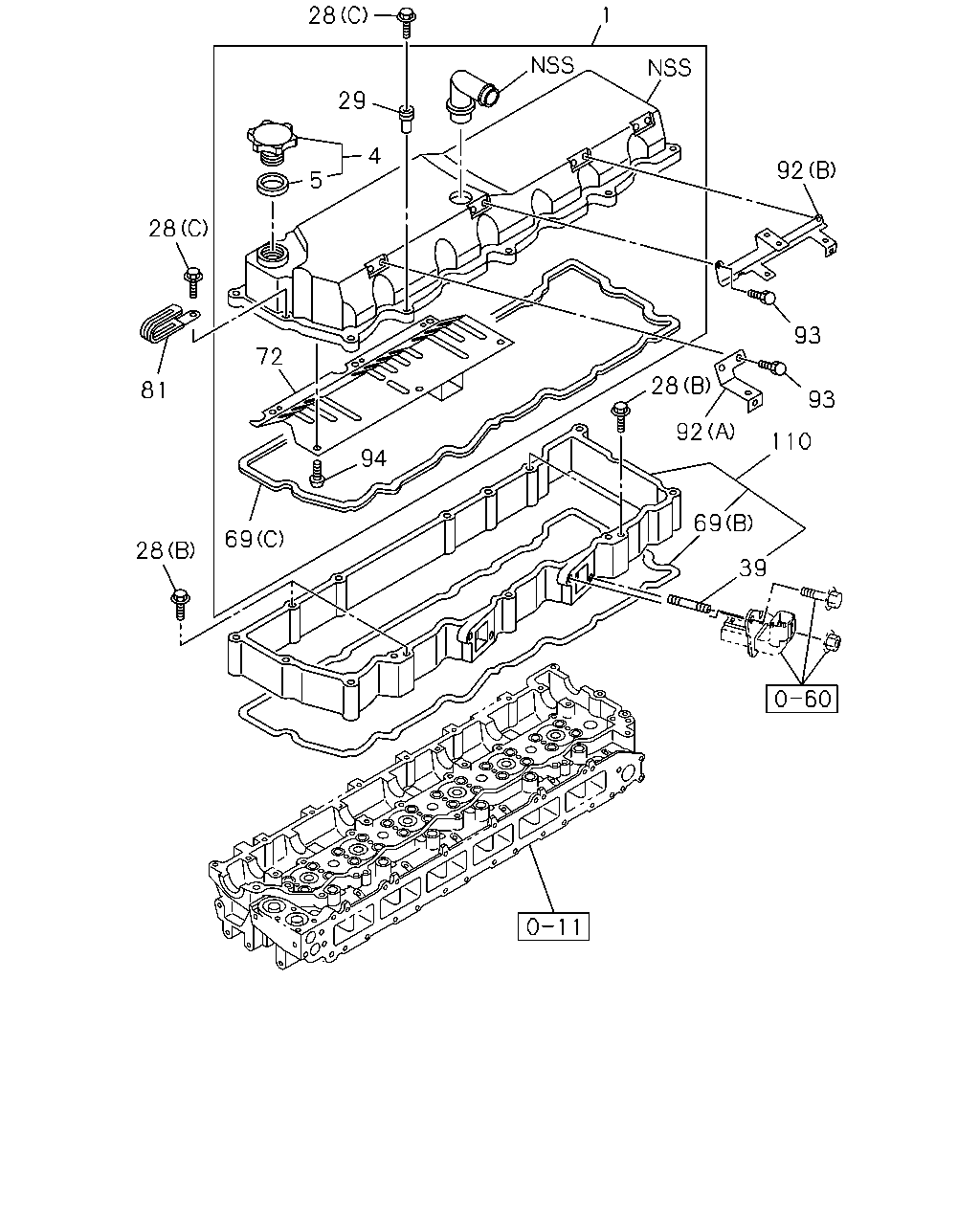

çizim 38602
28 1 29 4 92 5 28 93 72 28 81 93 92 110 94 69 69 28 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD 8-94392-656-4 01 1 0307-1112 ●
1 COVER; CYL HD 8-98208-875-0 01 1 1201- ●
1 COVER; CYL HD 8-94394-862-1 01 1 0005-0210 ● ● ●
1 COVER; CYL HD 8-94392-657-5 01 1 0211-1112 ● ●
1 COVER; CYL HD 8-98208-876-0 01 1 1201- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0005-0210 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0211-0306 ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0307- ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0005-0210 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0211-0306 ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0307- ● ● ●
28 BOLT; HD COVER
(C) M8X35 FLANGE 		0-28680-835-0 11 1 0307-0512 ●
28 BOLT; HD COVER
(C) M8X35 FLANGE 		0-28650-835-0 11 1 0601- ●
28 BOLT; HD COVER
(A) M8X35 FLANGE 		0-28680-835-0 19 1 0005-0210 ● ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28080-845-0 04 1 0211-0512 ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28050-845-0 04 1 0601- ● ●
28 BOLT; HD COVER
(C) M8X70 FLANGE 		0-28080-870-0 11 1 0211-0512 ● ●
28 BOLT; HD COVER
(C) M8X70 FLANGE 		0-28050-870-0 11 1 0601- ● ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0211-0306 ● ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 0307- ● ● ●
39 STUD; COVER,HD
M8X28 L=38 		8-94396-512-0 04 1 0211-1011 ● ●
39 STUD; COVER,HD
M8X28 L=38 		8-94396-512-0 02 1 1012- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 0005-0210 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-94391-379-0 01 1 0211-0306 ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-94391-379-0 01 1 0307- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 0211- ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0005-0210 ● ● ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0211-0306 ● ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0307- ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0211-0302 ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-94225-185-0 01 1 0211-0302 ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0303-0306 ● ●
81 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. ENGINE REAR PTO(SV1) ID=18 L=44 		8-94225-185-0 01 1 0303-0306 ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0307-0801 ● ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-94225-185-0 01 1 0307-0801 ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-97367-985-1 01 1 0802- ●
92 BRACKET; CLIP
(A) 		8-94391-313-0 01 1 0211- ● ●
92 BRACKET; CLIP
(B) 		8-94392-143-3 01 1 0211- ● ●
93 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0211-0512 ● ●
93 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0211-0306 ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 0307-0604 ● ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		0-35050-408-0 06 1 0605- ● ● ●
110 COVER; CYL HEAD LWR 8-94390-862-3 01 1 0211- ● ●

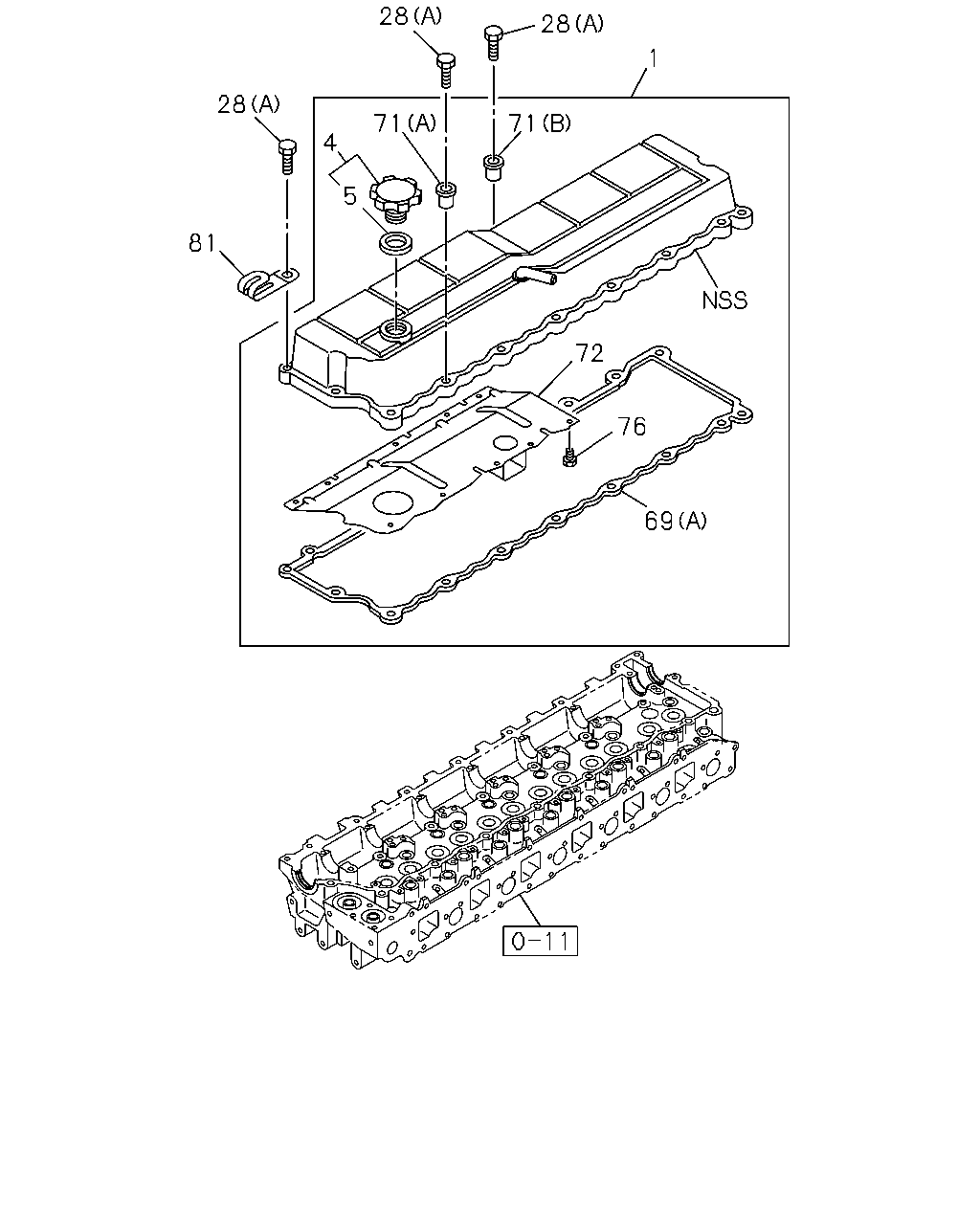

çizim 38661
28 28 1 28 71 71 4 5 81 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD 8-94392-656-4 01 1 0307-1112 ●
1 COVER; CYL HD 8-98208-875-0 01 1 1201- ●
1 COVER; CYL HD 8-94394-862-1 01 1 0005-0210 ● ● ●
1 COVER; CYL HD 8-94392-657-5 01 1 0211-1112 ● ●
1 COVER; CYL HD 8-98208-876-0 01 1 1201- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0005-0210 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0211-0306 ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 0307- ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0005-0210 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0211-0306 ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0307- ● ● ●
28 BOLT; HD COVER
(C) M8X35 FLANGE 		0-28680-835-0 11 1 0307-0512 ●
28 BOLT; HD COVER
(C) M8X35 FLANGE 		0-28650-835-0 11 1 0601- ●
28 BOLT; HD COVER
(A) M8X35 FLANGE 		0-28680-835-0 19 1 0005-0210 ● ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28080-845-0 04 1 0211-0512 ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28050-845-0 04 1 0601- ● ●
28 BOLT; HD COVER
(C) M8X70 FLANGE 		0-28080-870-0 11 1 0211-0512 ● ●
28 BOLT; HD COVER
(C) M8X70 FLANGE 		0-28050-870-0 11 1 0601- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94396-383-0 01 1 0005-0210 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-94391-379-0 01 1 0211-0306 ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-94391-379-0 01 1 0307- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 0211- ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 0005-0210 ● ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 0005-0210 ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 0005-0210 ● ● ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0211-0306 ● ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 0307- ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 0005-0210 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0211-0302 ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-94225-185-0 01 1 0211-0302 ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0303-0306 ● ●
81 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. ENGINE REAR PTO(SV1) ID=18 L=44 		8-94225-185-0 01 1 0303-0306 ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 0307-0801 ● ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-94225-185-0 01 1 0307-0801 ●
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
81 CLIP; HARNESS
A/T<X9D> ID=18 L=44 		8-97367-985-1 01 1 0802- ●
