9-01 — TOOLS (#851) — 83 parça
çizim 28203
296 297 274 271 268 209
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE
ID=12 		1-73638-008-2 02 1 9202- ● ●
268 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9202- ● ●
271 CLIP; TIRE HANGER
ID=14 		1-73638-009-2 02 1 9202- ● ●
274 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9202- ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9202- ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9202- ● ●
çizim 92614
148 148 141 141 141 157 160 161 162 162 166 167 228 172 171 170 169
BalonParca AdiParca NoAdetTipApplied Date A B
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9202- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9202- ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9202- ● ●
148 PULLER; COUNTER SHAFT BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) (A) 		9-85210-129-1 01 1 9202- ● ●
148 PULLER; COUNTER SHAFT BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) (B) 		9-85210-186-0 01 1 9202- ● ●
157 REPLACER KIT; RETURN SPR 1-85237-002-0 01 1 9202- ● ●
160 REMOVER; NEEDLE BRG
POWER STEERING(N40) L=228 		1-85238-010-0 01 1 9202- ● ●
161 REMOVER; TIE ROD ARM
POWER STEERING(N40) 		9-85141-603-0 01 1 9202- ● ●
162 SETTING TOOL; NEEDLE BRG
POWER STEERING(N40) (A) L=181 		1-85238-008-0 01 1 9202- ● ●
162 SETTING TOOL; NEEDLE BRG
POWER STEERING(N40) (B) L=213 		1-85238-009-0 01 1 9202- ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9202- ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9202- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9202- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9202- ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9202- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9202- ● ●
228 PULLER; COUNTER FRT BRG
MBG5C M/T(X4R) 		9-85210-041-0 01 1 9202- ● ●

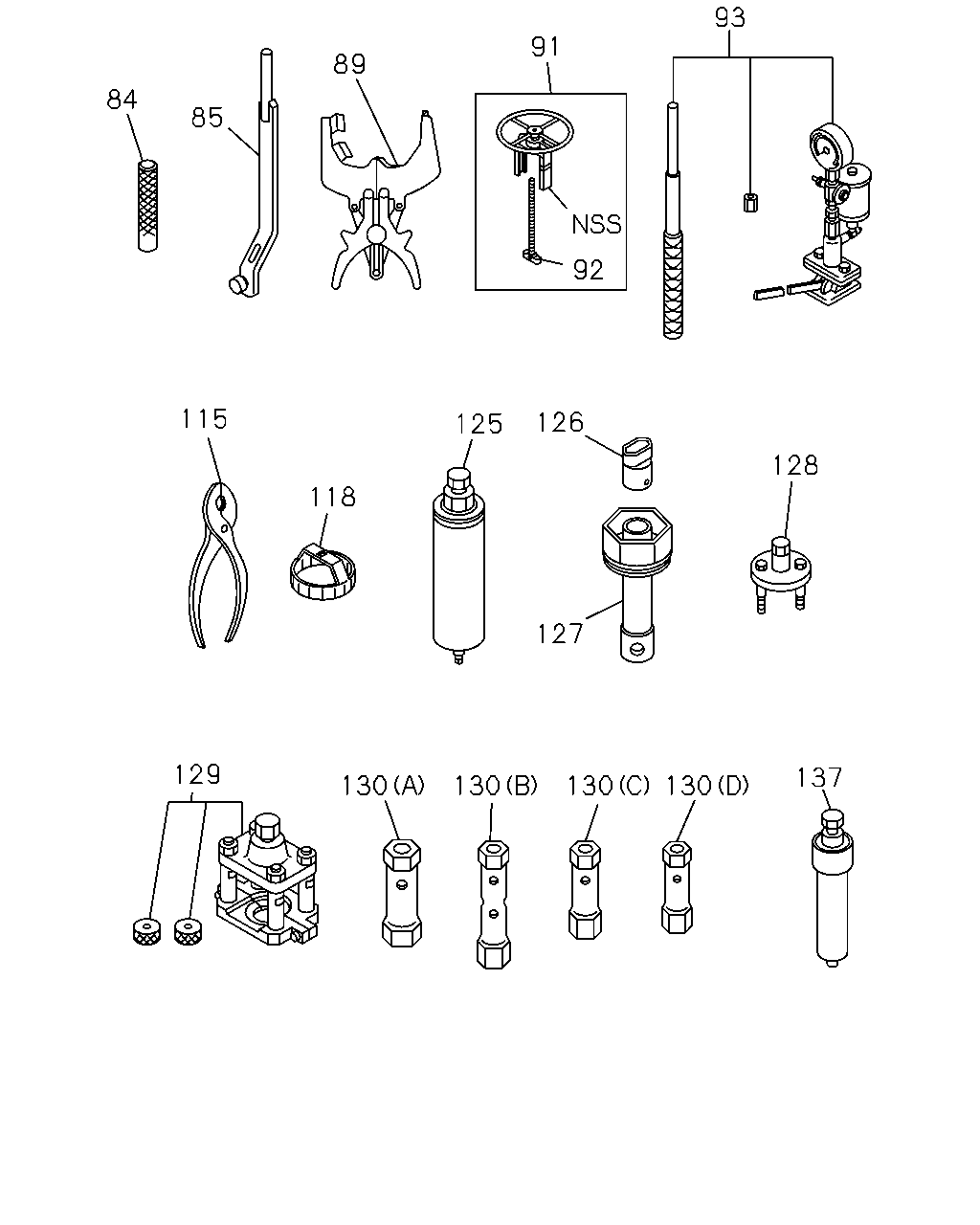

çizim 94467
84 85 89 91 93 92 126 125 118 115 127 128 137 130 130 130 130 129
BalonParca AdiParca NoAdetTipApplied Date A B
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9202- ● ●
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9202- ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9202- ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9202- ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9202- ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9202- ● ●
115 PLIER 5-85171-001-0 01 1 9202- ● ●
118 WRENCH; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-85221-097-0 01 1 9202- ● ●
125 PULLER ASM; KING PIN
POWER STEERING(N40) L=360 		9-85210-151-0 01 1 9202- ● ●
126 WRENCH; FRT HUB BRG NUT
POWER STEERING(N40) L=257 B=63 		9-85111-373-0 01 1 9202- ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 9202- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9202- ● ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F049(FS4) 		9-85210-147-0 01 1 9202- ● ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-85210-011-0 01 1 9202- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9202- ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9202- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9202- ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9202- ● ●
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9202- ● ●

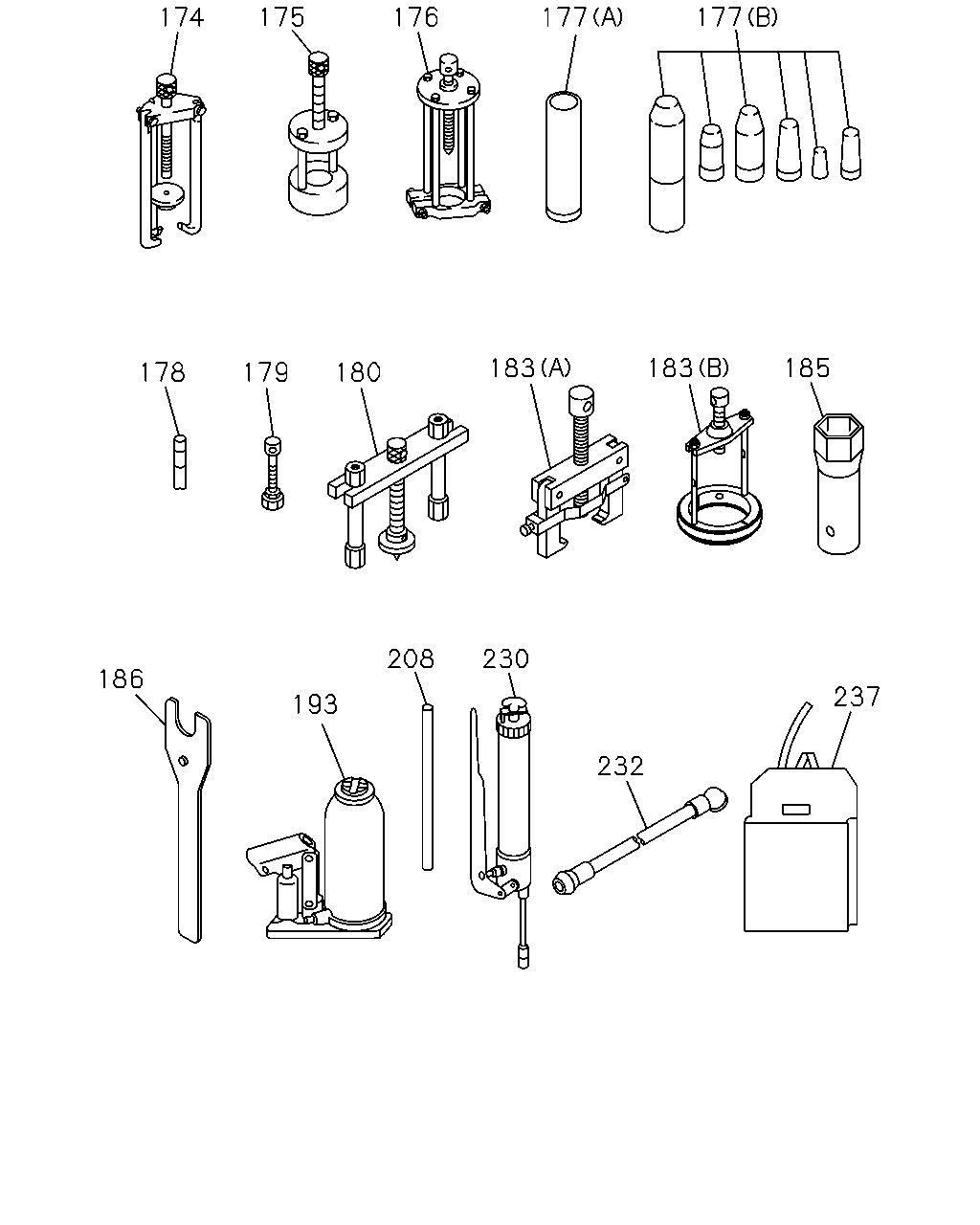

çizim 94722
174 175 176 177 177 185 183 183 180 179 178 186 193 230 208 232 237
BalonParca AdiParca NoAdetTipApplied Date A B
174 PULLER ASM; MAIN CLU SHAFT
MBG5C M/T(X4R) 		9-85210-148-0 01 1 9202- ● ●
175 PULLER ASM; COOLER,MAINSHAFT
MBG5C M/T(X4R) 		1-85210-038-0 01 1 9202- ● ●
176 PULLER ASM; COUNTER SHAFT MAIN
MBG5C M/T(X4R) 		9-85210-169-0 01 1 9202- ● ●
177 SETTING TOOL KIT
MBG5C M/T(X4R) (B) 		9-85220-040-0 01 1 9202- ● ●
177 SETTING TOOL KIT
MLD7R M/T(X5L),MLD6A M/T(X5N) (A) L=220 		9-85221-323-0 01 1 9202- ● ●
178 BAR; TRANS GUIDE
MBG5C M/T(X4R) 		9-85291-203-0 01 1 9202- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9202- ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9202- ● ●
183 PULLER; MAINSHAFT BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) (A) 		9-85210-145-0 01 1 9202- ● ●
183 PULLER; MAINSHAFT BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) (B) 		9-85210-192-0 01 1 9202- ● ●
185 WRENCH; MAINSHAFT NUT
MLD7R M/T(X5L),MLD6A M/T(X5N) 		1-85111-004-0 01 1 9202- ● ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 9202- ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9202- ● ●
208 HANDLE; JACK 1-85515-004-0 01 1 9202-9405 ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9202- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE(SG4) 		1-09360-245-1 01 1 9202- ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9202- ● ●
çizim 95862
1 9 12 13 17 29 29 29 23 22 21 20 19 57 61 70 77 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9202- ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 9202- ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-0 01 1 9202- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9202- ● ●
13 WRENCH; MONKEY 1-85117-003-1 01 1 9202-9304 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305- ● ●
17 HAMMER 9-85121-406-0 01 1 9202- ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9202-9505 ● ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9506- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9202- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9202- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9202- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9202- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9202- ● ●
29 DRIVER; SCREW
(B) <-> L=190 		9-09595-726-0 01 1 9202-9505 ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9506- ● ●
29 DRIVER; SCREW
(B) <-> L=320 		9-09595-729-0 01 1 9202-9505 ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9506- ● ●
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9202- ● ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9202- ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9202- ● ●
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9202- ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9202- ● ●
