Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

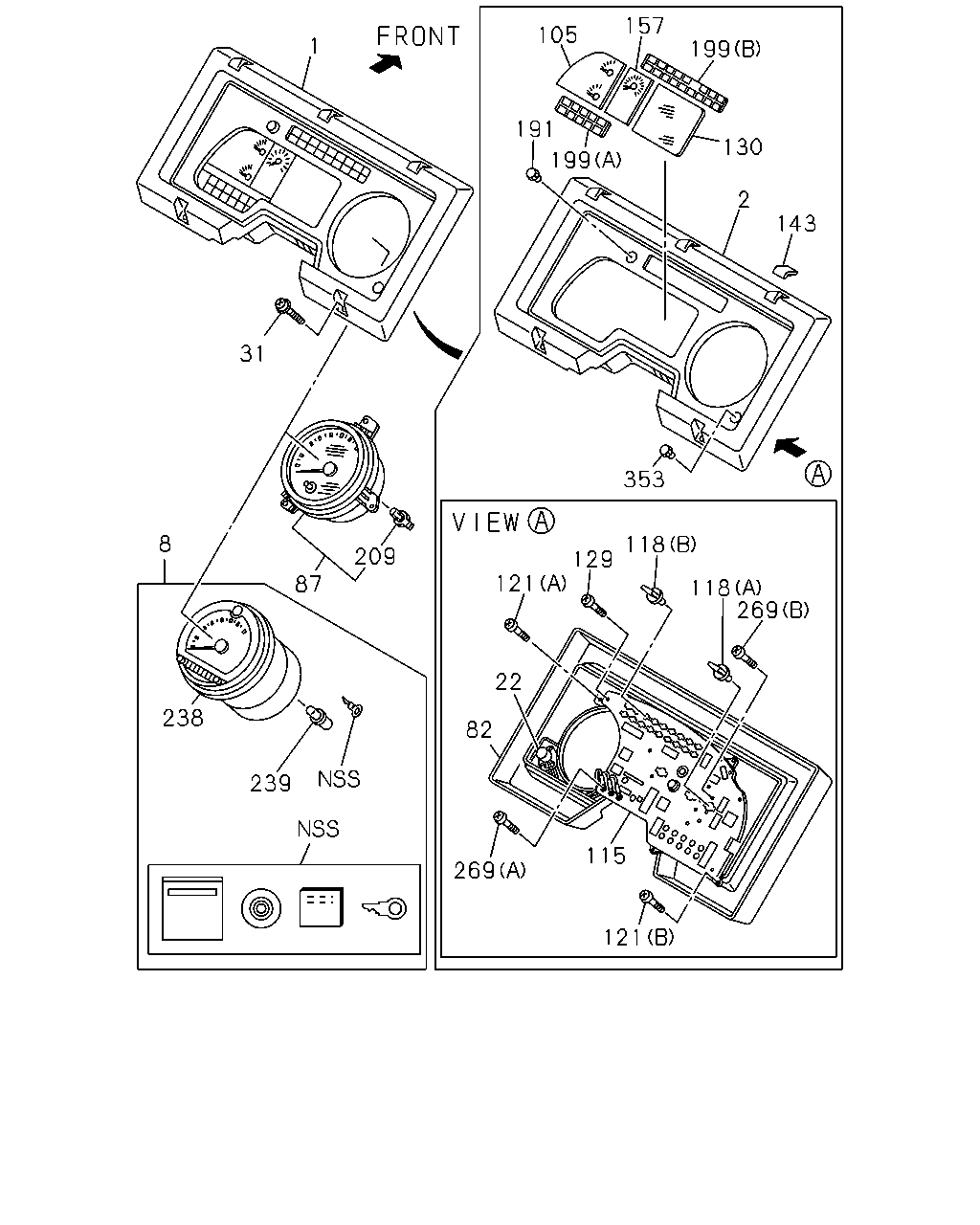

8-21 - METER ASM
▶
8-21 — METER ASM
(#8508) — 30 parça
157
105
1
199
191
130
199
2
143
31
353
8
118
209
129
121
87
118
269
22
238
82
239
115
269
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-753-0
01
1
9912-
2
PANEL; CLUSTER
1-83119-508-0
01
1
9912-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97096-331-1
01
1
0002-0204
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97331-177-0
01
1
0205-
22
RHEOSTAT; CLUSTER METER
1-83119-470-0
01
1
9912-
31
SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER
9-03920-620-0
08
1
9912-0604
31
SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER
0-36230-620-0
08
1
0605-
82
CASE ASM; CLUSTER METER
1-83119-509-0
01
1
9912-
87
SPEEDOMETER
1-83120-612-0
01
1
9912-0001
87
SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7>
1-83120-612-0
01
1
0002-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83150-239-0
01
1
9912-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-424-0
01
1
9912-
118
BULB; CLUSTER METER
(A) 14V 3.8W
1-82194-091-0
03
1
9912-
118
BULB; CLUSTER METER
(B) 12V 2W
8-97031-177-0
13
1
9912-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING
1-83119-442-0
04
1
9912-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-515-0
04
1
9912-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
9912-
130
COVER; METER HOLE,CLUSTER METER
1-83119-523-0
01
1
9912-
143
COVER; CLUSTER METER
1-83119-516-0
05
1
9912-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-245-0
01
1
9912-
191
KNOB; BULB CHECK
1-83119-431-0
01
1
9912-
199
LENS; WARNING LAMP
(A)
1-83119-435-0
01
1
9912-
199
LENS; WARNING LAMP
(B)
1-83119-768-0
01
1
9912-
209
BULB; SPEEDOMETER
12V 3.4W
8-94114-189-0
02
1
9912-0001
209
BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 12V 3.4W
8-94114-189-0
02
1
0002-
238
PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-440-0
01
1
0002-
239
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 12V 1.8W
1-82194-103-0
03
1
0002-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-440-0
03
1
9912-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-441-0
06
1
9912-
353
KNOB; RHEOSTAT
1-83119-471-0
01
1
9912-
