8-15 — FIXING PARTS; WIRING HARNESS (#8506) — 101 parça

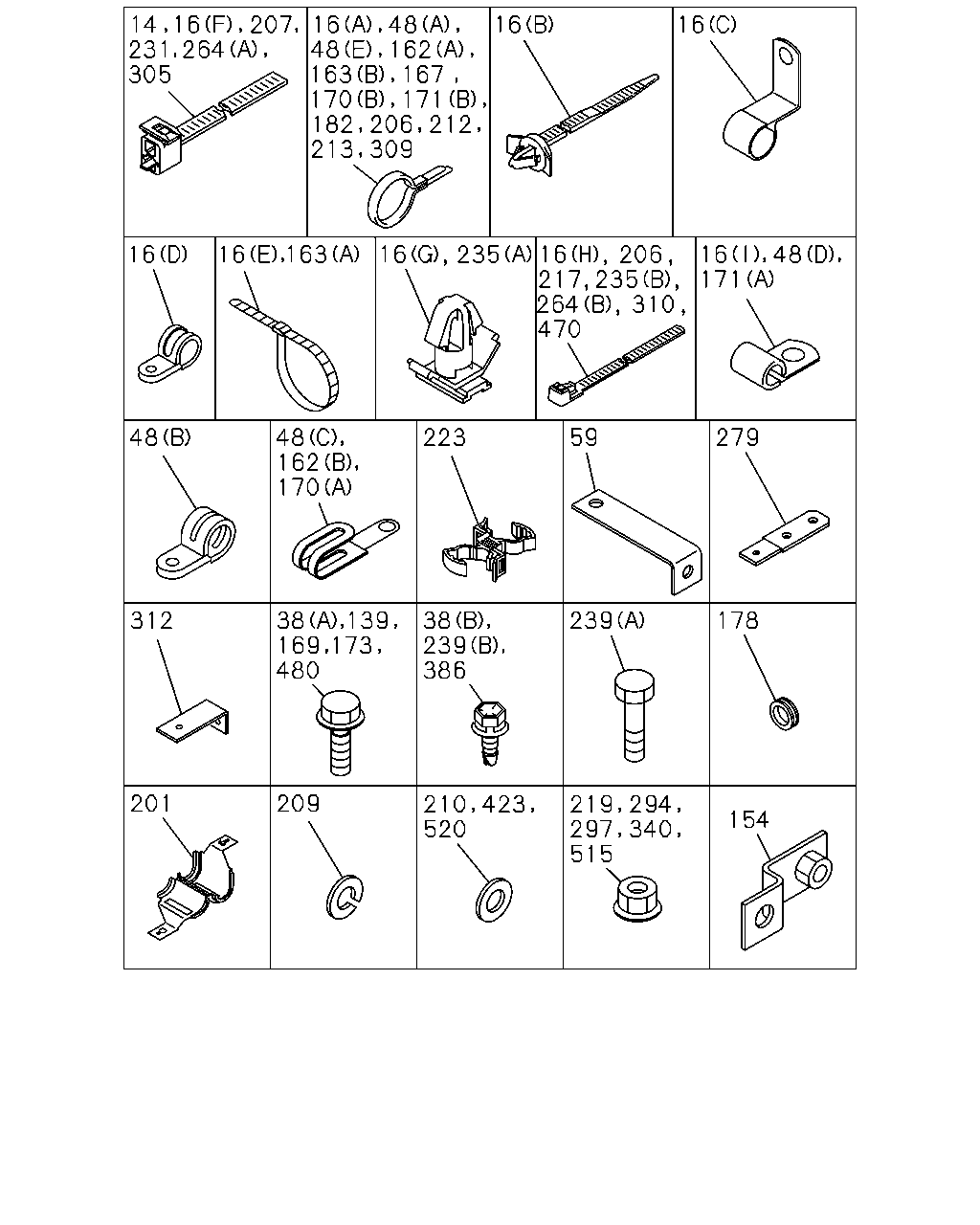

çizim 10730
14 16 207 231 264 305 16 48 48 162 163 167 170 171 182 206 212 213 309 16 16 48 16 171 310 470 264 217 235 206 16 235 16 163 16 16 48 48 162 170 223 59 279 178 239 38 239 386 38 139 169 173 480 312 201 209 520 210 423 219 294 154 340 297 515
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 03 1 9912-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9912-
16 CLIP; HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 9912-
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9912-
16 CLIP; HARNESS
(D) ID=14.5 L=20 		1-09701-012-0 01 1 9912-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9912-
16 CLIP; HARNESS
(E) L=600 		1-09707-107-1 02 1 9912-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 9912-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 9912-
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 9912-
16 CLIP; HARNESS
(I) ID=19 L=28 		9-09525-856-0 02 1 9912-0606
16 CLIP; HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0607-
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9912-0606
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=18 L=48 		9-09917-429-0 03 1 9912-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9912-
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 03 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28680-620-0 02 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 06 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 9912-1201
38 BOLT; CLIP,HARNESS
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
48 CLIP; FRAME HARNESS
(A) ID=28 L=58 		1-09700-400-0 07 1 9912-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9912-
48 CLIP; FRAME HARNESS
(B) ID=28 L=45 		1-09700-825-1 01 1 9912-
48 CLIP; FRAME HARNESS
(C) ID=28 L=40 		1-09700-995-1 03 1 9912-
48 CLIP; FRAME HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 9912-
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 9912-0606
48 CLIP; FRAME HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(E) ID=20 L=50 		9-09917-430-0 23 1 9912-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9912-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9912-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301-
162 CLIP; SW HARNESS
(A) ID=15 L=65 		1-09700-466-0 04 1 9912-
162 CLIP; SW HARNESS
(B) ID=28 L=40 		1-09700-995-1 02 1 9912-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 9912-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9912-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 9912-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 9912-0512
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
170 CLIP; ELEC HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 9912-
170 CLIP; ELEC HARNESS
(B) ID=18 L=48 		9-09917-429-0 02 1 9912-
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		9-09525-856-0 01 1 9912-0606
171 CLIP; STARTER HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0607-
171 CLIP; STARTER HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9912-
173 BOLT; STARTER EARTH
M12X16 FLANGE 		1-09044-079-0 01 1 9912-1105
173 BOLT; STARTER EARTH
M12X16 FLANGE 		0-28051-216-0 01 1 1106-
178 GROMMET; HARNESS
ID=18 OD=23 T=12 		1-09332-035-0 03 1 9912-
178 GROMMET; HARNESS
ID=39 OD=45 T=13 		1-09332-076-0 01 1 9912-
178 GROMMET; HARNESS
ID=24 OD=30 T=12 		9-09956-093-1 02 1 9912-
182 CLIP; HARNESS,OIL FILTER
ID=11 L=41 		1-09700-403-0 01 1 9912-
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9912-
206 CLIP; FUEL TANK HARNESS
ID=11 L=41 		1-09700-403-0 01 1 9912-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9912-
207 CLIP; OIL THERMO SW
L=180 		1-09707-162-1 01 1 9912-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9912-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9912-
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 01 1 9912-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9912-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 9912-
219 NUT
M6 FLANGE 		0-91150-106-0 02 1 9912-0602
219 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 09 1 9912-0602
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 0603-
223 CLIP; AIR TANK HARNESS
ID=6-10 & 10-14 		1-09709-201-1 04 1 9912-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9912-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 9912-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) OD=9 H=6 		1-09709-178-0 01 1 0003-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9912-
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9912-1201
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 9912-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 9912-
279 STAY; HARNESS 1-82699-873-0 02 1 9912-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9912-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 01 1 9912-0602
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0603-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 9912-
309 CLIP; HARNESS,HAND BRAKE CABLE
ID=11 L=41 		1-09700-403-0 06 1 9912-
310 CLIP; A/T SELECTOR
L=250 		5-09707-030-1 02 1 9912-
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 02 1 9912-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9912-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9912-1201
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 9912-
470 CLIP; HARNESS,LICENSE LAMP
L=250 		5-09707-030-1 01 1 9912-
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9912-0512
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9912-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9912-
