Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#8505) — 22 parça
◀
[810A] NO.2 (4 parça)
[810A] NO.1 (18 parça)
▶

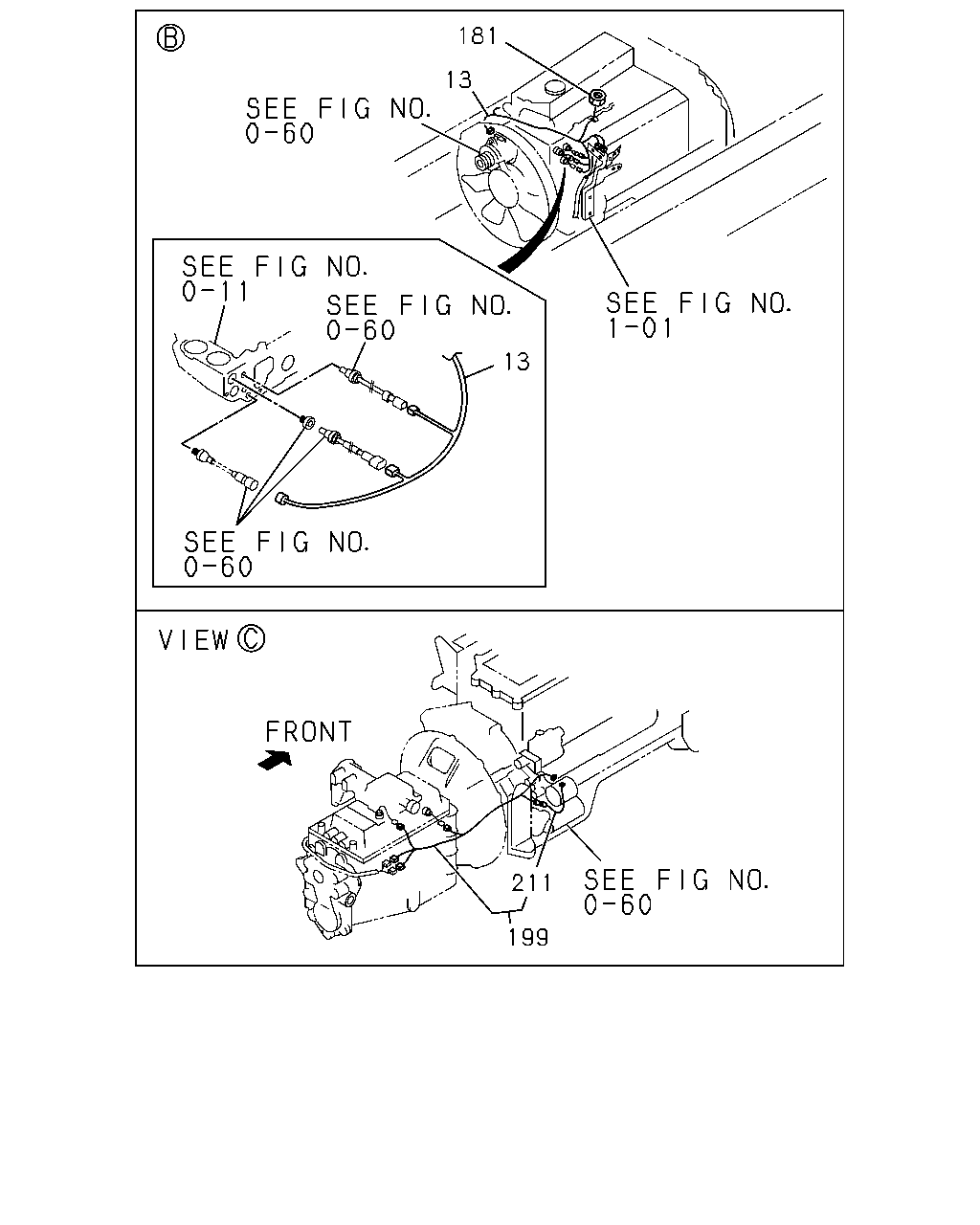

181
13
13
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
1-82641-113-1
01
1
9912-
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
9912-
199
HARNESS; STARTER
1-82641-114-1
01
1
9912-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-0
01
1
9912-

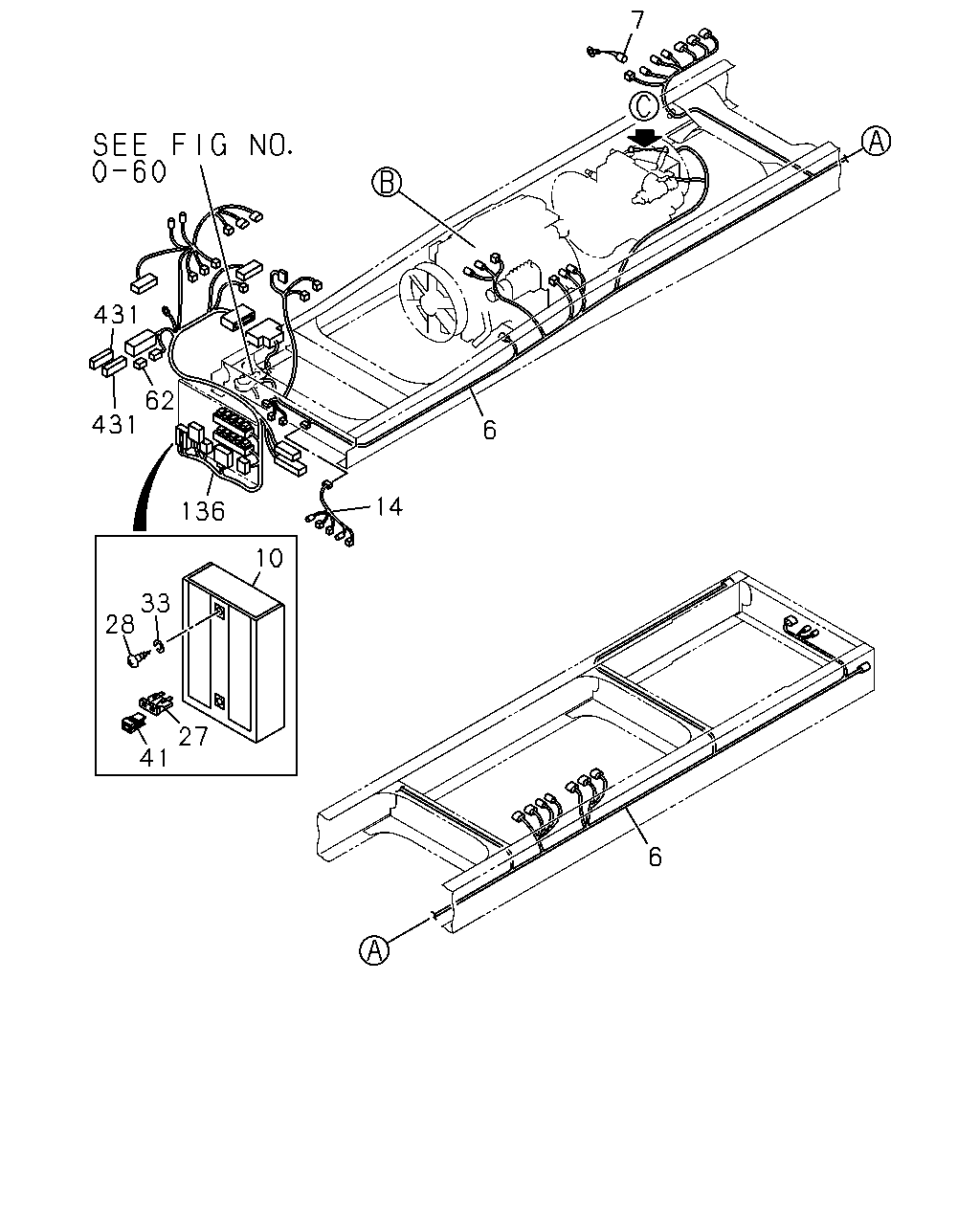

7
431
62
431
6
14
136
10
33
28
27
41
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82672-763-1
01
1
9912-0211
6
HARNESS; FRAME
1-82676-924-0
01
1
0212-
7
LINK ASM; FUSIBLE
L=150 GRAY
1-82659-177-0
01
1
9912-
10
BOX; FUSE,HARNESS
10AX12 20AX4
1-82510-568-0
01
1
9912-
14
HARNESS; HEADLAMP
1-82672-983-1
02
1
9912-0409
14
HARNESS; HEADLAMP
1-82677-975-0
02
1
0410-
27
FUSE UNIT
10A RED
5-82516-002-0
12
1
9912-
27
FUSE UNIT
20A YELLOW
5-82516-004-0
04
1
9912-
28
SCREW; FUSE BOX
M6X42
8-97811-324-0
02
1
9912-
33
WASHER; LK,FUSE BOX FIX
ID=6.1
9-09150-506-0
02
1
9912-0603
33
WASHER; LK,FUSE BOX FIX
ID=6.1
0-91510-506-0
02
1
0604-
33
WASHER; LK,FUSE BOX FIX
ID=6.4
9-09160-506-0
02
1
9912-
41
PULLER; FUSE
L=31.0 B=10.0
8-94369-144-0
01
1
9912-
62
DIODE; HARNESS
BLACK 2P-1.5A
8-94422-639-1
01
1
9912-
136
HARNESS; DASH
1-82629-108-1
01
1
9912-0001
136
HARNESS; DASH
EXC. TACHOGRAPH 140KM/H<WC7>
1-82629-108-1
01
1
0002-
136
HARNESS; DASH
TACHOGRAPH 140KM/H<WC7>
1-82629-488-0
01
1
0002-
431
CONNECTOR; JOINT
10P BROWN
1-82699-601-0
02
1
9912-
