Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

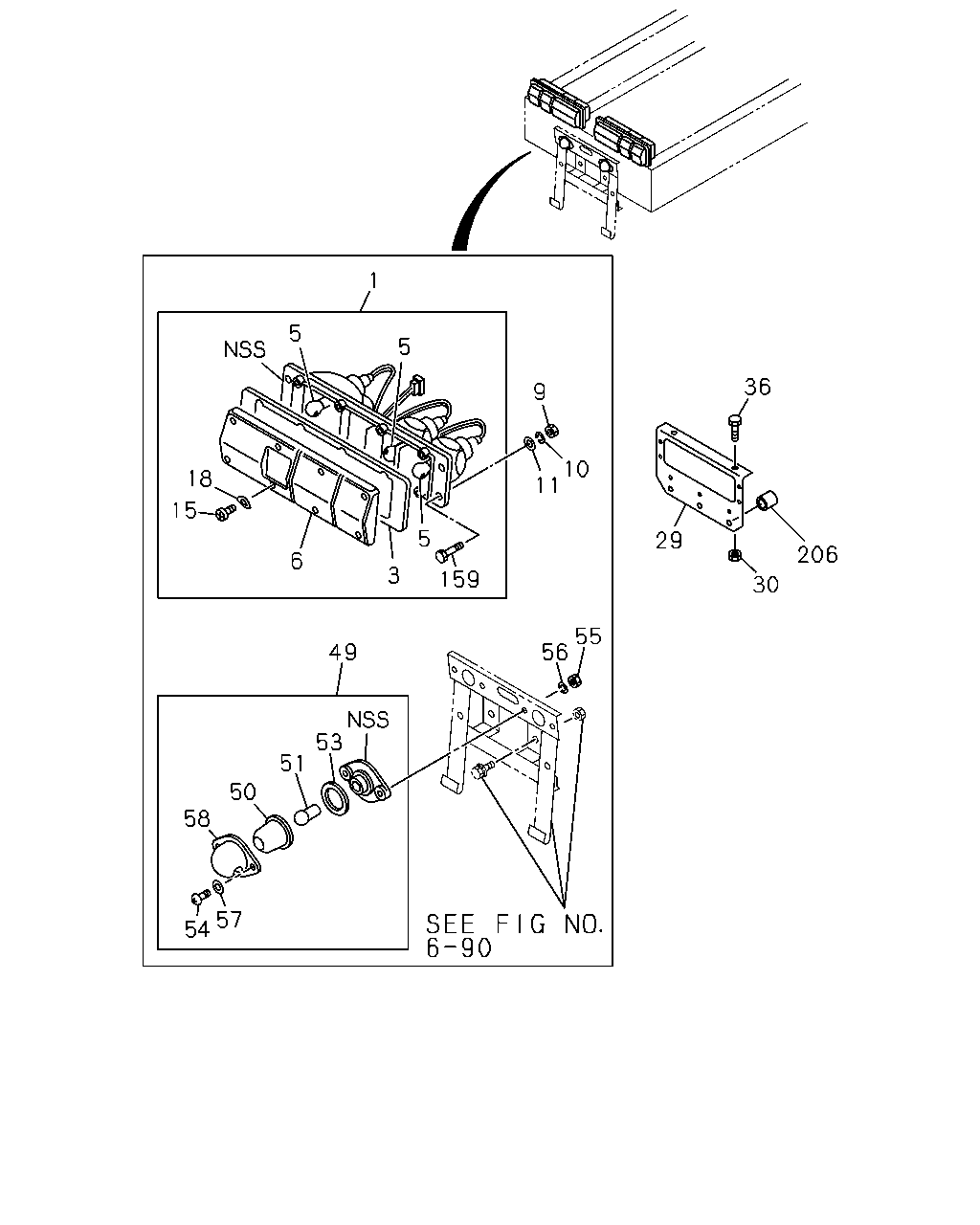

8-03 — LAMP; REAR AND REAR SIDE
(#8504) — 34 parça
1
5
5
36
9
10
11
18
15
5
29
206
6
3
159
30
55
56
49
53
51
50
58
57
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-114-0
01
1
9912-
1
LAMP ASM; RR COMB
1-82230-113-0
01
1
9912-
3
GASKET; RR COMB LAMP
5-82236-002-0
01
1
9912-
3
GASKET; RR COMB LAMP
5-82236-001-0
01
1
9912-
5
BULB; RR COMB LAMP
12V 23W
9-82692-131-0
04
1
9912-
5
BULB; RR COMB LAMP
12V 23/8W
9-82692-132-0
02
1
9912-
6
LENS; RR COMB LAMP
5-82235-002-0
01
1
9912-
6
LENS; RR COMB LAMP
5-82235-001-0
01
1
9912-
9
NUT; LAMP,RR COMB
M5
9-99110-405-0
08
1
9912-0512
9
NUT; LAMP,RR COMB
M5
0-91110-505-0
08
1
0601-
10
WASHER; LK,RR COMB LAMP
ID=5.1
9-09150-505-0
08
1
9912-0603
10
WASHER; LK,RR COMB LAMP
ID=5.1
0-91510-505-0
08
1
0604-
11
WASHER; PL,LAMP,RR COMB
ID=5.3
9-09160-505-0
08
1
9912-0605
11
WASHER; PL,LAMP,RR COMB
ID=5.3
0-91610-505-0
08
1
0606-
15
SCREW; RR COMB LAMP
1-82239-023-0
16
1
9912-
18
WASHER; RR COMB LAMP
1-82239-035-0
16
1
9912-
29
BRACKET; LAMP,RR COMB
1-82237-023-1
02
1
9912-
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91150-210-0
04
1
9912-0602
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
04
1
0603-
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28081-040-0
04
1
9912-0512
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28051-040-0
04
1
0601-
49
LAMP; LICENSE PLATE
1-82120-025-1
01
1
9912-
50
LENS; LICENSE PLATE LAMP
1-82235-005-0
01
1
9912-
51
BULB; LICENSE PLATE LAMP
12V 8W
9-82692-129-0
01
1
9912-
53
GASKET; LICENSE LAMP
1-82236-005-0
01
1
9912-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
9912-
55
NUT; LICENSE PLATE LAMP
M5
9-99110-405-0
02
1
9912-0512
55
NUT; LICENSE PLATE LAMP
M5
0-91110-505-0
02
1
0601-
56
WASHER; LK,LICENSE PLATE LAMP
ID=5.1
9-09150-505-0
02
1
9912-0603
56
WASHER; LK,LICENSE PLATE LAMP
ID=5.1
0-91510-505-0
02
1
0604-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
9912-
58
COVER; LICENSE PLATE LAMP
1-82129-009-0
01
1
9912-
159
BOLT; HSG,RR COMB LAMP
1-82239-024-0
08
1
9912-
206
SPACER; BRKT RR COMB
5-23332-003-0
04
1
9912-
