8-01 — LAMP; FRONT AND FRONT SIDE (#8503) — 87 parça

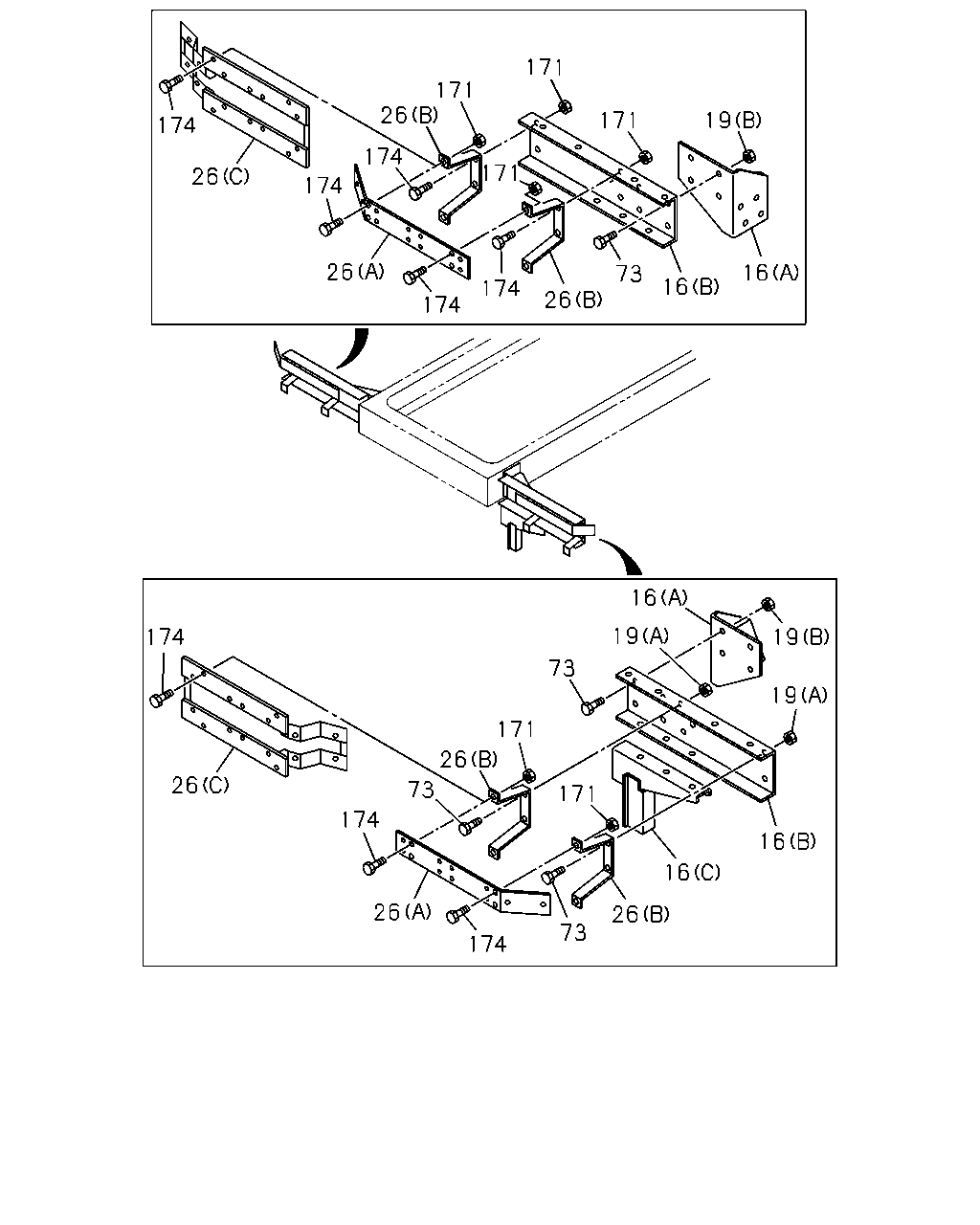

çizim 10727
171 171 26 171 19 174 174 171 26 174 174 26 16 73 16 26 174 16 19 174 19 73 19 171 26 26 73 171 174 16 16 26 26 73 174
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; HEADLAMP
(A) 		1-82117-139-0 01 1 9912-
16 BRACKET; HEADLAMP
(B) 		1-82117-142-0 01 1 9912-
16 BRACKET; HEADLAMP
(C) 		1-82117-143-0 01 1 9912-
16 BRACKET; HEADLAMP
(A) 		1-82117-138-0 01 1 9912-
16 BRACKET; HEADLAMP
(B) 		1-82117-141-0 01 1 9912-
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91150-210-0 05 1 9912-0602
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91180-210-0 05 1 0603-
19 NUT; HEADLAMP
(B) M12 FLANGE 		0-91150-212-0 16 1 9912-0602
19 NUT; HEADLAMP
(B) M12 FLANGE 		0-91180-212-0 16 1 0603-
19 NUT; HEADLAMP
(C) 		1-82119-056-0 08 1 9912-
26 BRACKET ASM; HEADLAMP
(A) 		1-82117-098-0 04 1 9912-9912
26 BRACKET ASM; HEADLAMP
(C) 		1-82117-146-0 02 1 9912-
26 BRACKET ASM; HEADLAMP
(B) 		9-82615-154-2 04 1 9912-
73 BOLT; BRKT,HEADLAMP
M10X30 FLANGE 		0-28681-030-0 05 1 9912-0512
73 BOLT; BRKT,HEADLAMP
M10X30 FLANGE 		0-28651-030-0 05 1 0601-
73 BOLT; BRKT,HEADLAMP
M12X30 FLANGE 		0-28681-230-0 16 1 9912-0512
73 BOLT; BRKT,HEADLAMP
M12X30 FLANGE 		0-28651-230-0 16 1 0601-
171 NUT
M6 FLANGE 		0-91150-106-0 08 1 9912-0602
171 NUT
M6 FLANGE 		0-91180-106-0 08 1 0603-
171 NUT
M10 FLANGE 		0-91150-210-0 08 1 9912-0602
171 NUT
M10 FLANGE 		0-91180-210-0 08 1 0603-
174 BOLT
M6X20 FLANGE 		0-28680-620-0 08 1 9912-0512
174 BOLT
M6X20 FLANGE 		0-28650-620-0 08 1 0601-
174 BOLT
M10X30 FLANGE 		0-28681-030-0 08 1 9912-0512
174 BOLT
M10X30 FLANGE 		0-28651-030-0 08 1 0601-

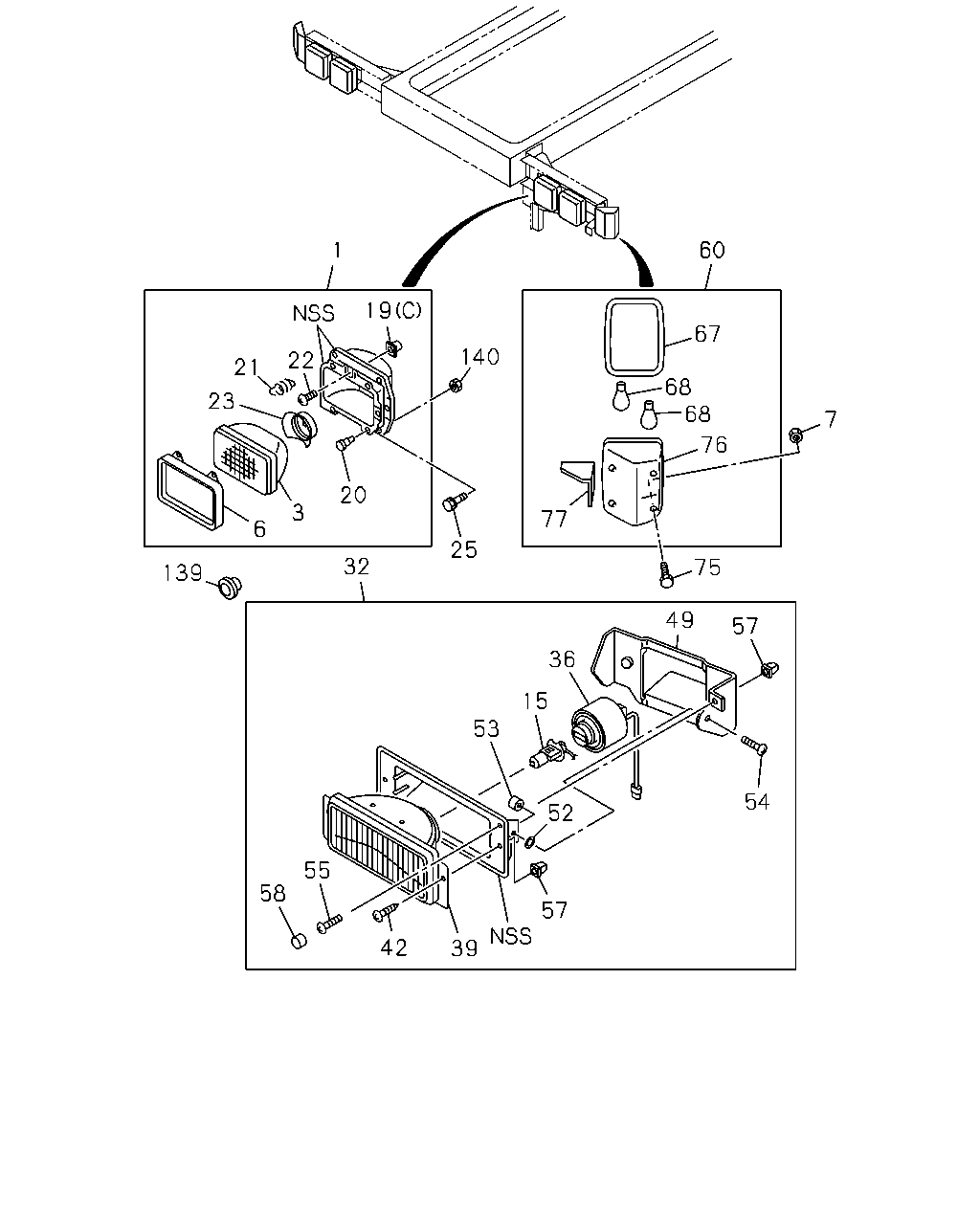

çizim 45448
60 1 19 67 140 22 21 68 68 23 7 76 20 3 77 6 25 32 75 139 49 57 36 15 53 54 52 55 58 57 42 39
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
INNER 12V 50W 		1-82110-277-2 01 1 9912-0409
1 LAMP ASM; HEAD
INNER 12V 50W 		1-82110-466-0 01 1 0410-
1 LAMP ASM; HEAD
OUTER 12V 40/60W 		1-82110-279-2 01 1 9912-0409
1 LAMP ASM; HEAD
OUTER 12V 40/60W 		1-82110-468-0 01 1 0410-
1 LAMP ASM; HEAD
INNER 12V 50W 		1-82110-276-2 01 1 9912-0409
1 LAMP ASM; HEAD
INNER 12V 50W 		1-82110-465-0 01 1 0410-
1 LAMP ASM; HEAD
OUTER 12V 40/60W 		1-82110-278-2 01 1 9912-0409
1 LAMP ASM; HEAD
OUTER 12V 40/60W 		1-82110-467-0 01 1 0410-
3 SEALED BEAM; HEADLAMP
12V 40/60W 		8-94101-730-0 02 1 9912-0409
3 SEALED BEAM; HEADLAMP
12V 40/60W 		8-97855-197-0 02 1 0410-
3 SEALED BEAM; HEADLAMP
12V 50W 		8-94101-738-0 02 1 9912-0409
3 SEALED BEAM; HEADLAMP
12V 55W 		8-97855-201-0 02 1 0410-
6 RIM; HEADLAMP
24V 70W 		1-82114-018-0 02 1 9912-
6 RIM; HEADLAMP
24V 75/70W 		1-82114-019-0 02 1 9912-
7 NUT; FRT COMB LAMP
M3 		9-99110-403-0 08 1 9912-
15 BULB; FOG LAMP
12V 55W 		8-97093-859-0 02 1 9912-
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91150-210-0 05 1 9912-0602
19 NUT; HEADLAMP
(A) M10 FLANGE 		0-91180-210-0 05 1 0603-
19 NUT; HEADLAMP
(B) M12 FLANGE 		0-91150-212-0 16 1 9912-0602
19 NUT; HEADLAMP
(B) M12 FLANGE 		0-91180-212-0 16 1 0603-
19 NUT; HEADLAMP
(C) 		1-82119-056-0 08 1 9912-
20 SCREW; HEADLAMP 1-82119-023-0 16 1 9912-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 9912-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 9912-
23 COVER; BULB,HEADLAMP 1-82119-013-0 04 1 9912-
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 12 1 9912-0604
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 12 1 0605-
25 SCREW; LAMP
M5X16 W/LK&PL WASHER 		9-03920-516-0 04 1 9912-0604
25 SCREW; LAMP
M5X16 W/LK&PL WASHER 		0-36230-516-0 04 1 0605-
32 LAMP ASM; FOG 8-97070-959-1 01 1 9912-0004
32 LAMP ASM; FOG 8-97248-540-0 01 1 0005-0612
32 LAMP ASM; FOG 8-98054-094-0 01 1 0701-
32 LAMP ASM; FOG 8-97070-958-1 01 1 9912-0004
32 LAMP ASM; FOG 8-97248-539-0 01 1 0005-0612
32 LAMP ASM; FOG 8-98054-093-0 01 1 0701-
36 CORD; FOG LAMP 8-97095-518-0 02 1 9912-
39 UNIT; FOG LAMP 8-97119-300-0 01 1 9912-0612
39 UNIT; FOG LAMP 8-98063-679-0 01 1 0701-
39 UNIT; FOG LAMP 8-97104-060-0 01 1 9912-0612
39 UNIT; FOG LAMP 8-98063-678-0 01 1 0701-
42 SCREW; LENS,FOG LAMP 8-97104-089-0 04 1 9912-
49 BRACKET; LAMP 8-97104-091-0 01 1 9912-
49 BRACKET; LAMP 8-97104-090-0 01 1 9912-
52 RING; MTG,FOG LAMP 8-97104-062-0 02 1 9912-
53 NUT; MTG RING,FOG LAMP 8-94379-802-0 04 1 9912-
54 BOLT; MTG RING,FOG LAMP
M5X12 		8-94379-803-0 04 1 9912-
55 SCREW; ADJ,FOG LAMP 8-97104-087-0 02 1 9912-
57 NUT; UNIT TO SCREW,FOG LAMP 8-94379-806-0 06 1 9912-
58 HOLDER; FOG LAMP 8-97104-088-0 02 1 9912-
60 LAMP ASM; FRT COMB 8-94257-410-3 01 1 9912-
60 LAMP ASM; FRT COMB 8-94257-409-3 01 1 9912-
67 GASKET; FRT COMB LAMP 8-94257-504-0 02 1 9912-
68 BULB; FRT COMB LAMP
12V 21W 		8-94124-074-0 02 1 9912-
68 BULB; FRT COMB LAMP
12V 5W 		8-94124-075-0 02 1 9912-
75 SCREW; FRT COMB LAMP
M3X35 W/LK&PL WASHER 		9-03920-335-0 08 1 9912-0604
75 SCREW; FRT COMB LAMP
M3X35 W/LK&PL WASHER 		0-36230-335-0 08 1 0605-
76 LENS; FRT COMB LAMP 8-94257-503-1 01 1 9912-
76 LENS; FRT COMB LAMP 8-94257-502-1 01 1 9912-
77 SHADE; FRT TURN SIGNAL LAMP 8-97020-218-0 02 1 9912-
139 COVER; HEADLAMP 1-09983-006-1 04 1 9912-
140 NUT
M5 		9-99110-405-0 12 1 9912-0512
140 NUT
M5 		0-91110-505-0 12 1 0601-
