10824 - MR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶

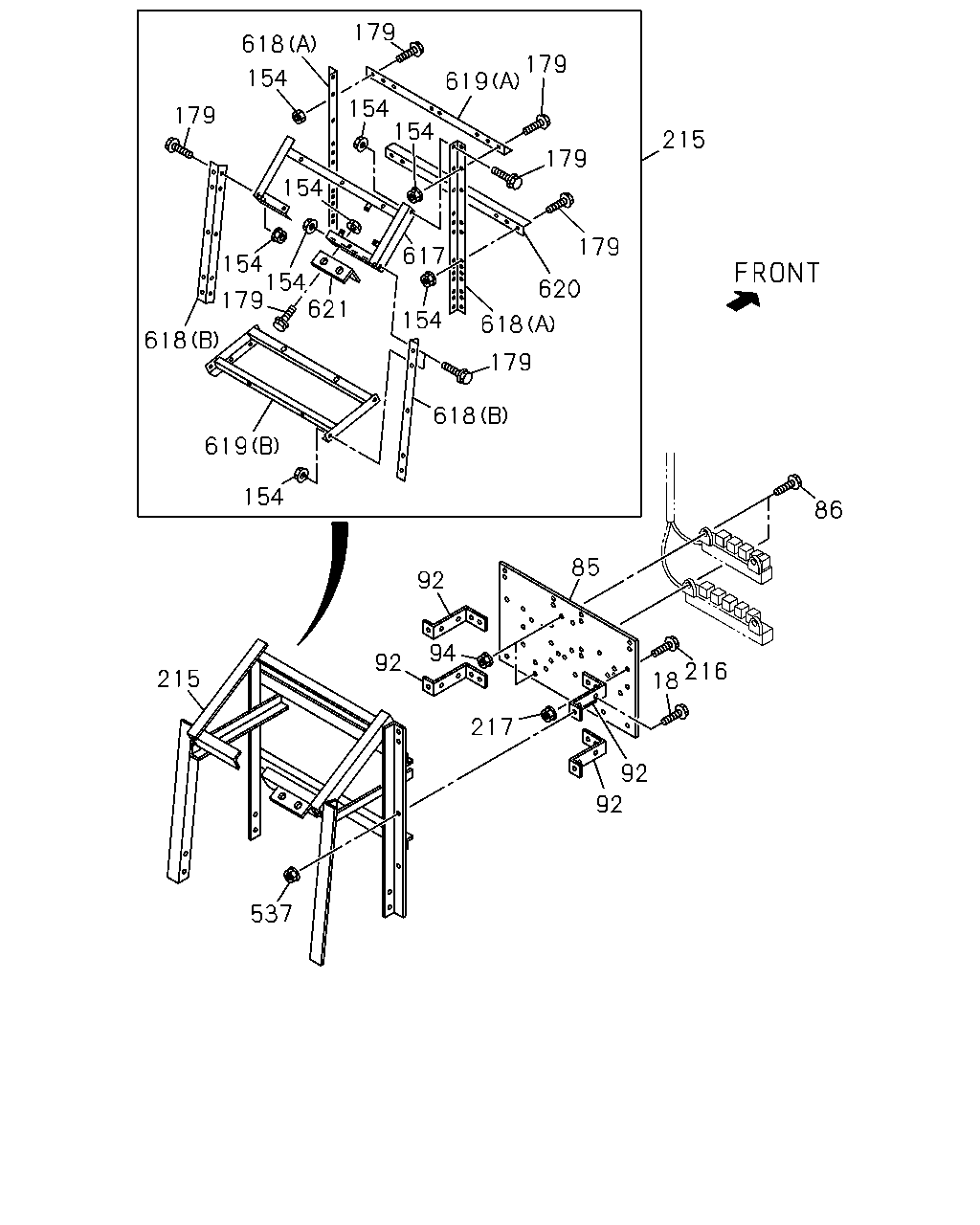

7-40 — INSTRUMENT PANEL AND BOX
(#8501) — 26 parça
179
618
179
154
619
154
154
179
215
179
154
179
617
154
154
154
179
621
620
618
618
179
618
619
154
86
85
92
94
92
216
18
215
217
92
92
537
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
04
1
9912-0512
18
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0601-
85
PANEL; ELEC
1-65600-484-2
01
1
9912-
86
BOLT; ELEC PNL
M8X25 FLANGE
0-28680-825-0
04
1
9912-0512
86
BOLT; ELEC PNL
M8X25 FLANGE
0-28650-825-0
04
1
0601-
92
BRACKET; ELEC PANEL
8-94300-644-3
04
1
9912-
94
NUT; PANEL BRKT
M8 FLANGE
0-91150-108-0
04
1
9912-0602
94
NUT; PANEL BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
154
NUT
M10
9-09110-510-0
14
1
9912-0512
154
NUT
M10
0-91110-510-0
14
1
0601-
179
BOLT; STAY,INST PANEL
M10X20 FLANGE
0-28081-020-0
14
1
9912-0512
179
BOLT; STAY,INST PANEL
M10X20 FLANGE
0-28051-020-0
14
1
0601-
215
BOARD ASM; DASH
1-65600-628-3
01
1
9912-
216
BOLT; DASH BOARD
M10X30 FLANGE
0-28681-030-0
08
1
9912-0512
216
BOLT; DASH BOARD
M10X30 FLANGE
0-28651-030-0
08
1
0601-
217
NUT; DASH BOARD
M10 FLANGE
0-91150-210-0
08
1
9912-0602
217
NUT; DASH BOARD
M10 FLANGE
0-91180-210-0
08
1
0603-
537
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
9912-0602
537
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
617
STAY; DASH BOARD
1-65600-635-2
01
1
9912-
618
STAY; PEDAL BOARD
(A)
1-65600-631-0
02
1
9912-
618
STAY; PEDAL BOARD
(B)
1-65600-632-0
02
1
9912-
619
STAY; PEDAL BRKT
(A)
1-65600-467-2
01
1
9912-
619
STAY; PEDAL BRKT
(B)
1-65600-630-1
01
1
9912-
620
STAY; BACK MIRROR
1-65600-467-2
01
1
9912-
621
PEDAL; IDLING CONT
1-65600-633-1
01
1
9912-
