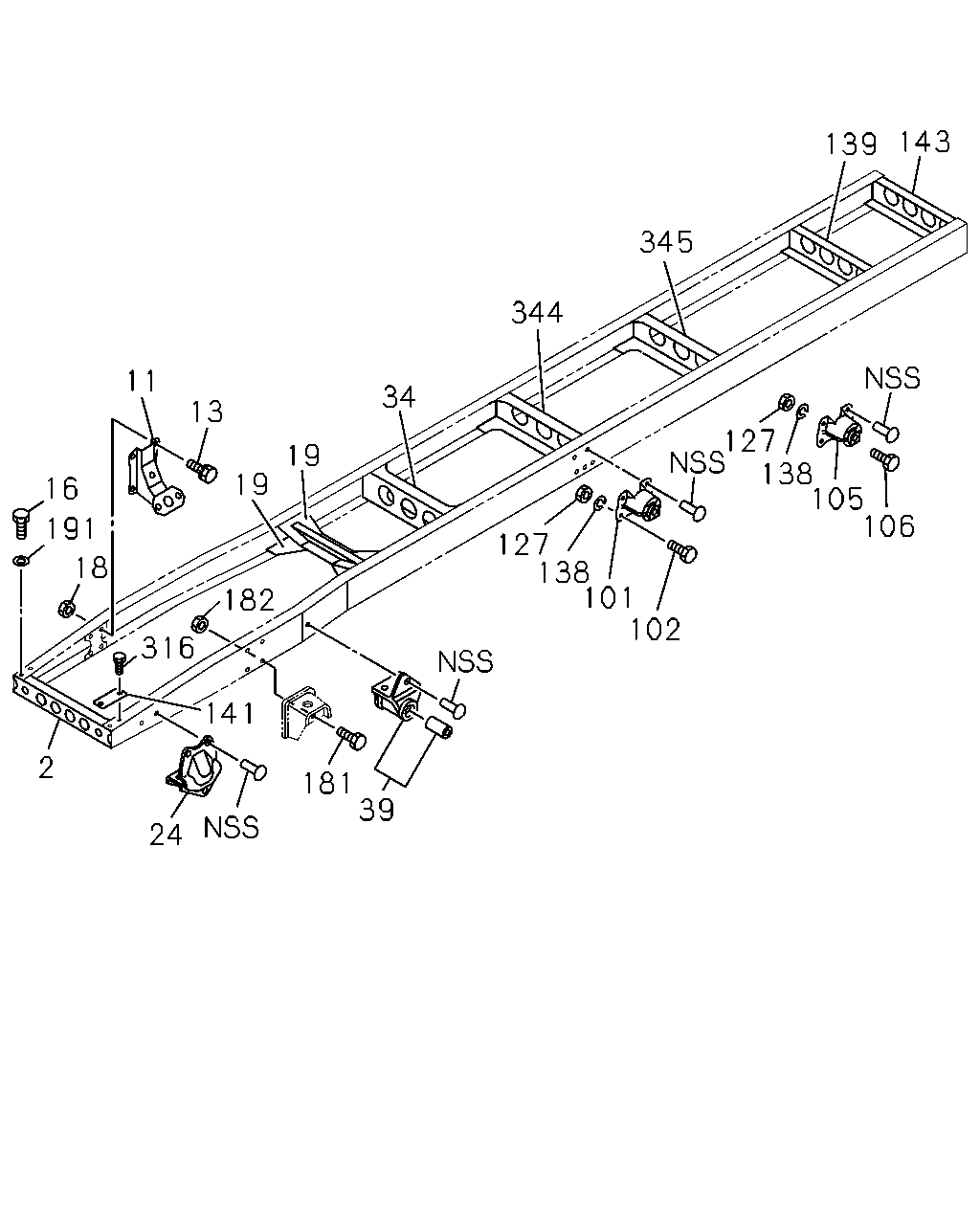

5-01 — FRAME AND OTHER PARTS
(#8492) — 37 parça
143
139
345
344
11
34
13
127
138
105
106
19
19
16
191
127
138
101
102
18
182
141
316
2
181
39
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53173-036-1
01
1
9912-
11
BRACKET; ENG MTG
1-53211-195-0
02
1
9912-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28691-235-0
08
1
9912-0512
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0601-
16
BOLT; 1ST C/MBR TO S/MBR
M14X30
9-92061-430-0
12
1
9912-0512
16
BOLT; 1ST C/MBR TO S/MBR
M14X30
0-20951-430-0
12
1
0601-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91150-212-0
08
1
9912-0602
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0603-
19
MEMBER; CROSS,2ND
UPPER
1-53175-320-1
01
1
9912-
19
MEMBER; CROSS,2ND
LOWER
1-53175-321-3
01
1
9912-
24
BRACKET; FRT SPR,FRT
1-53351-141-0
02
1
9912-
34
MEMBER; CROSS,3RD
1-53171-005-1
01
1
9912-
39
BRACKET; FRT SPR,RR
1-53352-019-1
01
1
9912-
39
BRACKET; FRT SPR,RR
1-53352-017-1
01
1
9912-
101
BRACKET; RR SPR,FRT
1-53353-076-1
02
1
9912-
102
BOLT; BRKT,RR SPR
M14X40
0-20801-440-0
10
1
9912-0512
102
BOLT; BRKT,RR SPR
M14X40
0-20851-440-0
10
1
0601-
105
BRACKET; RR SPR,RR
1-53353-076-1
02
1
9912-
106
BOLT; BRKT
M14X40
0-20801-440-0
10
1
9912-0512
106
BOLT; BRKT
M14X40
0-20851-440-0
10
1
0601-
127
NUT; BRKT
9-99110-414-0
20
1
9912-0512
127
NUT; BRKT
M14
0-91110-514-0
20
1
0601-
138
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
20
1
9912-0603
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
20
1
0604-
139
MEMBER; CROSS,6TH
1-53171-005-1
01
1
9912-
141
STIFFENER
1-53173-037-0
01
1
9912-
143
MEMBER; CROSS,7TH
1-53181-045-0
01
1
9912-
181
BOLT; S/ABS BRKT TO FRAME
M10X25 FLANGE
0-28081-025-0
08
1
9912-0512
181
BOLT; S/ABS BRKT TO FRAME
M10X25 FLANGE
0-28051-025-0
08
1
0601-
182
NUT; S/ABS BRKT TO FRAME
M10 FLANGE
0-91150-110-0
08
1
9912-0602
182
NUT; S/ABS BRKT TO FRAME
M10 FLANGE
0-91180-110-0
08
1
0603-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
9-09651-069-0
12
1
9912-1201
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
8-98010-627-1
12
1
1202-
316
BOLT; STIFFENER
M8X20 FLANGE
0-28080-820-0
02
1
9912-0512
316
BOLT; STIFFENER
M8X20 FLANGE
0-28050-820-0
02
1
0601-
344
MEMBER; CROSS,4TH
1-53171-005-1
01
1
9912-
345
MEMBER; CROSS,5TH
1-53171-005-1
01
1
9912-
