Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

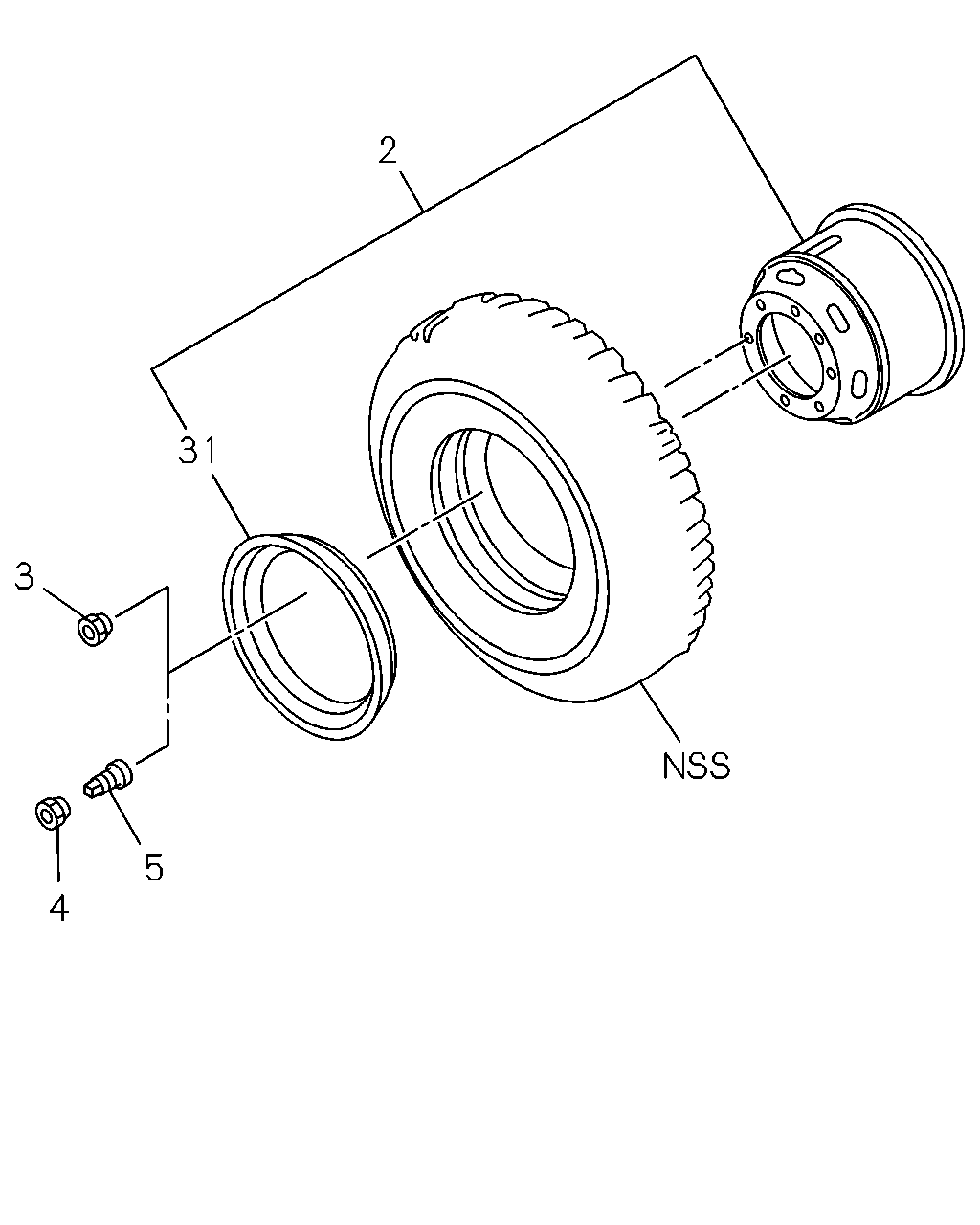

4-80 — ROAD WHEEL
(#8491) — 14 parça
2
31
3
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
1-42350-116-1
06
1
9912-
2
WHEEL; DISC
DISC WHEEL SPARE<N79>
1-42350-116-1
01
1
9912-
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD
1-42334-021-0
06
1
9912-
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD
1-42333-021-0
06
1
9912-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
1-42334-023-0
06
1
9912-0610
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0611-
4
NUT; WHEEL,RR AXLE
M30
1-42333-023-0
06
1
9912-0610
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
1-42336-005-1
06
1
9912-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0611-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
1-42335-005-1
06
1
9912-0610
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0611-
31
RING; SIDE,DISC WHEEL
1-42355-002-0
06
1
9912-
31
RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>
1-42355-002-0
01
1
9912-
