8-80 — WINDSHIELD WIPER AND WASHER (#849) — 82 parça

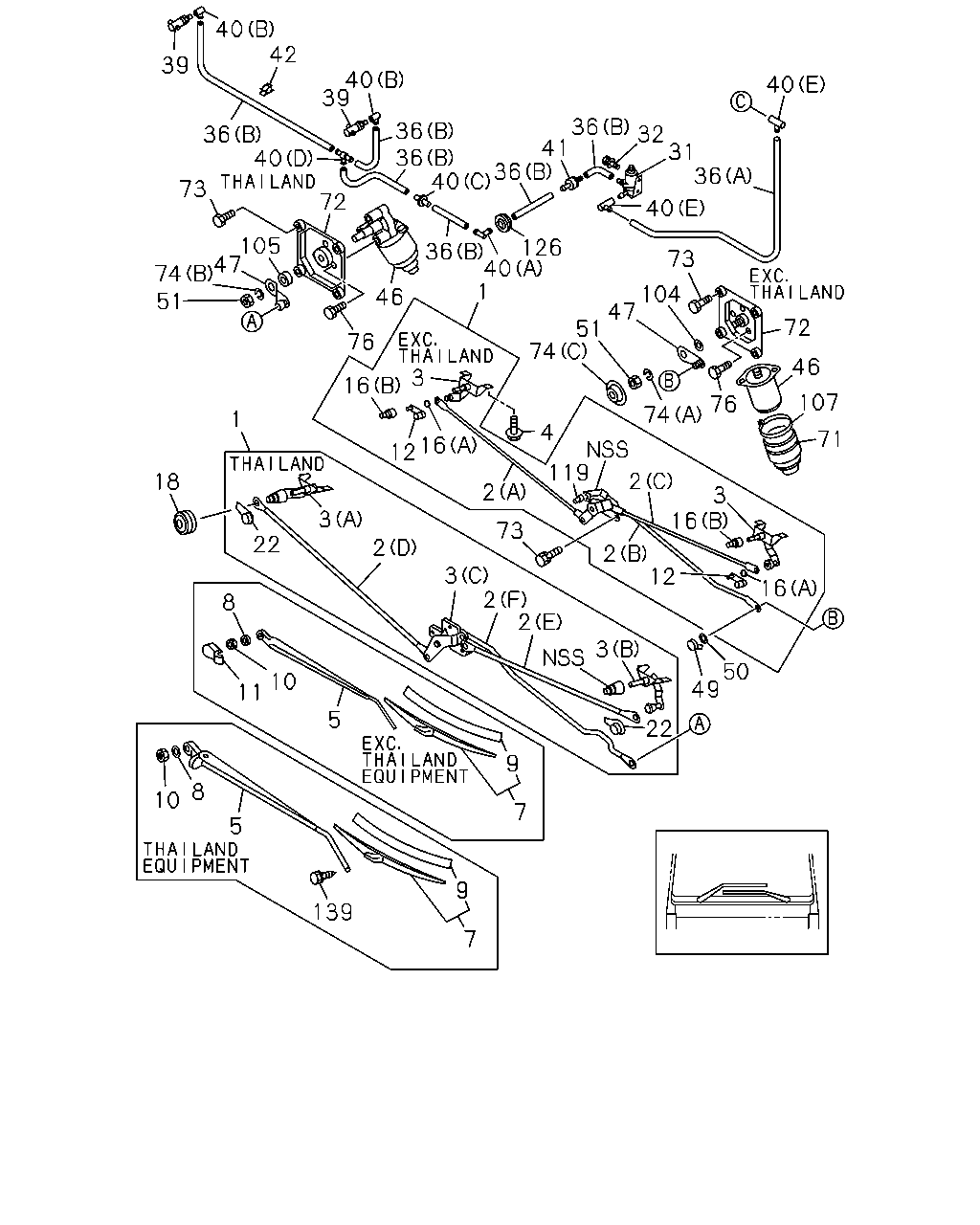

çizim 27395
39 42 40 39 40 36 36 51 74 47 105 72 40 73 36 76 46 36 126 40 1 40 36 41 36 32 31 36 40 40 73 72 46 107 71 76 74 74 51 47 104 3 16 12 16 4 119 2 16 3 16 12 2 73 2 1 18 22 3 2 3 2 2 3 50 49 22 9 7 9 7 139 5 8 10 5 10 11 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
THAILAND EQUIPMENT(PM9) 		1-83312-053-3 01 1 9202- ● ●
1 LINK ASM; FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83312-057-2 01 1 9202- ● ●
2 LINK; FRT WIPER
THAILAND EQUIPMENT(PM9) (D) 		1-83312-064-0 01 1 9202- ● ●
2 LINK; FRT WIPER
THAILAND EQUIPMENT(PM9) (E) 		1-83312-065-0 01 1 9202- ● ●
2 LINK; FRT WIPER
THAILAND EQUIPMENT(PM9) (F) 		1-83312-066-0 01 1 9202- ● ●
2 LINK; FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) (C) 		1-83312-060-0 01 1 9202- ● ●
2 LINK; FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) (A) 		1-83312-061-0 01 1 9202- ● ●
2 LINK; FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) (B) 		1-83312-062-0 01 1 9202- ● ●
3 PIVOT ASM; FRT WIPER
THAILAND EQUIPMENT(PM9) (A) 		1-83313-060-2 01 1 9202- ● ●
3 PIVOT ASM; FRT WIPER
THAILAND EQUIPMENT(PM9) (B) 		1-83313-061-2 01 1 9202- ● ●
3 PIVOT ASM; FRT WIPER
THAILAND EQUIPMENT(PM9) (C) 		1-83313-062-2 01 1 9202- ● ●
3 PIVOT ASM; FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83313-069-0 02 1 9202- ● ●
4 BOLT; WIPER LINK TO BODY
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9202- ● ●
5 ARM; WIPER
THAILAND EQUIPMENT(PM9) 		1-83314-098-0 01 1 9202- ● ●
5 ARM; WIPER
THAILAND EQUIPMENT(PM9) 		1-83314-097-0 01 1 9202- ● ●
5 ARM; WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83314-075-0 01 1 9202- ● ●
5 ARM; WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83314-074-0 01 1 9202- ● ●
7 BLADE; WIPER
THAILAND EQUIPMENT(PM9) 		1-83315-027-0 02 1 9202- ● ●
7 BLADE; WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83315-028-0 02 1 9202- ● ●
8 WASHER; LK,PIVOT
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
9 RUBBER; FRT WIPER BLADE
THAILAND EQUIPMENT(PM9) 		1-83355-004-0 02 1 9202- ● ●
9 RUBBER; FRT WIPER BLADE
EXC. THAILAND EQUIPMENT(PM9) 		1-83355-003-0 02 1 9202- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		9-09111-410-0 02 1 9202- ● ●
11 COVER; WIPER ARM
EXC. THAILAND EQUIPMENT(PM9) 		1-83319-015-0 02 1 9202- ● ●
12 RETAINER; BALL JOINT,FRT WIPER LINK
EXC. THAILAND EQUIPMENT(PM9) 		1-83318-026-0 03 1 9202- ● ●
16 SEAL; BALL JOINT
EXC. THAILAND EQUIPMENT(PM9) (B) 		1-83318-022-0 02 1 9202- ● ●
16 SEAL; BALL JOINT
EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94235-628-0 03 1 9202- ● ●
18 GROMMET; WIPER PIVOT HOLE 1-09983-060-1 02 1 9202- ● ●
22 CAP; PIVOT FRT WIPER LINK
THAILAND EQUIPMENT(PM9) 		1-83319-040-0 02 1 9202- ● ●
31 PUMP ASM; WINDSHIELD WASHER 1-83331-005-1 01 1 9202- ● ●
32 BOLT; WASHER PUMP
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
36 HOSE; WASHER
(A) L=10000 		8-94153-780-0 01 1 9202- ● ●
36 HOSE; WASHER
(B) L=10000 		9-09914-906-0 AR 1 9202- ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83334-028-0 02 1 9202- ● ●
40 JOINT; WASHER HOSE
(B) 		1-83338-003-0 02 1 9202- ● ●
40 JOINT; WASHER HOSE
(C) 		1-83338-004-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(D) 3WAY 		1-83338-005-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(A) 		1-83338-006-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(F) 		1-83339-006-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9202- ● ●
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9202- ● ●
41 VALVE; CHECK,WASHER TANK 1-83338-007-1 01 1 9202- ● ●
42 CLIP; WASHER HOSE
1 SET=5 PIECE 		1-09987-214-0 09 1 9202- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
THAILAND EQUIPMENT(PM9) 		1-83311-050-0 01 1 9202- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83311-046-0 01 1 9202- ● ●
47 ARM; CRANK,WIPER MOTOR
THAILAND EQUIPMENT(PM9) 		1-83314-096-0 01 1 9202- ● ●
47 ARM; CRANK,WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83314-091-1 01 1 9202-9203 ● ●
47 ARM; CRANK,WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83314-125-0 01 1 9204- ● ●
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) 		8-94235-628-0 01 1 9202-9203 ● ●
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER
EXC. THAILAND EQUIPMENT(PM9) 		1-83319-035-0 01 1 9204- ● ●
50 RETAINER; BALL JOINT,CRANK ARM,FRT WIP
EXC. THAILAND EQUIPMENT(PM9) 		1-83318-026-0 01 1 9202- ● ●
51 NUT; WIPER MOTOR LINK
THAILAND EQUIPMENT(PM9) 		1-83319-012-0 01 1 9202- ● ●
51 NUT; WIPER MOTOR LINK
EXC. THAILAND EQUIPMENT(PM9) 		9-09111-408-0 01 1 9202- ● ●
71 COVER; WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83319-007-0 01 1 9202-9203 ● ●
72 BRACKET; WIPER MOTOR
THAILAND EQUIPMENT(PM9) 		1-83318-032-0 01 1 9202- ● ●
72 BRACKET; WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83318-029-0 01 1 9202- ● ●
73 BOLT
M6X20 W/LK&PL WASHER 		1-09980-490-0 03 1 9202- ● ●
73 BOLT
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9202- ● ●
74 WASHER; ARM TO MOTOR
THAILAND EQUIPMENT(PM9) (B) 		1-83319-011-0 01 1 9202- ● ●
74 WASHER; ARM TO MOTOR
EXC. THAILAND EQUIPMENT(PM9) (C) 		1-83319-005-1 01 1 9202- ● ●
74 WASHER; ARM TO MOTOR
EXC. THAILAND EQUIPMENT(PM9) (A) 		9-09150-508-0 01 1 9202- ● ●
76 SCREW; BRKT TO WIPER MOTOR
THAILAND EQUIPMENT(PM9) 		1-83319-010-0 03 1 9202- ● ●
76 SCREW; BRKT TO WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		8-94232-910-0 03 1 9202- ● ●
104 SEAL; ARM,FRT WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83318-020-0 01 1 9202- ● ●
105 CAP; SEALED
THAILAND EQUIPMENT(PM9) 		1-83318-031-0 01 1 9202- ● ●
107 BAND; RUBBER,FRT WIPER MOTOR
EXC. THAILAND EQUIPMENT(PM9) 		1-83319-006-0 01 1 9202-9203 ● ●
119 STOPPER; WIPER LINK
EXC. THAILAND EQUIPMENT(PM9) 		1-83318-030-0 01 1 9202- ● ●
126 GROMMET; FRT WASHER TANK HOSE 1-83338-009-0 01 1 9202- ● ●
139 SCREW; FRT WIPER BLADE
THAILAND EQUIPMENT(PM9) 		1-83319-013-0 04 1 9202- ● ●

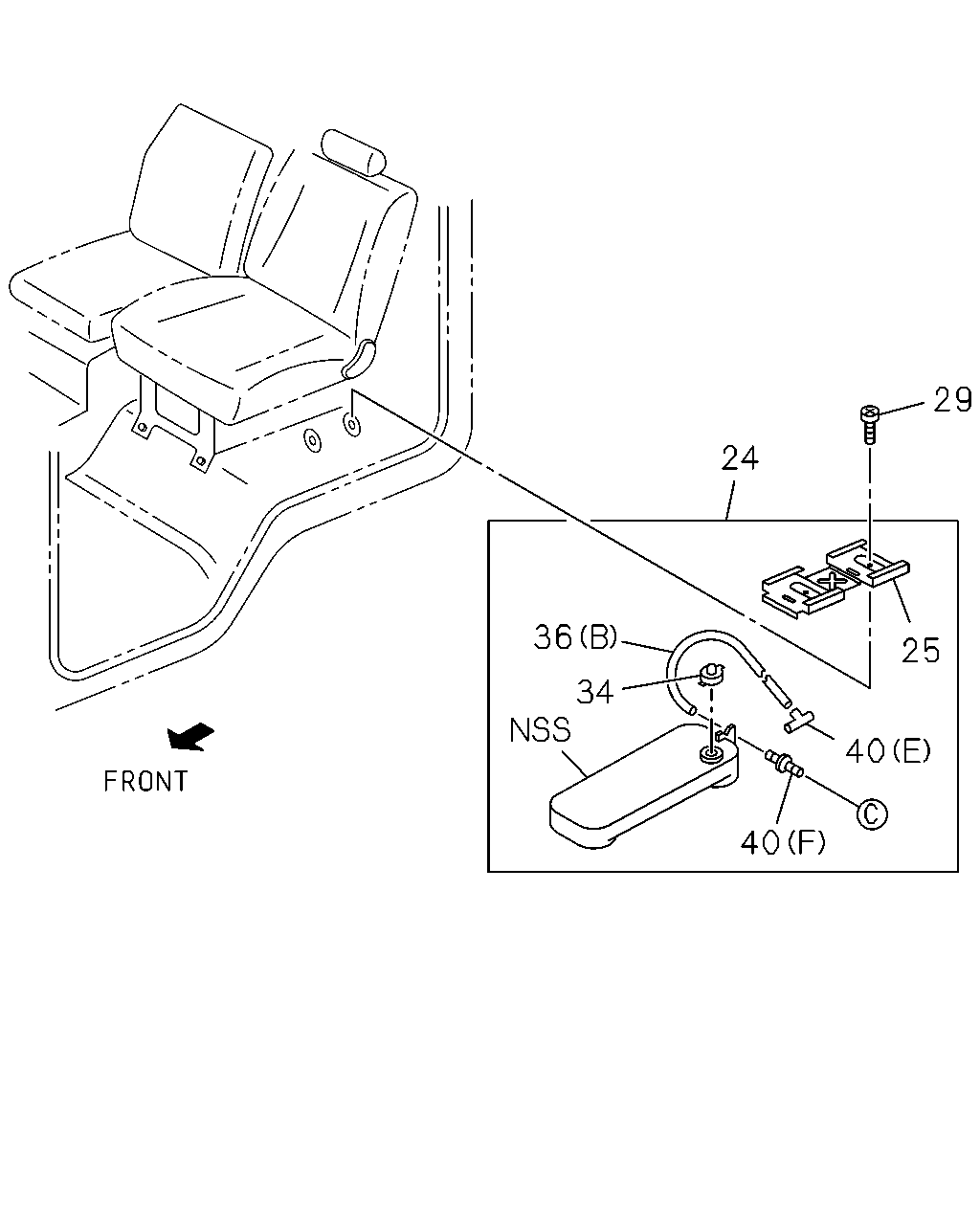

çizim 94573
24 29 25 40 40 34 36
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER 1-83332-022-4 01 1 9202- ● ●
25 BRACKET; WASHER TANK 1-83338-012-1 01 1 9202- ● ●
29 SCREW; WASHER TANK TO BODY
M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9202- ● ●
34 CAP; WASHER TANK 1-83362-013-0 01 1 9202- ● ●
36 HOSE; WASHER
(A) L=10000 		8-94153-780-0 01 1 9202- ● ●
36 HOSE; WASHER
(B) L=10000 		9-09914-906-0 AR 1 9202- ● ●
40 JOINT; WASHER HOSE
(B) 		1-83338-003-0 02 1 9202- ● ●
40 JOINT; WASHER HOSE
(C) 		1-83338-004-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(D) 3WAY 		1-83338-005-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(A) 		1-83338-006-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(F) 		1-83339-006-0 01 1 9202- ● ●
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9202- ● ●
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9202- ● ●
