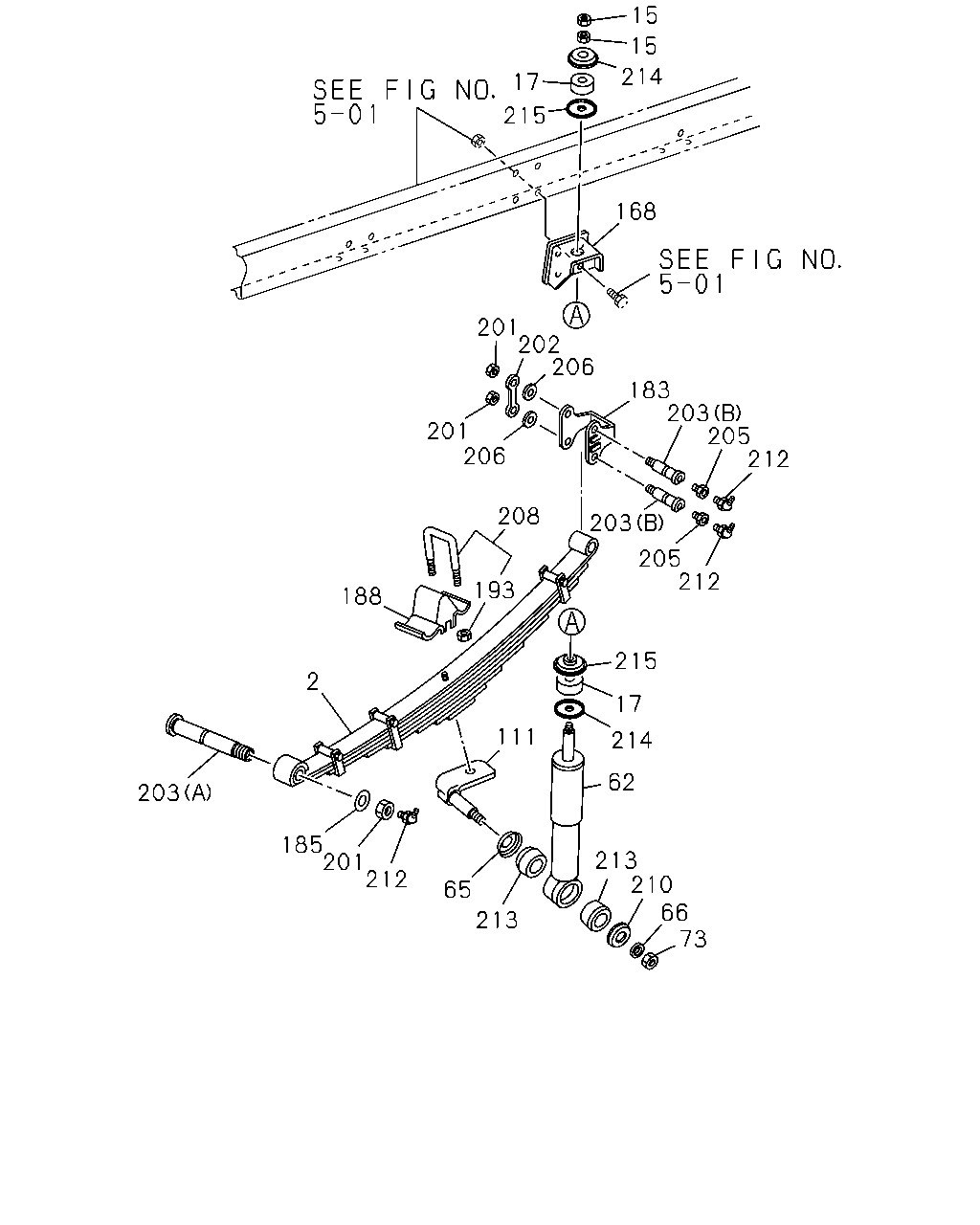

4-50 — FRONT SUSPENSION
(#8486) — 41 parça
15
15
214
17
215
168
201
202
206
183
203
205
212
201
206
208
203
205
212
193
188
215
2
17
111
214
62
203
185
201
212
213
210
66
73
65
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
1-51110-662-1
02
1
9912-
15
NUT; S/ABS,UPR
M12
1-09400-006-0
04
1
9912-0910
15
NUT; S/ABS,UPR
M12
8-98010-412-0
04
1
0911-
17
BUSHING; RUBBER,S/ABS
9-51631-050-0
04
1
9912-
62
ABSORBER ASM; SHOCK,FRT
1-51630-202-0
02
1
9912-1203
62
ABSORBER ASM; SHOCK,FRT
8-98211-393-1
02
1
1204-
65
WASHER; S/ABS
ID=23
1-51631-019-0
02
1
9912-
66
WASHER; LK,S/ABS SETTING
ID=16.2
9-09150-516-0
02
1
9912-0603
66
WASHER; LK,S/ABS SETTING
ID=16.2
0-91510-516-0
02
1
0604-
73
NUT; BRKT,SHOCK
M16
9-99110-416-0
02
1
9912-0512
73
NUT; BRKT,SHOCK
M16
0-91110-516-0
02
1
0601-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-313-0
01
1
9912-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-311-0
01
1
9912-
168
BRACKET; S/ABS,FRT SUSP
1-51681-360-0
02
1
9912-
183
SHACKLE; FRT SUSP
1-51162-028-0
02
1
9912-
185
WASHER; LK,PIN
ID=23
1-51169-003-0
02
1
9912-0910
185
WASHER; LK,PIN
ID=23
8-98010-411-0
02
1
0911-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-056-1
02
1
9912-0409
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
0410-
193
NUT; U BOLT
M14
9-99112-814-0
08
1
9912-0409
193
NUT; U BOLT
M16
1-09440-028-1
08
1
0410-0503
193
NUT; U BOLT
M16
8-94107-767-0
08
1
0504-
201
NUT; PIN LK
M22
9-09111-522-0
06
1
9912-0512
201
NUT; PIN LK
M22
0-91111-522-0
06
1
0601-
202
PLATE; LK,SPR PIN
1-51169-015-0
02
1
9912-
203
PIN; SPR TO SHACKLE
(A)
1-51161-004-3
02
1
9912-0911
203
PIN; SPR TO SHACKLE
(A)
8-98060-335-0
02
1
0912-
203
PIN; SPR TO SHACKLE
(B)
1-51161-005-3
04
1
9912-0911
203
PIN; SPR TO SHACKLE
(B)
8-98060-333-0
04
1
0912-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
9912-
206
WASHER; LK,SPRING PIN
ID=25.5
1-09503-011-0
04
1
9912-0910
206
WASHER; LK,SPRING PIN
ID=25.5
8-98010-404-0
04
1
0911-
208
U-BOLT SET; FRT SPRING
L=165
1-87870-264-2
04
1
9912-0407
208
U-BOLT SET; FRT SPRING
L=165
1-87870-407-0
04
1
0408-0503
208
U-BOLT SET; FRT SPRING
L=165
1-87870-447-0
04
1
0504-
210
WASHER; S/ABS,OUTER
ID=17
1-51631-020-0
02
1
9912-
212
NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
06
1
9912-0512
212
NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
06
1
0601-
213
BUSHING; RUBBER,LWR
1-51631-009-1
04
1
9912-
214
WASHER; S/ABS,UPR,INNER
ID=16.8
1-51631-022-0
04
1
9912-
215
WASHER; S/ABS,UPR,OUTER
ID=14.5
9-51631-051-0
04
1
9912-
